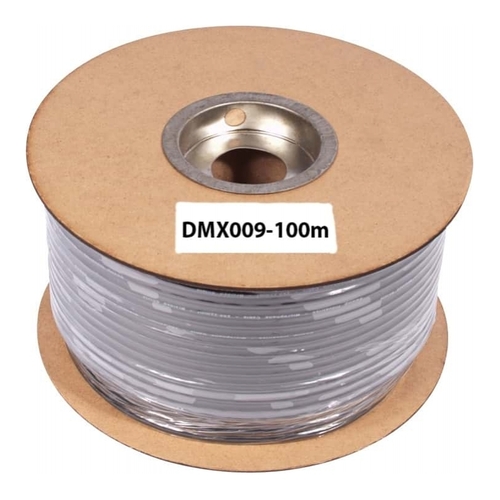

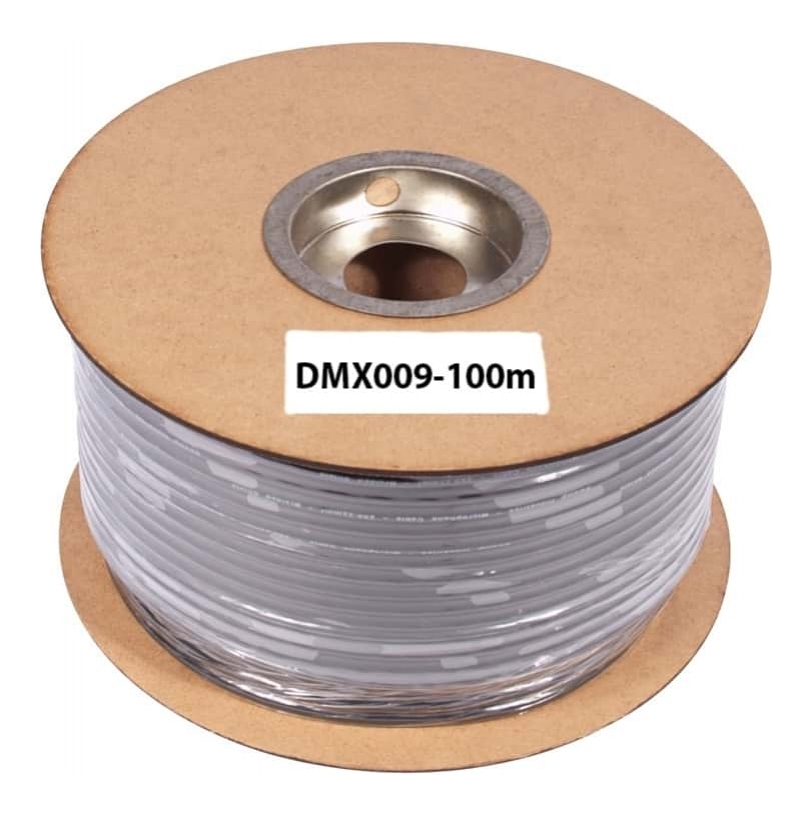

110 Ohm DMX AES/EBU Digital Control Cable - 100m Roll

DMX or AES/EBU Digital Control Cable - 100m Roll
3pin "Digital Lighting" DMX cable. Designed to carry the DMX512 digital data protocol, commonly used for stage lighting and effects equipment such as digital light controllers, consoles, dimmers, lasers and fog machines.

3pin DMX - 110ohm cable - Dual Shielded
Features 3pin XLR connectors and built from 110-ohm rated, thick 22AWG OFC copper conductors suited to carrying DMX (DMX512) digital signals. An outer BRAIDED copper shield plus inner aluminum FOIL shielding around the conductors cores ensures signal integrity and eliminates RFI and EMI interference which can result in DMX errors.

Are regular XLR microphone cables ok to use for DMX signals?
DMX signals are much more vulnerable to interference than analog audio signals. Using a regular mic cable can result in interference reaching the DMX signal causing a range of errors in the controllers and dimmers. A 110-ohm rated cable with either a foil or braided shield should be used (ideally both) for DMX lighting signals to reduce the possibility of interference.

Features:

• Conductor Cores: 2x (19*0.15mm) - 21AWG
• Ground Core: Braided (16*8*0.12mm)
• Extra shield: Aluminum Foil
• Cable Colour: Black
• Outer Diameter: 5.8mm
