3.5mm TRS to XLR(m) - Microphone Cable for 3.5mm Balanced Outputs 150CM

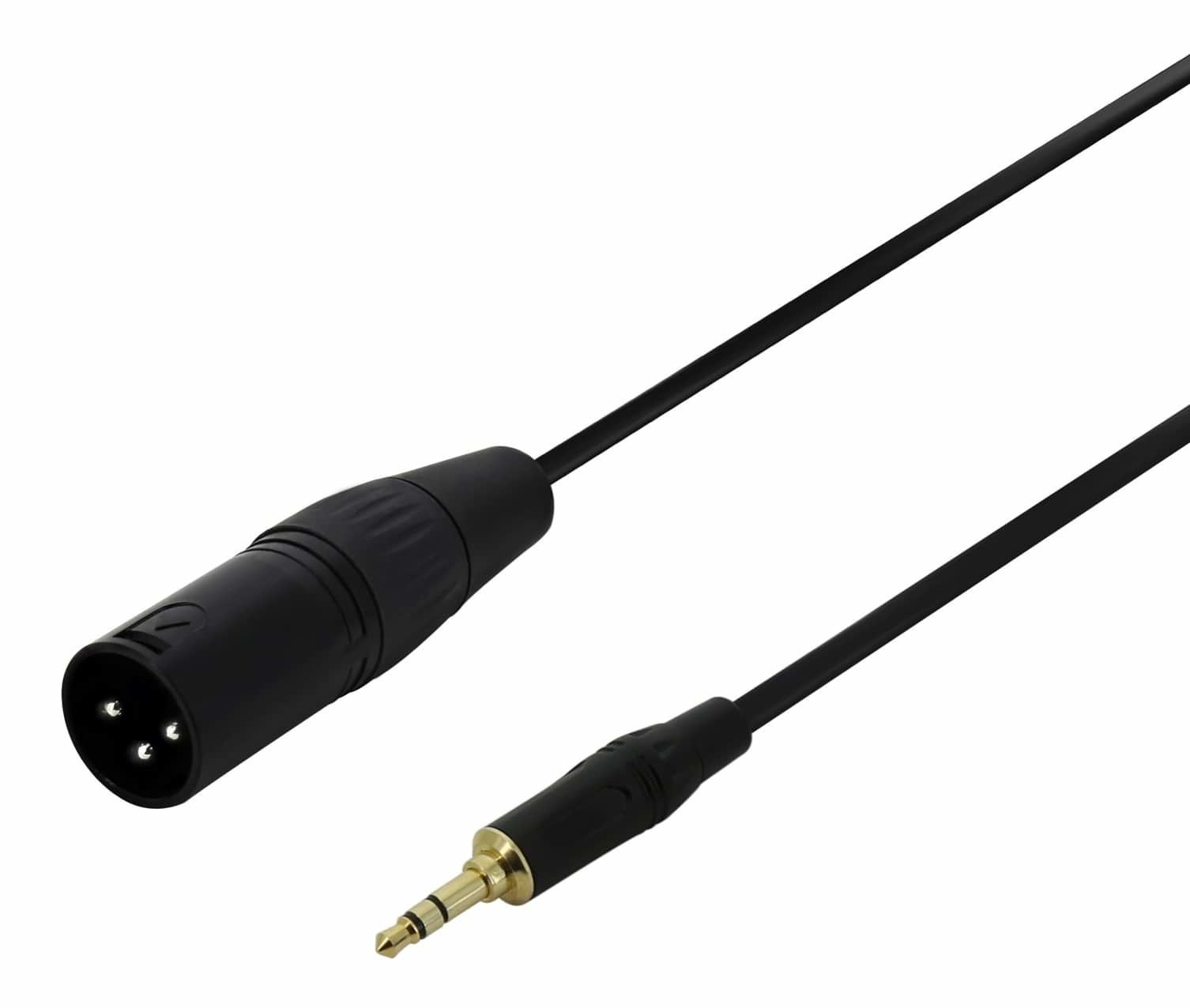

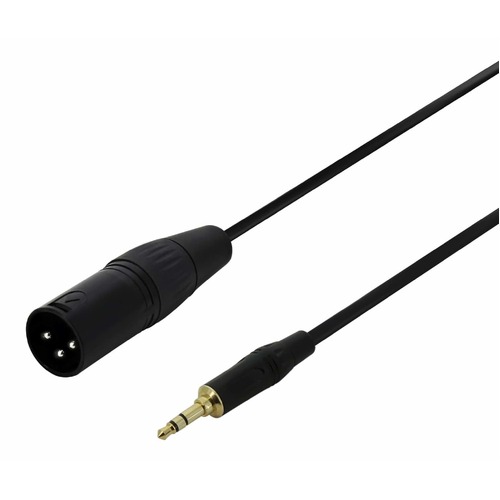

SWAMP Balanced 3.5mm (Mini-Jack) to XLR(m) Cable

Balanced 3.5mm Output to XLR Input
This cable is wired with 2 conductors, and will carry a balanced signal between devices with a 3.5mm output and XLR(male) input.

Important Note - this cable has 'balanced wiring', many users require 'stereo to mono' wiring
This cable is constructed with 'balanced wiring' or standard 'pin to pin' wiring. However, most users requiring this type of cable are connecting a 'stereo output', into a 'mono unbalanced input', therefore a different type of wiring is required to ensure the signal from 3.5mm output, is combined into a mono signal for the mono input. View our 'stereo to mono' wiring version of this cable here.

Quality Cable and Connectors
Our slim 4.4mm diameter cable still had thick 23AWG conductors and tight spiral shield, but has a thinner outer PVC jacket giving the thinner overall diameter. Ideal for patching smartphones and laptops, ensuring the weight of the cable does not pull the plug out of the connector. Using professional quality connectors, OFC conductors and a tight and thorough spiral shield, this cable is designed to transfer your signal without interference and be flexible and withstand the rigours of constant use.

Specifications:

• Cable Colour: Black
• Cable Core: 0.12mm*20*2(Conductors) + 0.12mm*48(Spiral Wrapped Shield)
• Conductor Gauge: 23 AWG / 0.23mm2
• Outer Diameter: 4.4mm
• Connectors: 3pin XLR(m) to 3.5mm TRS (Yongsheng YS137N-B and SWAMP TP180)
• Wiring (standard balanced): (Pin1 - Sleeve, Pin2 - Tip, Pin3 - Ring)

• Length: 150cm
