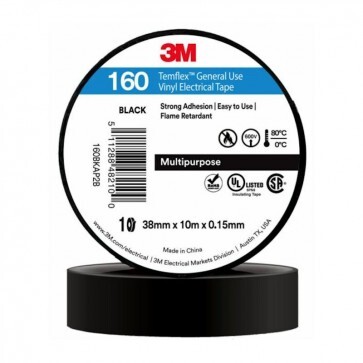

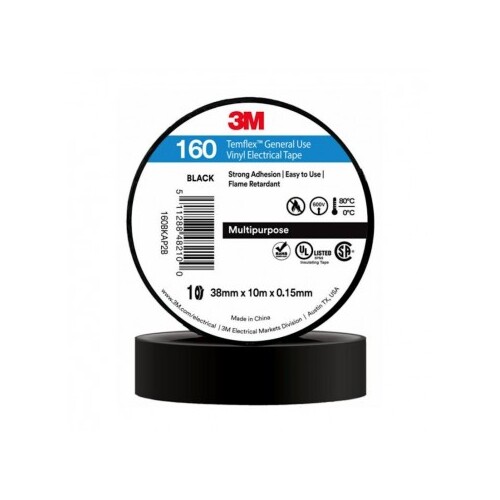

3M TAPE, VINYL ELECTRICAL 160 TEMFLEX, BLACK, 18MM X 20M

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

3M™ Temflex™ Vinyl Electrical Tape 160 is a multi-purpose, general use grade, nominal 0.15 mm thick electrical insulating tape composed of an elastic vinyl (PVC) film backing coated on one side with a non-corrosive, pressure-sensitive adhesive.

FEATURES & BENEFITS

General purpose vinyl tape	Great for less demanding indoor applications
Conformable	Suitable for ambient indoor uses
Basic electrical and hardware application: phase identification; colour coding; harnessing

SPECIFICATIONS

Temperature Resistance (UL510): 0°C - 80°C	Temperature Resistance (CSA C22.2 No.197): -10°C - 80°C
Thickness: 0.15mm	Flame retardant to UL510
Elongation (%): 220	Adhesion to Steel (N/10mm): 2.4
Adhesion to Backing (N/10mm): 2.4	Dielectric Strength (kV/mil): 1.2

CERTIFICATIONS

UL510: Suitable as primary insulation on applications up to 600V at max temperature of 80°C and min temperature of 0°C on joints and splices in wires and cables in accordance with NFPA 70, National Electrical Code	CSA C22.2 No.197: Suitable as primary insulation on applications up to 1000V at max temperature of 80°C and min temperature of -10°C on joints and splices in wires and cables in accordance with Canadian Electrical Code, Part 1
Part No.	3M160-BK
Brand	3M
Unit Of Measure	Roll
Vendor Part Number	AE019500725
Compendium Page #	425 (click to view)
Colour	Black
Dimensions	0.15mm x 18mm x 20m
