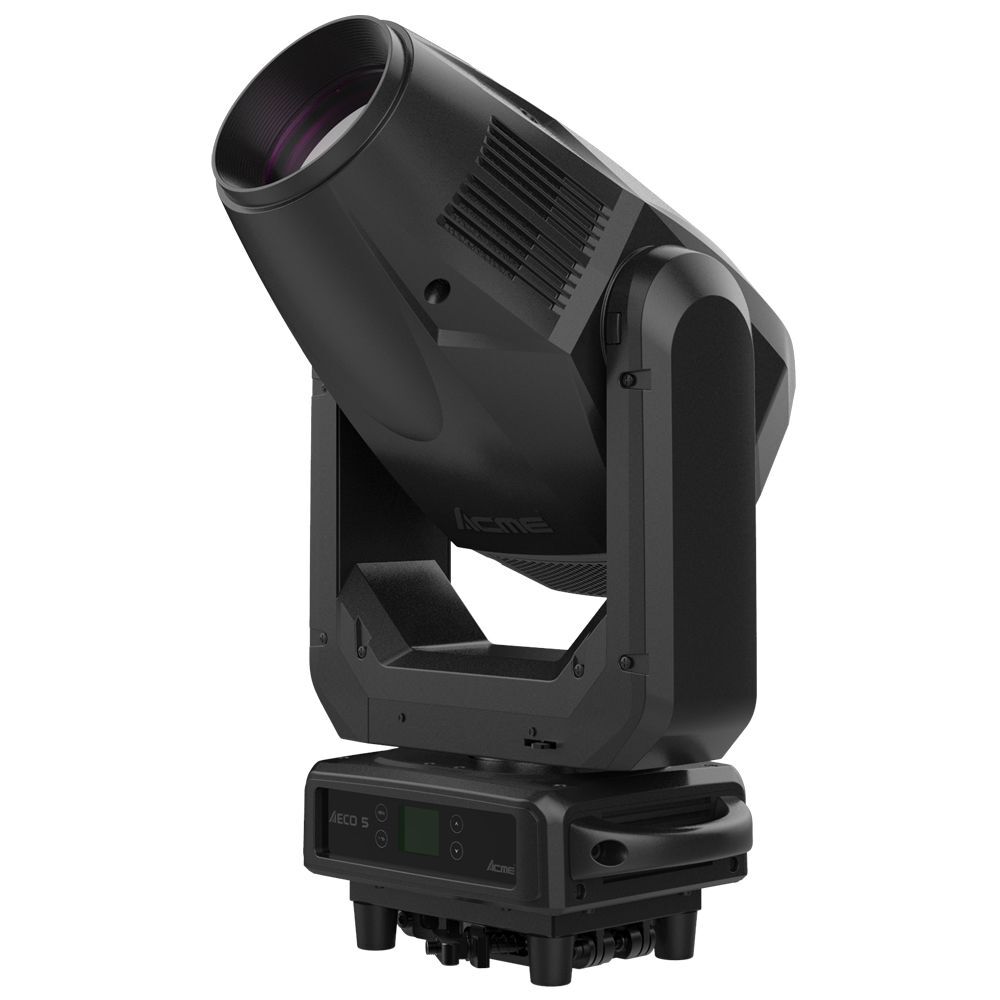

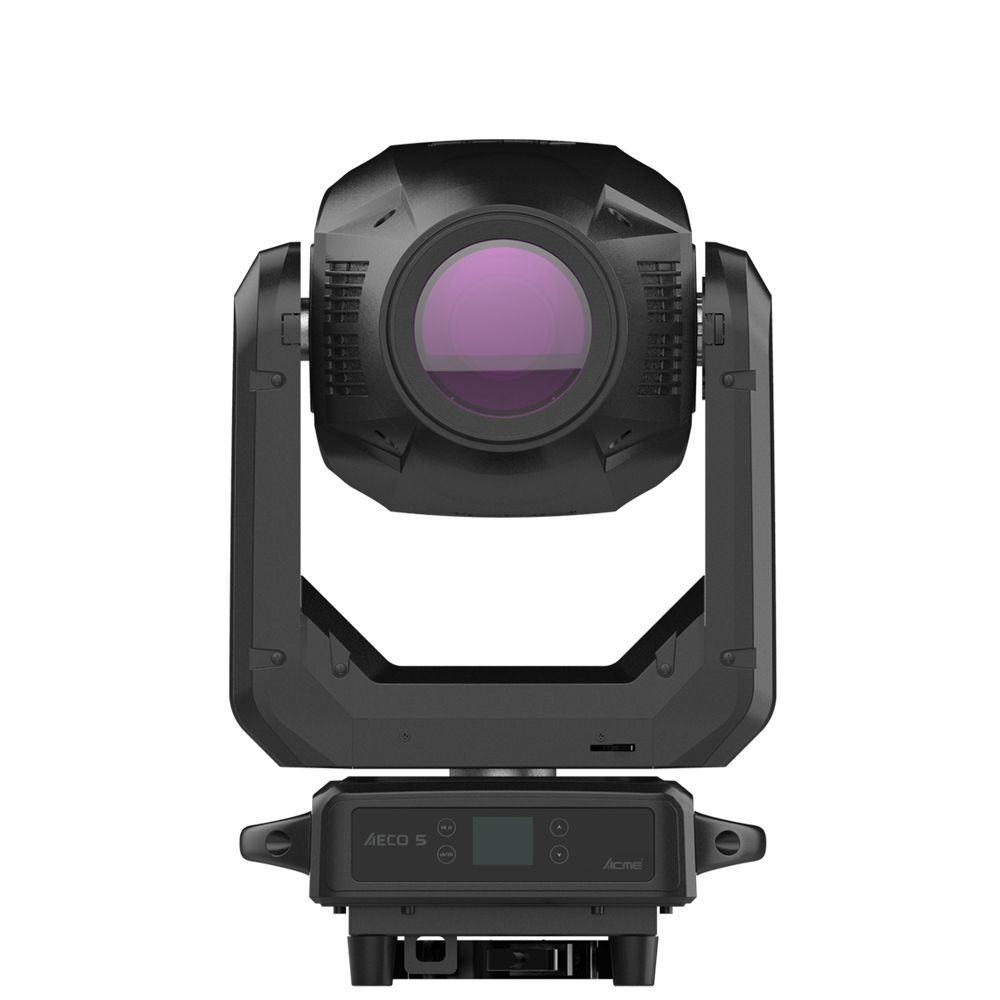

ACME AECO 5 MOVING HEAD



Based on the perfect combination of the light source and advanced optical technology, the ACME AECO 5, featured the innovative 450W HCRI LED engine, was born to light up your every performance at CRI RA≥95 & R9≥90 with no compromise. Behind the 120mm frontal lens, the 6.5-54 degrees 1:9 zoom is smooth and consistent throughout the entire range without any pauses. The compact functional area with 8 fixed gobos,  7 rotating gobos, 6 colors,1 prism, frost, 4 framing shutters, linear CMY&CTO - all is layered to create original and complex effects while maintaining a high luminous flux. Delivering the flat beam with a total lumen output of 13,000lm, the AECO 5 is not only a 4-in-1 hybrid moving head, but also an energy-saving and environmentally friendly partner, which ideal for medium stages, theatres, filming, broadcasting, display, and other applications.

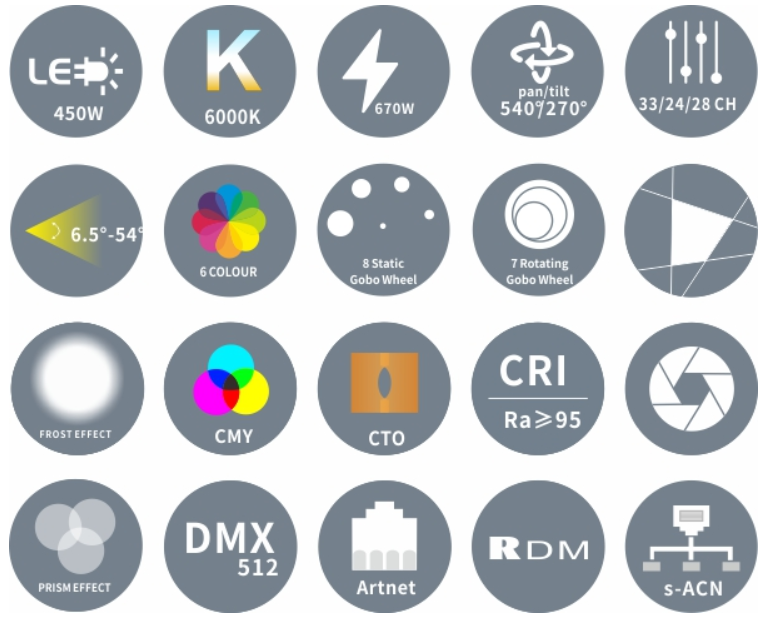

Features

• Fits a 450W LED engine and its front lens is 120mm diameter
• Color Temperature: 6,000K
• Total lumen output up to 13,000 lm
• Color Rendering:
  • Ra≥95,R9≥90,R15≥95
  • TLCI≥95,CCI:0-0.5G
  • TM-30 Rf: 91
  • TM-30 Rg: 99
• Motorized focus
• Linear CMY color mixing
• Variable CTO: 2700K-6000K
• Static gobo wheel: 1 static gobo wheel with 8 gobos
• Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos, convenient replacment
• Color wheel: 1 color wheel with 6 colors
• Prisms: 1pc 4-facet prism rotatable in either direction
• Beam Angle: 6.5°-54°
• Frost: 2 different frost filters to create and improve the wash effect. They can be used independently and overlayed.
• Motorized linear Iris
• Smooth dimming from 0-100%
• Outstanding strobe effect with various speeds
• 4 x fast and smooth framing shutters; The position and the angle of each shutter blade can be controlled individually; Each shutter blade can block out light completely; The framing module can rotate at ±45 degrees.
• 2 x fixed clamps for 50mm truss
• Flicker free management
• Dust-proof and oil-proof design.

Model

• AECO 5



Light Source

• Light Sources: 450W LED engine
• LED life expectancy: 20000 hours



Optical System

• Advanced optical system to ensure image quality, clear and sharp
• High - efficiency optical system， zoom ratio 1:8.3
• Diameter of front lens is 120 mm
• Beam Angle: 6.5°-54°



Control & Program

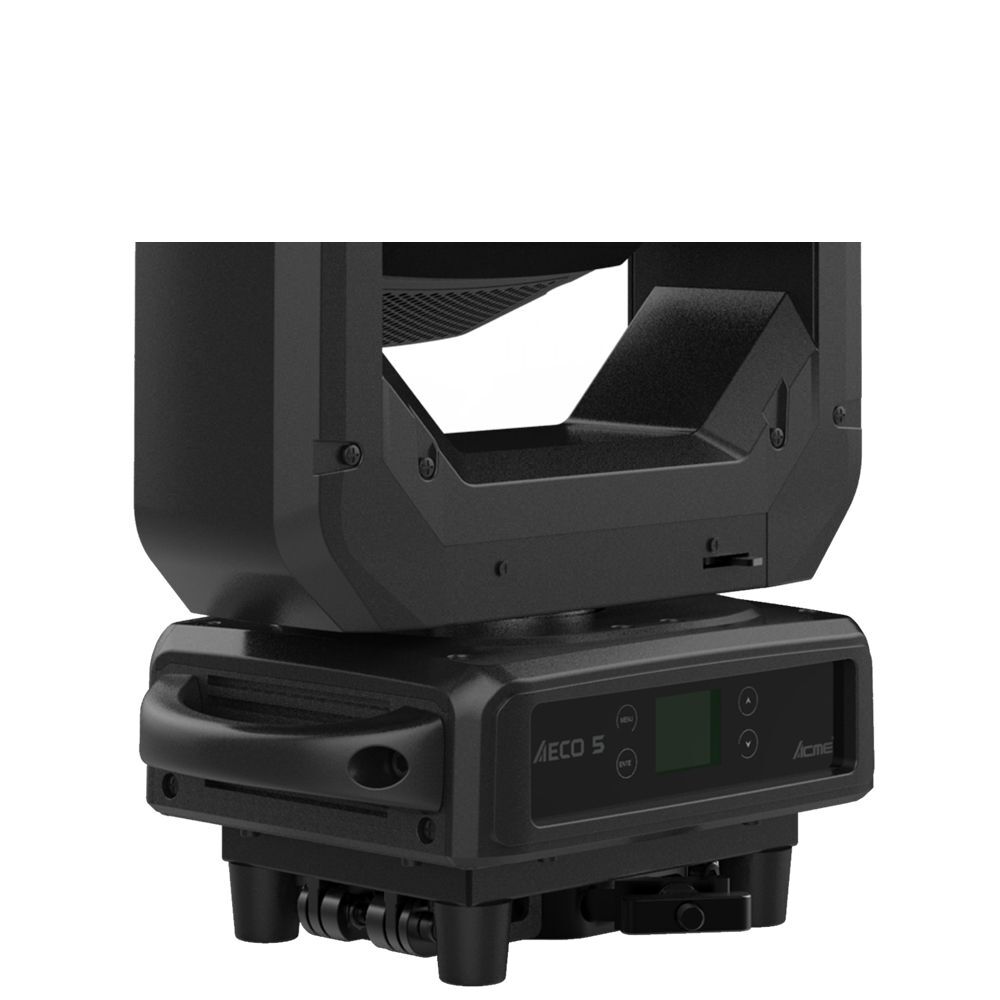

• 4-buttons touch panel
• Display: LCD display
• Protocols: DMX512, RDM, Art-Net, sACN
• DMX Protocol modes: 3
• Control channels: 33,24,28
• Pan/Tilt Resolution: 16-bit
• Firmware Upgrade: Upgrade via DMX link or USB disk



Pan & Tilt

• Pan movement: 540°
• Tilt movement: 270°
• Fixation: Pan/Tilt lock
• Automatic Pan/Tilt position correction



Rotating Gobos

• 1 x rotating gobos, with 7 gobos plus open, convenient replacement
• Image diameter: 17 mm
• Outside diameter: 22.5 mm
• Thickness: 1.1 mm
• Max. thickness: 2.5mm
• borofloat or better glass materials
• Set with "SLOT & LOCK" system for gobos replacement



Static Gobos

• 1 x static gobos with 8 gobos plus open



Color Wheel

• 1 x color wheel with 6 colors plus white



Framing System

• Blade: 4 fast and smooth framing shutters, each shutter blade position and angle can be controlled individually;
• Movement is fast & smooth, with adjustable speed
• Framing shutters can be precise motion with smooth movement
• Each shutter blade can block out light completely, the framing module can be rotated at ±45°



Electrical & Connectors

• Power supply with electronic auto-ranging
• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 670W
• Power In/Out：Power Connector in/out or Power Cord Out

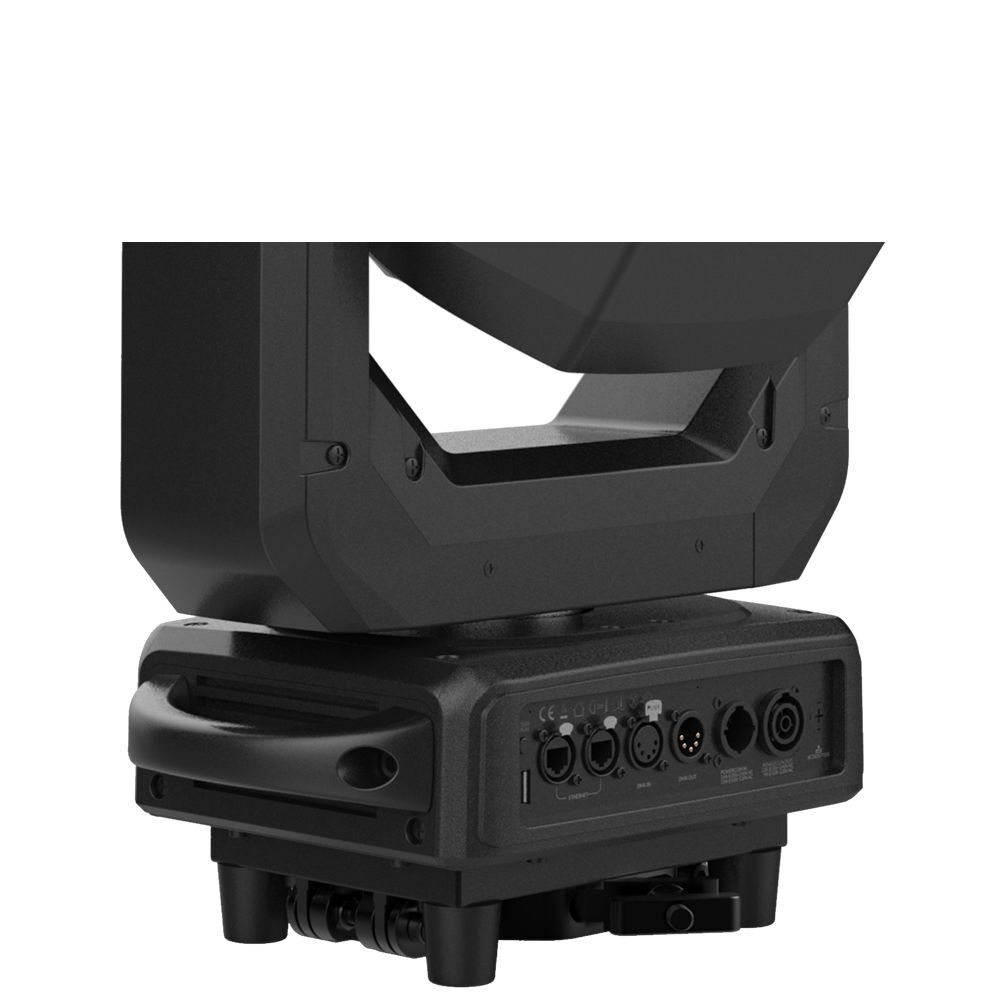

• Data In/Out：3-pin or 5-pin XLR，RJ45

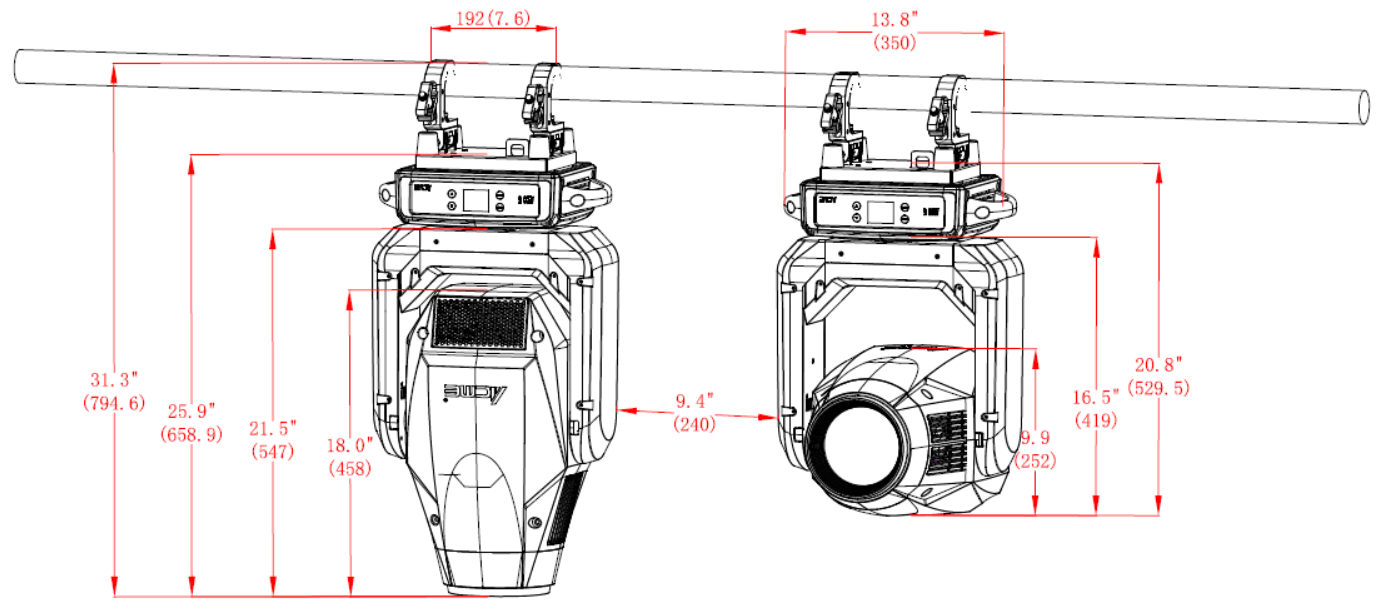

Fixture Specification

• Height: 692 mm (27.2")
• Width: 364 mm (14.3")
• Depth: 252 mm (9.9")
• Weight: 26.5 kg (58.5 lbs)
• Flight Case Dimensions:
  • Height: 575 mm (22.6")
  • Width: 780 mm (30.7")
  • Depth: 890 mm (35.0")
  • Weight: 95.5 kg (210.5) lbs (Dual Loader Case)



Work environment

• Maximum ambient temperature: 40°C
• Maximum surface temperature: 65°C
• Minimum operating temperature: 0°C



Approvals

• CE compliant
• cETLus compliant



Installation

• Horizontally or vertically mounting are available
• Operating position is universal

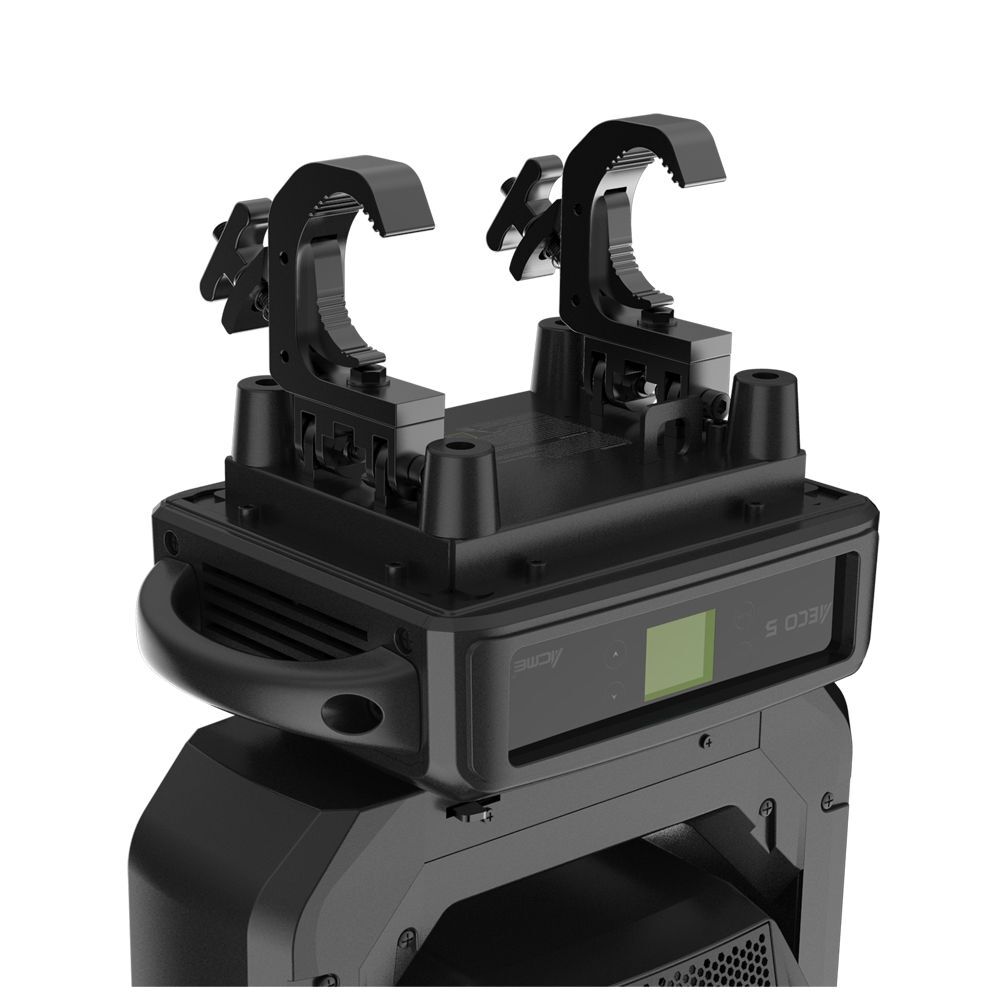

• 2 x Fixed foldable clamps for 50 millimeter truss
• Safety Rope Hole



Included items

• Digital User Manual
• Power Cable
• 2 x Fixed foldable clamps for 50 millimeter truss



Optional Accessories (with item code)

• Raincover: 3033001750
• Safety cable: 2060001603-A(SW-05)
• Signal Line：3-pin or 5-pin signal line
