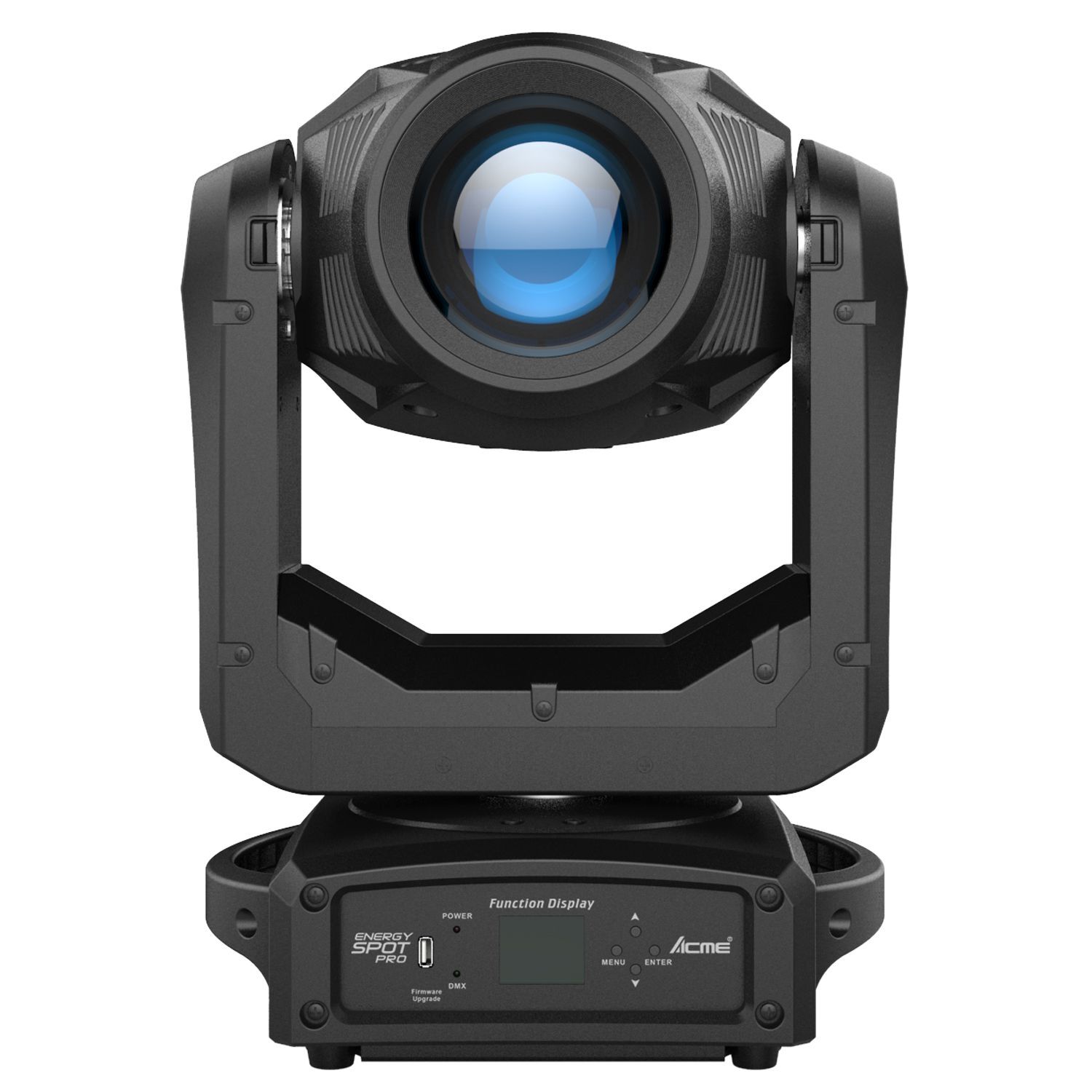

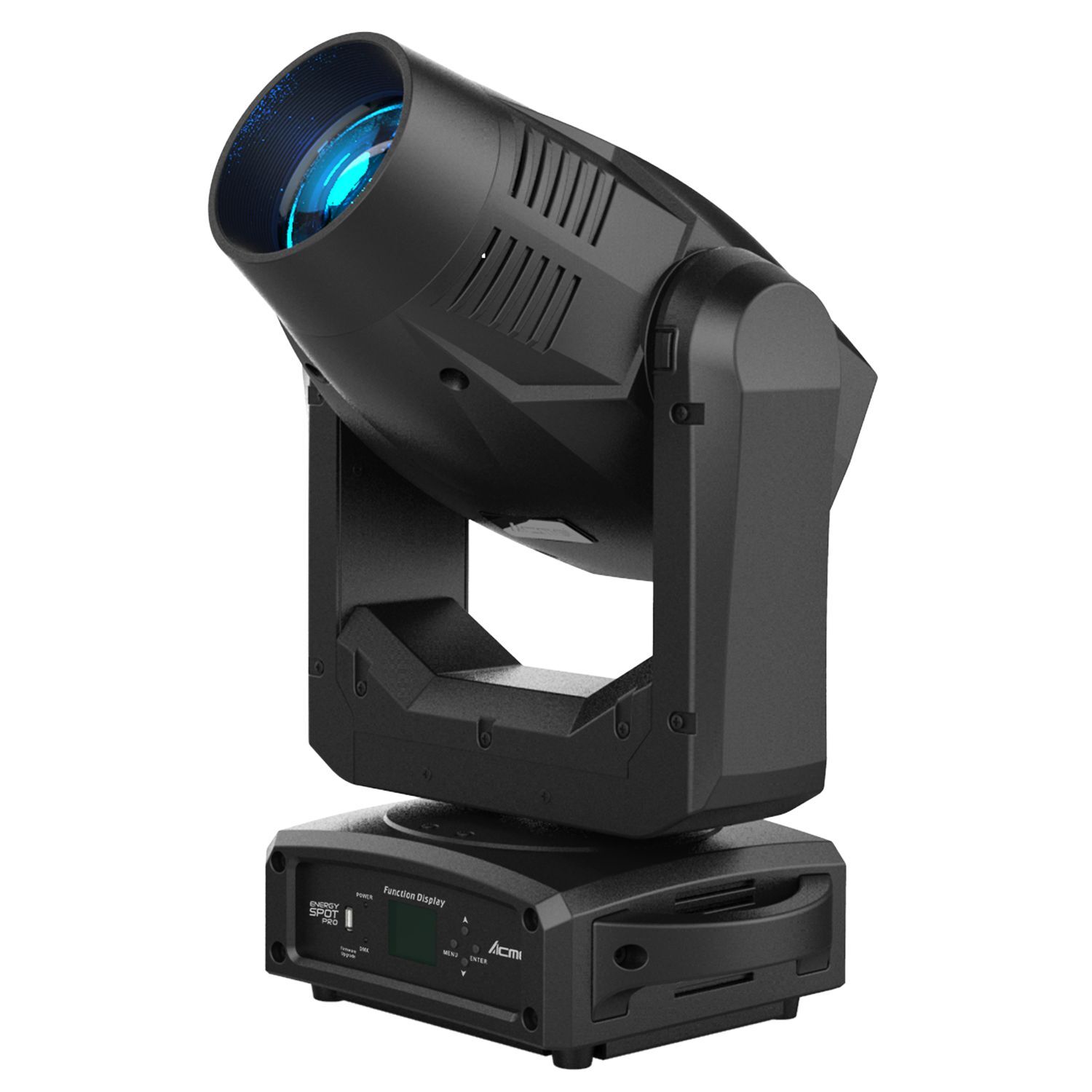

ACME ENERGY SPOT PRO

Functional Overview

ACME is making Energy Spot Pro the smallest, lightest and most efficient luminaire of its LED Spot category. With a record output of 8,400 lumens and a total weight of 20 kgs, Energy Spot Pro is fitting with a compact 270W power, 8,000K CCT LED technology that will tempt the most demanding small to medium lighting application. The optical system delivering a 5.6:1 zoom ratio with a zoom range of 8° to 45°, equipped with one each rotating gobo, static gobo, color wheel, rotating prism and an independent frost lens. The excellent CMY system can produce an extremely uniform color that can render images perfectly in all conditions and at any beam angle.



Features

• Diameter of lens: 113mm
• Included three features: beam, spot, and wash
• Color Temperature: 8000K
• Luminous Flux: 8400lumens
• Beam Angle: 8°~45°
• Linear motorized zoom with wash effect
• Linear CMY color mixing
• Motorized focus
• Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos plus open, convenient replacement
• Static gobo Wheel: 1 static gobo wheel with 9 gobos plus open
• Color Wheel: 1 color wheel with 9 colors plus white
• Prism: 3 - facet prism rotating in both directions
• Motorized linear iris
• Independent frost effect
• Outstanding strobe effect with variable speed
• Flicker free management
• Dust-proof and oil-proof design.

Model

• XA-400 SPOT PRO



Light Source

• Light Source: 1x270W LED
• Beam Angle: 8°~45°
• LED life expectancy: 20000 hours*
  *Source manufacturer specification

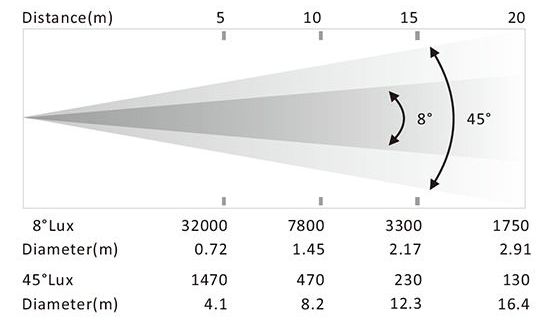

Optical System

• Advanced optical system to ensure image quality, clear and sharp
• High - efficiency zoom optical system, ratio 1:5.6
• Beam Angle: 8°~45°



Control and Program

• 4-buttons
• Display: LCD display
• Protocols: DMX512,RDM
• DMX Protocol modes: 3
• Control channels: 18,22,25
• Pan/Tilt Resolution: 16 bit
• Correct the position of Pan & Tilt accurately and automatically
• Dimmer: 8 bit or 16 bit
• Upgrade the firmware via DMX link & USB



PAN & TILT

• Pan movement: 540°
• Tilt movement: 270°

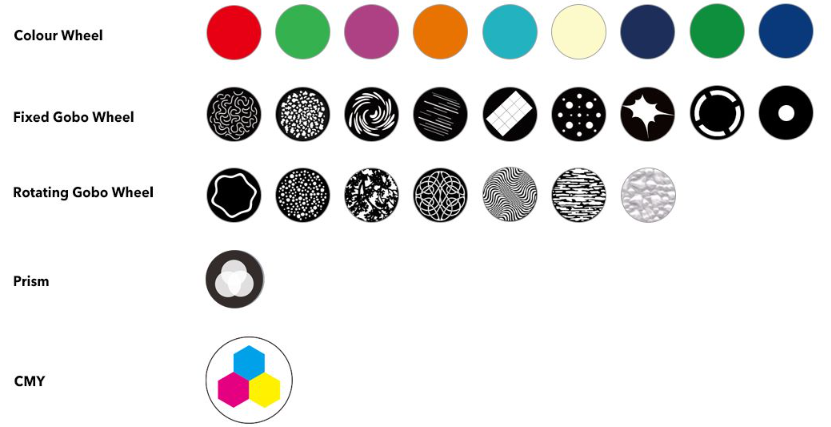

Rotating Gobos

• 1 x rotating gobos with 7 gobos plus open, convenient replacement
• Image diameter: 19 mm
• Outside diameter: 26.8 mm
• Thickness: 1.1 mm
• Max. thickness: 4mm
• borofloat or better glass materials
• Set with "SLOT&LOCK" system for gobos replacement



Static Gobos

• 1 x static gobos with 9 gobos plus open



Color Wheel

• 1 x color wheel with 9 colors plus white

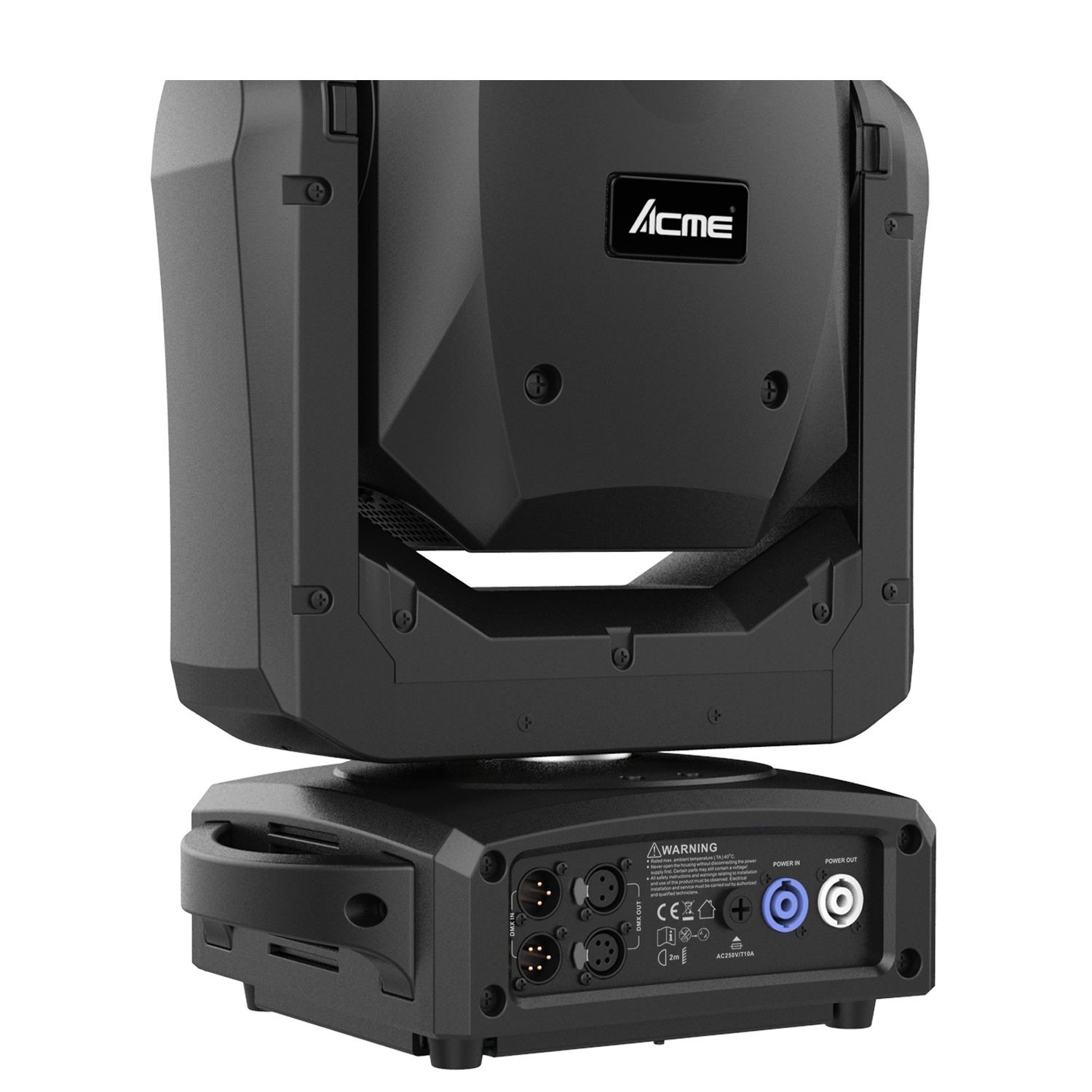

Electrical and Connectors

• Power supply with electronic auto-ranging
• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 420 W
• Power Connector input/output
• Data in/out: 3-pin and 5-pin XLR

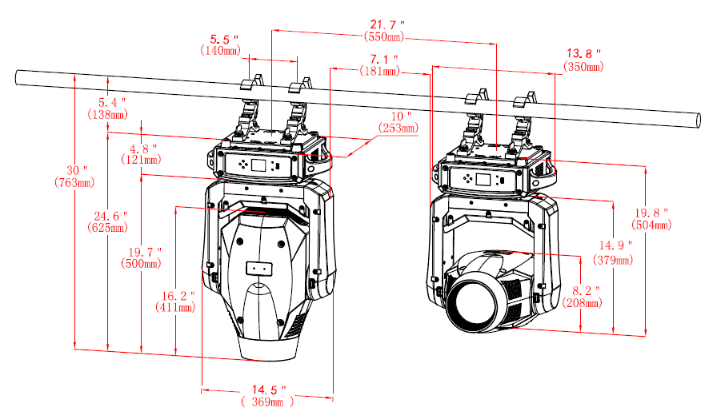

Fixture Specification

• Height: 625 mm (24.6")
• Width: 253 mm (9.9")
• Depth: 369 mm (14.5")
• Weight: 20 kg (44.0 lbs)



Work Environment

• Maximum ambient temperature: 40°C
• Maximum surface temperature: 65°C
• Minimum operating temperature: 0°C



Approvals

• CE Compliant

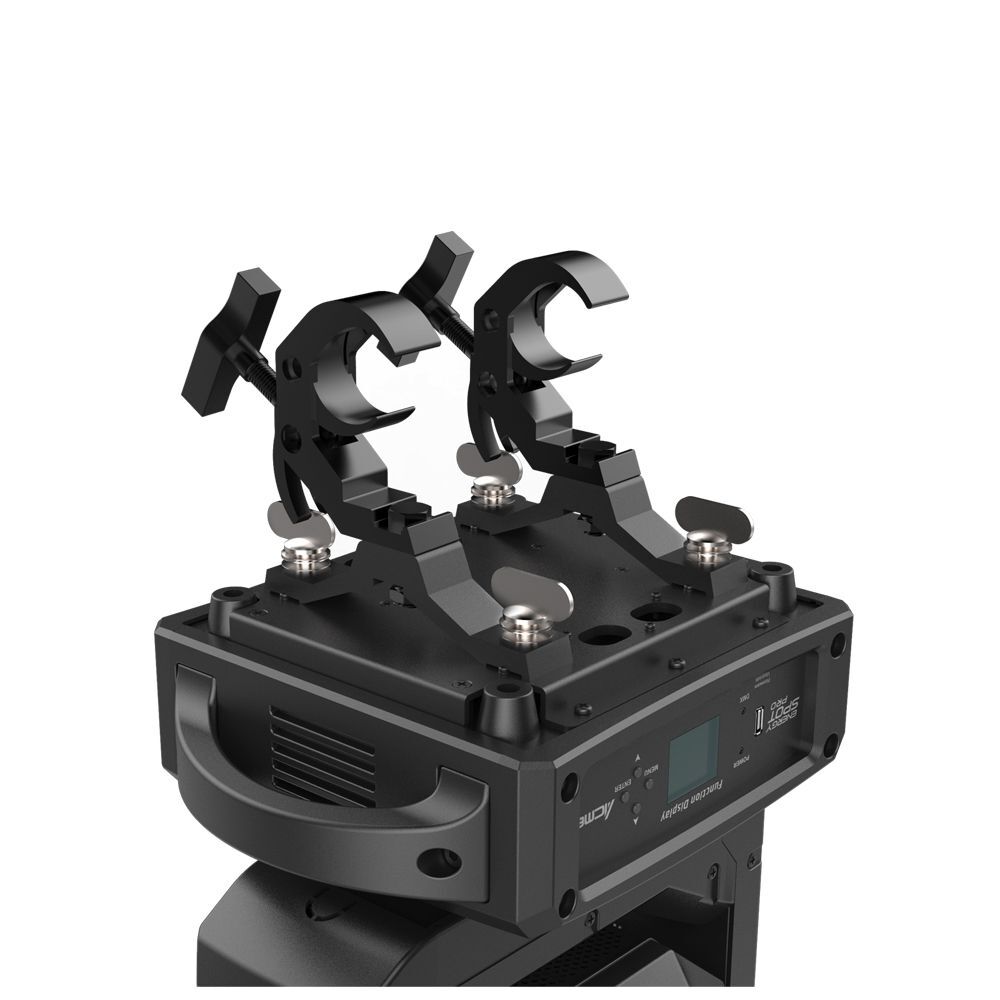

Installation

• Horizontally or vertically mounting are available
• Operating position is universal
• 2 pairs of 1/4-turn locking points under the base
• 2 x fast-locked clamps for 50 millimeter truss
• Safety Rope Hole



Included Items

• Power Cable
• Digital User Manual
• 2 x fast-locked clamps for 50 millimeter truss



Optional Accessories (with item code)

• Flight Case：3205001221（2 in 1）
• Raincover：3033001749
• Clamp：2060001632（C-250B）
• Signal Line：3-pin or 5-pin signal line
• Safety cable: 2060000200（SW-02）
