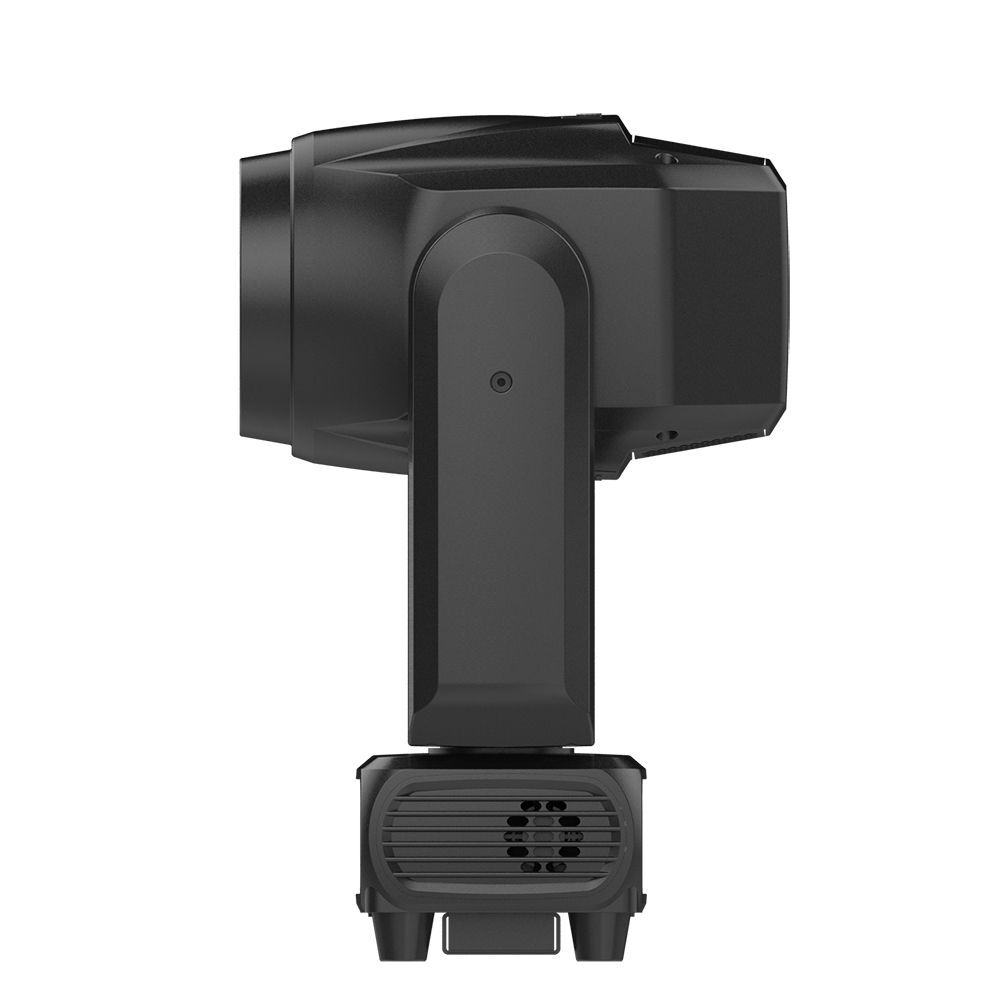

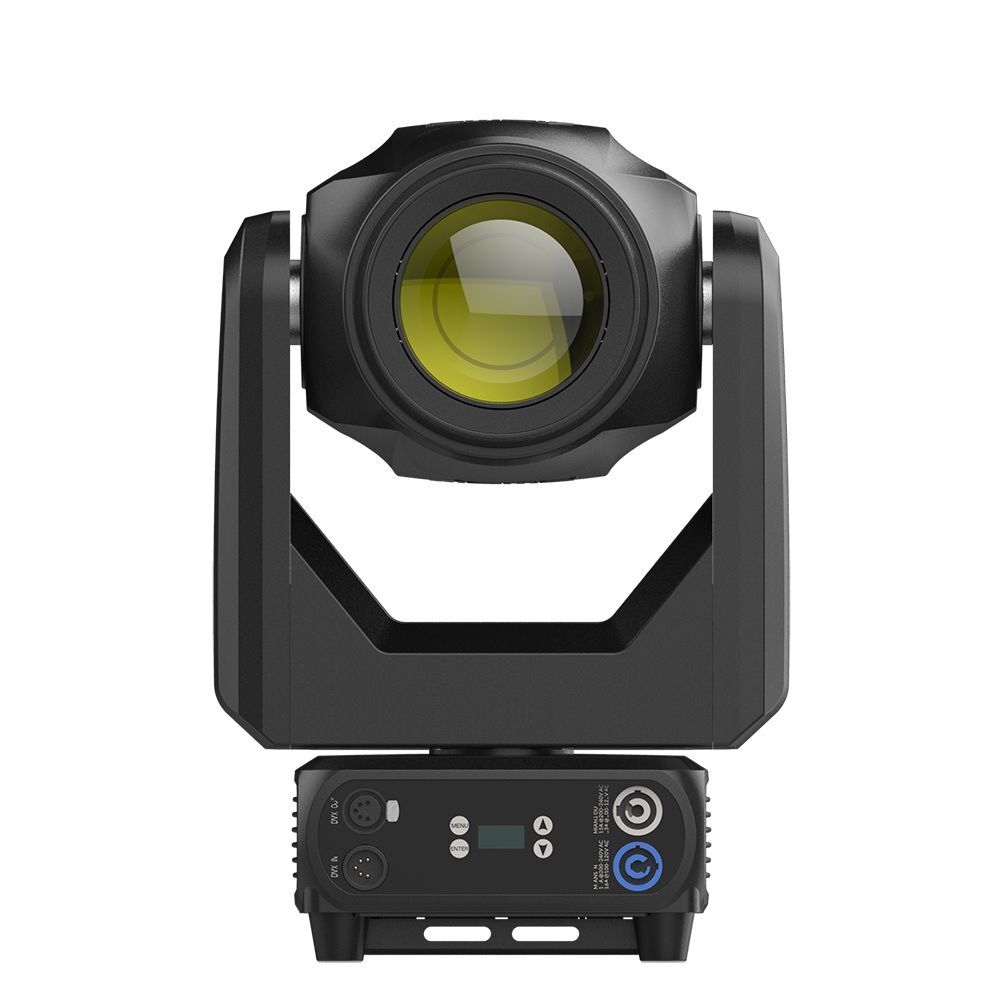

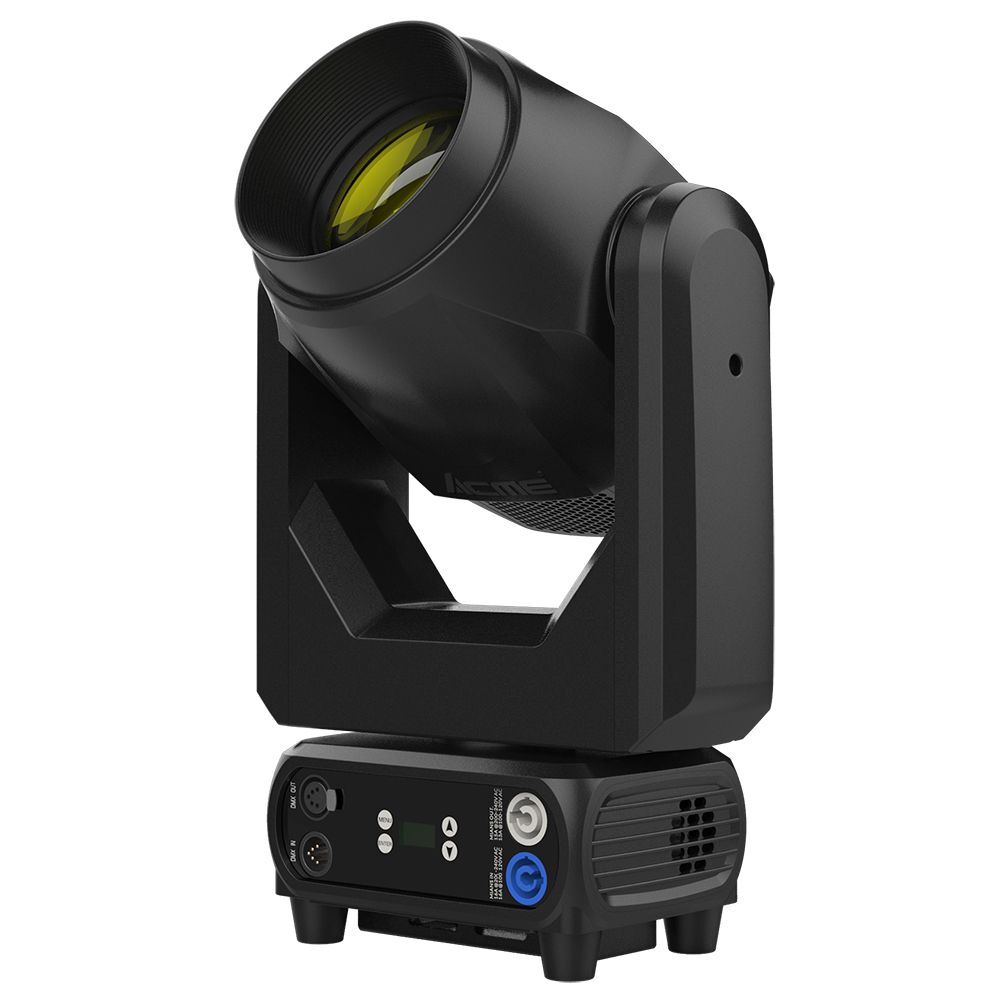

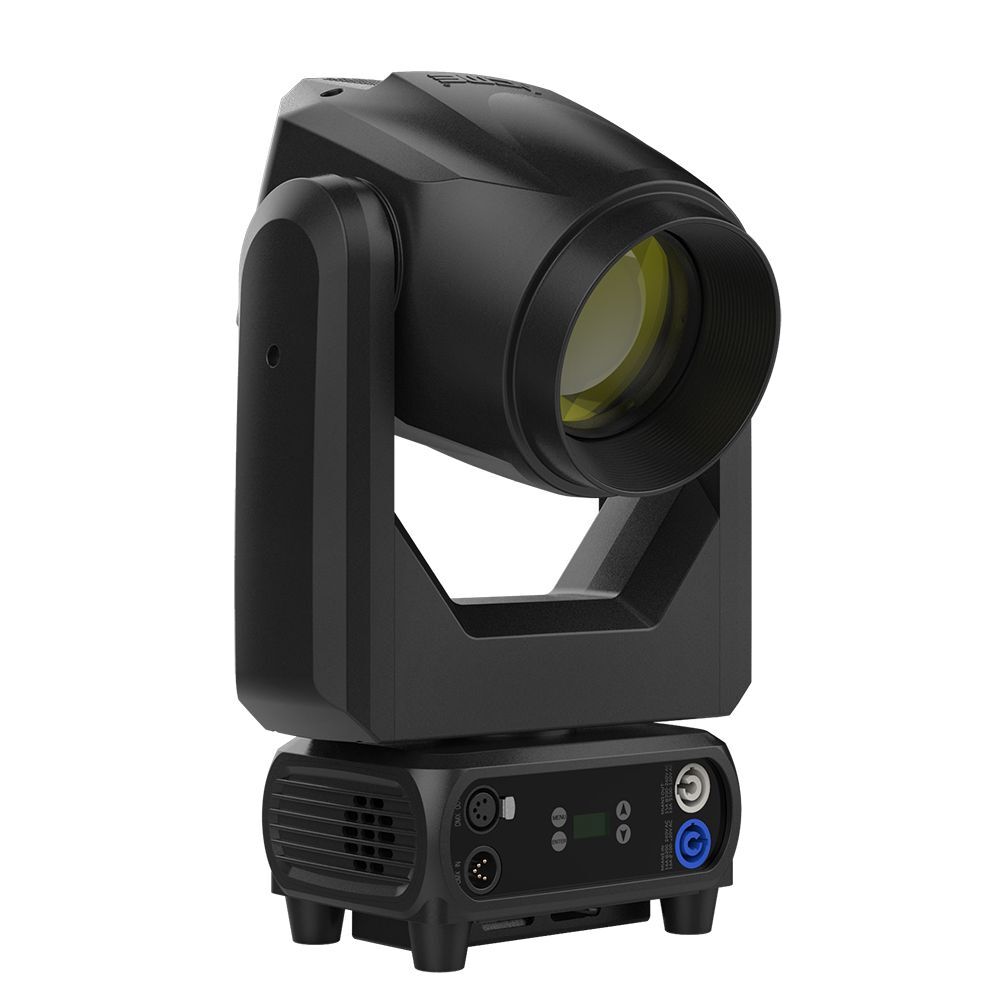

ACME WILLOW 200 SPOT MOVING HEAD

WILLOW 200, a 180W hybrid fixture matching the ultra-compact WILLOW series. With a satisfied brightness of 16,500 lx@5m and feature-rich inside layers, Willow 200 is a cost-saving choice for small venues. The total weight of 10.3 kg is fitting in any fast easy installation. What’s more, the variable beam/spot/wash angles will meet the compact lighting setup demanding. Willow 200 borrows the same proprietary optical system from its family line, which delivers an 8500K crisp white light that can project gobos perfectly in all conditions and at a filtered angle. Small Bars, weddings, ceremonies, and corporate events could be a good stage for Willow 200 to show up!



Features

• Diameter of front lens:102mm
• Integrated three features: beam, spot, and wash
• Color Temperature: 8500(±300K）
• 20000 hours long life light source
• Outstanding color macro effect
• Rainbow effect in both directions
• Zoom range:
  • Beam: 2°/4°/6°/8°/10°/12°/19°
  • Static gobo Wheel: 10°/15°
  • Wash Mode : 15°~28°
• Rotating gobo wheel: 1 rotating gobo wheel with 6 gobos plus white, convenient replacement
• Static gobo Wheel: 1 static gobo wheel with 7 gobos plus white
• Color Wheel: 1 static color wheel with 8 colors plus white,rainbow effect in both directions
• Prisms: 1pc 3-facet prism rotatable in either direction
• Smooth dimming from 0-100%
• Independent frost effect
• Outstanding strobe effect with variable speed
• Dust-proof and oil-proof design.

Model

• BSW 200



Light source

• Light source: 180W LED
• Bulb life expectancy: 20000 hours



Optical system

• Advanced optical system to ensure image quality, clear and sharp
• High - efficiency zoom optical system



Control and Program

• 4-touch buttons
• Display: Color display
• Protocols: DMX512,RDM
• DMX Protocol modes: 1
• Control channels: 18
• Firmware Upgrade via DMX and USB link
• Pan/Tilt Resolution: 16 bit



PAN & TILT

• Pan movement: 540°
• Tilt movement: 270°
• Automatic Pan/Tilt position correction



Rotating Gobos

• 1 x rotating gobos wheel with 6 gobos plus white, convenient replacement
  • Image diameter: 17 mm
  • Outside diameter: 21 mm
• Set with "SLOT & LOCK" system for gobos replacement



Static Gobos

• 1 x static gobos with 7 gobos plus open



Color Wheel

• 1 x color wheel with 8 colors plus open,rainbow effect in both directions



Electrical and Connectors

• Power supply with electronic auto-ranging
• Input voltage range: 180-240V~ 50/60Hz
• Power consumption: 230 W
• Data in/out: 3-pin and 5-pin XLR



Fixture Specification

• Width: 174 mm (6.9")
• Depth: 275 mm (10.8")
• Height: 439 mm (17.3")
• Weight: 10.3 kg (23 lbs)
• Carton Dimensions:
  • Width: 350 mm (13.8")
  • Depth: 380 mm (15.0")
  • Height: 510 mm (20.1")
  • Weight:13.5 kg (29 lbs)(include carton,one-pack per carton)



Work environment

• Maximum ambient temperature: 45°C
• Minimum operating temperature: -5°C
• Maximum surface temperature: 65°C



Approvals

• CE compliant

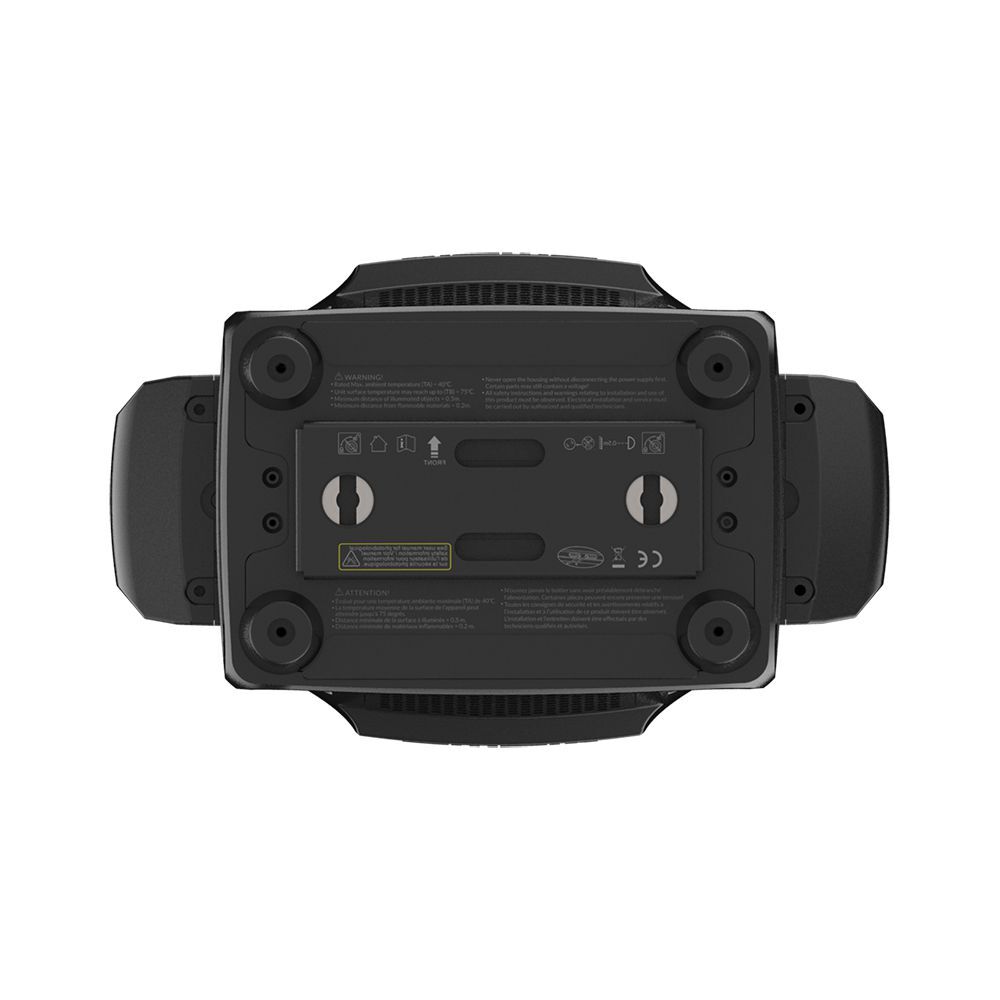

Installation

• Available in horizontally or vertically mounting way
• Multi projection angle operation
• 1 pair of 1/4-turn locking points under the base

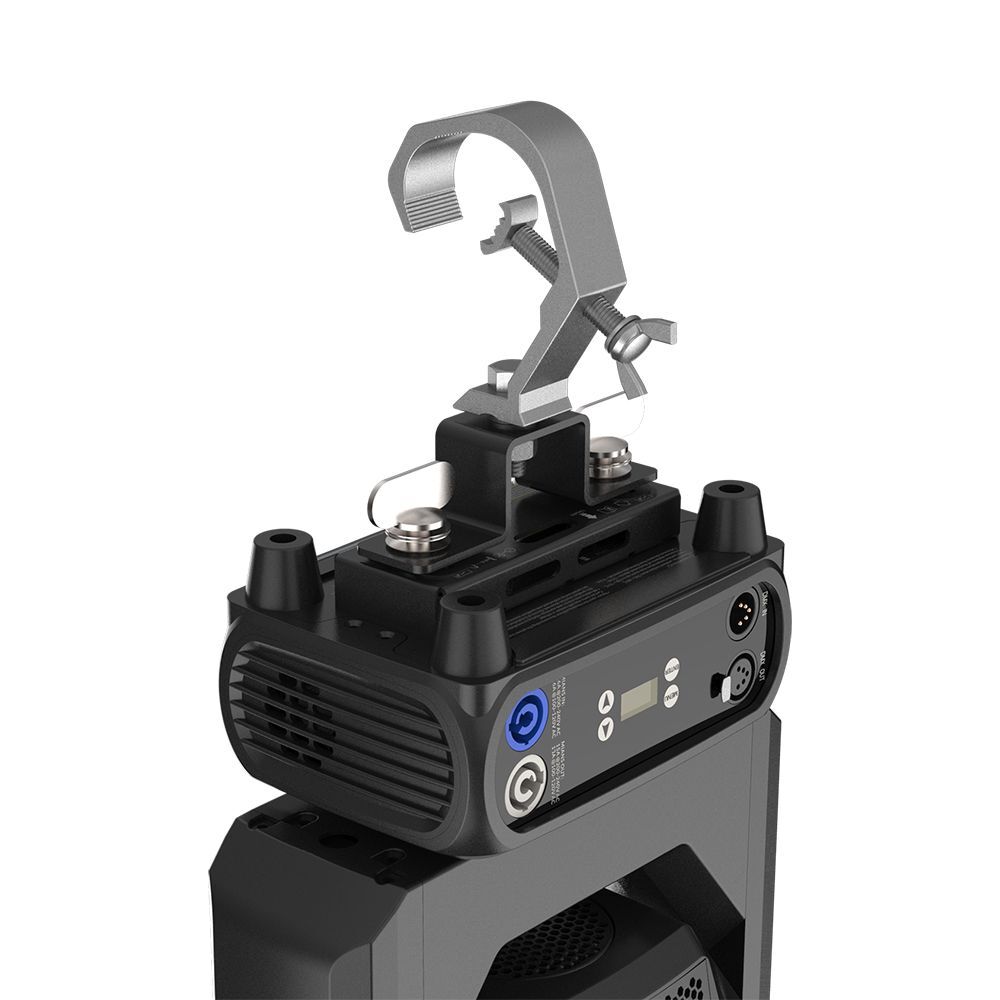

• 1 x fast-lock clamps
• Safety rope hanging



Included items

• Digital User Manual
• Power Cable
• 1 x fast-lock clamps



Optional Accessories (with item code)

• Clamp: 2060001635(C-100A)
• Signal Line: 3-pin or 5-pin signal line
• Safety cable: 2060000200(SW-02)
