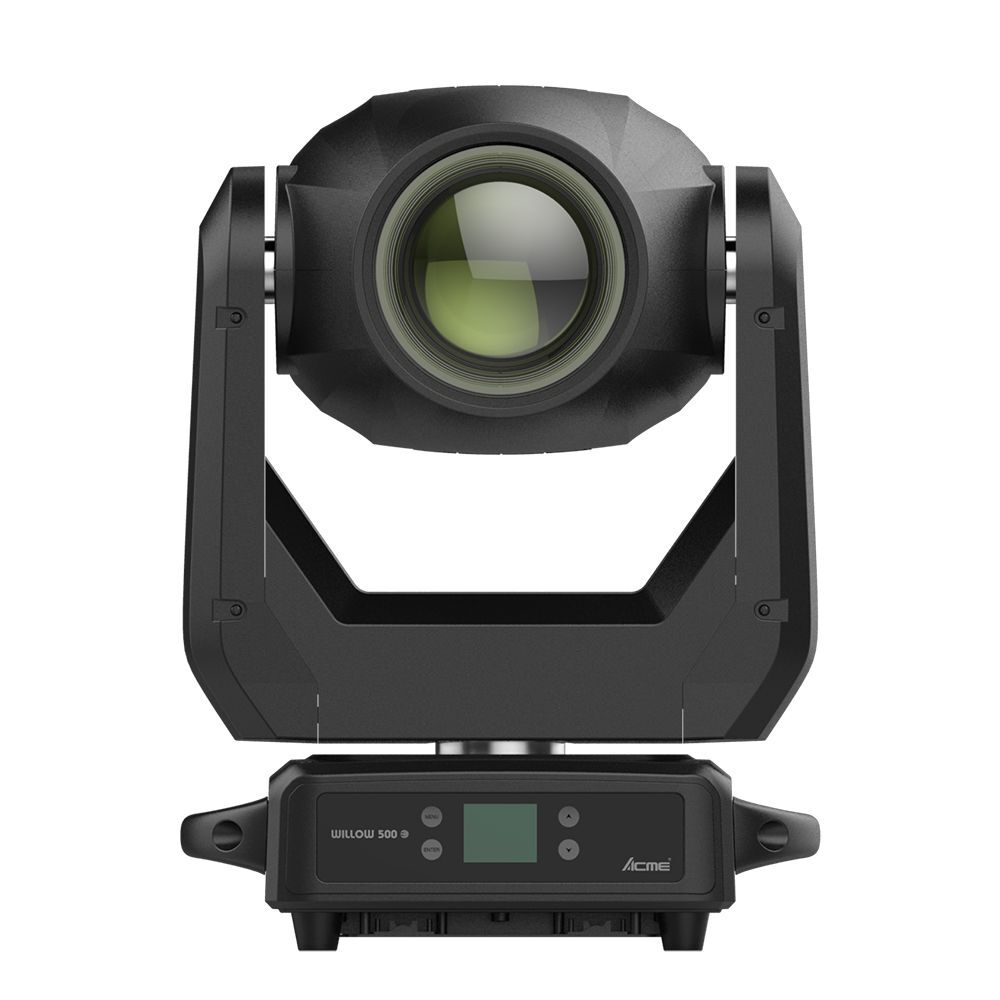

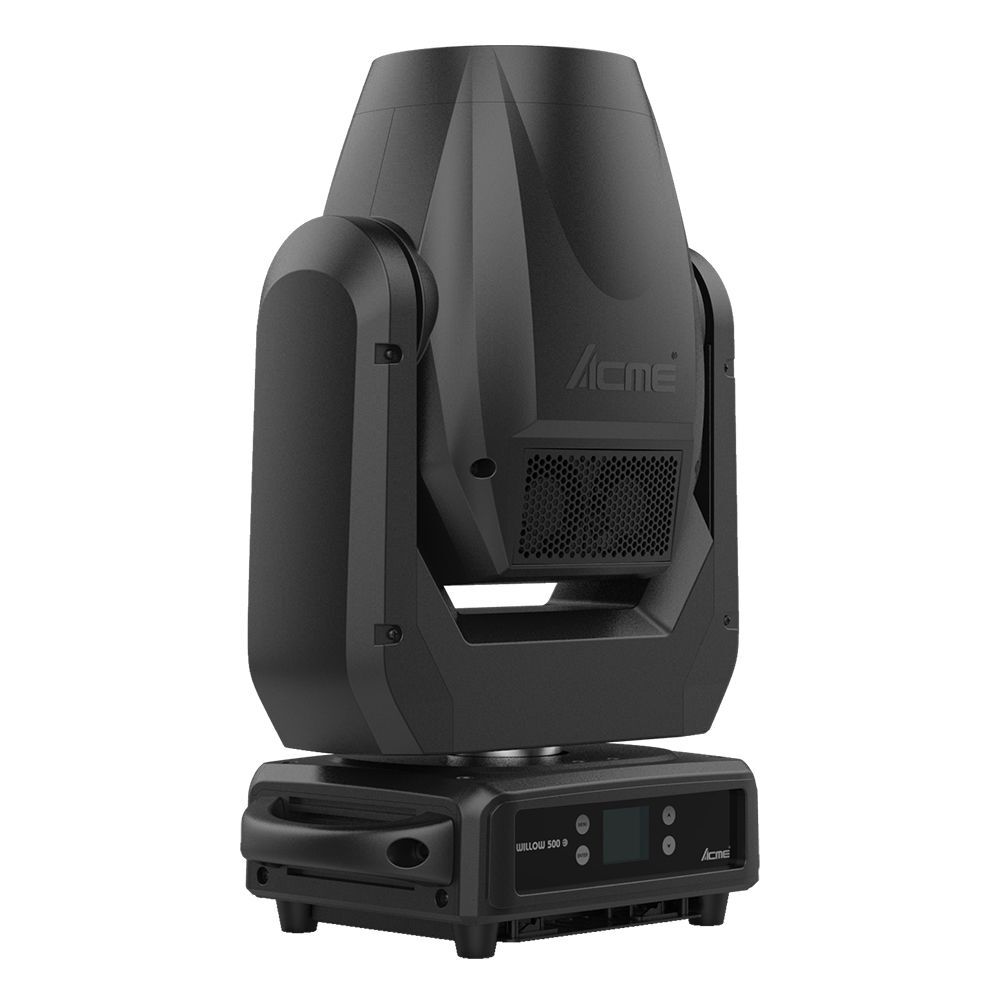

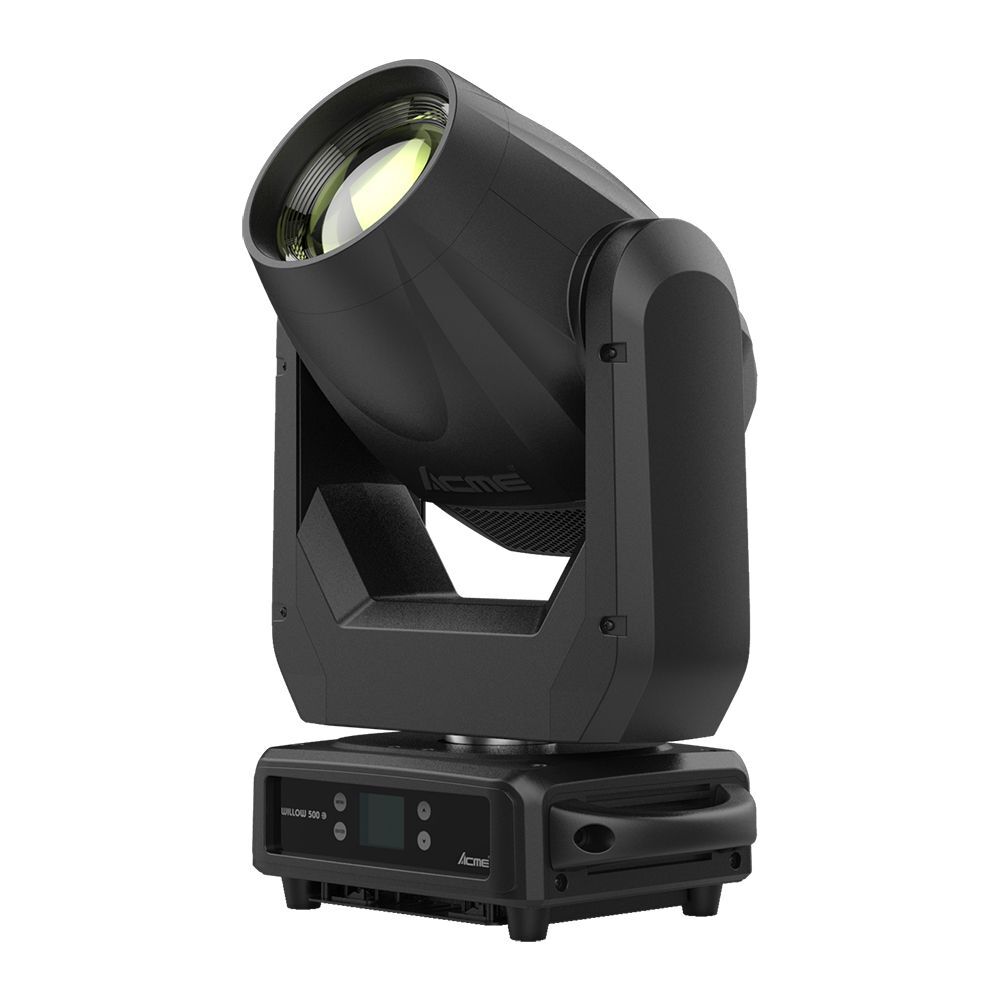

ACME WILLOW 500 BEAM/SPOT/WASH HYBRID MOVING HEAD

As the technological upgrading and progress on ENERGY HYBRID, the ACME New WILLOW 500 was born. This BEAM+SPOT+WASH 3-in-1 hybrid fixture, weighs only 17.5kg, while delivers 29,500lx@5m at a tight 10° angle. With a 400W LED engine, 4 alternative beam options, 9 fixed gobos, 7 rotating gobos, 7 popular colors, independent frost, and a bi-directional rotating 6-facet prism, Willow 500 is now loading to supercharge your imagination!

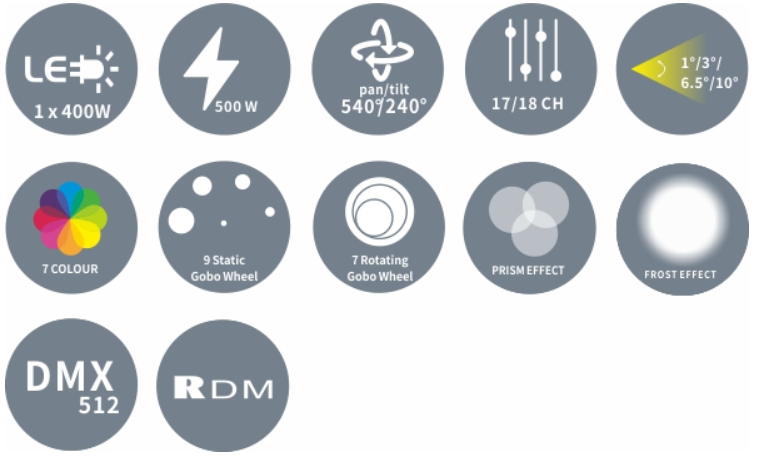

Features

• Included three features: beam, spot, and wash
• Rainbow effect in both directions
• Motorized focus
• Beam Angle: 1°/3°/6.5° /10°
• Spot Angle:
  • Fix Gobo: 9°/18°(with zoom lens)
  • Rotating Gobo: 10°/20°(with zoom lens)
• Wash Angle: 12°-23°
• Rotating gobo wheel: 1 rotating gobo wheel with 7 gobos plus open, convenient replacement
• Static gobo Wheel: 1 static gobo wheel with 9 gobos plus open
• Color Wheel: 1 color wheel with 7 colors plus white
• Prism: 6-facet prism, rotating in both directions
• 0-100% smooth dimming
• Independent frost effect
• Outstanding strobe effect with variable speed
• Flicker free management
• Dust-proof and oil-proof design.

Model

• BSW 500



Light Source

• Light source: 1 x 400W LED engine
• LED life expectancy: 20000 hours



Optical System

• Advanced optical system to ensure image quality, clear and sharp
• Diameter of front lens: 136.5mm
• Beam Angle: 1°/3°/6.5°/10°
• Spot Angle:
  • Fix Gobo: 9°/18°(with zoom lens)
  • Rotating Gobo: 10°/20°(with zoom lens)
• Wash Angle: 12°-23°



Control and Program

• 4-buttons touch panel
• Display: LCD display
• Protocols: DMX,RDM
• DMX Protocol modes: 2
• Control channels: 17,18
• Pan/Tilt Resolution: 16 bit
• Automatic Pan/Tilt position correction
• Dimmer: 8 bit or 16 bit
• Upgrade the firmware via DMX link



PAN & TILT

• Pan movement: 540°
• Tilt movement: 240°



Rotating Gobos

• 1 x rotating gobos with 7 gobos plus open, convenient replacement
  • Image diameter: 16.8 mm
  • Outside diameter: 26.8 mm
• Thickness: 1.1 mm
• Max. thickness: 3mm
• borofloat or better glass materials
• Set with "SLOT & LOCK" system for gobos replacement



Static Gobos

• 1 x static gobos with 9 gobos plus open



Color Wheel

• 1 x color wheel with 7 colors plus white



Electrical & Connectors

• Power supply with electronic auto-ranging
• Input voltage range: 100-240V~ 50/60Hz
• Power consumption: 500 W

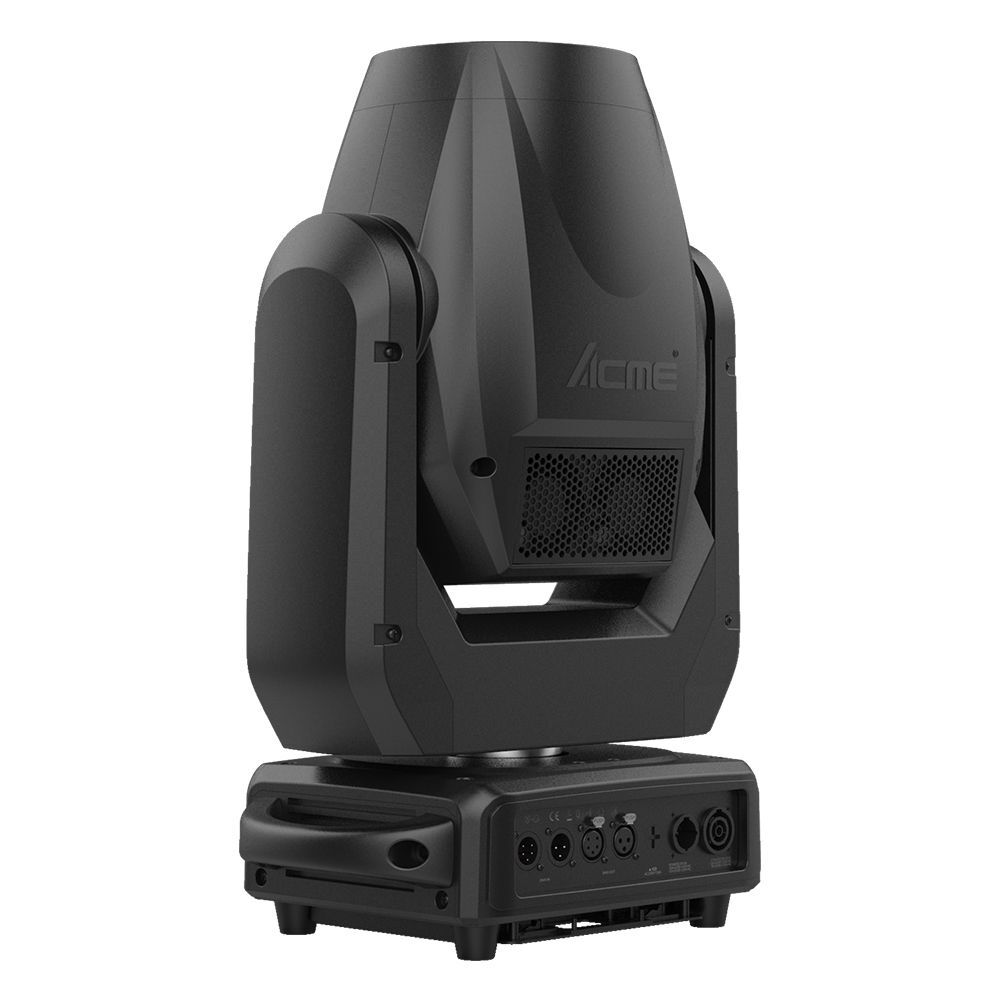

• Power In/Out: Power Connector In/Out
• Data In/Out: 3-pin and 5-pin XLR

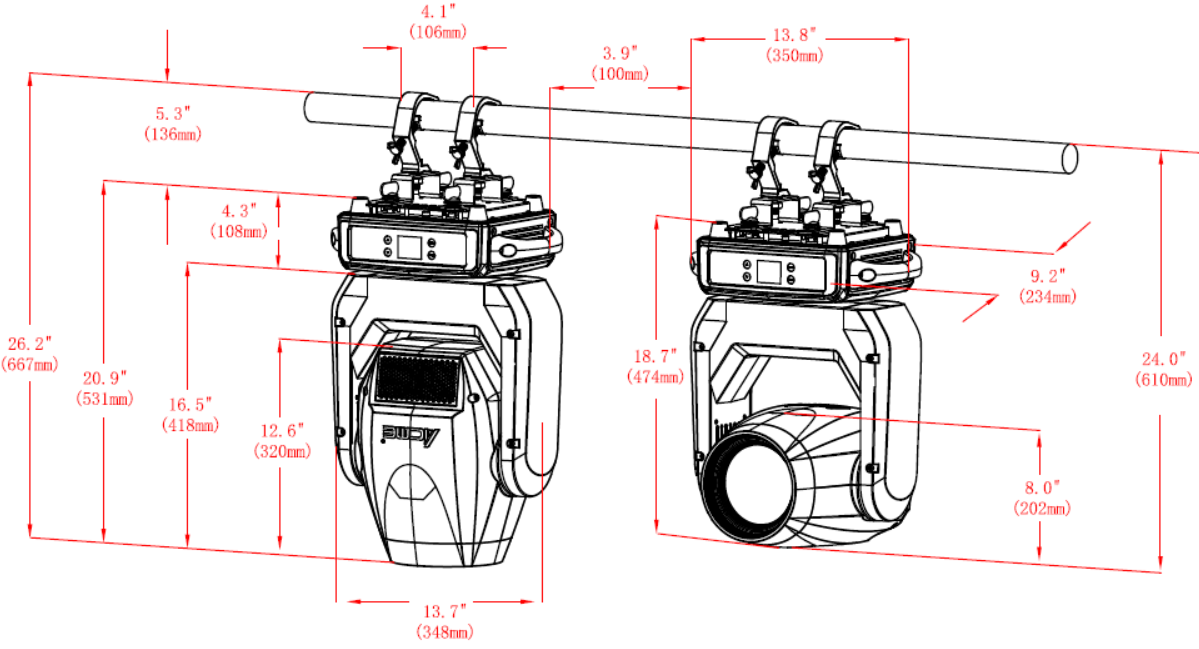

Fixture Specification

• Height: 531 mm (20.9")
• Width: 234 mm (9.2")
• Depth: 350 mm (13.8")
• Weight: 17.5kg（38.6lbs）



Work environment

• Maximum ambient temperature: 40°C
• Maximum surface temperature: 65°C
• Minimum operating temperature: 0°C



Approvals

• CE compliant



Installation

• Horizontally or vertically mounting are available
• Operating position is universal
• 2 pairs of 1/4-turn locking points under the base

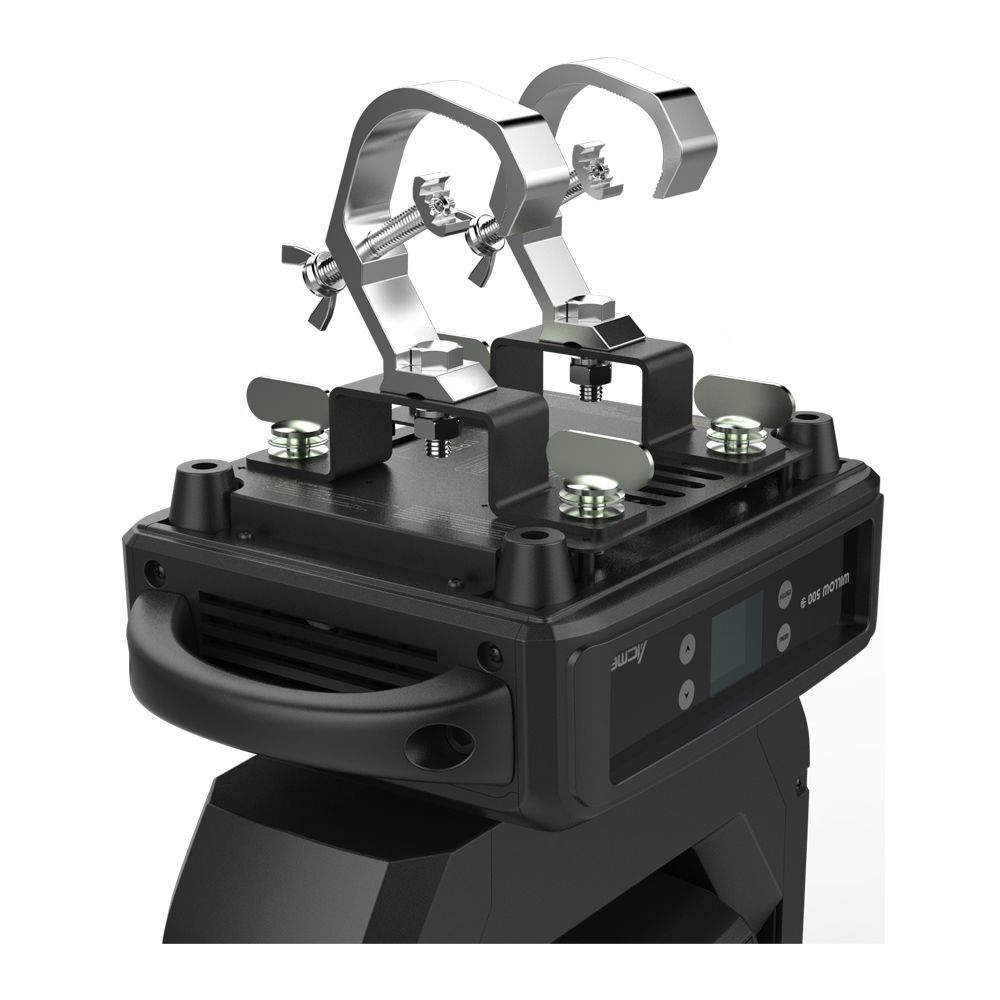

• 2 x fast-locked clamps for 50 millimeter truss
• Safety Rope Hole



Included items

• Digital User Manual
• Power Cable
• 2 x fast-locked clamps for 50 millimeter truss



Optional Accessories (with item code)

• Raincover：3033001749
• Clamp：2060001635(C-100A)
• Safety cable : 2060000200（SW-02）
• Signal Line： 3-pin and 5-pin signal line
