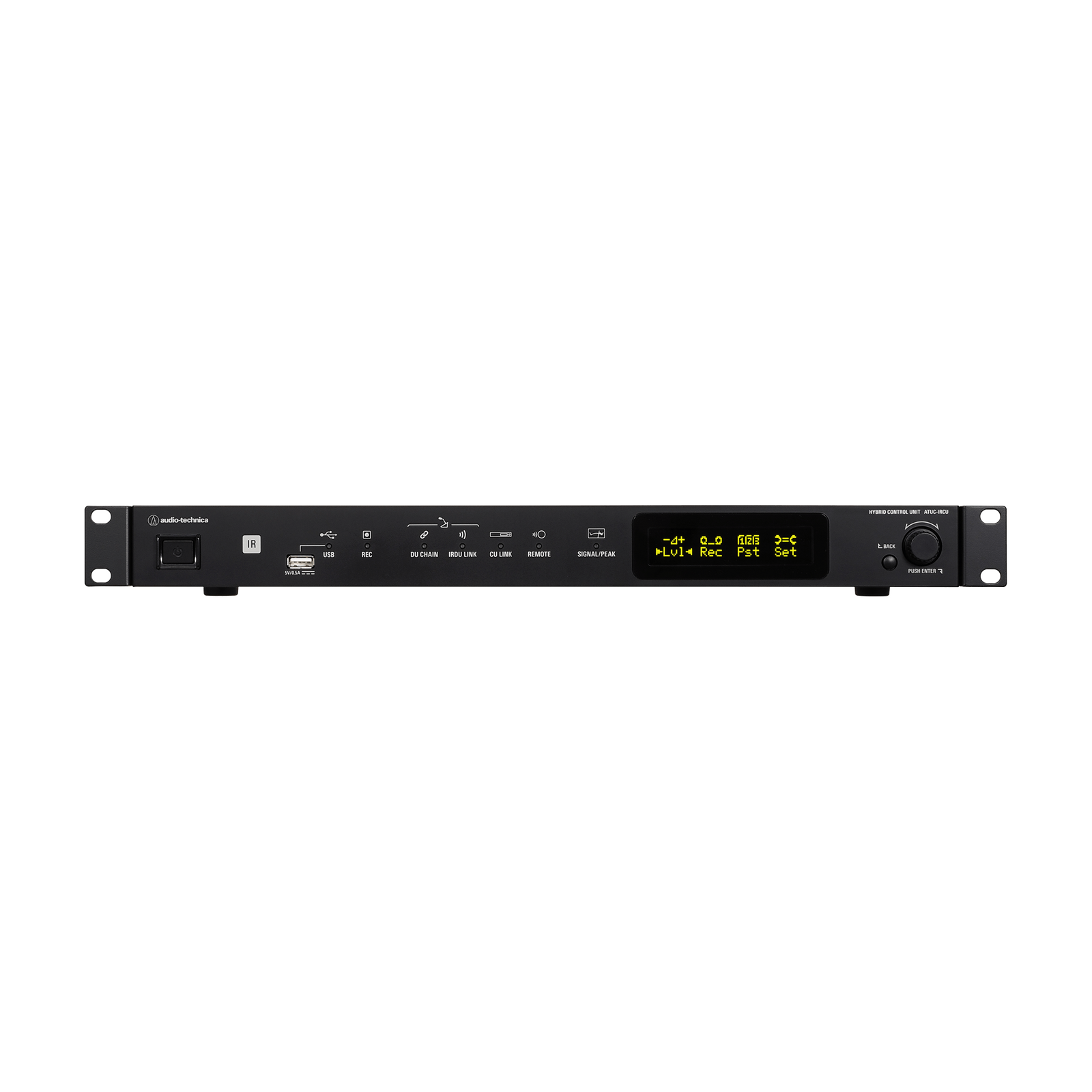

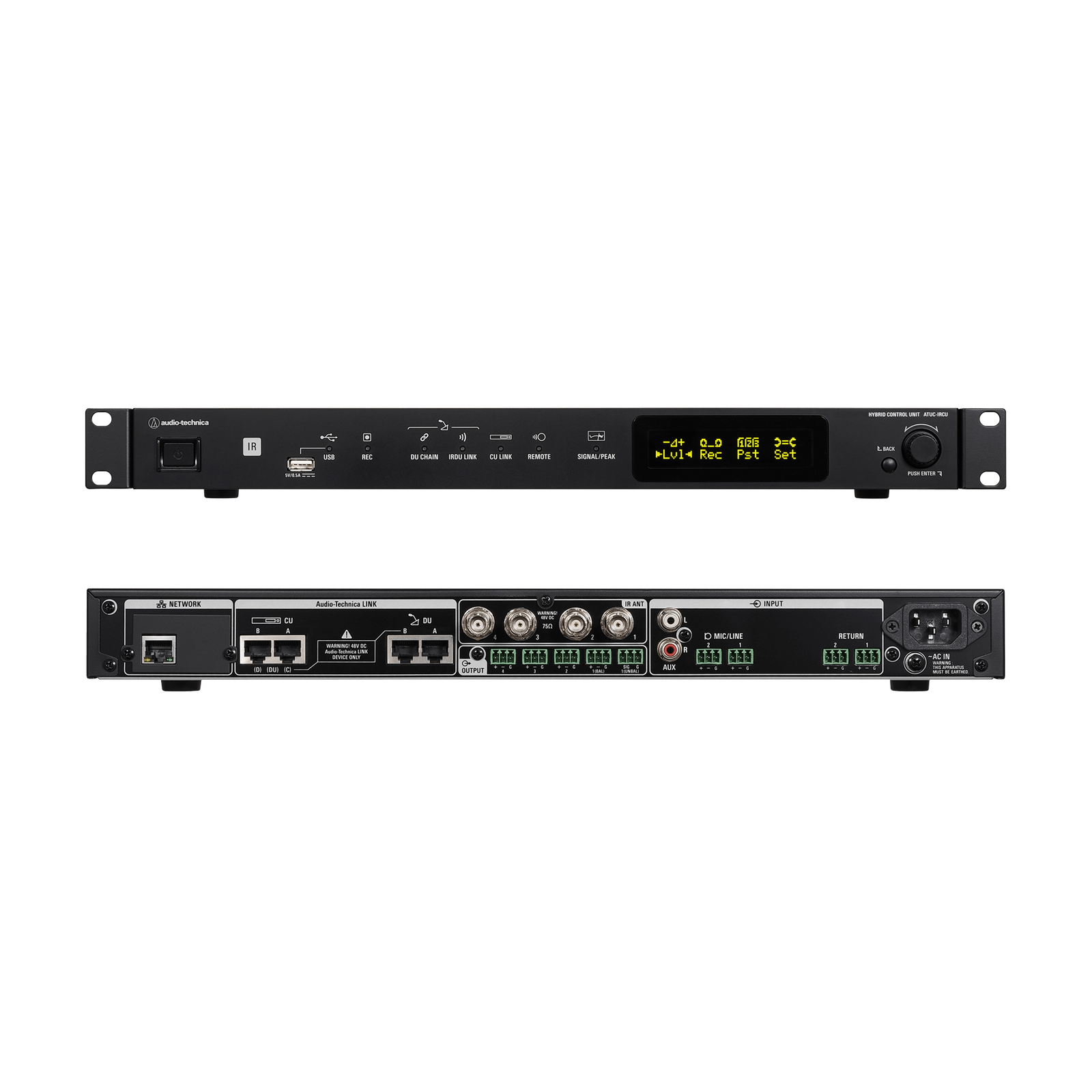

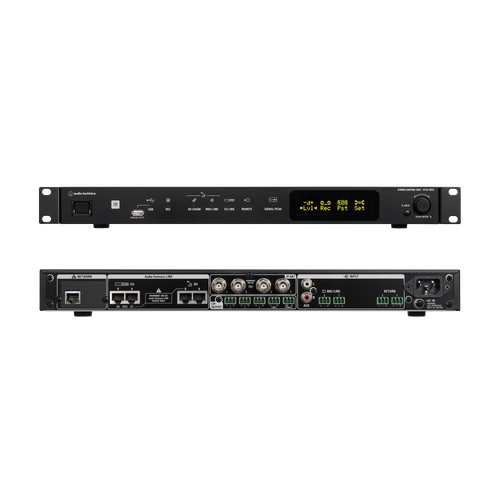

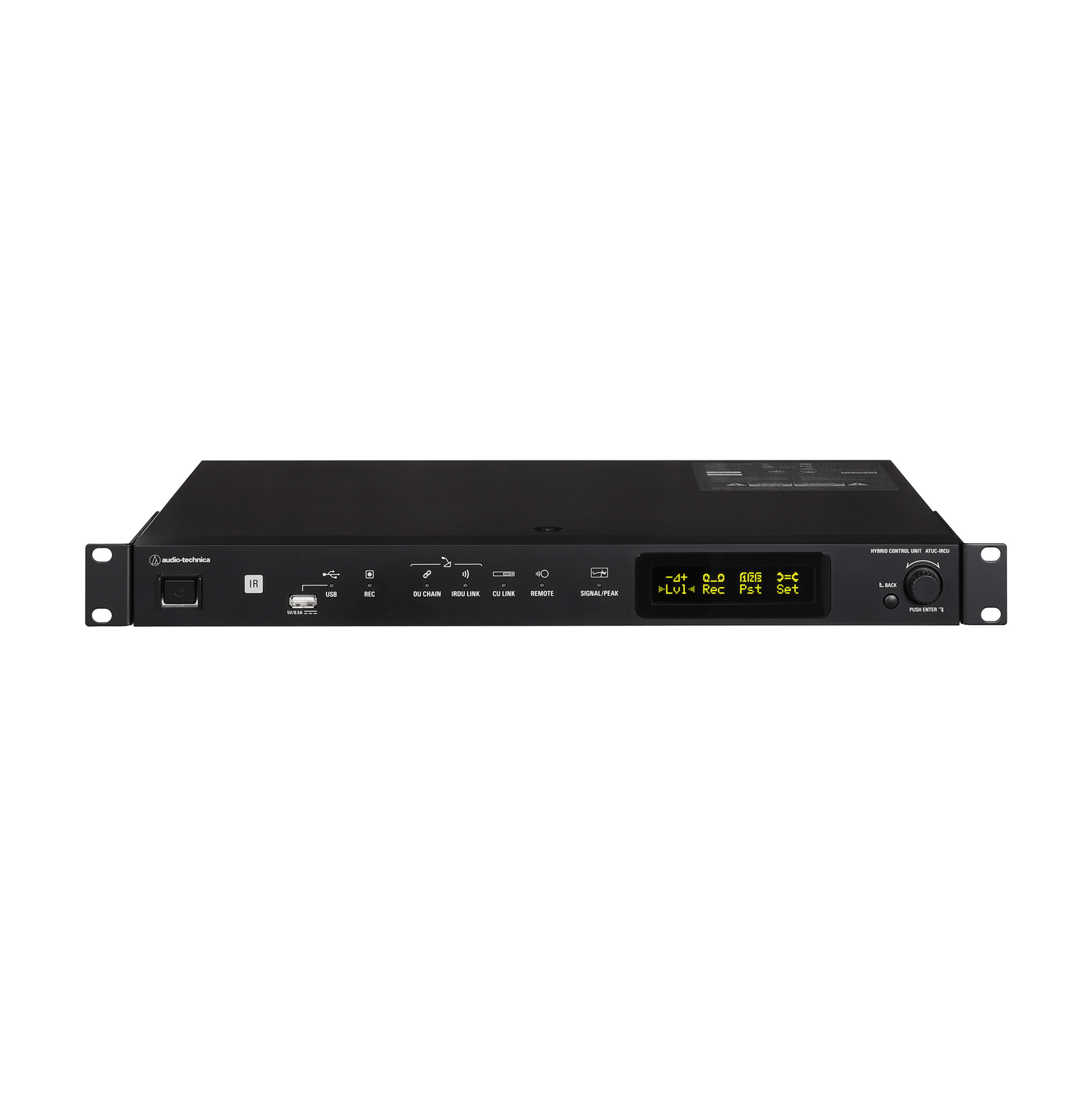

AUDIO TECHNICA ATUC-IRCU Infrared Control Unit
The 19" rack-mountable ATUC-IRCU allows for the use of both infrared and wired discussion units, providing 24-bit/48 kHz digital signal processing (with 12-band feedback suppressor), automated gain control (AGC), mic gain and mic EQ for each connected discussion unit. It can be operated locally, through the Web Remote interface (no software required), or third-party IP control systems. Offers three selectable conference modes (Free Talk, Request to Talk, and Full Remote) and various override settings. Can record WAV and MP3 files onto a connected USB mass storage device. Includes two Mic/Line inputs, two AUX inputs and two interpretation return inputs. For wired or wireless systems.
| Overall System | |
|---|---|
| Operating Frequencies | Infrared |
| Frequency Response | +1.0, -2.0dB, 20Hz - 20kHz (+4dBu output at 1kHz) |
| Data Length / Sampling Frequency | 24bit/48kHz |
| Dynamic Range | 110dB, A-Weighted |
| Signal-to-Noise Ratio | 90dB, A-Weighted |
| Total Harmonic Distortion | Less than 0.03%, 1 kHz unity |
| Operating Temperature Range | 0 - 40°C |
| Operating Humidity | 25 - 85% |
| Simultaneous Use | 300 (200x ATUC-IRDU + 100x ATUC-50CU/ATUC-50IU) |
| Headroom | 20dB |
| Latency | MIC Input to Output: 1ms DU to CU: 1.2ms |
| Number Of Channels | Voice: 10 channels Monitor: 4 channels |
| Discussion Unit | |
| Equivalent Input Noise | Mic/Line: Less than –126dBu, Rs = 150ohm |
| Control Unit | |

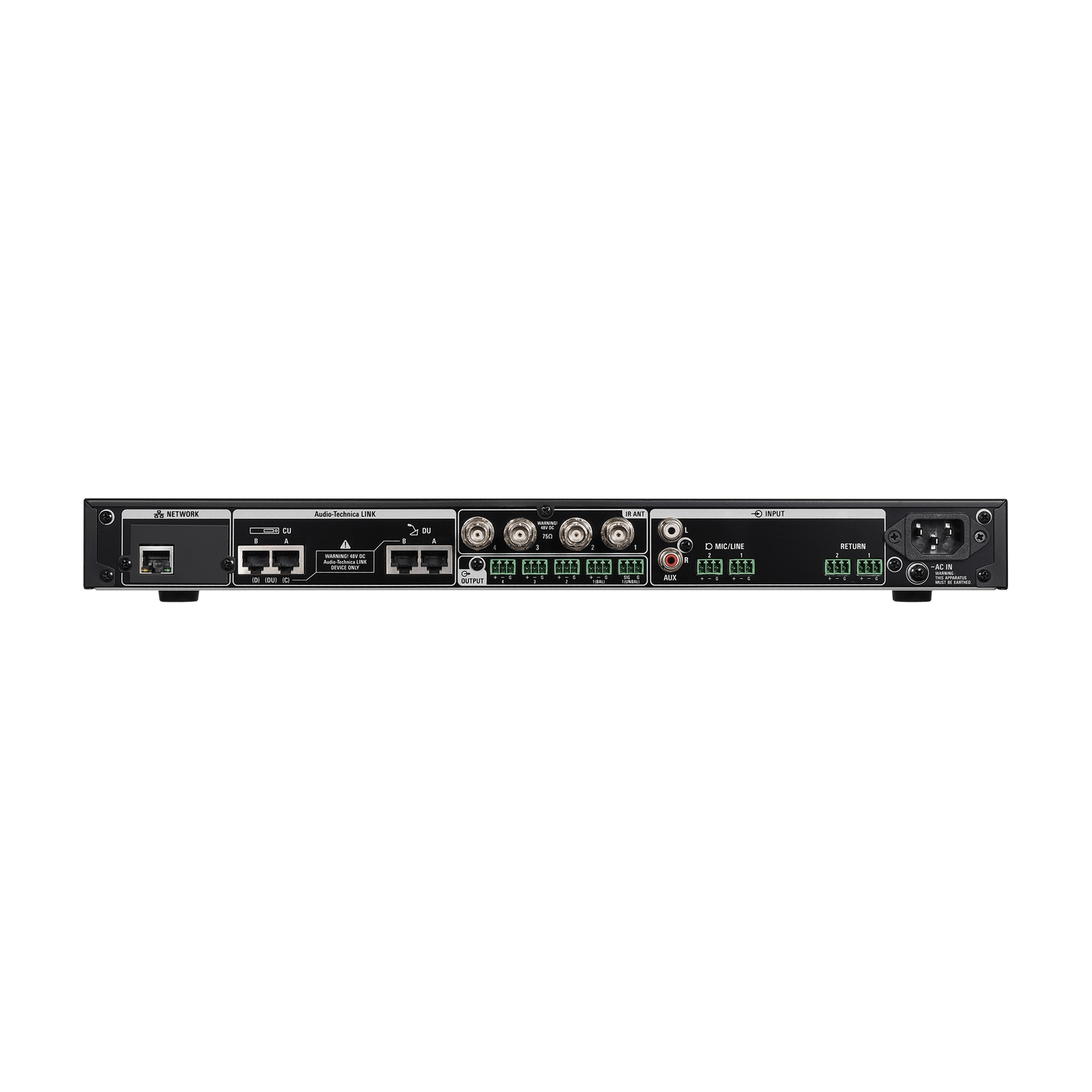

| Connections | Inputs: MIC/LINE×2, AUX×1 (ST), INTERPRETATION RETURN×2 Outputs: BAL.×4, UNBAL.×1 Link/Chain: DU A/B terminals, CU A/B terminals (DU C/D terminals) IR Antenna: IR antenna I/O terminals × 4 (Load Impedance 75ohm) N |
| Residual Noise | Less than –86dBu, A-Weighted |
| Crosstalk at 1 kHz | Less than –80dB |
| Power Supply | AC 100V - 240V 50/60Hz |
| Phantom Power | DC+48V |
| Power Consumption | 26W to 175W (maximum) |
| Dimensions | 434mm × 326mm × 44mm |
| Weight | 4.76kg |
| OLED Display | 20 × 2Character type, Color: Yellow Operating life: 100,000hours |
| Accessories | Power cord, Euroblock connectors (9 pieces) |
| Infrared | |
| Bandwidth | 1MHz - 10MHz |
| Modulation Method | FM |
| Recording | |
| Compressed bit-rate | MP3 - 64kbps/128kbps/192kbps/256kbps/320kbps |
| Media | Via USB Storage Device (Supported file systems: FAT16/FAT32): WAV - 1/2/3/4 track (BWF standard) MP3 - 1/2 track (Original format) |
(ATUC-IRCU)
| SKU | ATUC-IRCU |
| Brand | AUDIO TECHNICA |
