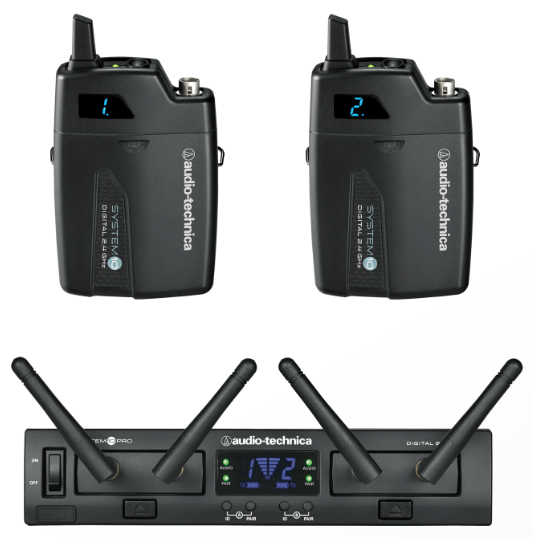

AUDIO TECHNICA ATW-1311 System 10 PRO Wireless Body-pack System

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Overall System
Operating Frequencies	2.4 GHz ISM band (2400 to 2483.5 MHz)
Frequency Response	20 Hz to 20 kHz Depending on microphone type
Operating Range	60 m (200') Open range env. with no interfering signals
Total Harmonic Distortion	<0.05% typical
Operating Temperature Range	0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures
Handheld Transmitter
RF Power Output	10 mW
Spurious Emissions	Following federal and national regulations
Battery Type	Two 1.5V AA not included
Battery Life	>7 hours (alkaline) Depending on battery type and use pattern
Dimensions	254.8 mm (10.03") long, 50.0 mm (1.97") diameter
Net Weight	280 grams (9.9 oz) without batteries
Accessories Included	AT8456a Quiet-Flex™ stand clamp
Body Pack
RF Power Output	10 mW
Battery Life	>7 hours (alkaline) Depending on battery type and use pattern
Battery Type	Two 1.5V AA not included
Dimensions	70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D
Input Connections	Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V
Net Weight	100 grams (3.5 oz) without batteries
Spurious Emissions	Following federal and national regulations
Receiver
Receiving System	Diversity (frequency/time/space)
Maximum Output Level	XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV
Power Supply	100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external
Operating Temperature Range	40° F (4° C) to 110° F (43° C)
Dimensions	209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D
Weight	940 grams (33.2 oz)
Accessories Included	AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet
Output Connector	Remote Receiver Connector: RJ45 Link Connector: RJ12
