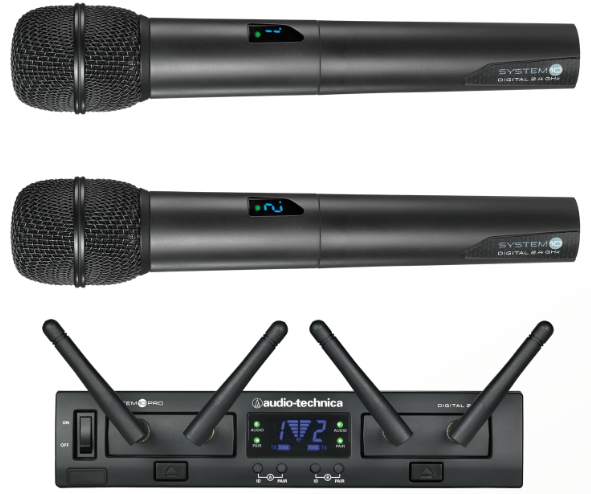

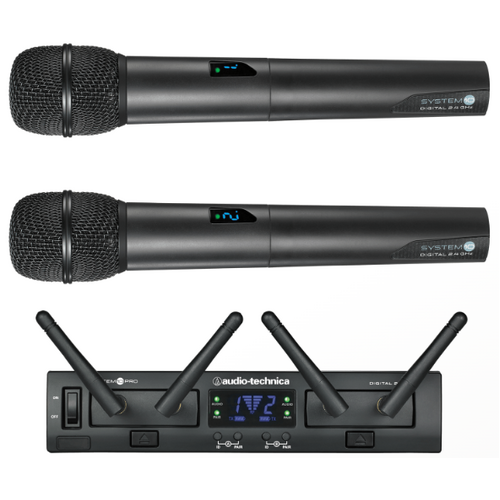

AUDIO TECHNICA ATW-1322 System 10 PRO Digital Wireless
$1,299.00
Sold Out - Backorder Available
| Overall System | |
|---|---|
| Operating Frequencies | 2.4 GHz ISM band (2400 to 2483.5 MHz) |
| Frequency Response | 20 Hz to 20 kHz Depending on microphone type |
| Operating Range | 60 m (200') Open range env. with no interfering signals |
| Total Harmonic Distortion | <0.05% typical |
| Operating Temperature Range | 0° C to +40° C (32° F to 104° F) Battery performance may be reduced at very low temperatures |
| Handheld Transmitter | |
| RF Power Output | 10 mW |
| Spurious Emissions | Following federal and national regulations |
| Battery Type | Two 1.5V AA not included |
| Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
| Dimensions | 254.8 mm (10.03") long, 50.0 mm (1.97") diameter |
| Net Weight | 280 grams (9.9 oz) without batteries |
| Accessories Included | AT8456a Quiet-Flex™ stand clamp |
| Body Pack | |
| RF Power Output | 10 mW |
| Battery Life | >7 hours (alkaline) Depending on battery type and use pattern |
| Battery Type | Two 1.5V AA not included |
| Dimensions | 70.2 mm (2.76") W x 107.0 mm (4.21") H x 24.9 mm (0.98") D |
| Input Connections | Four-pin Locking Connector Pin 1: GND, Pin 2: INST INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +9V |
| Net Weight | 100 grams (3.5 oz) without batteries |
| Spurious Emissions | Following federal and national regulations |
| Receiver | |
| Receiving System | Diversity (frequency/time/space) |
| Maximum Output Level | XLR, balanced: 0 dBV 1/4" (6.3 mm), unbalanced: +6 dBV |
| Power Supply | 100-240V AC (50/60 Hz) to 12V DC 0.5A power supply switched mode external |
| Operating Temperature Range | 40° F (4° C) to 110° F (43° C) |
| Dimensions | 209.8 mm (8.26") W x 44 mm (1.73") H x 169.3 mm (6.67") D |
| Weight | 940 grams (33.2 oz) |
| Accessories Included | AC adapter, Link cable, Rack-mount adapters, Joining plate, Rubber feet |
| Output Connector | Remote Receiver Connector: RJ45 Link Connector: RJ12 |
(ATW-1322)
| SKU | ATW-1322 |
| Brand | AUDIO TECHNICA |
