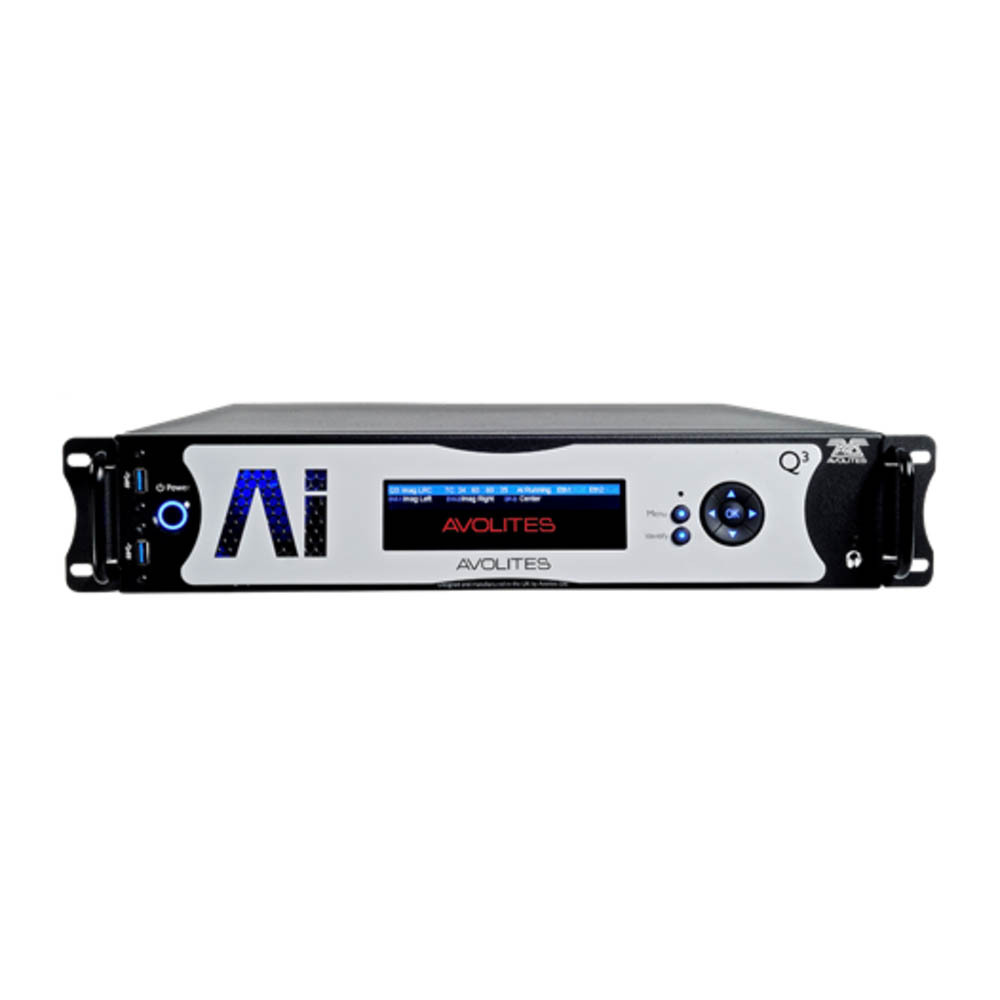

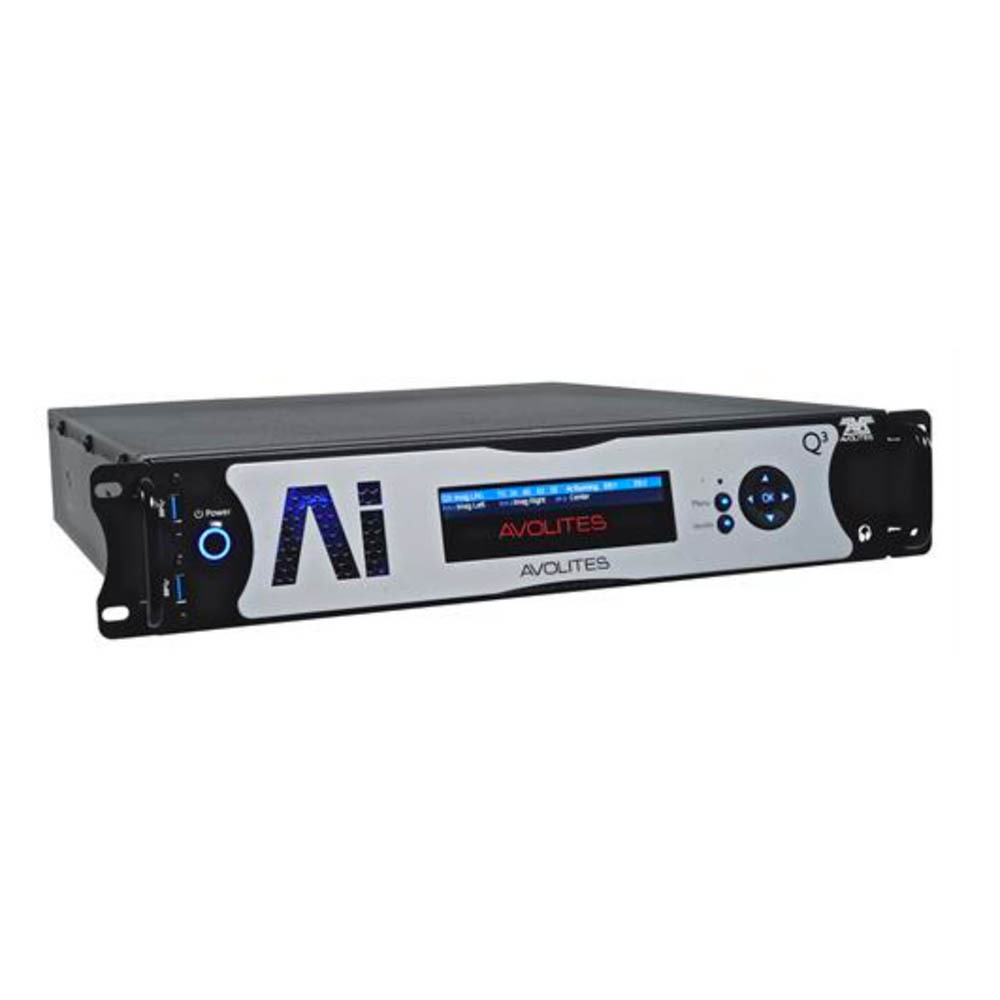

Avolites Q3 Server

The Avolites Ai Q³ Server unlocks 4k playback through a single DisplayPort 1.2 connection. Combined with 2 additional DVI outputs, the Q³ is the perfect solution to power live events, installs and anywhere else that live video manipulation is required.

The Q³’s cutting-edge hardware is the perfect vehicle for our Ai software. Offering industry-standard connections to the rest of your system, as well as the firepower to drive our built-in live effects and supporting Notch integration. The front-mounted screen allows configuration of outputs from outside the OS for rock solid reliability. It’s slim formfactor and competitive pricing delivers pixel-power to the people.

Q³ features:

• GUI Output DVI-D (1920×1080)
• Video Output 2x DVI-D, 1x DisplayPort 1.2
• Video Sync BNC Genlock (Option)
• Network 2 x Gigabit LAN
• Audio Out L&R Balanced XLR
• Audio Ground Lift
• Rear Panel USB 2x USB 3.0
• Front Panel USB 2x USB 3.0
• MIDI In 1x 5-pin din
• SMPTE Timecode XLR In/Thru
• DMX Art-Net
• Capture Cards 1

Hardware:

• Media Drive Capacity 1TB
• Media Drive Bandwidth 3500MB/s
• System Drive Capacity 120GB
• Operating System Windows 7 Embedded
• CPU Cores (Threads) 4(4)

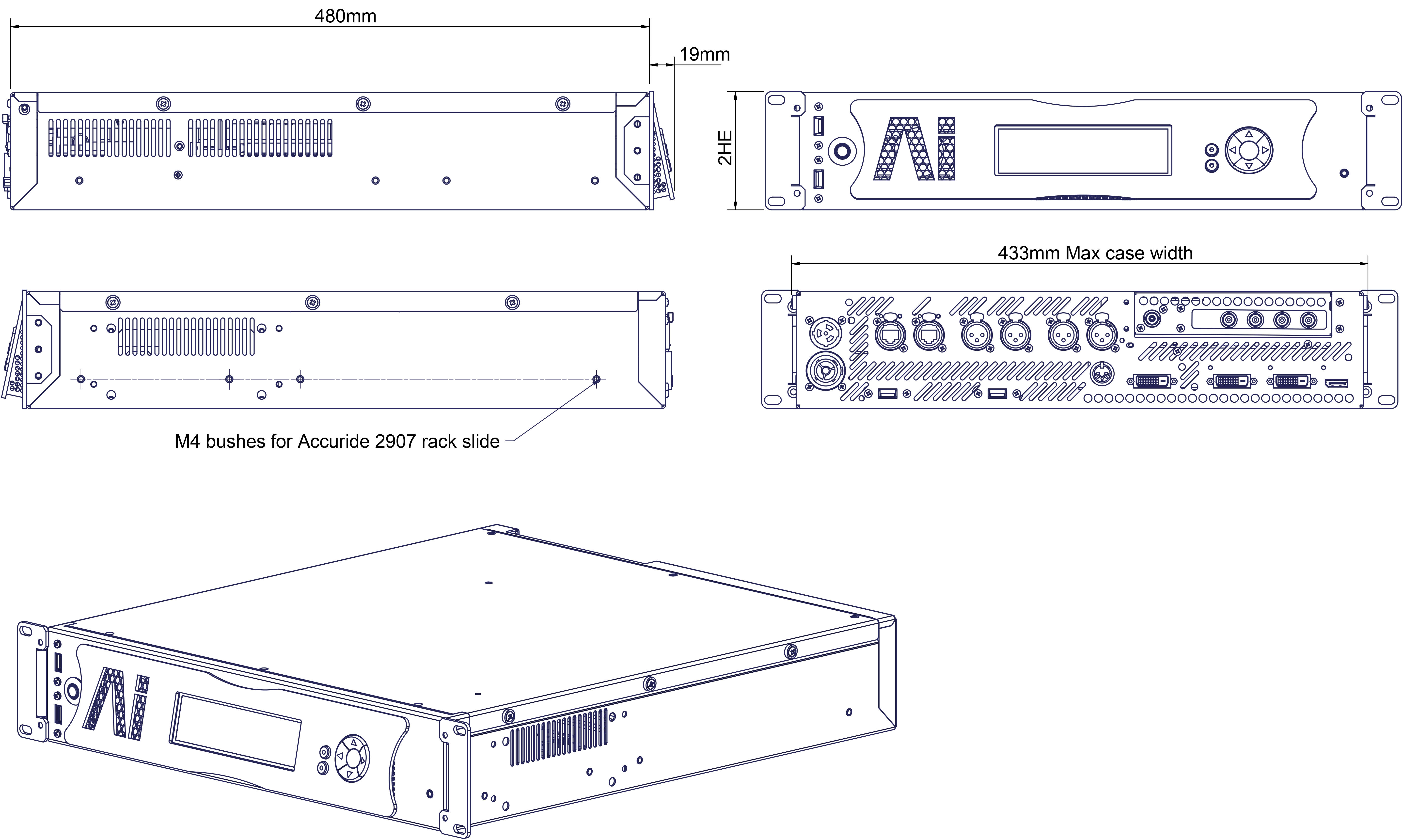

Physical Specification

• Size RU 2U
• Size (W x H x D mm) 435 x 88 x 510
• Size (With Rack Ears) 490 x 88 x 520
• Weight 16 kg
• Power Input PowerCon True1 In/Thru
• Voltage 100-250V 50/60Hz
• Power Consumption 800VA (max)

For best image quality and performance, we recommend the use of progressive format input signals. Interlaced format signals are supported but can result in visual artefacts or image degradation due to the nature of the legacy techniques used in this method of frame delivery. When no other option is available, running a progressive feed at a lower resolution can often result in less unexpected processing or temporal artefacts.
