Key Features:

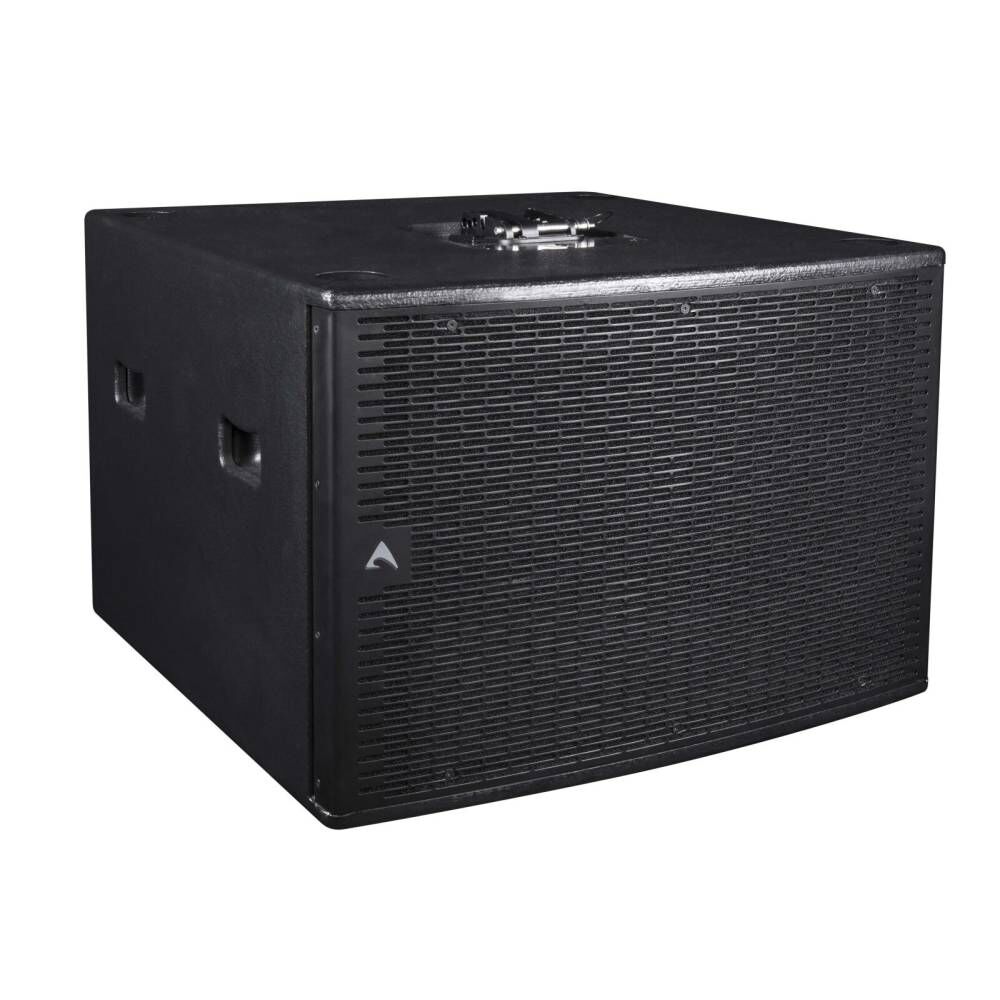

• Band-Pass/Bass-Reflex Active Subwoofer
• Single 21” Neodymium woofer with 4” ISV voice coil
• Water repellent cone
• Very compact enclosure
• Very good output-to-weight ratio
• 4000 Watt Class D amplifier with PFC Switch Mode Power Supply
• 96KHz / 40 bit floating point CORE processing

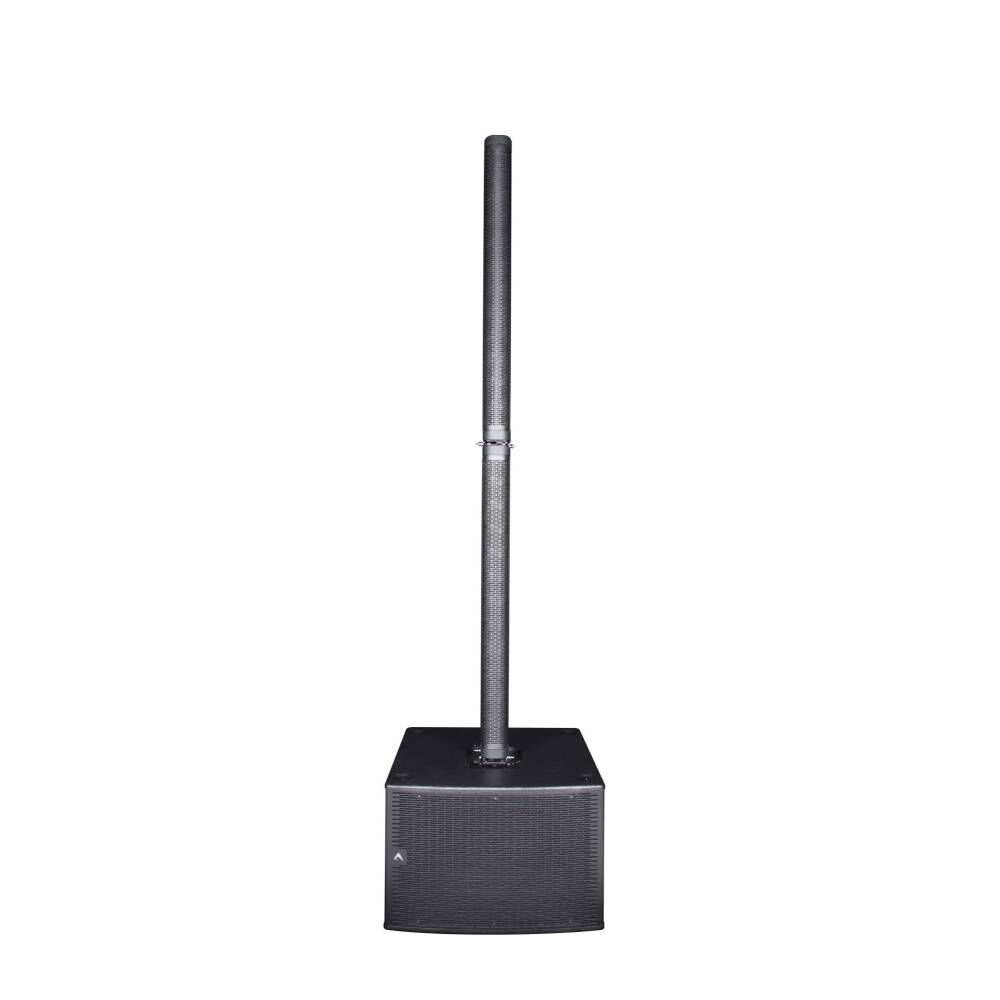

• Optimized presets for use in combination with AX12C line array modules
• Fully networkable with PRONET remote control software
• 18mm birch plywood enclosure
• Heavy duty castors.
Technical Data
System’s Acoustic Principle | Band-pass / bass-reflex |
---|---|
Frequency Response (±3dB) | 34 Hz – 180 Hz (Processed) |
Maximum Peak SPL @ 1m | 132dB SPL @ 1m |
Type | 21″ Neodymium magnet woofer, 4″ (100mm) VC |
Cone | High stiffness (Complex Composite), water repellent |
Input Impedance | 20 kΩ balanced, 10 kΩ unbalanced |
Input Sensitivity | +4dBu / 1.25 V |
Signal Processing | CORE processing, 96kHz / 40bit floating point SHARC DSP, 24 bit AD/DA converters |
Direct access Controls | 4 Presets (2 x AX12C / 4 x AX12C / 1 x AX12C / User), Network Termination, GND Link |
Remote Controls | PRONET control software |
Network protocol | CANBUS |
Amplifier Type | Class D with SMPS and PFC, Variable Switching Frequency |
Output Power | 2000W + 2000W (Out1: SW2100 – Out2: AX12C or other AXIOM loudspeakers) |
Mains Voltage Range | 90 – 260V 50/60Hz |

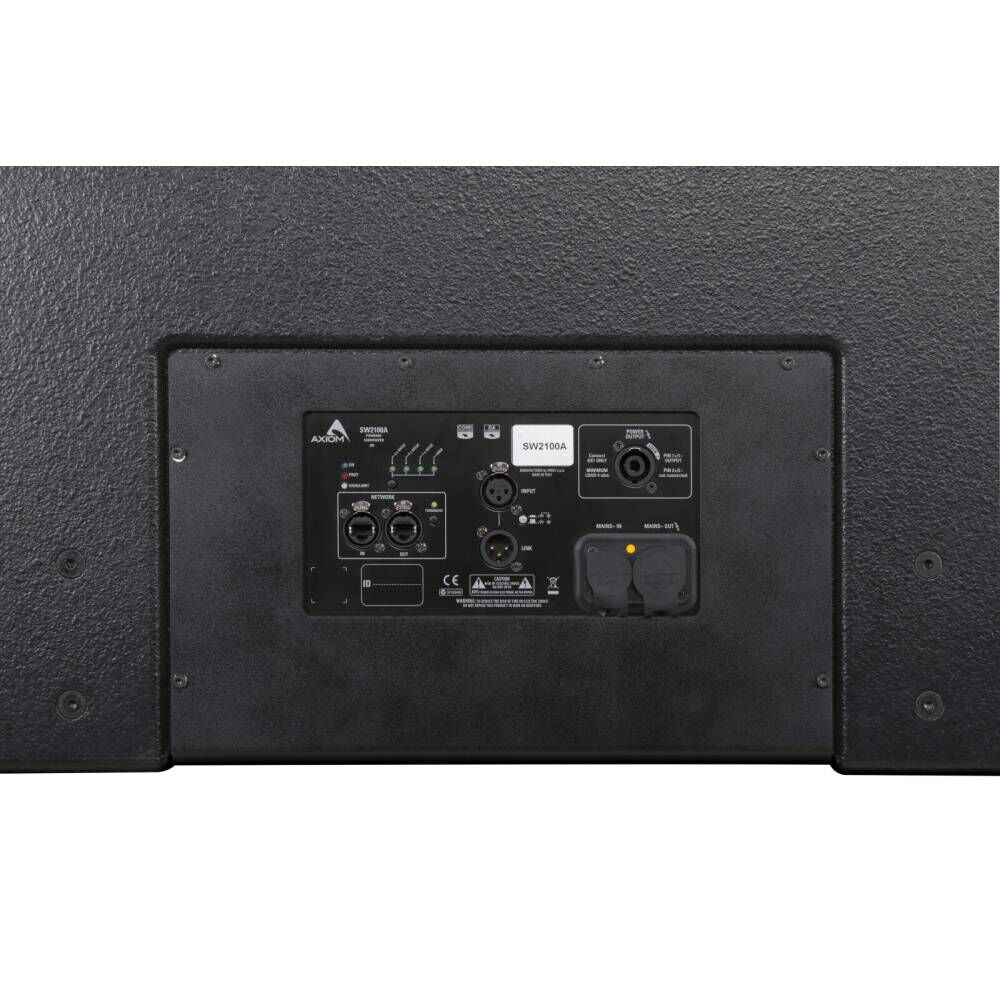

IN / OUT Connectors | Neutrik XLR-M / XLR-F |
IN / OUT Network Connectors | ETHERCON®(NE8FAV) |
Mains Connectors | PowerCon® TRUE 1 (NAC3PX) |
Cooling | Variable speed DC fan |
Dimensions (W x H x D) | 760 mm (29.9”) x 511 mm (20.1”) x 770 mm (30.3”) |
Enclosure Material | 18mm, reinforced phenolic birch |
Paint | High resistance, water based paint |
Transport | 4 x heavy duty 100mm (4”) castors, 4 handles |
Net Weight | 61 Kg (134.2 lbs.) |
(AXIOM-SW2100A)
SKU | AXIOM-SW2100A |
Brand | AXIOM |
