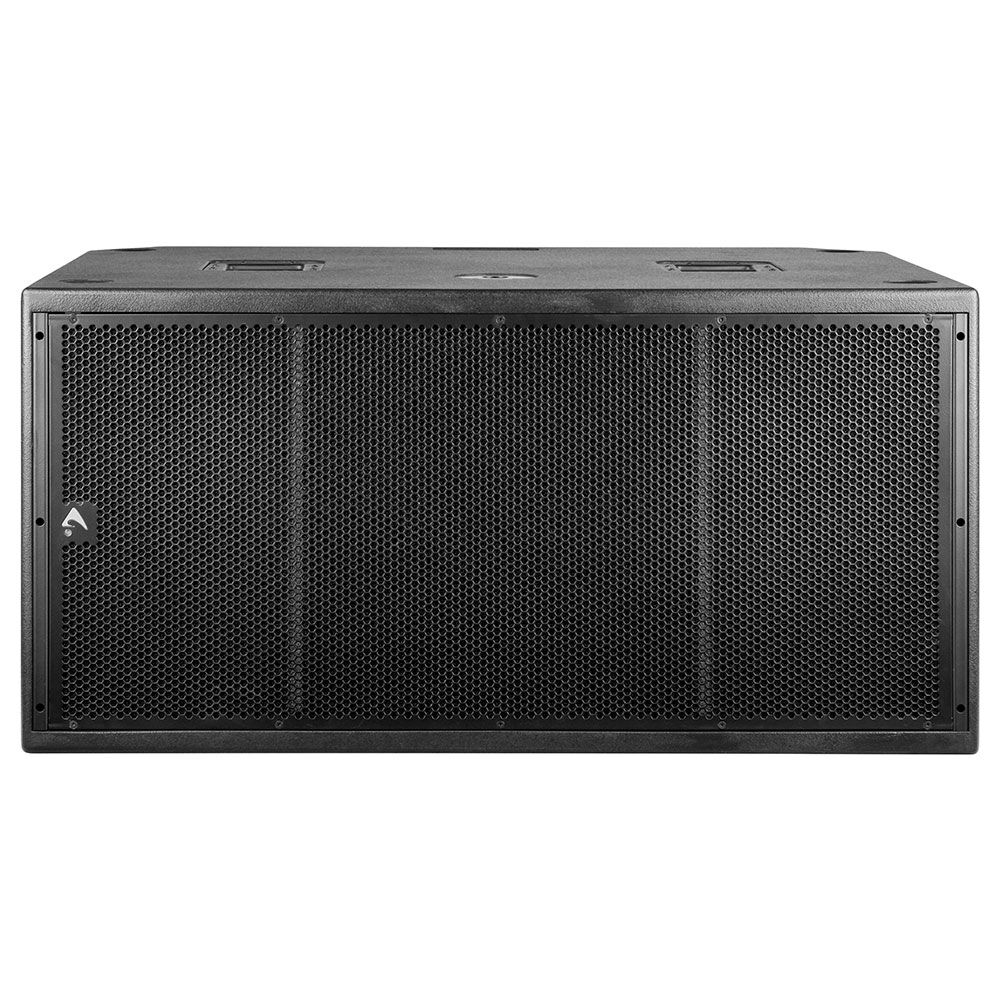

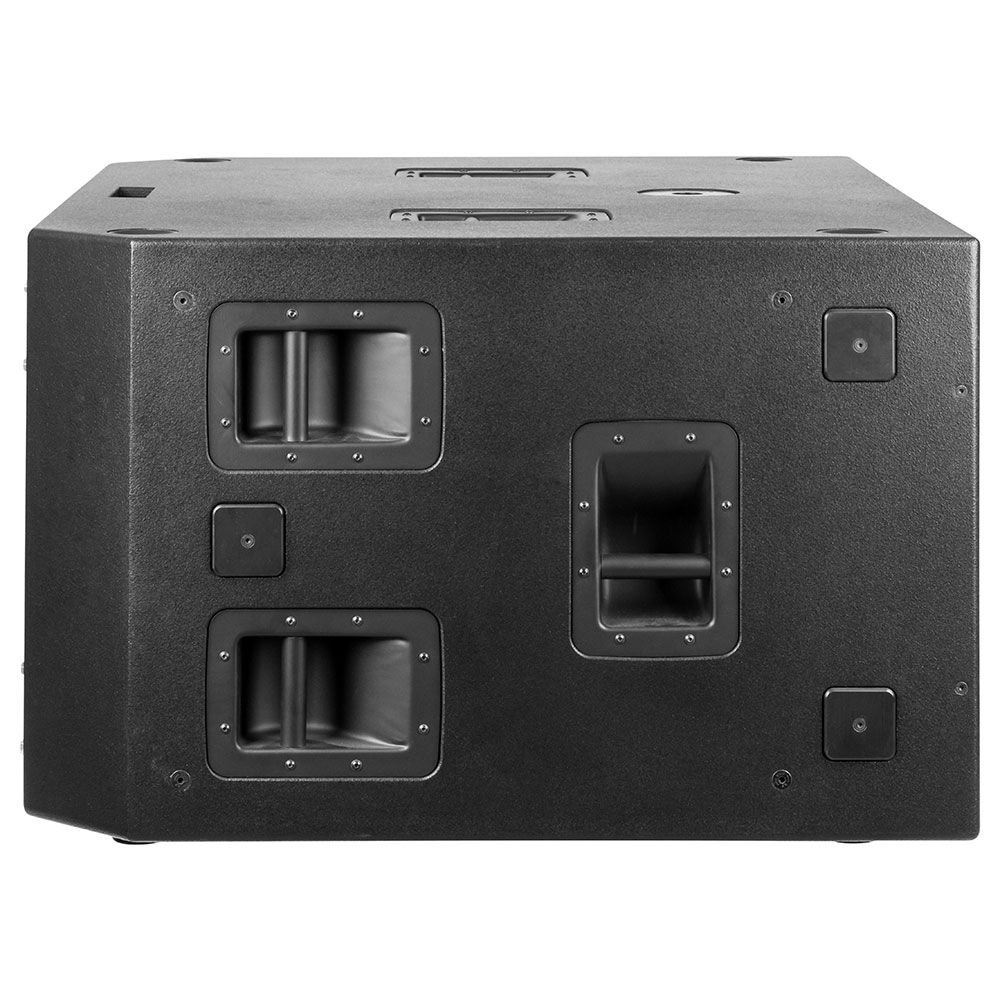

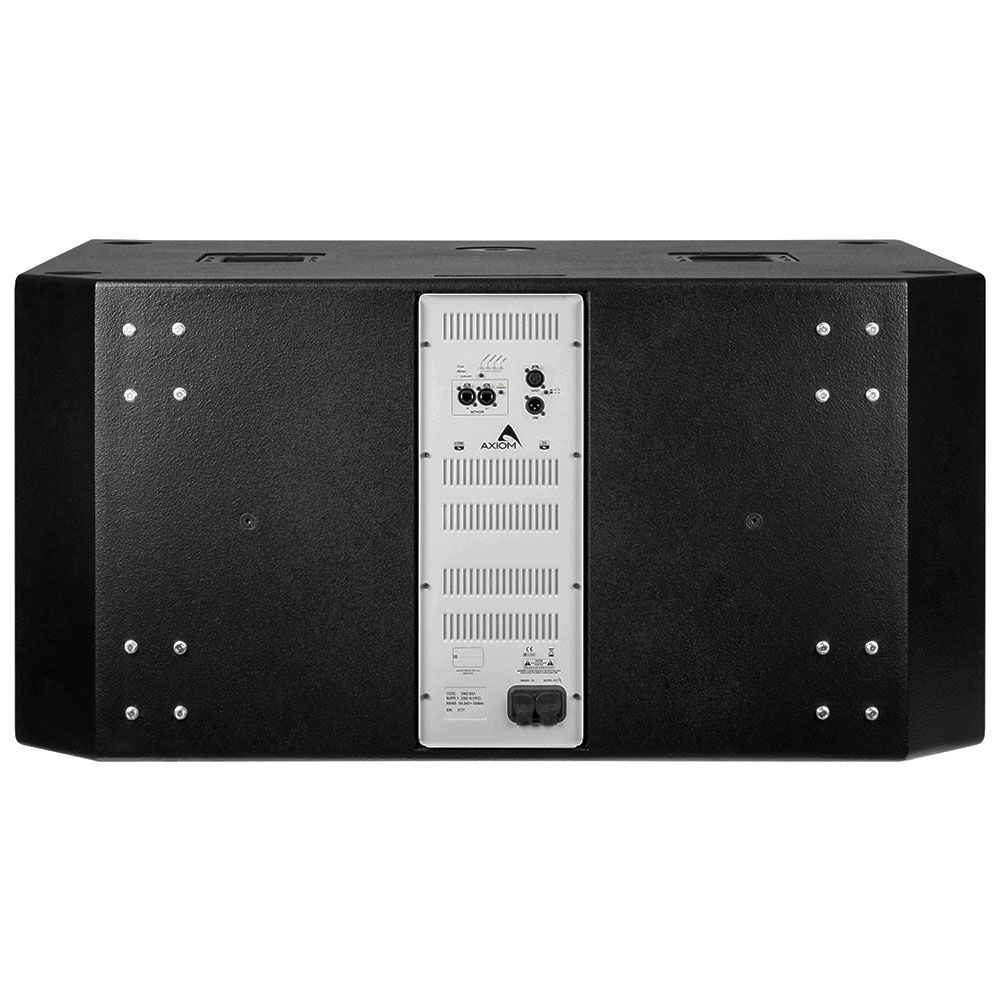

Axiom SW218XA v2 Powered Dual 18″ Subwoofer with DSP

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Very High Output dual 18″ subwoofer
Powered by Powersoft amplifier with 2000W + 2000W continuous power
40-bit floating point CORE2 processing with PRONET AX remote control
Tetracoil® dual voice coil for extended linear response and increased power handling
High-strength, water-repellent, fibreglass-reinforced cones
Digitally controlled Class D amplifier module with SMPS and PFC
Impressive power-to-weight ratio with a compact size
Manifolded Transmission Line configuration for very fast transient response.

Technical Data

System’s Acoustic Principle	Manifolded Transmission Line
Frequency Response (±3dB)	30 Hz – 92 Hz (Processed)
Maximum Peak SPL @ 1m	143 dB
Type	Two 18” (460mm) woofer, neodymium magnet, 4” (100 mm) VC
Cone	Water repellent cone and epoxy coated plates
Voice Coil Type	100mm (4in) Tetracoil® dual voice coil, equivalent to a single coil diameter larger than 152mm (>6in)
Input Impedance	20 kΩ balanced, 10 kΩ unbalanced
Input Sensitivity	+4dBu / 1.25 V
Signal Processing	CORE2 processing, 40-bit floating-point SHARC DSP, 24-bit AD/DA
Direct access Controls	4 Presets (Standard/InfraSub/Cardioid/ User), Network Termination, GND Link
Remote Controls	PRONET AX control software
Network protocol	CANBUS
Amplifier Type	Class D with SMPS and PFC
Output Power	2000W + 2000W
Mains Voltage Range	100 – 240 V~ ±10% 50/60 Hz
IN / OUT Connectors	Neutrik XLR-M / XLR-F
IN / OUT Network Connectors	ETHERCON®(NE8FAV)
Mains Connectors	PowerCon TRUE1 (NAC3PX In/Out)
Cooling	Variable speed DC fan
Dimensions (W x H x D)	1215 x 590 x 950 mm (1050 mm including wheels)
Enclosure Material	15 mm, reinforced phenolic birch
Paint	High-resistance, water-based paint
Transport	4 heavy-duty 100 mm (4″) castors
Net Weight	121.2 Kg
