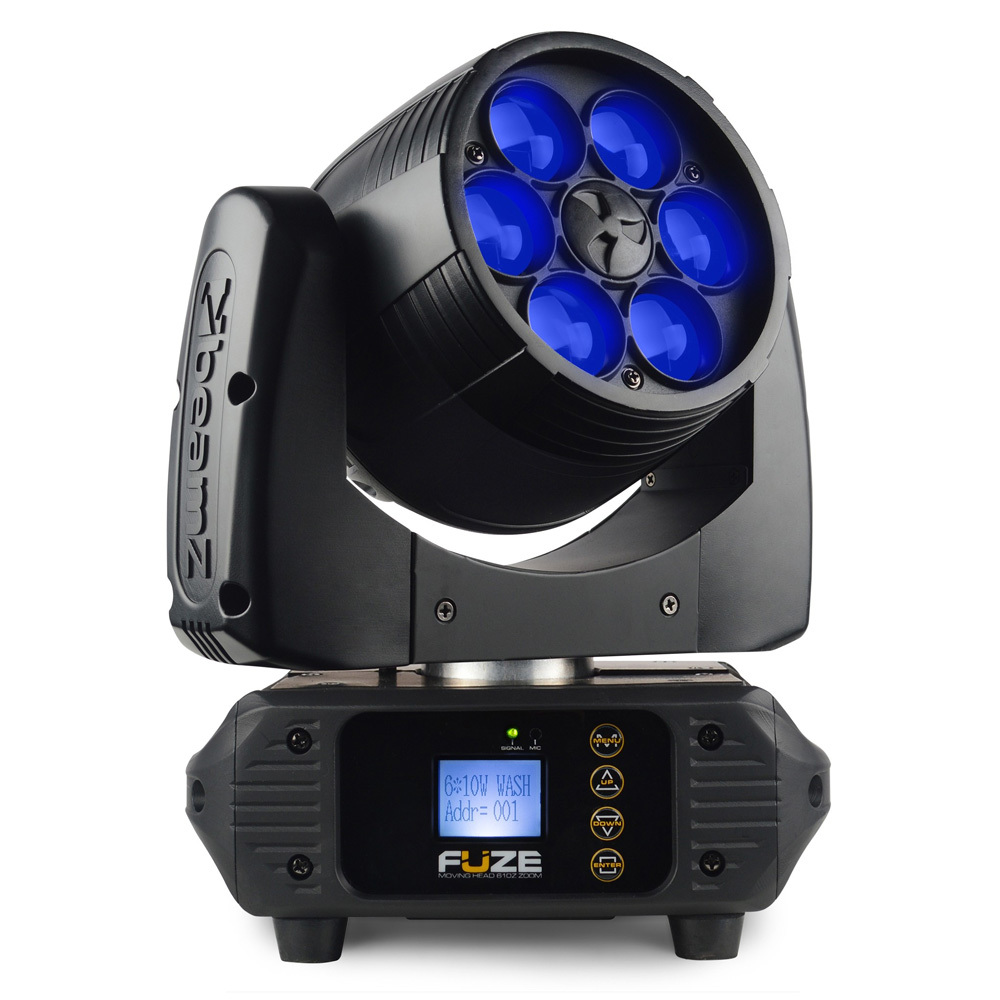

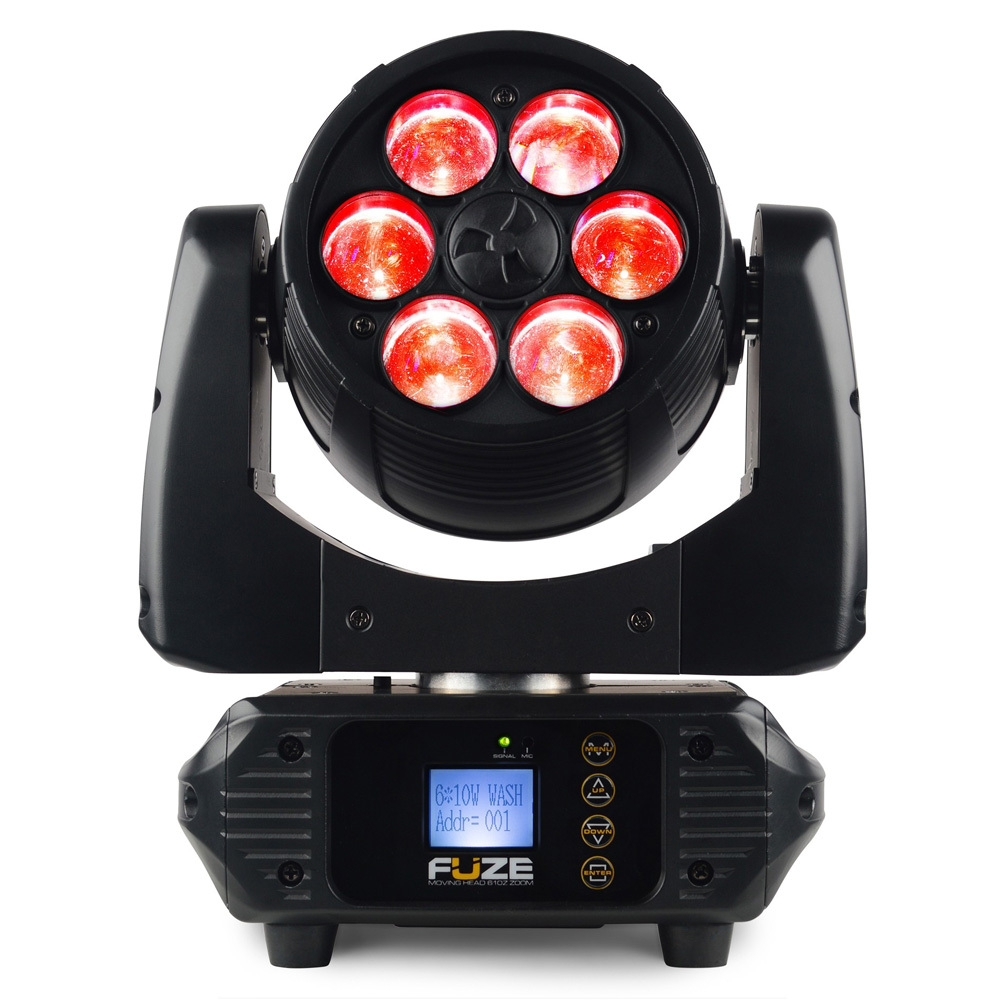

Beamz Fuze 610 Z Wash LED 6x10W RGBW Zoom DMX IR
STOCK SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER
- LED Wash with motorised zoom
- 6x 10W RGBW (4-in-1) LEDs
- 13 or 15 DMX channels
- DMX and Stand-alone mode
- Sound activated with adjustable sensitivity
- Auto mode
- Beam angle 2°-24°
- Automatic pan/tilt correction
- Control panel with LCD display

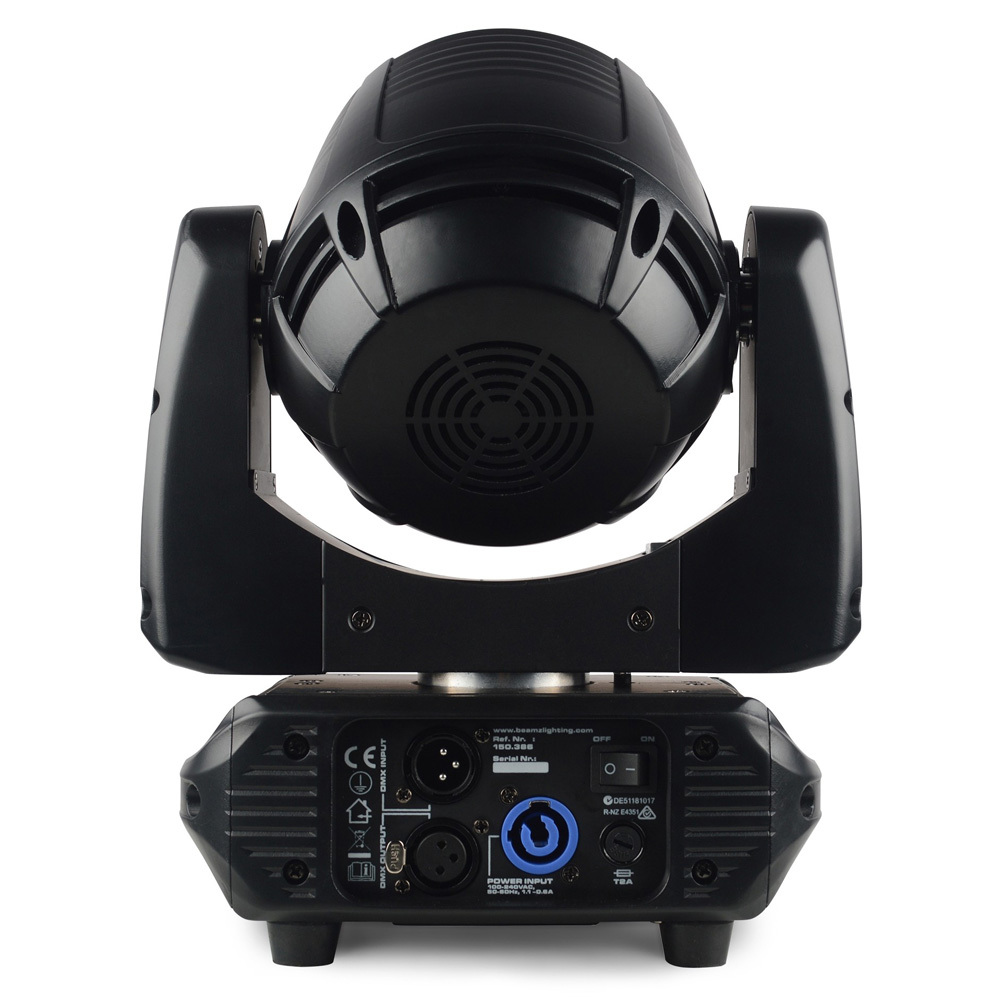

- DMX in/output via 3-pin XLR

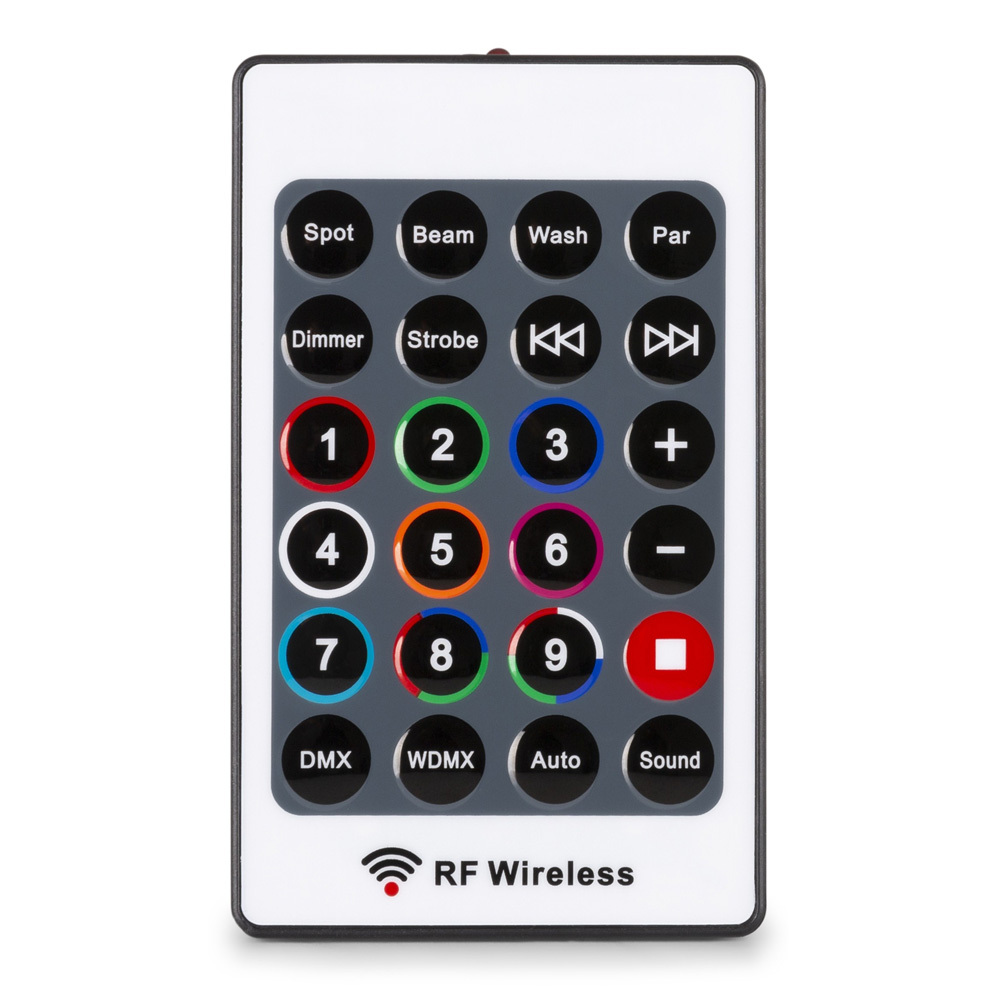

- Included remote control.
The Fuze610Z is powered by 6x 10W RGBW 4-IN-1 colour LEDs and is equipped with motorised zoom allowing for a variable beam angle from 2°- 24°. With the high-quality optics it’s also possible to combine all six light beams into one big, fat beam. Exact positioning is possible through 16-bit movement resolution (540-degree pan and 180-degree tilt). The fixture is designed in a compact housing and is ideal for lighting designers, DJs, bands, clubs, bars and installations where small footprint and low weight is critical. It can be controlled by DMX, with sound activation or used in standalone mode with the Master/Slave function.
Technical Data
| Light source | 4-in-1 LED |
|---|---|
| LED colours | Red, Green, Blue, White |
| LED power | 10W |
| Quantity of LEDs | 6 |
| Beam angle: Min | 2° |
| Beam angle: Max | 24° |
| Field angle: min | 8° |
| Field angle: max | 41° |
| Illuminance | 39.000lx@1m |
| Pan Range | 630° |
| Tilt Range | 270° |
| Flash rate per second | 1 – 21Hz |
| Modes | Automatic programs, DMX, Manual, Master/Slave |
| Sound to light mode | Yes |
| DMX channels | 13, 15 |
| DMX connector | 3-pin XLR |
| Display | LCD |
| IP rating | IP20 |
| Cooling | Temperature controlled fan |
| Power Plug | Power-connector |
| Power consumption | 1.1 – 0.6A |
| Power supply | 100-240VAC 50/60Hz |
| Dimensions (L x W x H) | 240 x 230 x 260mm |
| Weight | 4.55kg |
(BEAMZ-FUZE610Z)
| SKU | BEAMZ-FUZE610Z |
| Brand | Beamz |
