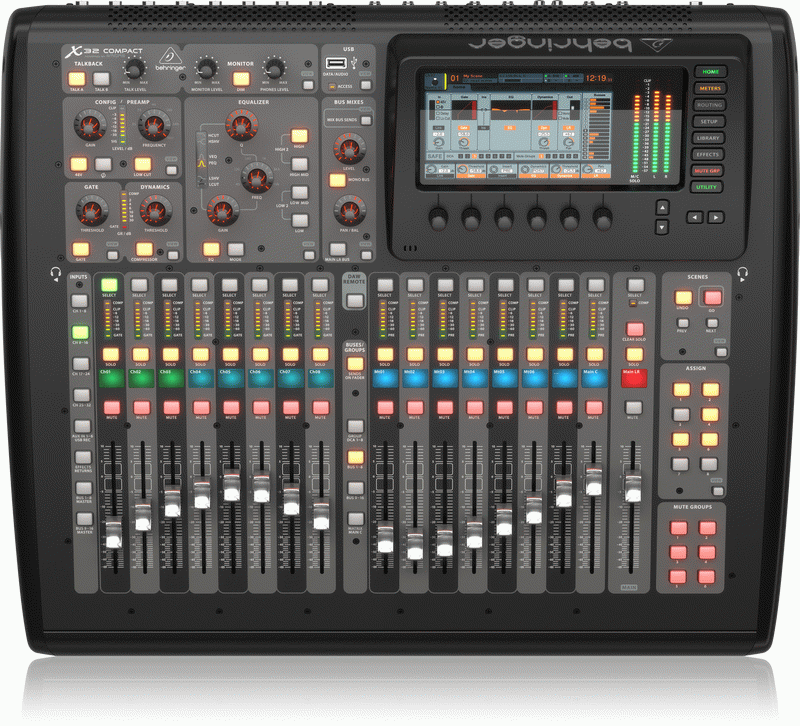

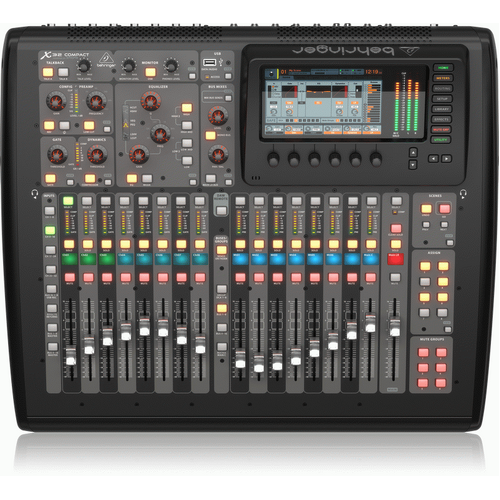

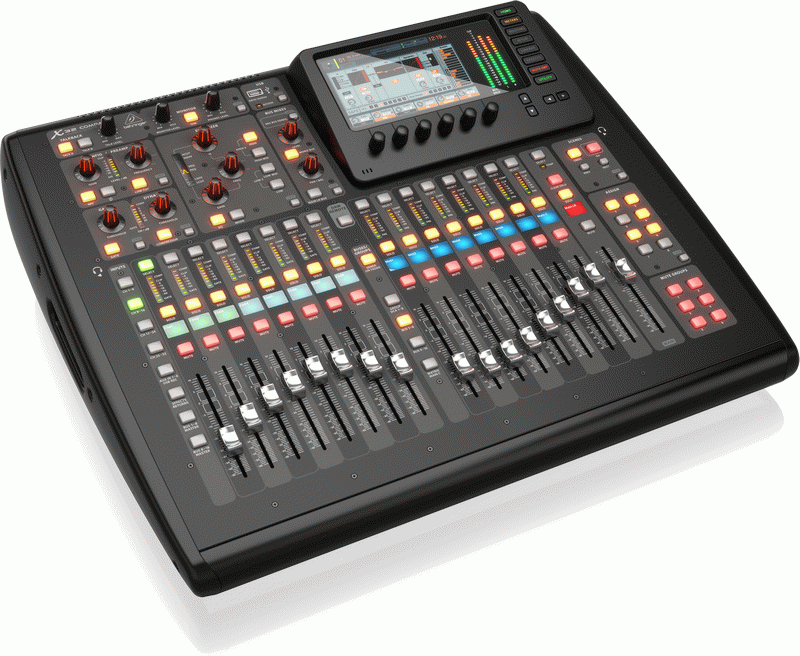

BEHRINGER X32 COMPACT DIGITAL MIXER

Features

Thanks to its legendary onboard X32 mix engine, the X32 COMPACT can be your top-notch studio recording interface today, control a complex theater production tomorrow, or sit securely in your side-rack while you mix your band’s club gig from your iPad. A revolution in its own right, the incredible X32 COMPACT combines the finest analog I/O and powerful digital connectivity with ample processing for 40 channels, 25 buses and up to 152 signal sources.

You can easily control every parameter of the mix directly on the X32 COMPACT using the 800 x 480 graphic UI, but the awesome flexibility of networked remote control literally opens up an amazing world of possibilities. Use our X32-EDIT PC/Mac/Linux application, X32-MIX for iPad, X32-Q for iPhone/iPod touch and X32-Q for Android to control the mix from anywhere in the room. You can even run multiple instances of these powerful apps at the same time, giving your performers the ability to mix their own personal monitors on-the-fly!

With its 16 MIDAS -design mic preamps and dual AES50 ports, the X32 COMPACT can support up to six S16 digital stage boxes for massive I/O connectivity. Ultra-flexible routing options and 8 powerful stereo FX engines make the X32 COMPACT the ideal choice for handling audio now – and as your needs grow.

• Compact 40-input channel, 25-bus digital mixing console for Studio and Live application
• 16 MIDAS-designed, fully programmable mic preamps for audiophile sound quality
• 17 Fully automated motorized 100 mm faders allow for instant overview, powerful scene management and DAW control
• 8 XLR outputs plus 6 additional line in/outputs, 2 phones connectors and a talkback section with integrated or external mic
• Individual and dynamic LCD Scribble Strips on all channels and buses creating easy assignment and intuitive channel distinction
• 32 x 32 channel USB 2.0 audio interface, with DAW remote control emulating HUI* and Mackie Control*
• iPad* and iPhone* apps for professional remote operation available free of charge—no host PC required
• High-resolution 7 day-viewable Color TFT for easy viewing of workflow components and parameters
• Main LCR, 6 matrix buses and all 16 mix buses each featuring inserts, 6-band parametric EQ's and full dynamics processing, plus 8 DCA and 6 mute groups
• Virtual FX rack featuring 8 true-stereo FX slots include high-end simulations such as Lexicon 480L* and PCM70*, EMT250* and Quantec QRS* etc.
• 40-Bit floating-point DSP features unlimited dynamic range with no internal overload and near-zero overall latency (0.8 msec)
• Powerful scene management for convenient handling of complex productions
• 48-channel Digital Snake ready* via dual AES50 ports, featuring KLARK TEKNIK’s SuperMAC networking capability for ultra-low jitter and latency
• USB type-A connector providing file storage and uncompressed stereo recordings plus show presets and system updates
• Dedicated and easy-to-use channel strip section with direct access controls and graphic user interface for intuitive workflow
• Additional user-definable control section allows to set up short-cuts to your favorite views or parameters
• ULTRANET connectivity for BEHRINGER's P-16 Personal Monitoring System* plus AES/EBU stereo digital output and MIDI
• Networked remote control for show setups with on-screen software editor via Ethernet
• Built-in expansion port for audio interface cards or digital networking bridges
• Future firmware updates, incl. new FX “Plug Ins”, downloadable from behringer.com free of charge
• Designed and engineered in Germany

RRP $3,899.00

Compact 40-Input, 25-Bus Digital Mixing Console with 16 Programmable MIDAS Preamps, 17 Motorized Faders, Channel LCD's, 32-Channel Audio Interface and iPad/iPhone* Remote Control
