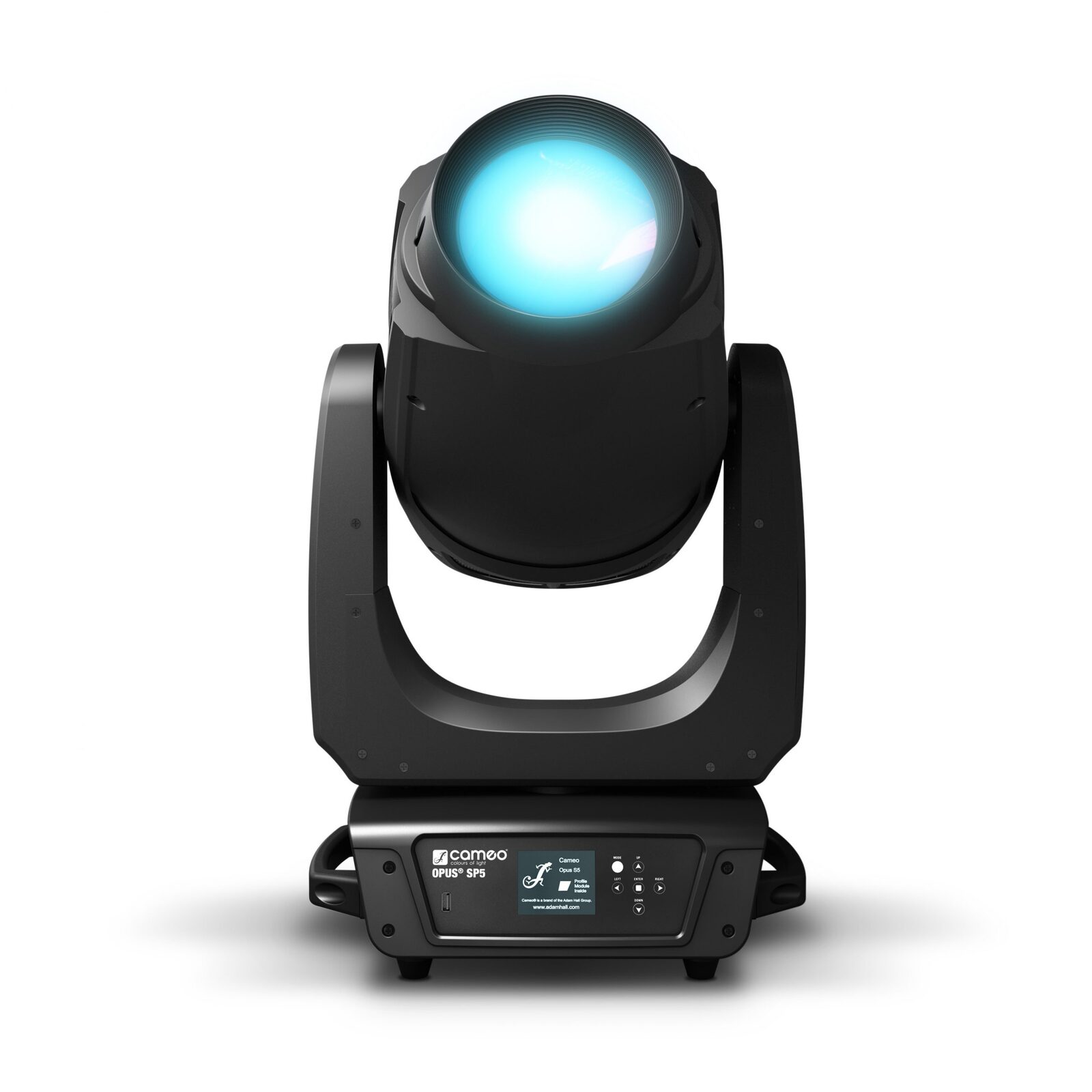

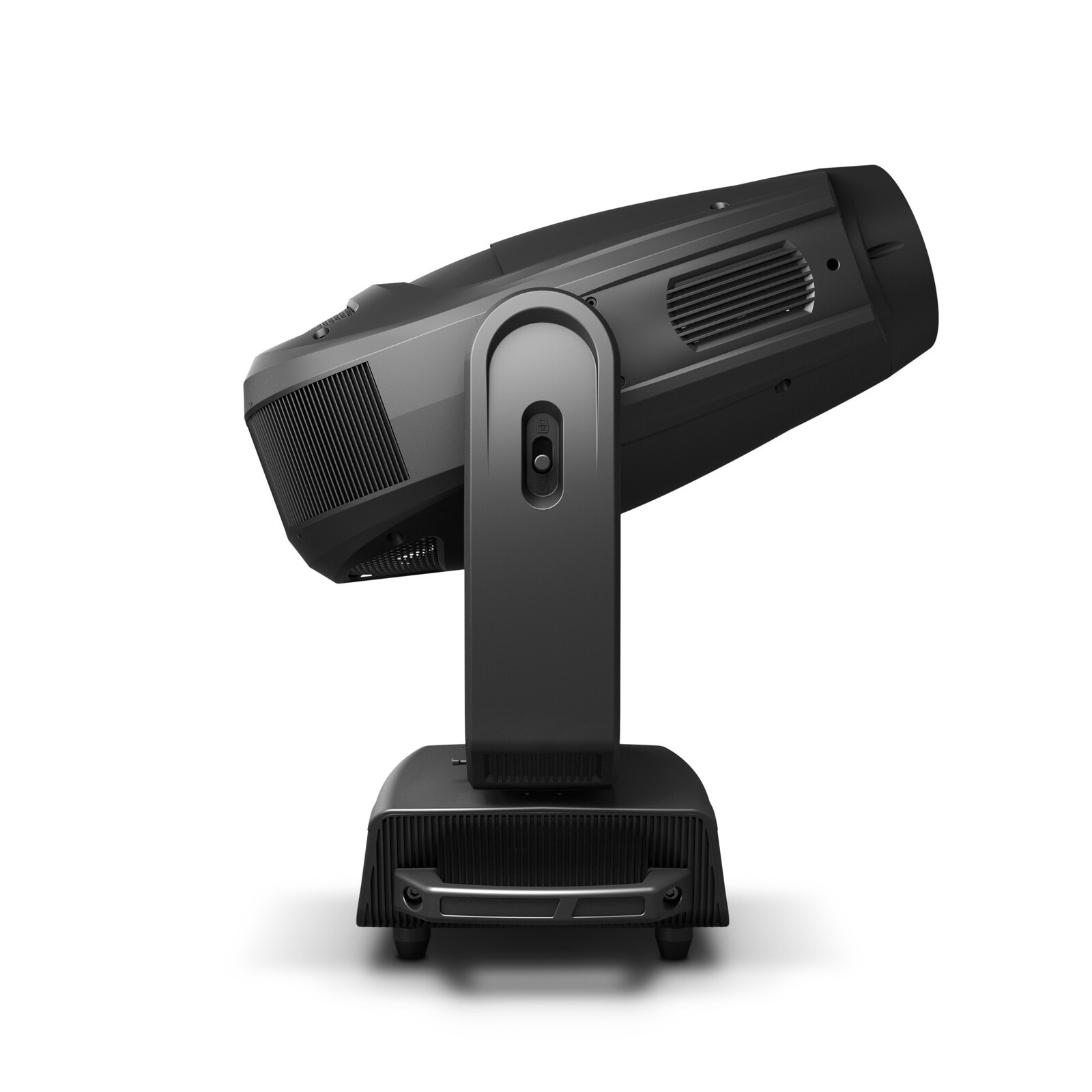

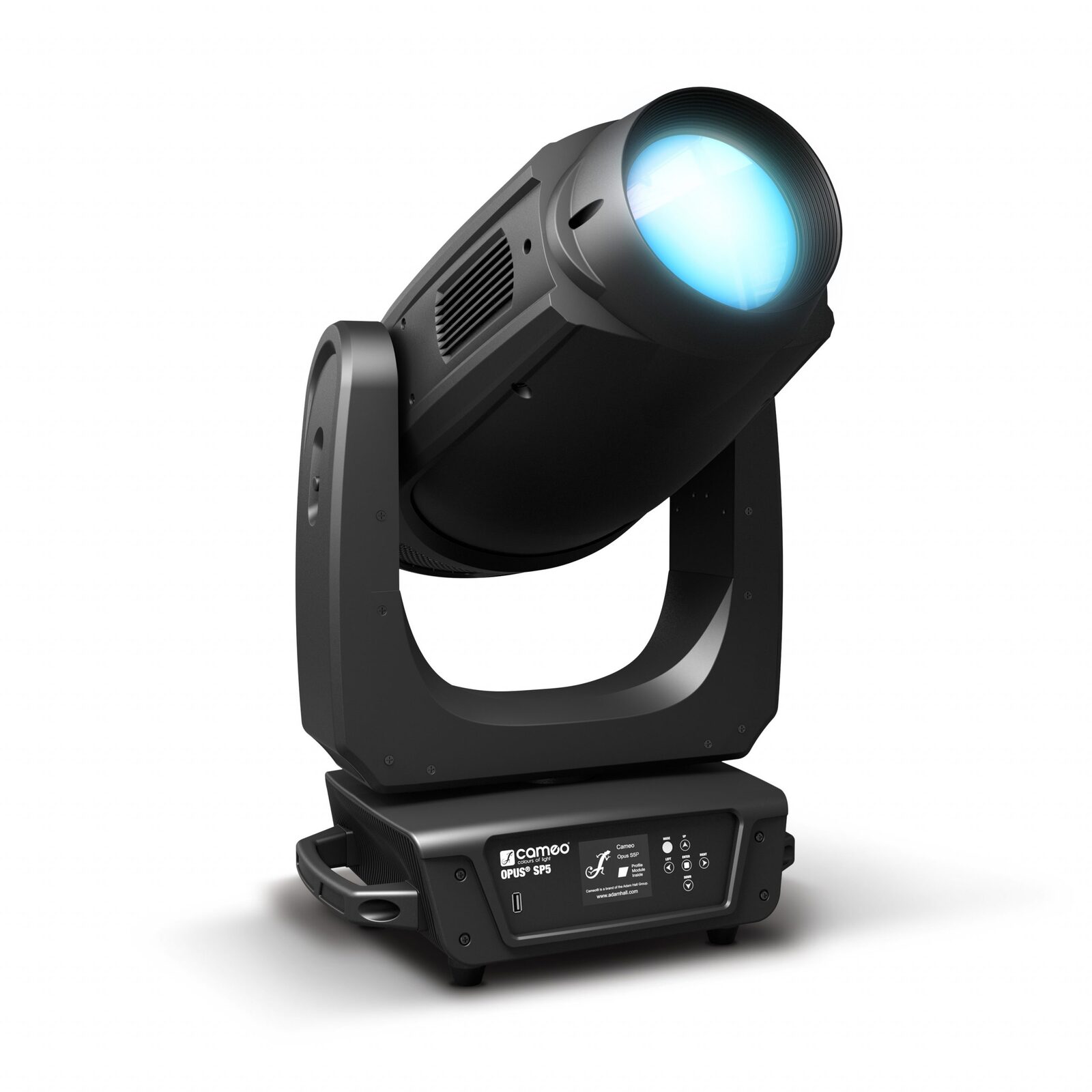

Cameo OPUS SP5 FC Profile Spot Moving Head

• Profile Spot Moving Head with 300 W Full Colour RGBAL-LED
• Display the complete colour spectrum with CRI >90 and TLCI 93
• High-quality optic with especially long zoom range of 6° to 44°
• Even projection without colour shadows
• Fourfold diaphragm slider system with +/- 45° rotation
• Angle and position of each diaphragm slider adjustable up to complete closure
• Rotatable animation wheel
• Rotating gobo wheel with 6 indexable and rotatable replaceable glass gobos plus open
• Static gobo wheel with 7 replaceable glass gobos plus open
• Rotatable and indexable circular threefold prism and linear sixfold prism
• Variable frost filter for washlight effects and continuously variable iris diaphragm
• Smooth dimming with 16-bit resolution and 4 selectable curves
• Flicker-free thanks to selectable PWM frequencies up to 25 kHz

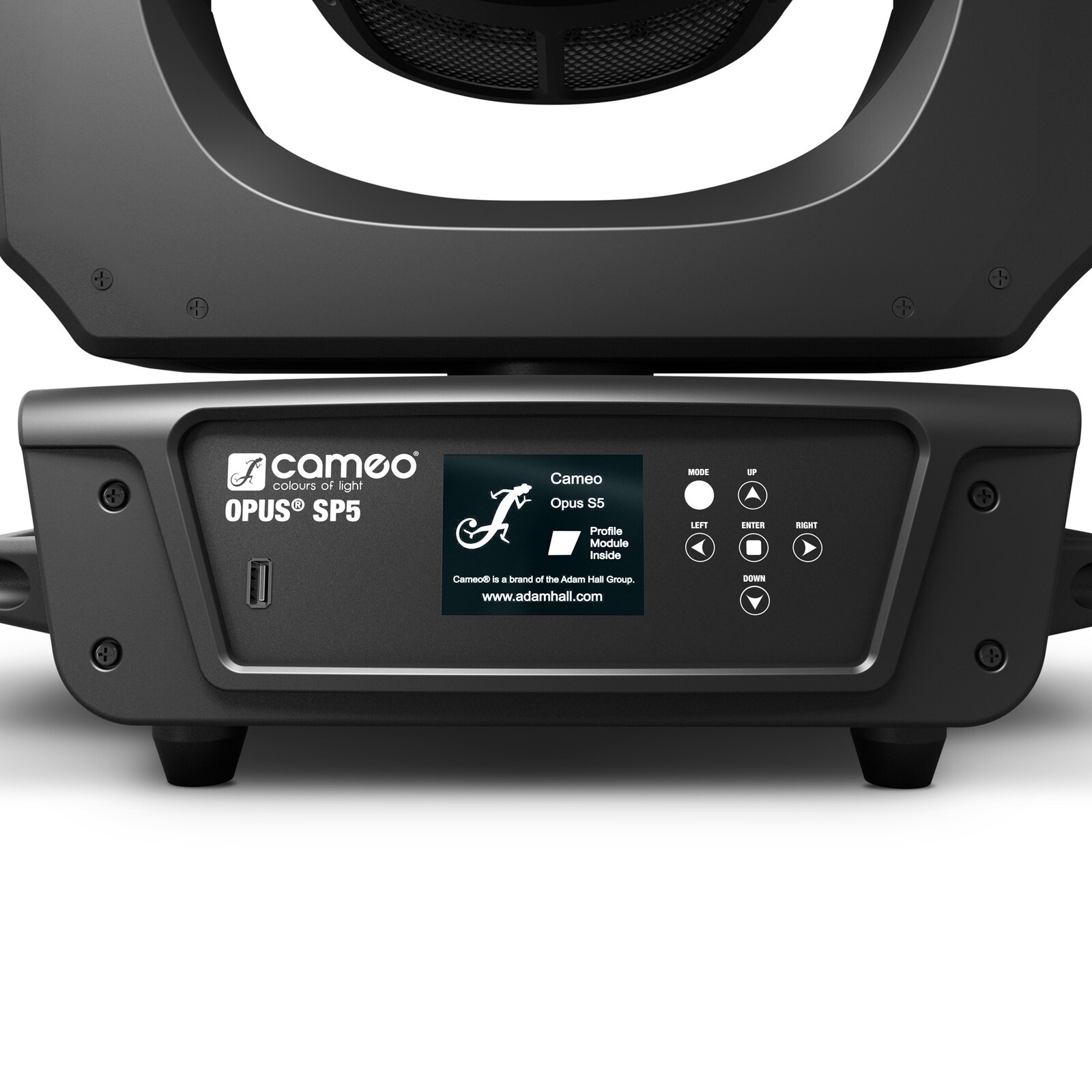

• Battery-powered touchscreen display with 6 touch keys for mains-free configuration
• Flexible control options via built-in W-DMX™ Receiver, DMX, RDM, Art-Net or sACN
• 50 colour presets matched for use with LEE filters.

Create perfect displays for your light presentations with a broad colour palette and lightning-fast colour changes with the Cameo OPUS® SP5 FC. The powerful Profile Spot Moving Head reproduces even projection without colour shadows thanks to its high-quality optical system. It features a particularly long zoom range of 6° to 44°, plus a continuously variable iris diaphragm and motorised focusing. A continuously adjustable frost filter supplies a soft, washlight-like spread. With its flicker-free and almost noiseless operation, plus a colour reproduction index of over 90, the spotlight is superbly suited for use in theatre, film and TV production.

The OPUS® SP FC features four diaphragm sliders for creating a range of geometric shapes. These can be individually angled and inserted all the way for complete shading. The complete diaphragm slider system turns +/- 45° for precise positioning. Incredible morphing effects are created with the simultaneous use of both gobo wheels with 6 rotating and 7 static glass gobos. These can be combined with the animation wheel for exceptionally vivid projections. The spotlight offers a rotatable and indexable circular threefold prism and a rotatable and indexable linear sixfold prism for projection reproduction. In addition, four 16-bit dimmer curves are available to choose from.

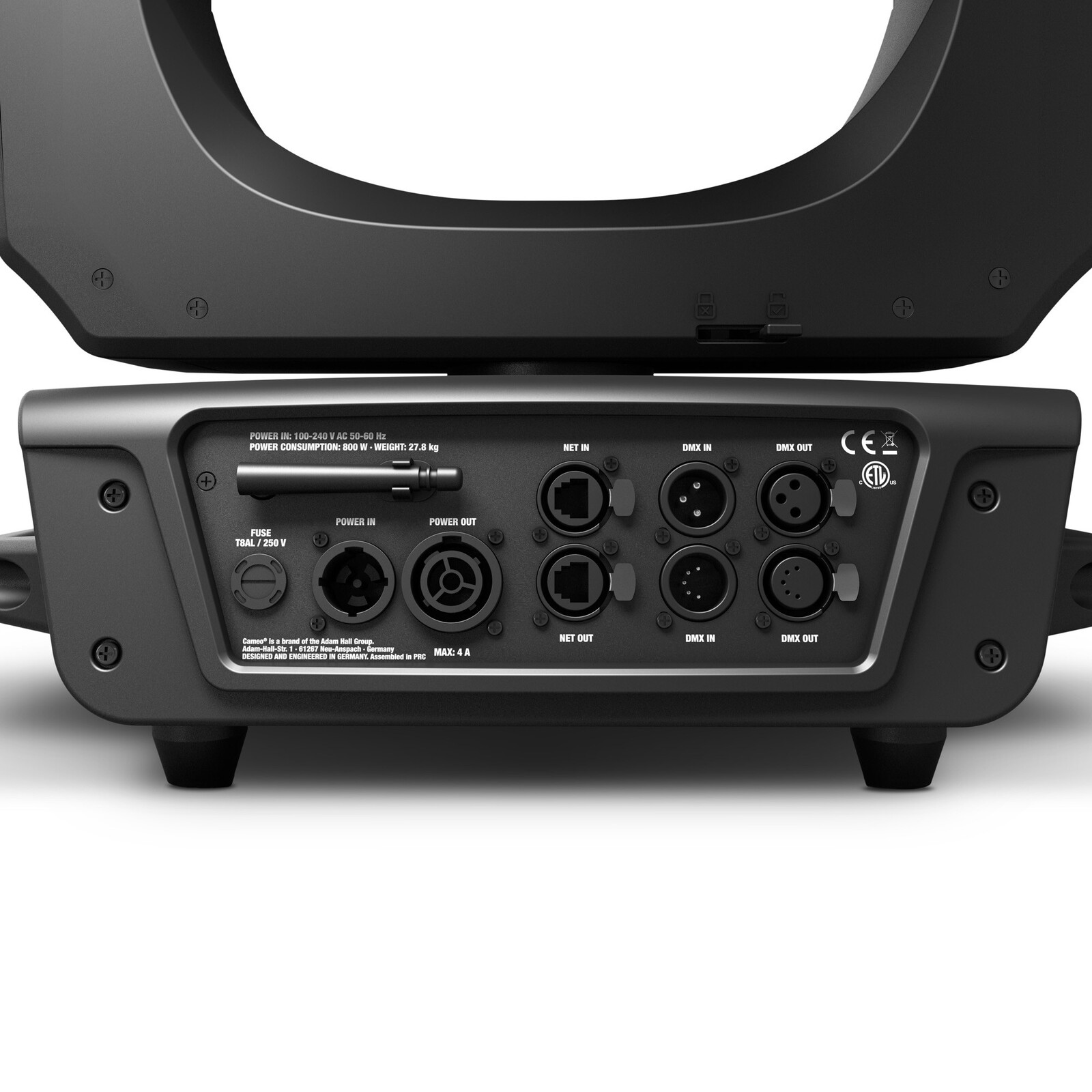

The OPUS® SP5 FC offers flexible control options via DMX, RDM, Art-Net, sACN or the built-in W-DMX™ transceiver. Its robust ABS and metal housing is equipped with Neutrik® DMX and powerCON TRUE1 power sockets, while highly efficient heat pipe cooling and temperature-controlled fans ensure optimal operation. A battery-powered touchscreen display and 6 additional touch buttons facilitate convenient, mains-free configuration and two methods for navigation. The spotlight is supplied with two Omega brackets and power cable.

Technical Data
