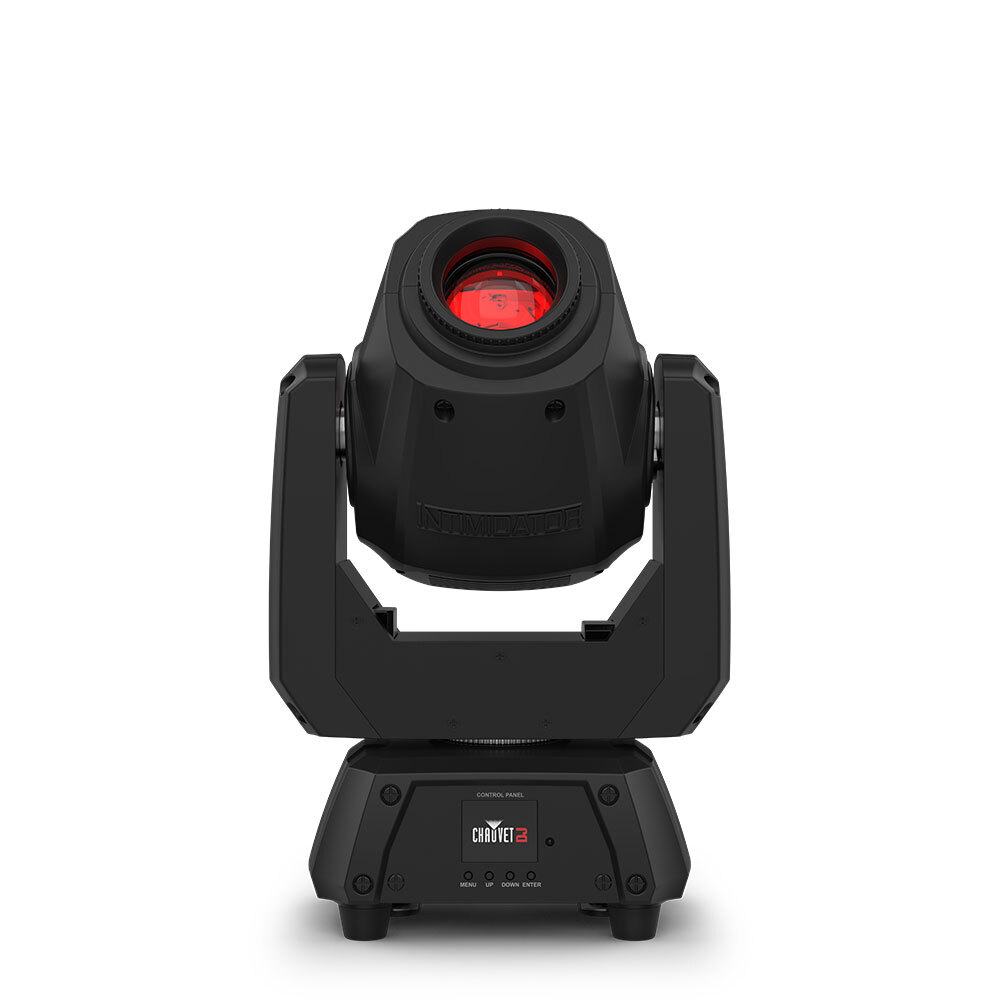

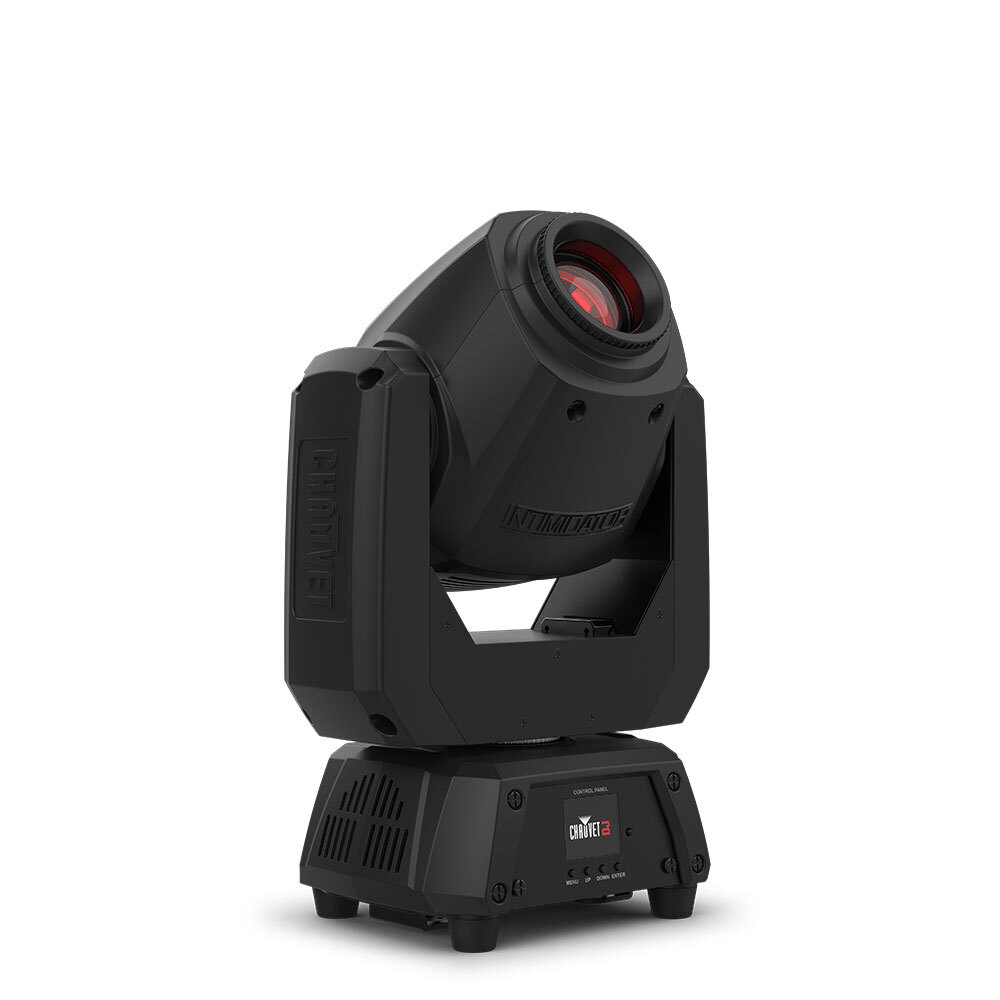

- Compact 75W moving head designed for mobile events
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- New home position allows for smoother programming
- ¼-turn hanging bracket allows for quick removal when needed
- Project crisp gobos from nearly any distance with the motorized focus
- Manual zoom for short or long throw applications
- 3-facet prism splits the beam and covers a larger area
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Set, save, and recall 1 scene manually, directly from the full-color LCD display
- Link up to 4 fixtures to create eye-catching, synchronized shows in Automated or Sound mode

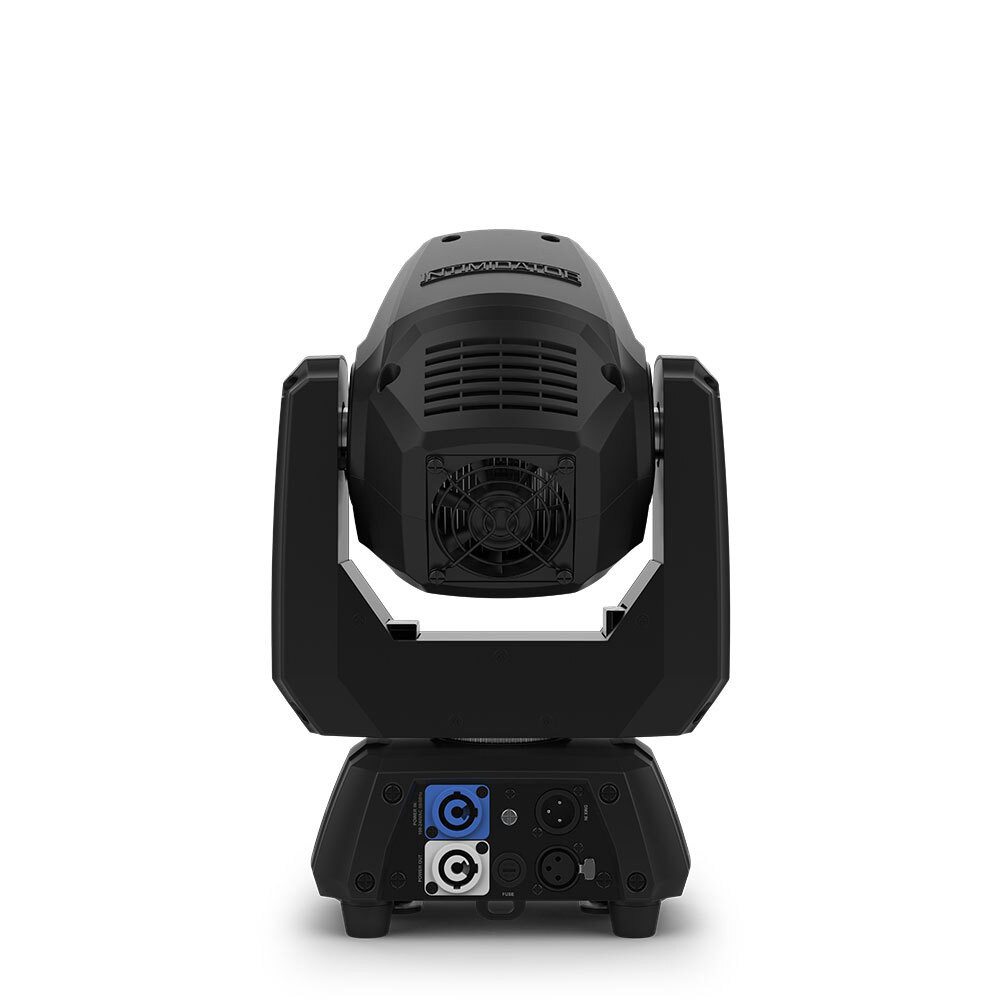

- powerCON®-compatible power input/output connections saves setup time
- Fits best in the CHS-2XX VIP Gear Bag
- Available in black or white to fit different applications.
Technical Data
DMX Channels: | 8 or 14 |
---|---|
DMX Connectors: | 3-Pin XLR |
Pan and Tilt: | 540°/270° |
Pan and Tilt Ranges: | 540°, 360°, 180° pan/270°, 180°, 90° tilt |
Light Source: | 1 LED (cool white) 75 W, (3.3 A), 50,000 hours life expectancy |
Lumens: | 2,785 |
Zoom Angle: | 12° to 17° |
Illuminance: | 17,458 lux @ 2 m (12°) 12,848 lux @ 2 m (17°) |
Colour Temperature: | 15,000 K |
Strobe Rate: | 0 to 20 Hz |
Colours: | 8 + white, split colors, continuous scroll at variable speeds |
Gobos: | 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
Gobo Size: | 24 mm outside, 20 mm image, 1.1 mm max thickness |
Prism: | 3-facet round, static |
Optional Controllers: | RFC, RFC-XL |
Power Linking: | 11 units @ 230 V |
Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
Power and Current: | 2128 W, 1 A @ 230 V, 50 Hz |
Weight: | 5.6 kg |
Size: | 232 x 163 x 351 mm |
Approvals: | CE, UKCA, RoHS, MET |
(CHA-INTIMSPOT260X)
SKU | CHA-INTIMSPOT260X |
Brand | CHAUVET |
