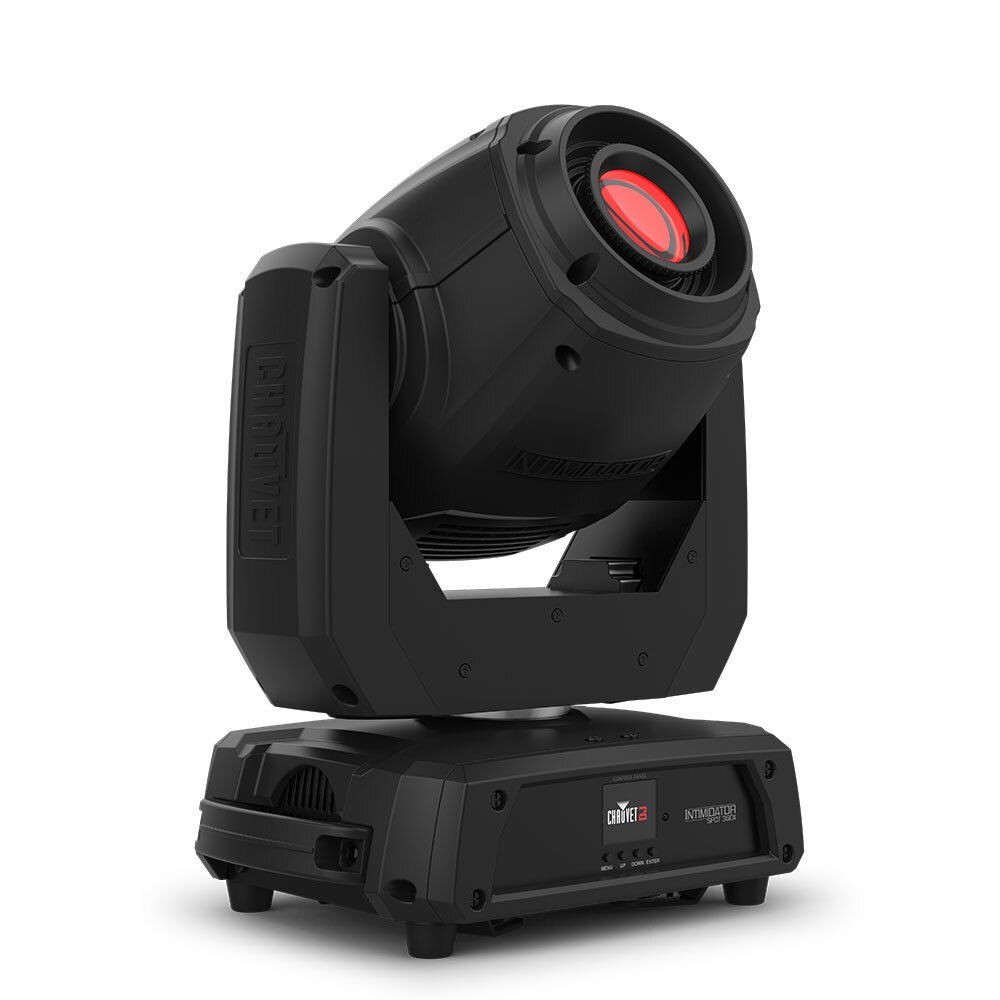

- Compact 100W moving head designed for large events
- Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
- New home position allows for smoother programming
- Dual rotating prisms split the beam for great effects and cover a larger area
- Motorized zoom for short or long throw applications
- ¼-turn hanging bracket allows for single or dual clamp mounting options
- Project crisp gobos from nearly any distance with the motorized focus
- Beams always remain on the dance floor using the built-in, innovative Totem mode
- Set, save, and recall 1 scene manually, directly from the full-color LCD display
- Onboard USB-C port allows for quick software updates

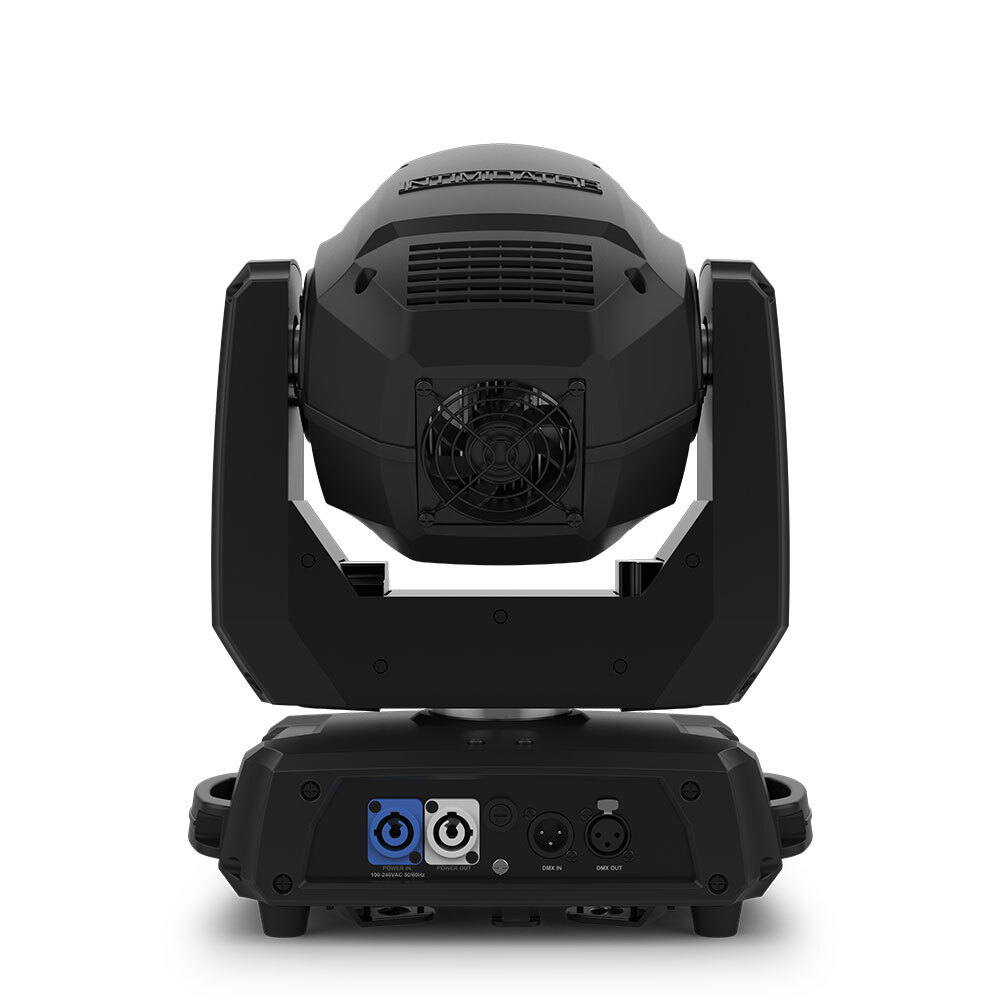

- powerCON®-compatible power input/output connections saves setup time.
Technical Data
DMX Channels: | 8 or 14 |
---|---|
DMX Connectors: | 3-Pin XLR |
Pan and Tilt: | 540°/270° |
Pan and Tilt Ranges: | 540°, 360°, 180° pan/270°, 180°, 90° tilt |
Light Source: | 1 LED (cool white) 100 W, (4.3 A), 50,000 hours life expectancy |
Lumens: | 3,967 |
Zoom Angle: | 12° to 17° |
Illuminance: | 41,601 lux @ 2 m (12°) 22,534 lux @ 2 m (17°) |
Colour Temperature: | 15,000 K |
Strobe Rate: | 0 to 20 Hz |
Colours: | 8 + white, split colors, continuous scroll at variable speeds |
Gobos: | 7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds |
Gobo Size: | 24 mm outside, 20 mm image, 1.1 mm max thickness |
Prism: | 5-facet linear, bi-directional at variable speeds 3-facet round, bi-directional at variable speeds |
Optional Controllers: | RFC, RFC-XL |
Power Linking: | 8 units @ 230 V |
Input Voltage: | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
Power and Current: | 211 W, 1.5 A @ 230 V, 50 Hz |
Weight: | 11.4 kg |
Size: | 322 x 220 x 423 mm |
Approvals: | CE, UKCA, RoHS, MET |
(CHA-INTIMSPOT360X)
SKU | CHA-INTIMSPOT360X |
Brand | CHAUVET |
