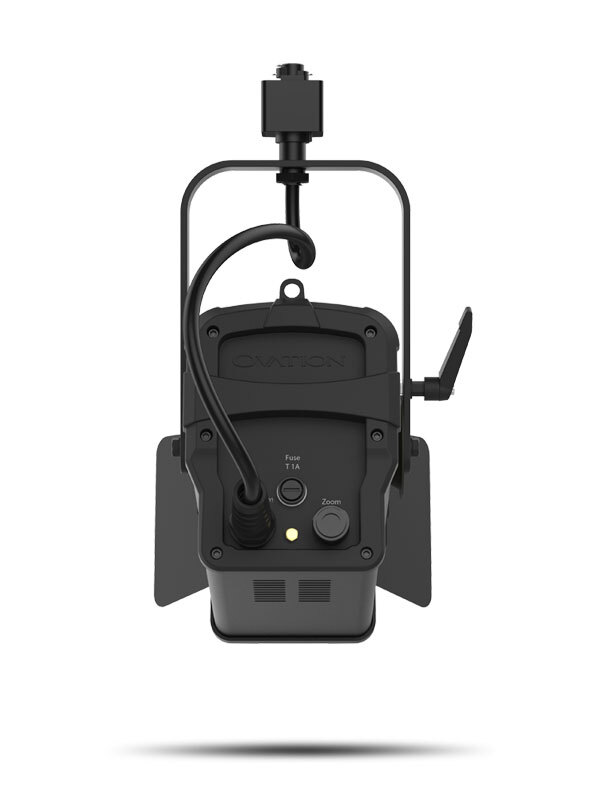

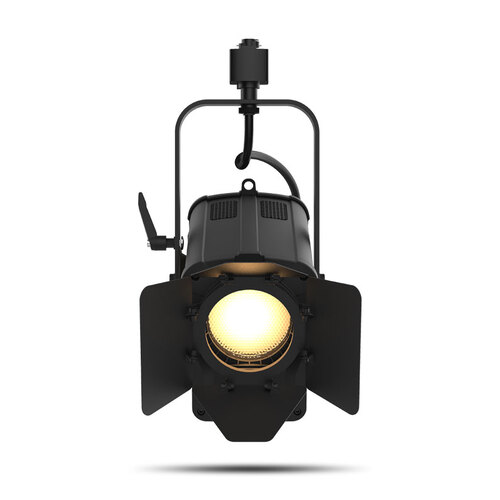

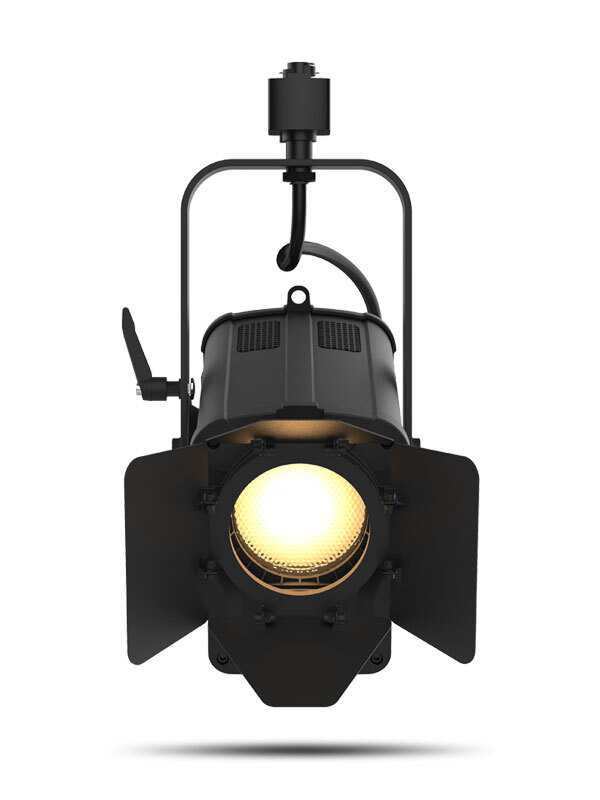

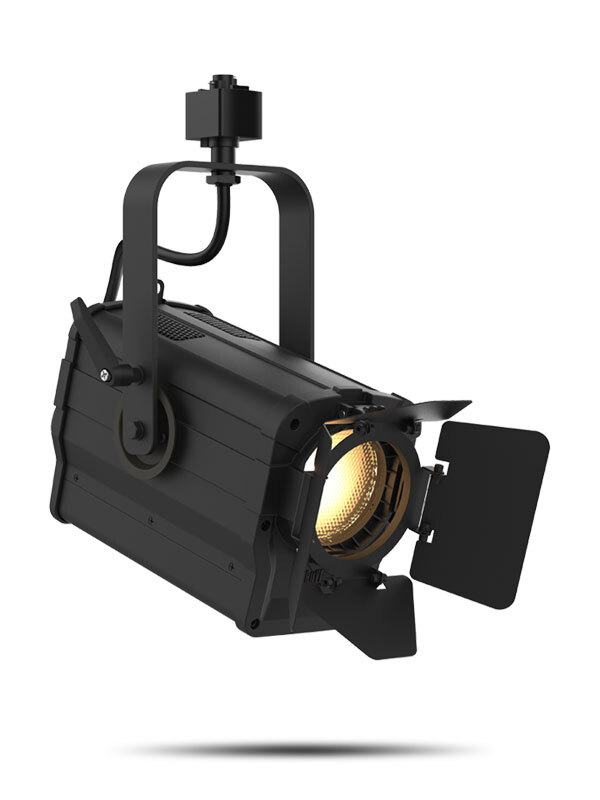

CHAUVET PROFESSIONAL Ovation FTD-55WW

SPECIFICATIONS

OPTICAL

• Light Source: 1 LED (WW) 36 W, (740 mA), 3200 K, 50,000 hours life expectancy
• Color Temperature (at full): 3200 K
• CRI: 91
• Beam Angle: 18° to 56°
• Field Angle: 30° to 69°
• Zoom Range: 20° to 75°
• Lumens (30°): 795
• Lumens (69°): 1,920
• Illuminance (30°) : 279 lux @ 5 m
• Illuminance (69°): 100 lux @ 5 m

DYNAMIC EFFECTS

• Dimmer: Electronic
• Zoom: Manual

CONSTRUCTION / PHYSICAL

• Dimensions: 10.87 x 6.81 x 6.53 in (276.3 x 173 x 166 mm)
• Weight: 4 lb (1.9 kg)
• Exterior Color: Black
• Housing Material: Aluminum die-cast
• Accessory Holder/Gel Frame Size: 3.26 in (83 mm)

CONNECTIONS

• Power Connection: Track Type H
• Cable Length (power): 1.5 ft (0.45 m)



CONTROL

• Control Protocol: Dimmer

ELECTRICAL

• Input Voltage: 120 VAC, 60 Hz
• Input Voltage: 230 VAC, 50 Hz
• Power and Current: 31 W, 0.257 A @ 120 V, 60 Hz
• Power and Current: 30 W, 0.133 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Ovation FTD-55WW
• Track adaptor
• Gel Frame
• Barn Doors

REQUIRED ACCESSORIES

• Global Track (110v Version), EUTRAC (220v Version)

OPTIONAL ACCESSORIES

• Color Blending Filters: DF60X1D, DF20D
