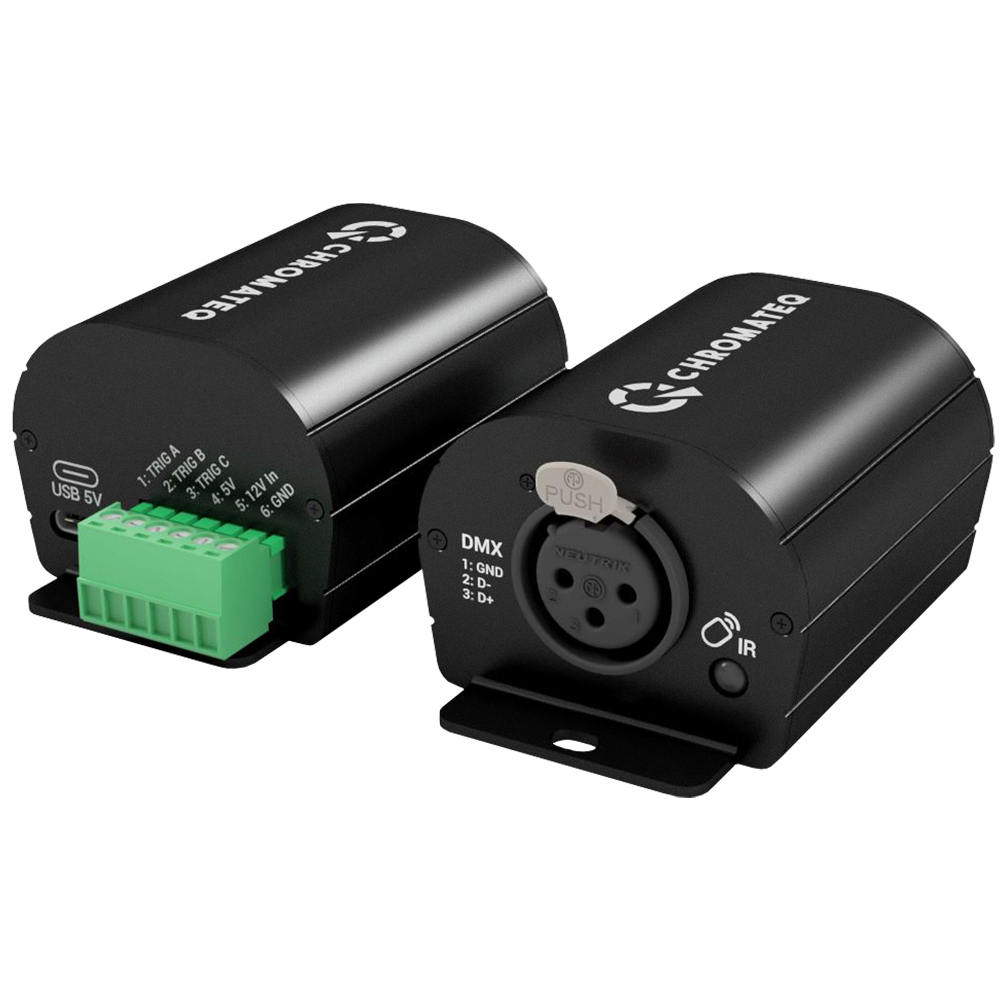

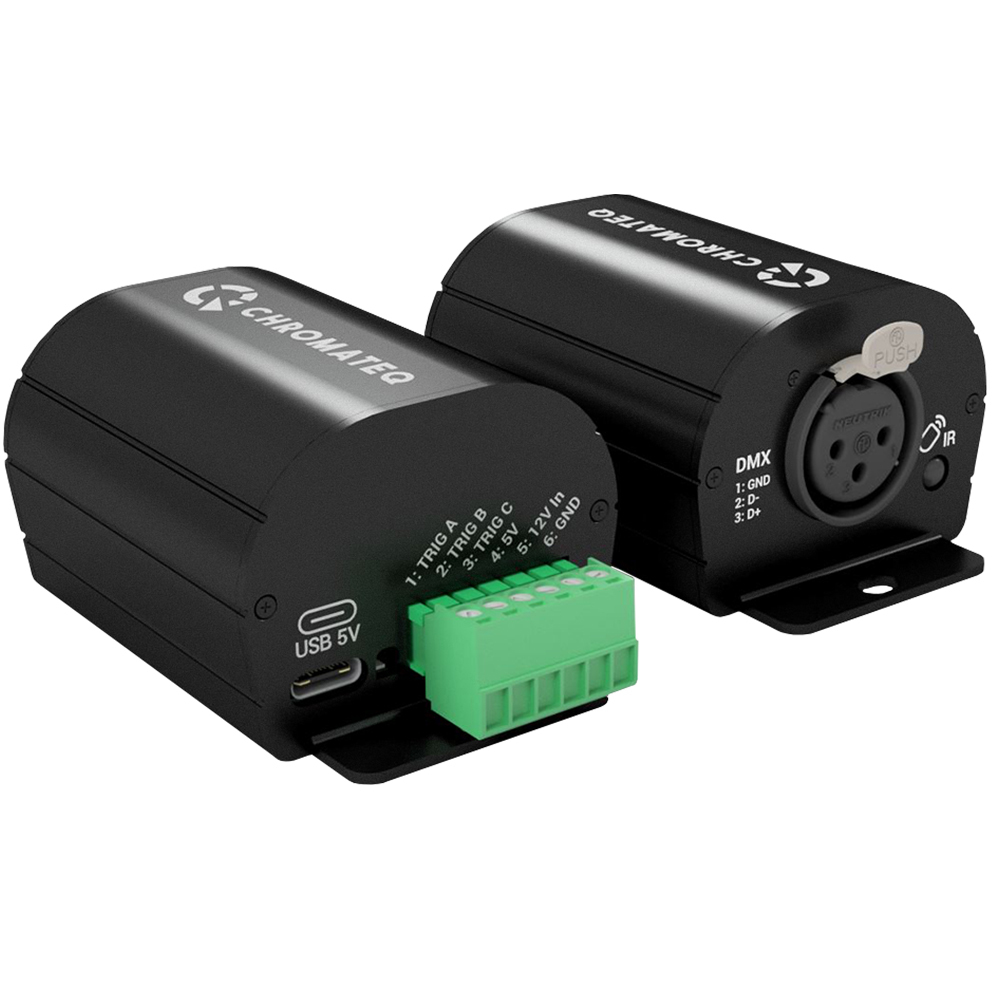

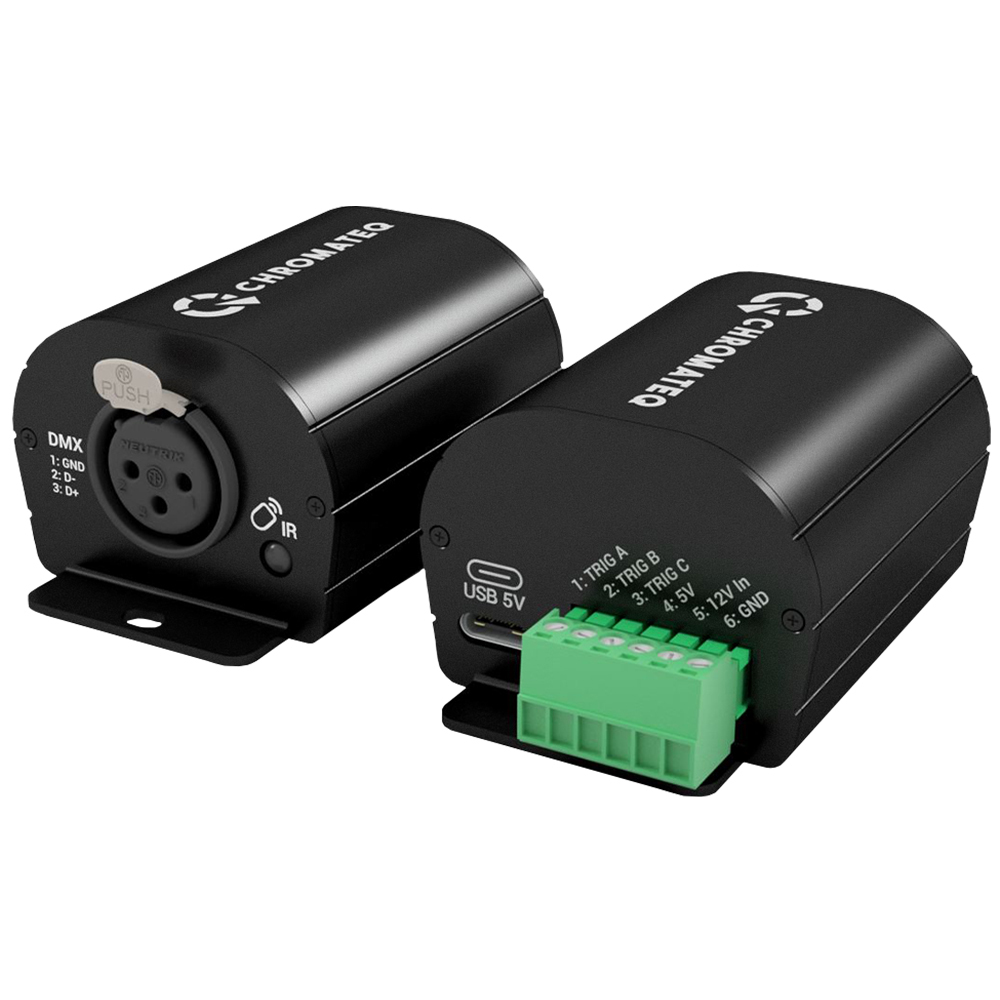

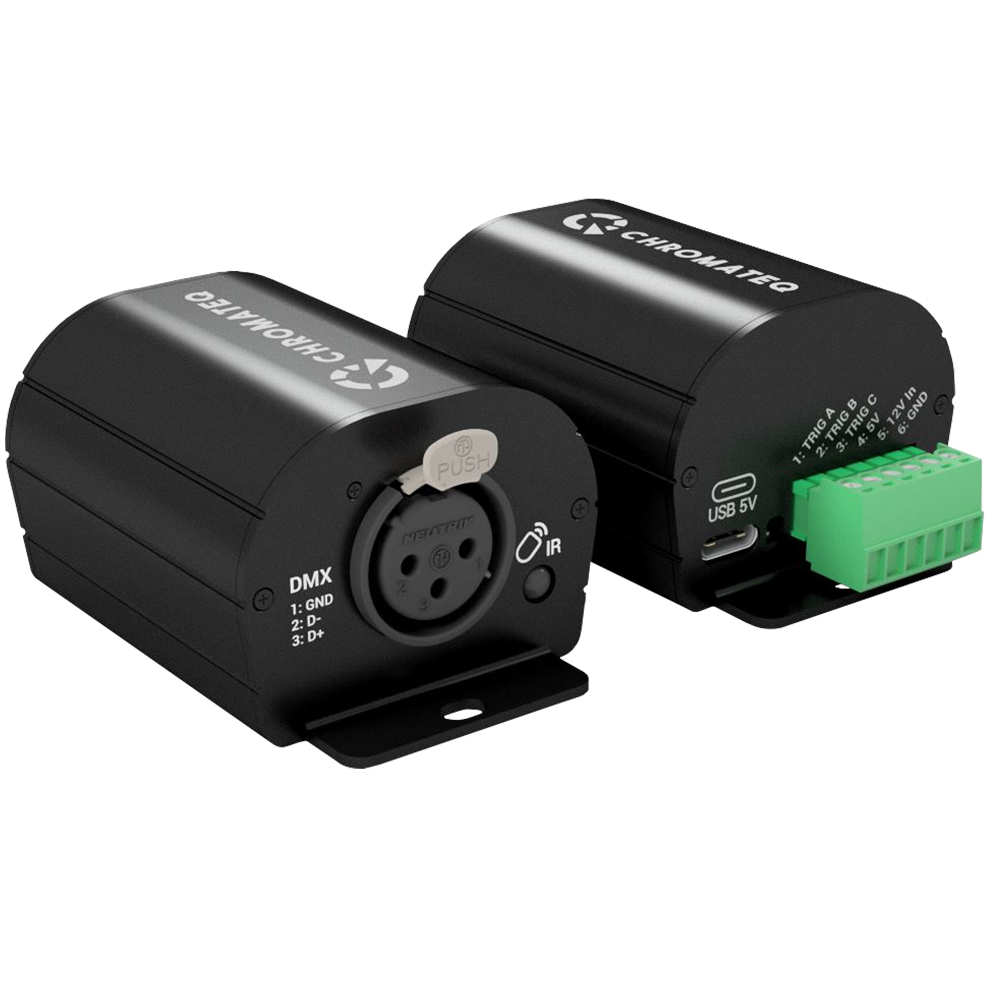

Chromateq CLUB512 DMX Interface with Software and IR Remote
Chromateq CLUB512 is our new professional package designed for entry-level budgets and users looking for an easy-to-use DMX controller. The Attractively-priced for tight budgets, small projects, DMX system testing and promotional packages.
Newly designed aluminium housing with a beautiful finish and updated electronics that work with all the latest 2022. Chromateq software (as well as older versions of LED Player and Pro DMX). Capable of 3 trigger options and equipped with DC 5-18V input this USB to DMX interface includes an infrared remote control and USB 5V power supply in the package. It is the perfect hardware for easy integration projects.
Technical Data
| DMX Output: | 512 In/Out channels PC and 512 Out Stand Alone |
|---|---|
| Input: | USB-C (5V. DC, 0.1A) |
| Zone: | 1 Zone, play 1 scene/sequence at time in Stand Alone |
| Memory: | Internal memory (200 KB, 200 to 2000 DMX step capacity) |
| Infrared (scenes, play, pause, dimmer, speed): | Additional Infrared commands and additional commands on triggers |
| DMX Modes: | DMX In/Out, DMX Record, DMX Trigger |
| Stand Alone Options: | 16-bit and fine channel management, Cross Fade time between scenes, Default start scene when power up |
| Triggers: | 3 Triggers, Contact on external T. Block |
| Max DMX outputs (USB): | x12 USB interfaces connected = 12 DMX max |
| Power: | DC In USB-C 5V DC + 5-18V DC Input on Terminal Block |
| Dimensions (mm / in): | H: 55 (2.16), W: 50 (1.96), D: 37.5 (1.47) |
| Weight: | 0.85 Kg (1.87 lb) |
| Housing: | Extruded Aluminum |
| I/O Connectors: | USB-C 2.0, 3 pin XLR (XLR5 optional), 6 pin T. BLock |
| Operating Temperature: | -40 to +85 C° |
| IP Rating: | IP40 |
| Certifications: | CE, LVD, RoHS |
| International Warranty: | 1 year |
(CLUB512)
| SKU | CLUB512 |
| Brand | CHROMATEQ |
