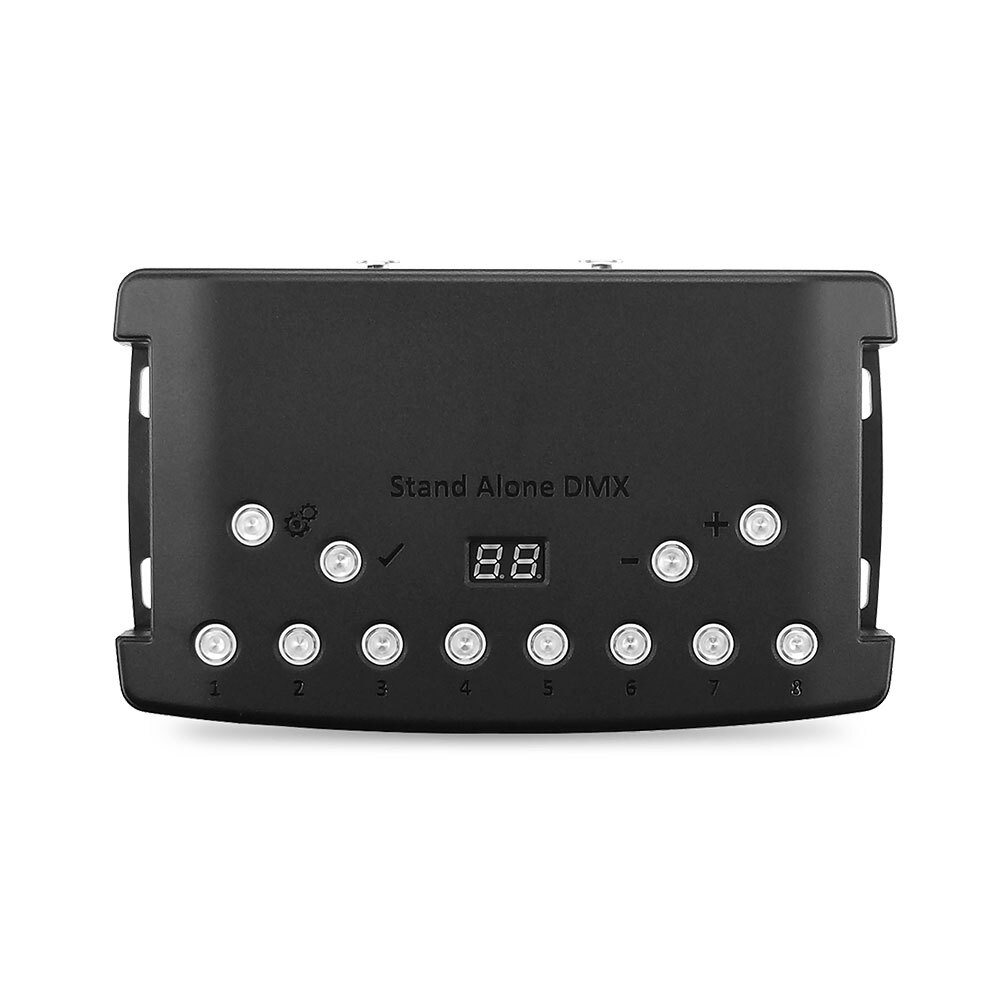

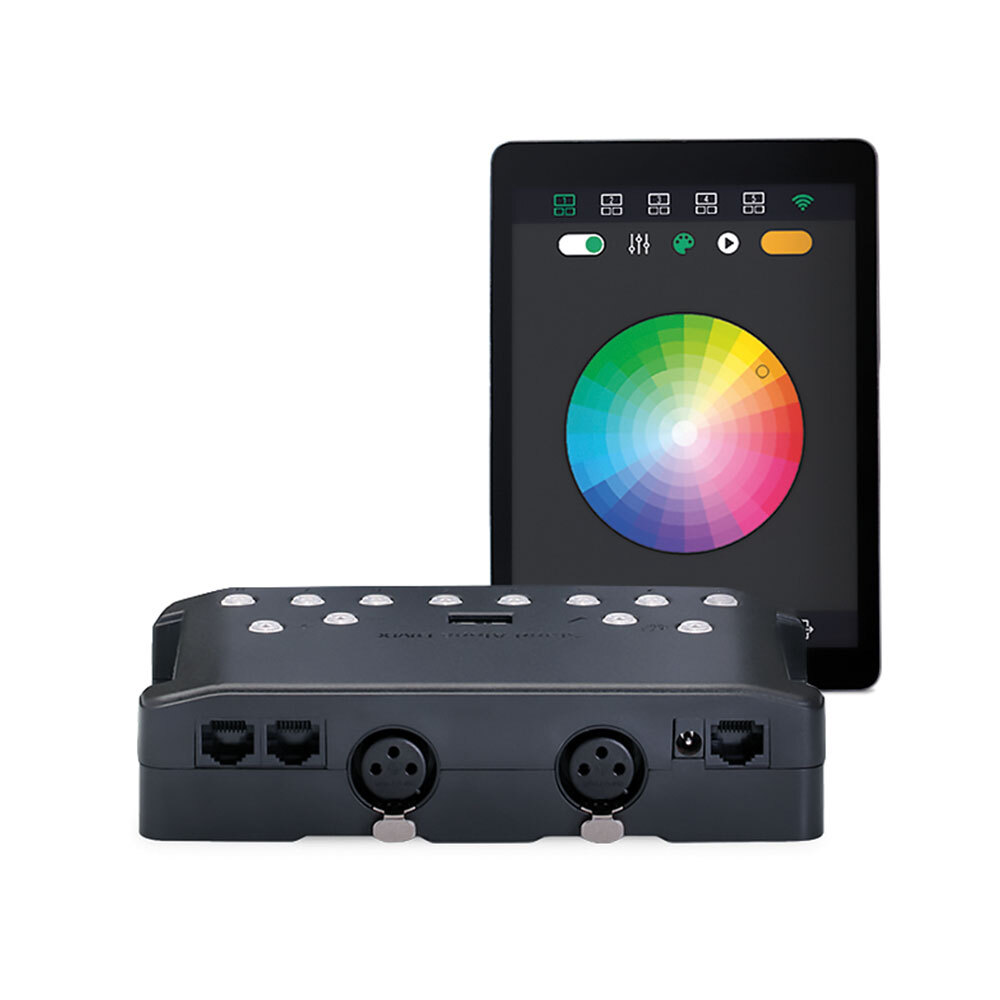

Chromateq CQSA-E1024 USB DMX Controller with Stand Alone
The CQSA-E 1024 includes an Ethernet port in addition to the USB. This gives long distance access and communications with the device anywhere from a Local Networks (LAN or WLAN). Connected to an access point or a Wifi router you have easy controls and settings with a mobile or tablet using the Wi-Light 2 APP. CQSA-E includes all the same hardware features as the CQSA 1024 but without RS232 triggers.
Complete 5-in-1 Stand Alone lighting control solution with DMX, In/Out, Art-Net Out, sACN Out, NODE (art-Net to DMX decoder), Splitter. CQSA-E is the essential tool for all your lighting projects, performances and installations.
Ethernet to DMX device
• 2×512 or 1024 channels in/out on PC and Stand Alone
• ETHERNET port for Local Area Network (LAN, WLAN)

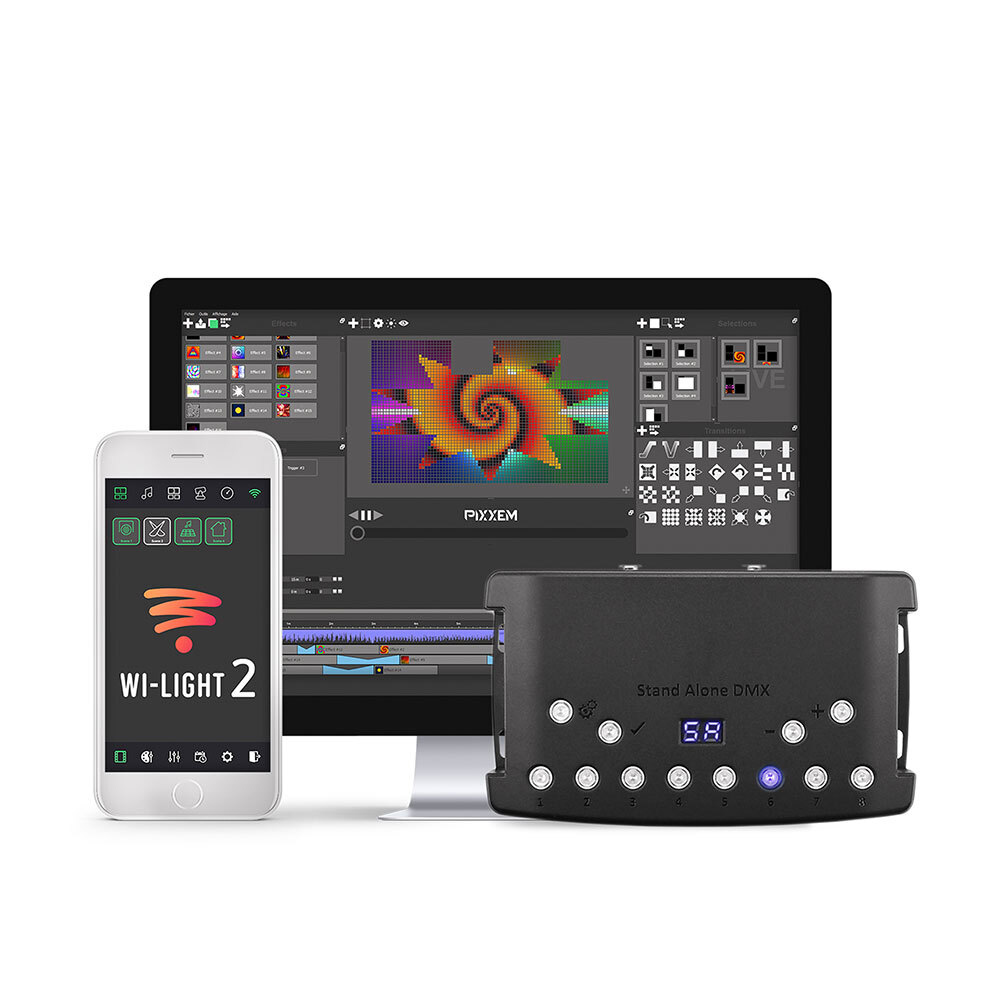

• Wi-Light 2 APP from mobile (Android + iOS, LAN, WLAN, Internet)
• Art-net 2×512 on Ethernet (SD required, 8×512 per device in option)
• sACN 2×512 on Ethernet (SD required, 8×512 per device in option)
• Node 2 ports, Art-Net to DMX decoder and converter (DHCP, Fix IP)
• Multi Zones Play up to 5 scenes a time (Stand alone)
• SD Card memory (Micro SD, all FAT format, up to 256 Gb)
• Splitter mode and merging DMX
• Internal memory (No SD card required)
• 128 devices max on Network, 12 max on USB
Technical Data
| DMX Output Channels: | 2×512 or 1024 In/Out channels PC and 512 Out Stand Alone |
|---|---|
| Zone: | 5 Zones, play up to 5 different scenes/sequences at time in Stand Alone |
| Memory: | Micro SD Card (all FAT format, up to 256 GB) + Internal memory (No SD card required) |
| DMX Modes: | DMX In/Out, DMX Splitter, DMX Record, DMX Trigger |
| Stand Alone Options: | 16-bit and fine channel management Cross Fade time between scenes Default start scene when power up |
| Triggers: | 4 Dry Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority, 15 contacts max) Infrared receiver (with optional IR remote) 10 scene selection, scene speed, general dimmer and next scene 1 NEXT button for scene selection Wi-Light 2 APP(modem required) |
| I/O Connectors: | Mini USB 2.0, 3 pin XLR (XLR5 optional) |
| Power: | 5V DC USB Power |
| Dimensions: | 48 x 70 x 89mm |
| Weight: | 0.21 kg |
| Certifications: | CE ; RoHS |
(CHRO-CQSA-E1024)
| SKU | CHRO-CQSA-E1024 |
| Brand | CHROMATEQ |
