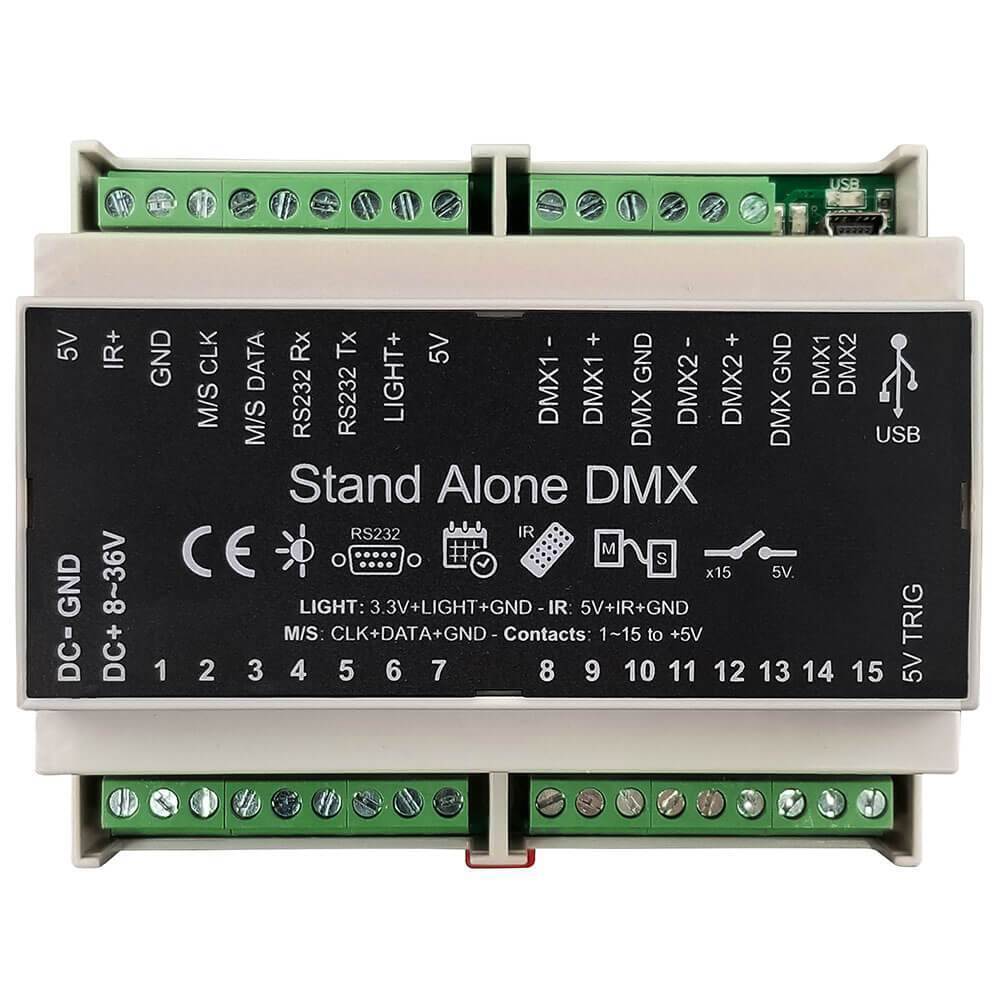

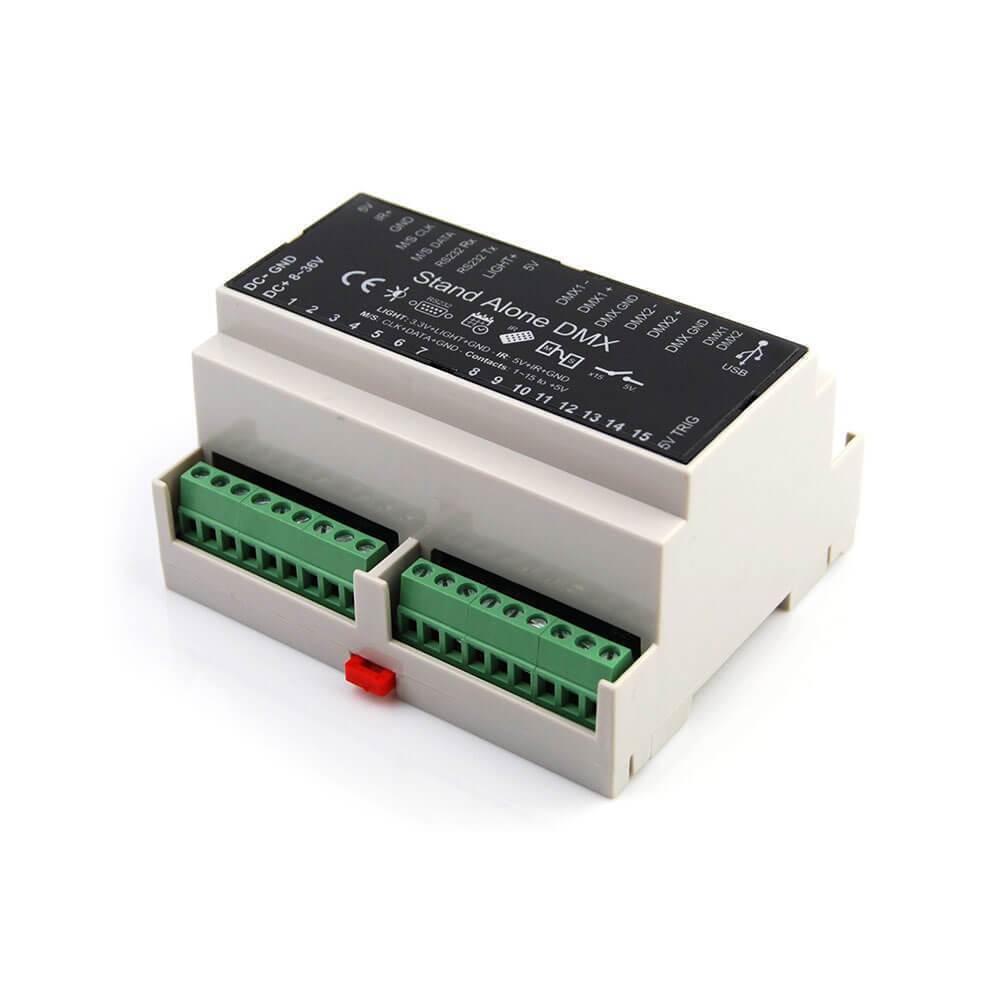

Chromateq DIN 1024 Standalone DMX Interface with Software
The Chromateq DIN 1024 is the ideal DMX software package for all indoor installations and projects and it can be easily mounted in a DIN cabinet.
This USB to DMX standalone interface can now control 2 DMX universes, either as inputs or outputs. This allows the hardware to work in a splitter mode or receiver, in stand alone mode or DMX triggered from another DMX device.
Its RS232 commands complete the trigger capacities (Start/Stop scene, select Zone, Dimmer, Speed, Black out, etc).
For bigger projects, the DIN 1024 includes a Master/Slave option to connect 32 interfaces together and synchronize up to 64 DMX universes in stand alone mode (without a PC)!
Features:
- Stand alone DMX interface with 1024 channels
- 1024 or 2×512 Out Stand Alone channels (using no PC)
- Splitter mode 2×512 out
- DMX in record and DMX in triggers in Stand Alone
- DMX merging signal in Stand Alone (in/out mode)

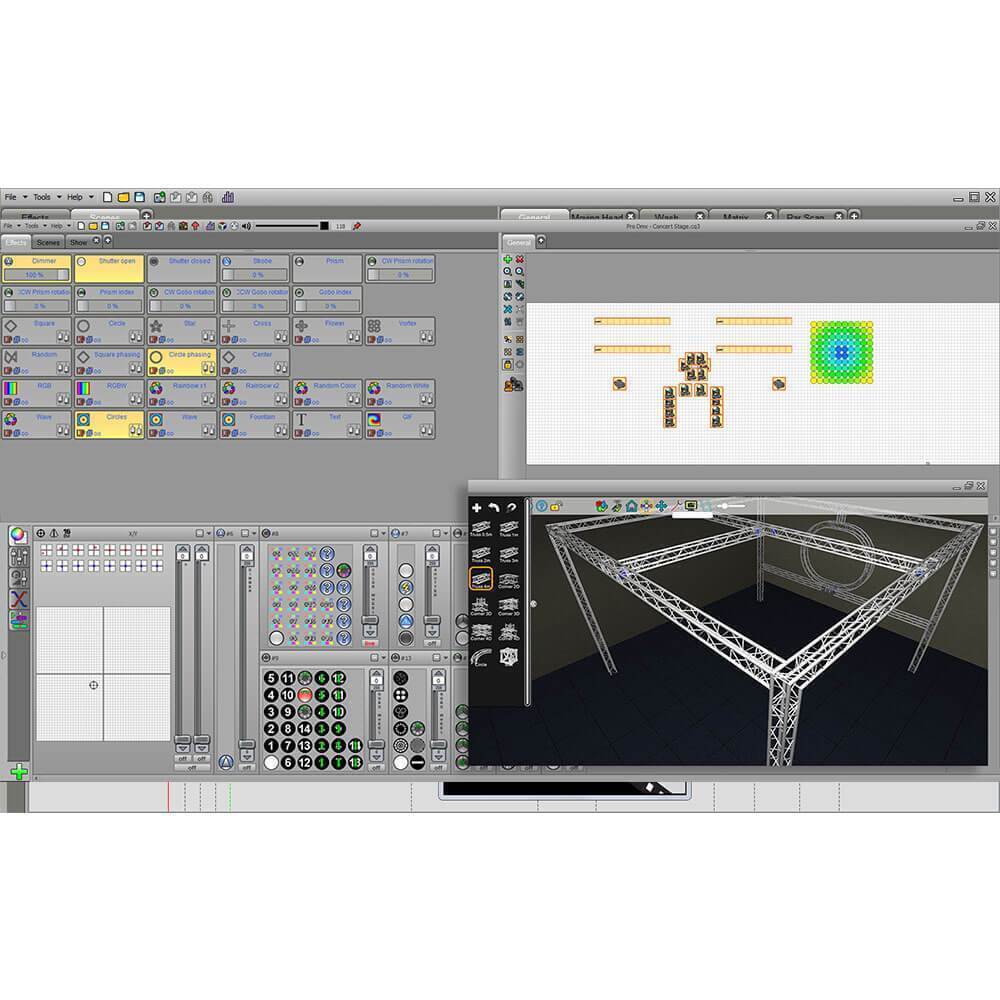

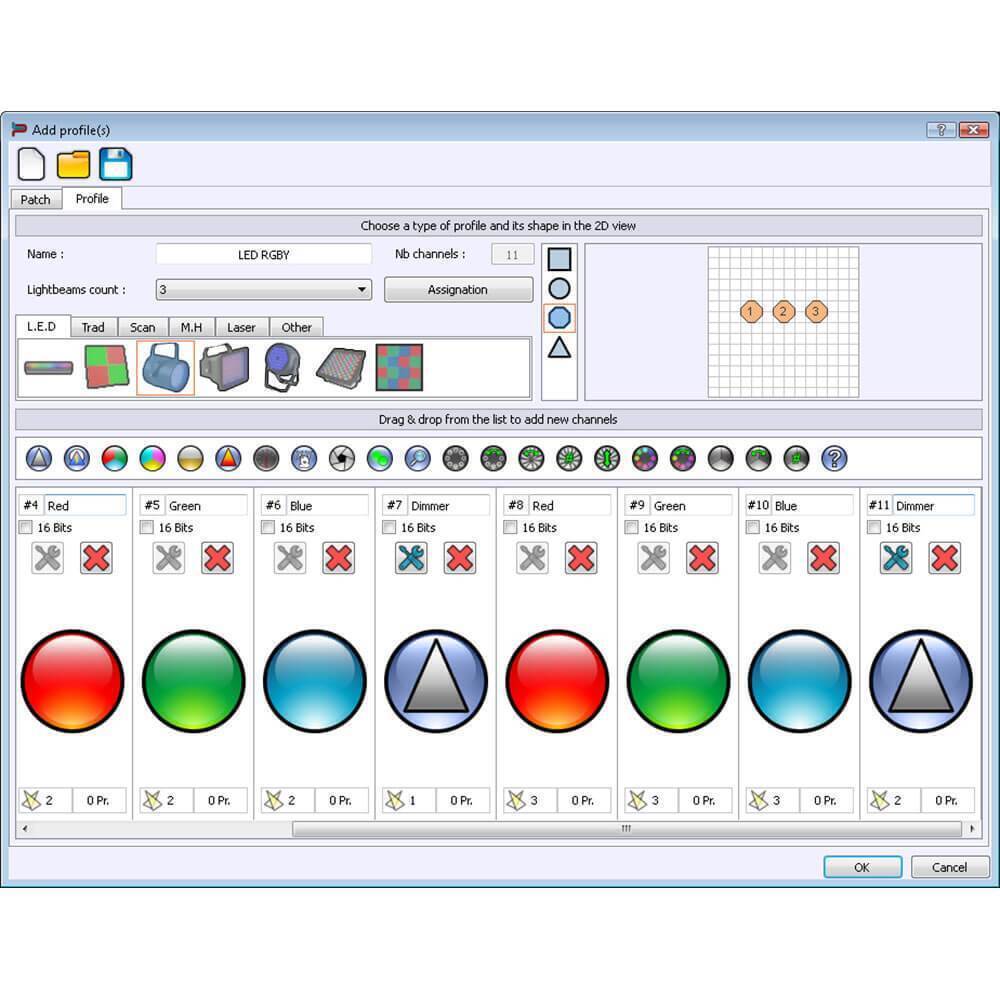

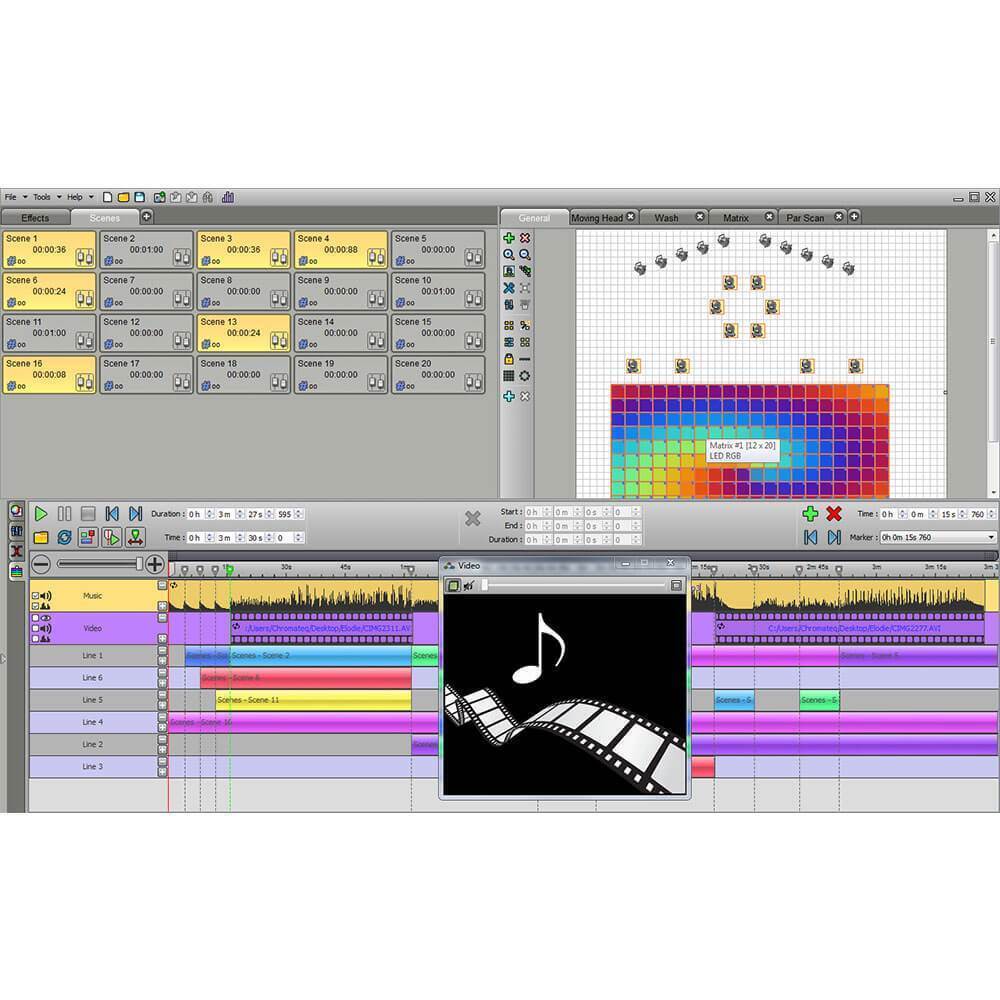

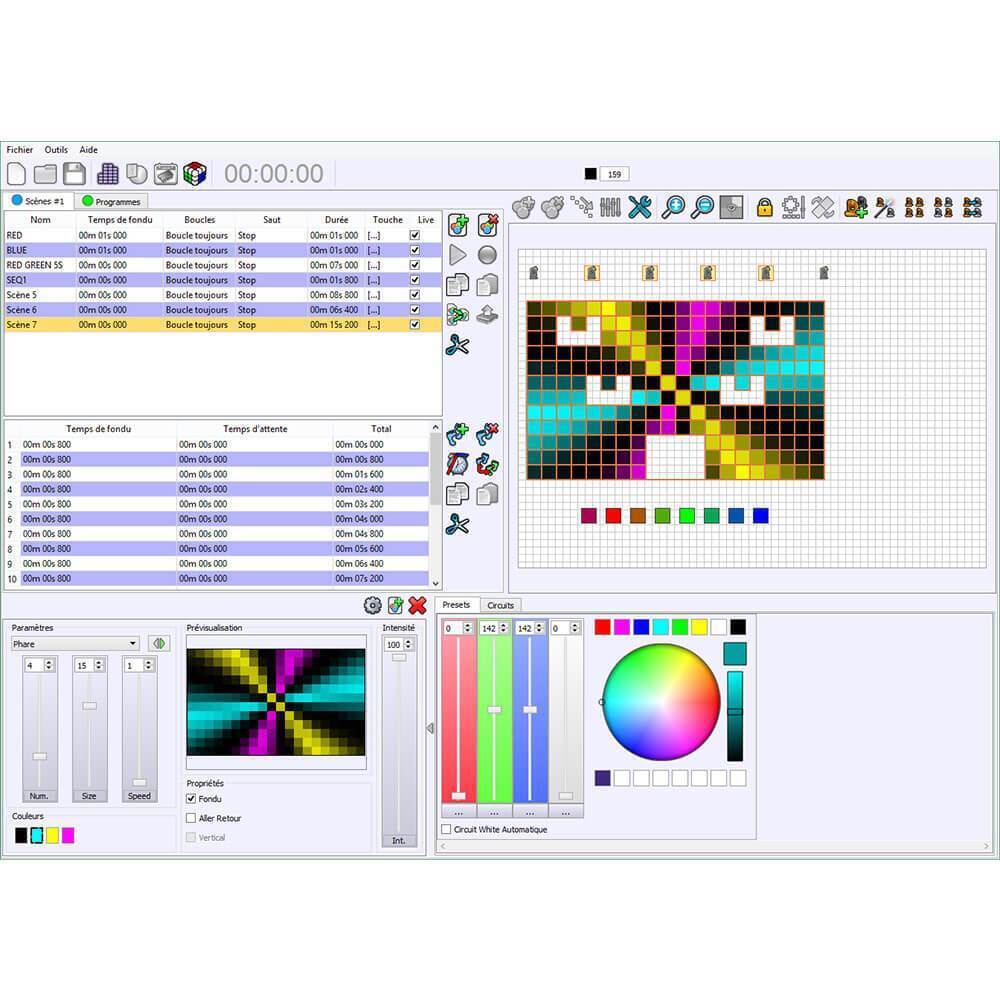

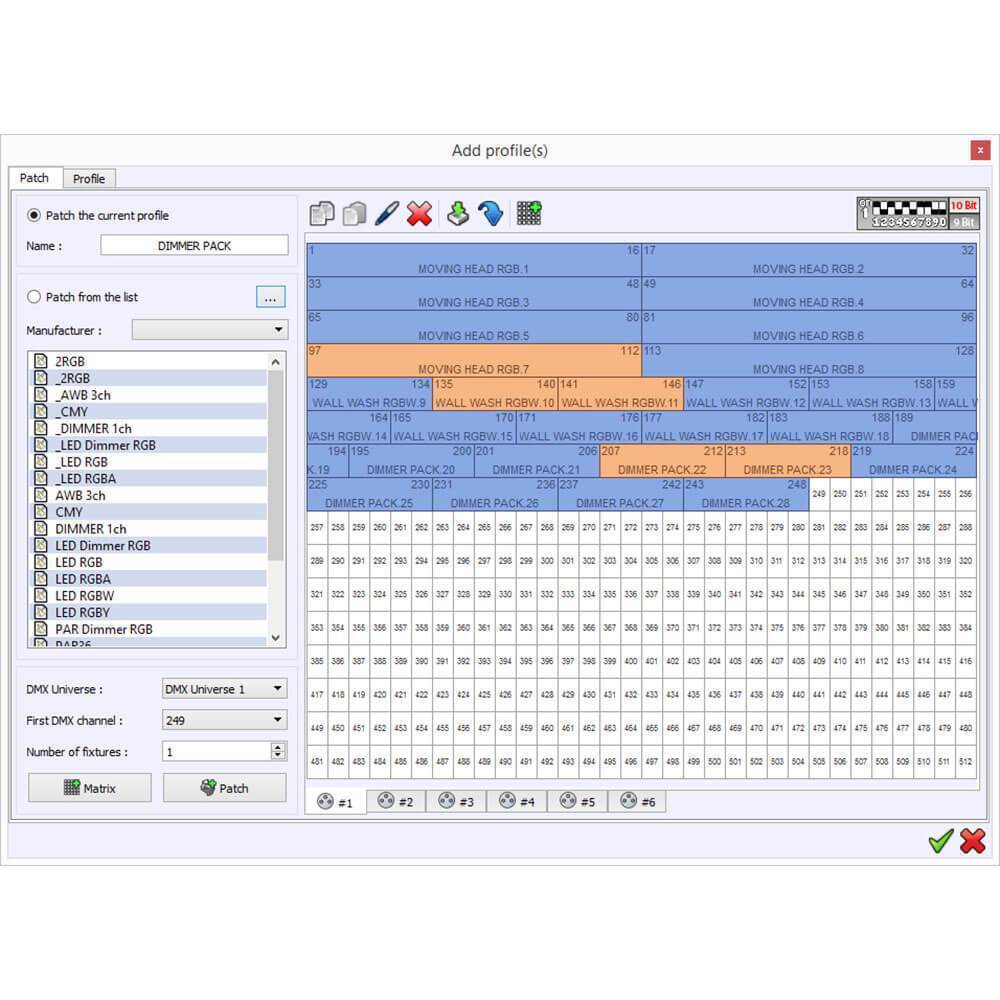

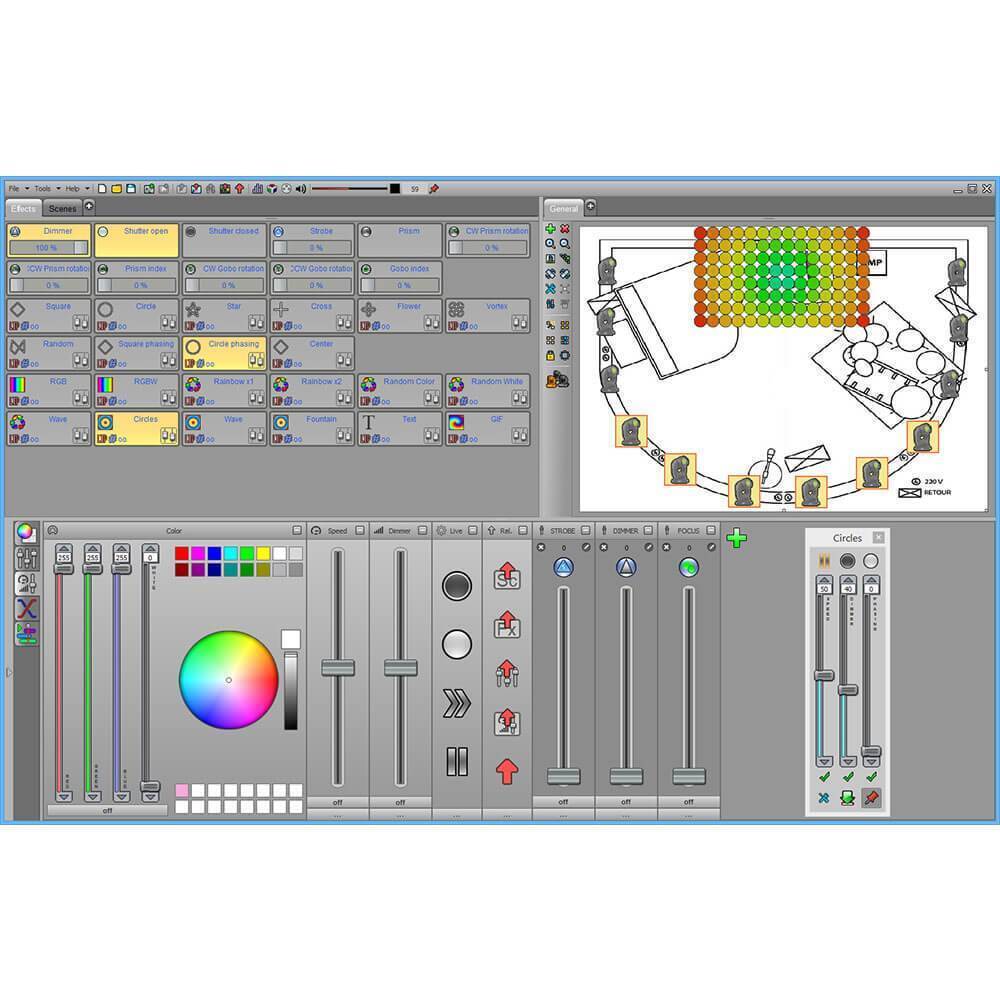

- LED Player + Pro DMX (No Timeline) + Studio DMX

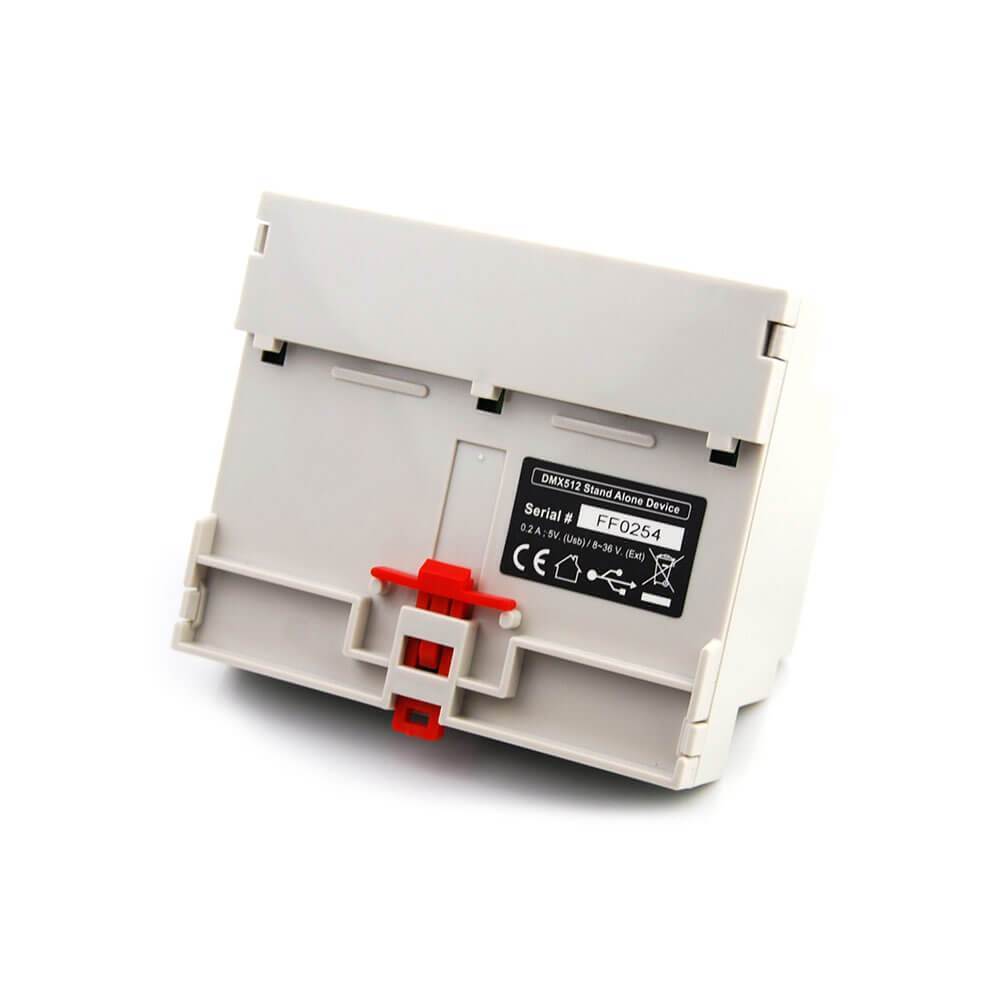

- DIN-RAIL housing (DIN cabinet compatible)
- External power supply 9-36V or 5V via USB
- 15 contact closure triggers (15 direct on screw terminal)
- Real Time Clock triggers for each scene (Day, Week, Month, Year)
- Master/Slave mode to interconnect 16 interfaces (Stand Alone)
- Automatic Scene Recovery if the power is accidently cut off.
| DMX Output Channels: | 2×512 or 1024 In/Out channels PC and 512 Out Stand Alone |
|---|---|
| Zone: | 1 Zone, play 1 scene/sequence at time in Stand Alone |
| Memory: | Micro SD Card (all FAT format, up to 256 GB) + Internal memory (No SD card required) |
| DMX Modes: | DMX In/Out, DMX Splitter, DMX Merge, DMX Record, DMX Trigger |
| Stand Alone Options: | Commands from the Contacts (speed, scene, dimmer, zone) 16-bit and fine channel management Cross Fade time between scenes Automatic Scene Recovery if the power is cut off Master/Slave mode with up to 32 devices combined and synchronized (64 universes) |
| Triggers: | Real Time Clock and calendar for each scene (Hour, Day, Week, Month, Year) 15 Dry Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority) Can receive RS232 trigger commands in Live and Stand Alone (16 characters max) Infrared Remote, Light intensity (with optional deported PCB and remote) |
| I/O Connectors: | Mini USB 2.0, 3 pin XLR (XLR5 optional) |
| Power: | 5V DC USB Power |
| Dimensions: | 107 x 96 x 59 mm |
| Weight: | 0.2 kg |
| Certifications: | CE ; RoHS |
| SKU | LPSA-DIN |
| Brand | Chromateq |
| Shipping Weight | 1.0000kg |
| Shipping Width | 15.000m |
| Shipping Height | 20.000m |
| Shipping Length | 9.000m |
| Unit Of Measure | ea |
(CHRO-DIN-E1024)
| SKU | CHRO-DIN-E1024 |
| Brand | CHROMATEQ |
