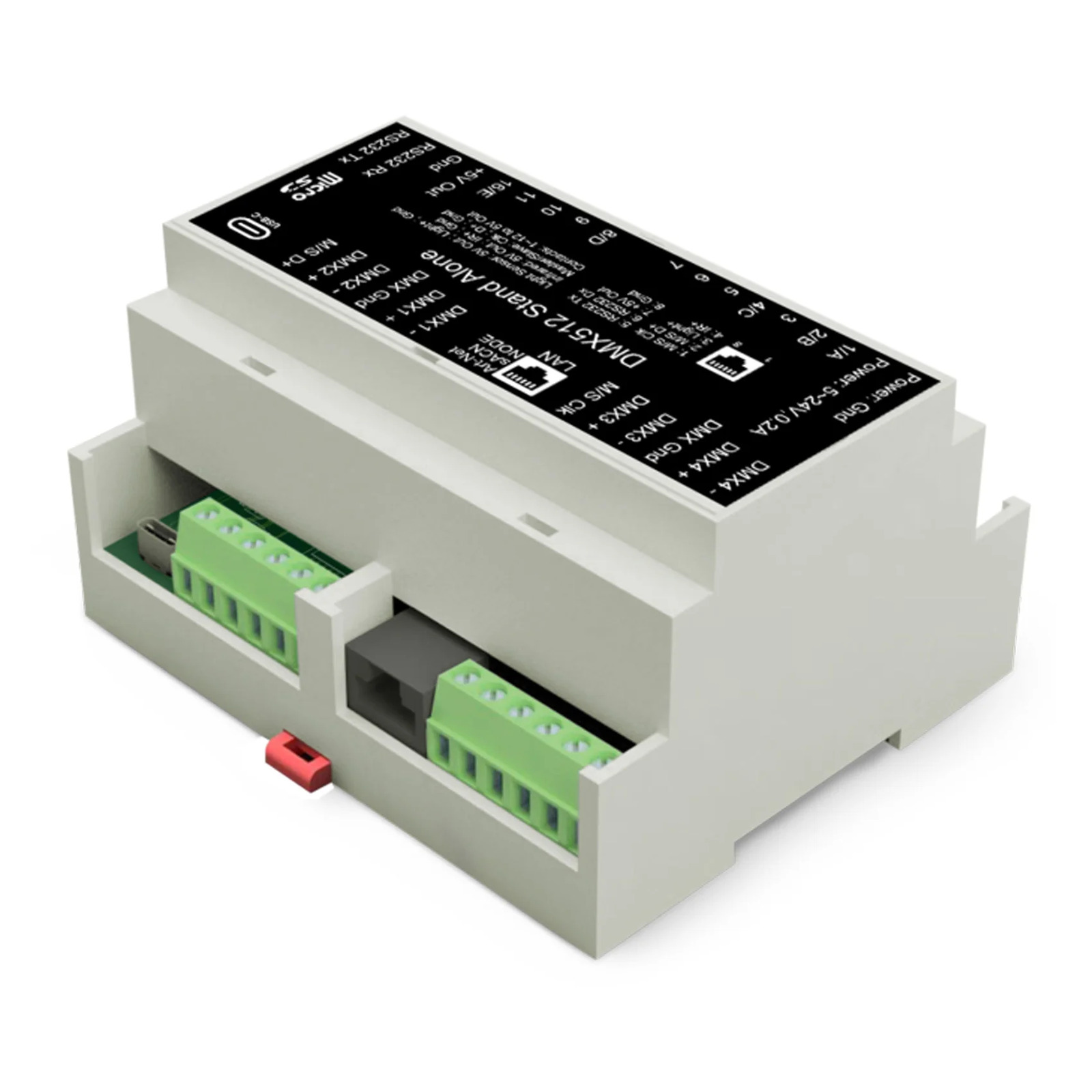

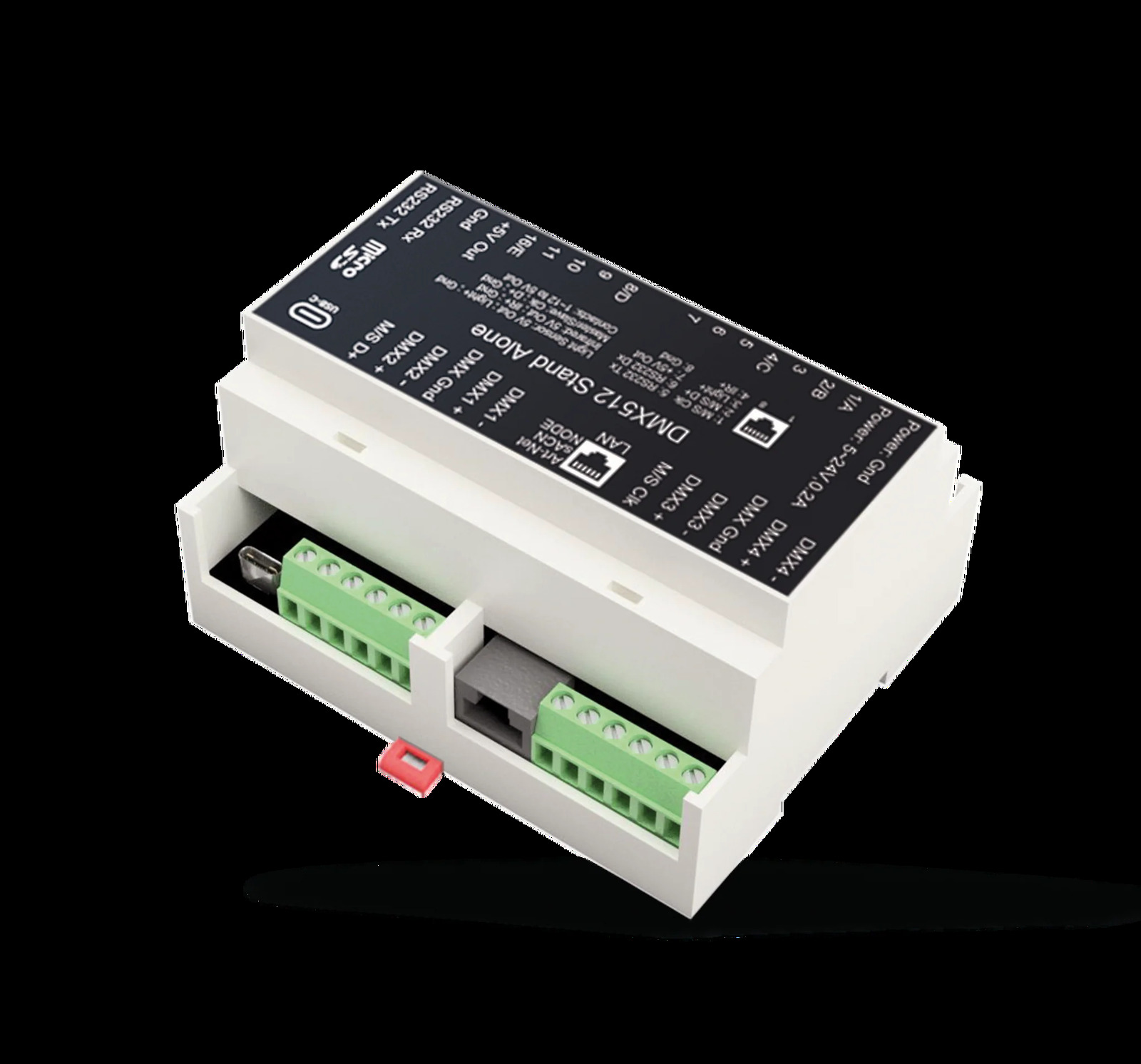

Chromateq DIN-E 2048 DIN Rail USB & Ethernet to DMX Stand Alone Interface & Software (Download Only)

DIN-E is the ideal DMX stand-alone interface for installation in electrical DIN cabinets with DIN RAILS. The USB to DMX stand-alone Ethernet DMX device can control 512 to 2048 channels on 1, 2, or 4 DMX universes. Featuring a robust Stand Alone mode and a wide range of trigger possibilities (RS232, Contacts, Clock, NODE x4 ports, Master/Slave on LAN), this capable device is an intelligent solution for easy and quick architectural installations and large integration projects.

• 2048 DMX channels
• Ethernet port for LAN connections
• UP to 10 Zones
• Smart contacts with triggers and commands
• Additional RS232 commands
• Master/Slave over Ethernet and local networks
• Web Remote with Wi Light 2 and PRO DMX 2 via our web server
• PRO DMX 2 compatibility (LAN + Web)
• 4 DMX lines in output or splitter mode

Main Features

General:

• DMX In/Out:  2048 / 4x512 (4U)
• 5~24V DC, 0.3A / Output: 5V DC, High Voltage Protection

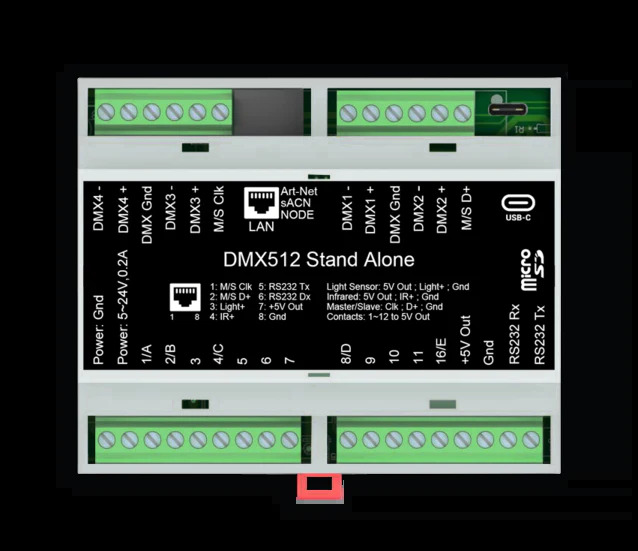

• Connectors:  Standard DIN-RAIL cabinet compatibility, PVC / USB-C, Screw terminal blocks with 2x9 + 2x6 pins
• Operating temperatures:  -40 to +85 C°
• Weight:  0.2 Kg (0.44 lb)
• Dimensions:  H:  110 (4.33), W: 100 (3.94), D: 60 (2.36)
• IP Rating:  IP40
• Certifications:  CE, RoHS
• 5 years international warranty

Hardware & DMX (Software & Live):

• DMX Output:  4x512 (2048) channels split into 4 outputs (PC and Stand Alone)
• Input:  Ethernet (RJ45, DHCP, or static IP), USB-C
• Networks:  Ethernet, Internet, and WIFI compatible when connected to a router
• NODE DMX:  4 ports Art-Net or sACN to DMX decoder and converter (DHCP, Static IP)
• DMX Modes:  DMX In/Out, DMX Splitter (x4 ports), DMX Record, DMX Trigger
• Multiple Zone:  10 Zone, play 10 scenes/sequences per time in Stand Alone
• Art-Net Out:  8x512 on Ethernet (SD card required, 8 universes per device)
• sACN Out:  8x512 on Ethernet (SD card required, 8 universes per device)
• Memory:
  • Micro SD Card (FAT format, max. 256 GB, Class 10, inside the housing)
  • Memory Step capacity (2K ~10K), 8Mb Internal memory (No SD required)
• Web Remote Options:  No web remote over the internet

Stand-alone Options:

• Art-Net and sACN from SD card, including triggers (8x512)
• NODE to decode Art-Net and sACN to DMX (x4 Universes)
• Master / Save Synchro (32 max wired / 128 max Ethernet)
• Setting and configuration via Wi Light 2 App
• Commands from the Contacts (speed, scene, dimmer, zone)
• Default start scene, Scene priority, Cross Fade time between scenes
• Automatic Scene Recovery if the power is cut off and 16-bit and fine channel management

Triggers Options:

• Wi Light 2 Application (iOS, Android, Free, LAN, INTERNET)
• RS232 In/Out (16 characters max for RS232 triggers, commands, or orders)
• UDP / Ethernet triggers and commands (from SDK)
• Real-time Clock and calendar for each scene (Hour, Day, Week, Month, Year)
• 12 smart Contacts on 3~5V (On, On/Off, Release, Restart, Scene Priority, 31 contacts max)
• Commands from the Contacts (speed, scene, dimmer, zone)
• DMX input (DMX signal from other DMX devices)
• Infrared Remote, Light intensity (with optional Chromateq sensor attachment)

Software Features:

• Compatible Software:  Chromateq 2022, LED Player, Pro DMX, PIXXEM, Studio DMX, Wi-Light 2
• ART-NET, sACN Output (LED Player, Pro DMX, PIXXEM):  16X512 with Chromateq software and 64x512 with PIXXEM
• DVI outputs:  1024×768 or 78 6432 pixels Pixels with PIXXEM
• Audio/Video Timeline:  24h Audio and Video Timeline
• Studio DMX:  3D viewer in real time (Full mode)
• Wi-Light 2 APP:  Software control via mobile (Android, iOS)
• System Compatibility:  Windows, Mac, iOS, Linux
• Technical Support:  Worldwide, English, French, Chinese
