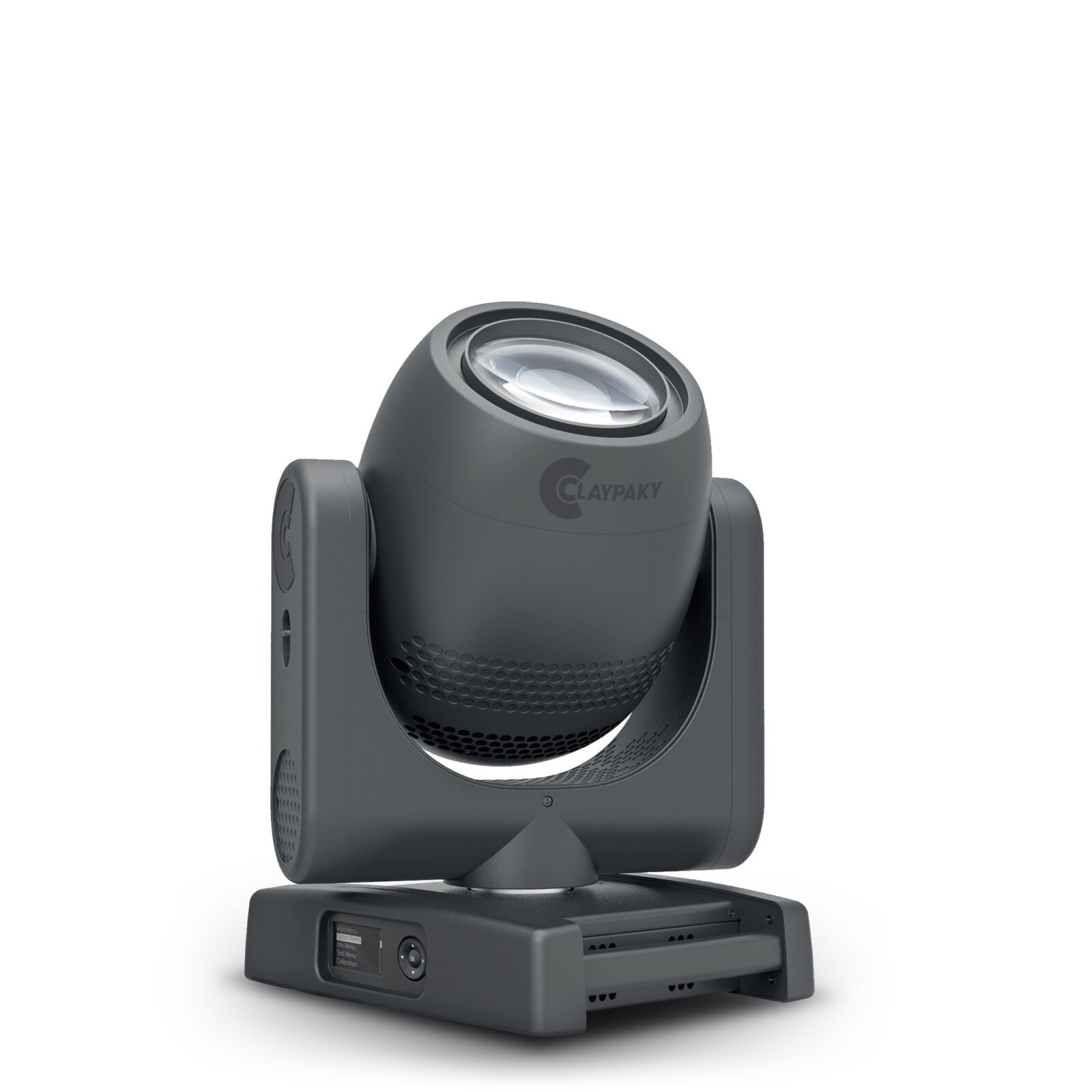

CLAYPAKY Axcor Beam 300

The Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.

The Axcor Beam 300 has an even more compact body – less than 500mm – and is able to emit a super-concentrated  solid  beam  with a beam angle as small as 2° and a surprising light output. The wealth and quality of its colors and aerial effects, its electronic focus and its 140 mm diameter front lens make the Axcor Beam 300 the ideal beam moving light in any application area, and the perfect replacement of a Claypaky Sharpy!
It boasts cutting-edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time. With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Beam 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.

LIGHT SOURCE TYPE

• 110W White LED engine (7600 K)
• L70: 20000hrs
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• 1800 Lumen Output
• Front lens diameter: 140mm
• Beam aperture: 2°
• Motorised focus lens

CONTROL and CONNECTIONS

• 14/16 DMX channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1 IN/THRU
• Built In Web Server

DYNAMIC EFFECTS

• One color wheel with 14 Colors
• One gobo wheel with 17 Gobos
• Rotating 8-facet Prism spin CCW and CW
• Movement: PAN range 540° - TILT range 270°
• Automatic repositioning
• Mechanical Pan/Tilt lock for safe transportation and maintenance
• Dimmer/Shutter: 16-bit Electronic Dimmer with 4 curves
• Shutter and Strobe effect - 24 f/sec

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• DMX monitoring
• Remote access through RDM
• CloudIO compatibility

HOUSING

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

WORKING POSITION

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain

ELECTRICAL

• Operating Voltage: 100-240V, 50/60 Hz
• Power Supply: Electronic auto range with active PFC
• Max Power consumption: 215 VA @230Vac - 50Hz

THERMAL SPECIFICATION

• Minimum distance of illuminated objects 3 meters (9’ 10”)
• Minimum distance from flammable materials 0.2 meters (8”)
• Max ambient temperature 40°C (104°F)
• Max temperature of the external surface 90°C (194°F)
• Forced ventilation with axial fans

SAFETY SPECS

• Minimum distance of illuminated objects 8 meters (26’ 3”)
• Minimum distance from flammable materials 0.2 meters (8”)
• Fuse T10A – 250V
• Thermally protected power supply (overheating and cooling failure)
• Forced ventilation with axial fans

COMPLIANCE

• In conformity with the European Directives:
• 2014/35/EU - Safety of electrical equipment supplied at low voltage (LVD)
