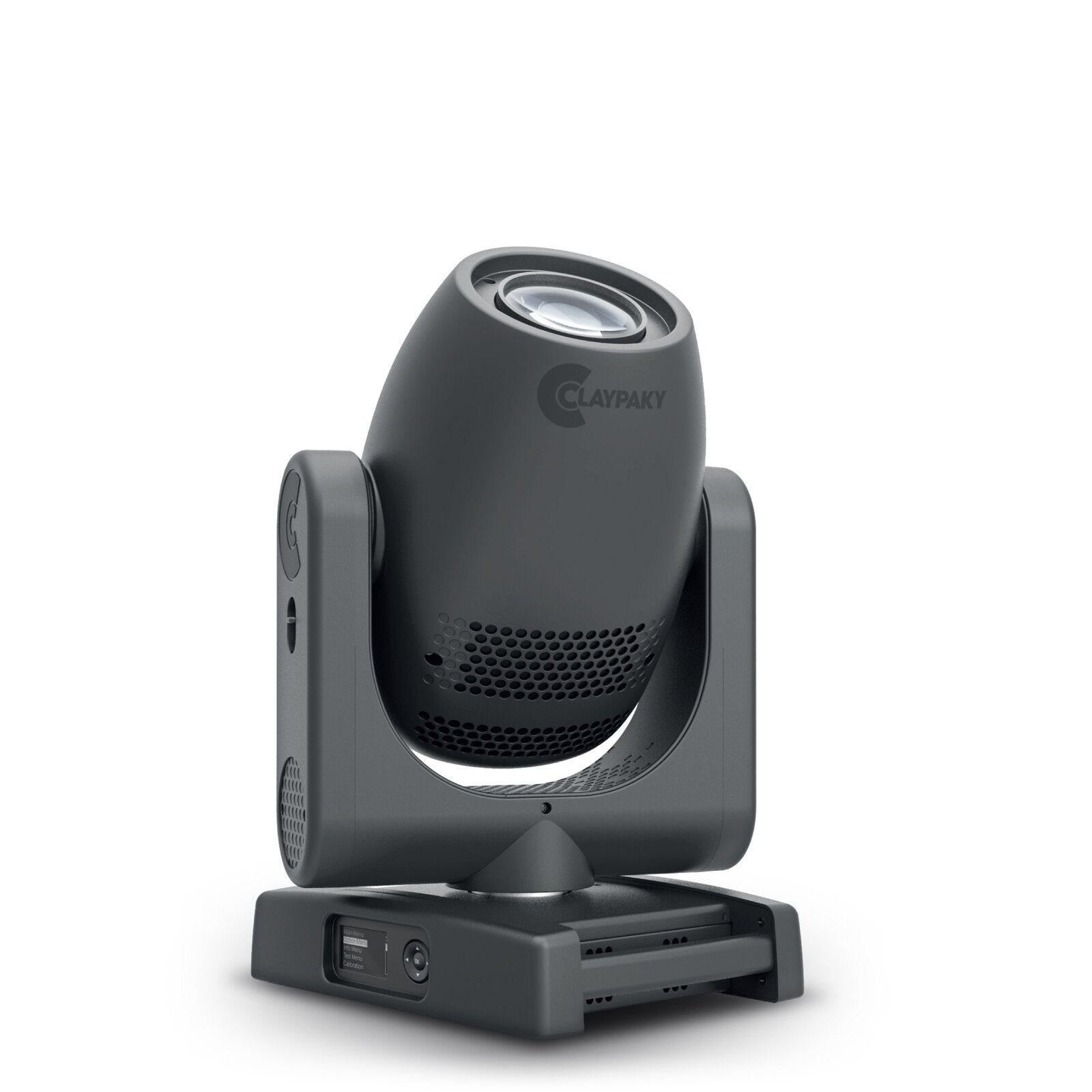

CLAYPAKY Axcor Spot 300

The new Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.

The Axcor Spot 300 has 17 gobos on 2 wheels, including 7 high quality dichroic  rotating  gobos.  Weighing just 20 Kg and measuring a little over 500 mm, this unit incorporates features that are not often found in models of this size, like a rotating prism, a motorised iris, a soft edge filter, a 16-bit dimmer, and a 8-40° zoom.

It boasts cutting- edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time.With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Spot 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.

LIGHT SOURCE TYPE

• 180W White LED engine
• Colour Temperature: 7000K
• Lamp life expectancy: 20000hrs
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• 8°-40° linear zoom
• Motorised focus lens
• High efficiency optical system

CONTROL and CONNECTIONS

• DMX 512 control channels 23
• Control signal USITT DMX 512
• Protocols RDM, Artnet, sACN, WebServer
• Display Graphic LCD backlit b/w Display
• Display battery self-charging buffer battery
• 16-bit Electronic Dimmer with 4 curves
• Electronic strobe@24 f/sec
• Pan/Tilt Resolution 16 bit
• Dimmer Resolution 16 bit
• DMX signal connection 5 pole XLR input and output

DYNAMIC EFFECTS

• CMY System
• One color wheel with 7 colors (including 1 CTO filter)
• One wheel with 7 rotating gobos
• One wheel with 10 fixed gobos
• Rotating 4-facet prism
• Mechanical Iris
• Frost filter
• Movement: - Tilt: 270° - 16bit - Pan: 540° - 16bit
• Automatic repositioning
• Mechanical Pan/Tilt lock for safe transportation and maintenance
• Beam: Motorized Zoom and Focus
• Dimmer/Shutter: 16-bit Electronic Dimmer with 4 curves
• Shutter and Strobe effect

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• Electronic monitoring with status error
• Remote access through RDM
• CloudIO compatibility
• Long life self-charging buffer battery
• Function reset from the lighting desk
• “AUTOTEST” function from menu
• Cooling system monitoring
• Protocols/Functions: RDM, Artnet, sACN, Web Server

HOUSING

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate
