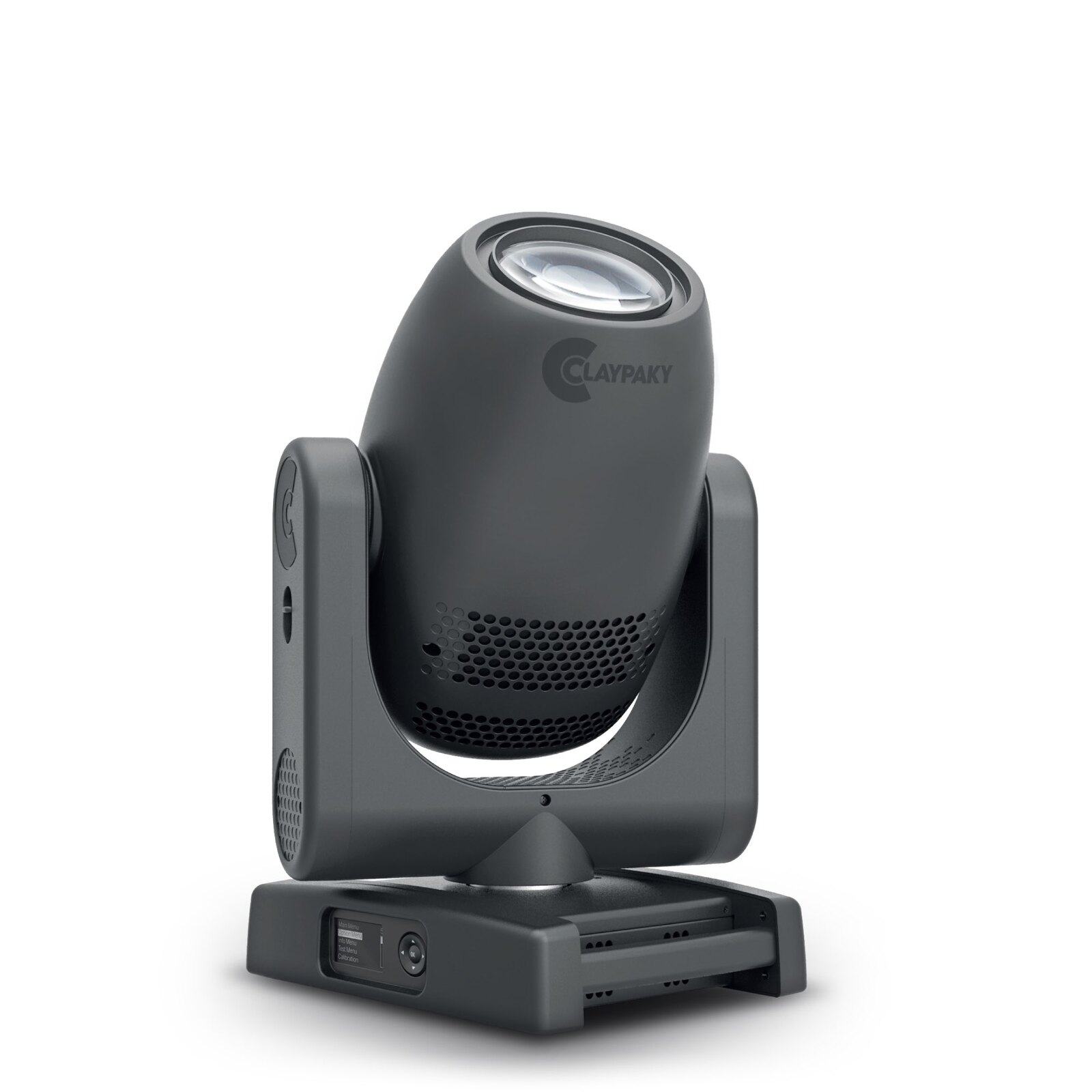

CLAYPAKY Axcor Wash 300

PRODUCT ON DEMAND

The new Axcor 300 family of moving LED fixtures brings Claypaky’s no-compromise quality and performance to the broad mid-market. The quality of their effects, their construction, and their high light output derive from the high-end products Claypaky specializes in.

The Axcor Wash 300 has a 140mm front  PC  lens  and  linear  5.5°-42° zoom. Producing colors is its speciality: it is fitted with all the components youneed to produce any shade of color you desire, with a light diffusion uniformity comparable to higher-end models.

It boasts cutting-edge electronic and software technology, with all the features that enable optimal fixture management and maintenance over time.With a price-point, physical size and power consumption that disguise its strength and creative potential, the Axcor Wash 300 enables a new world of expression in touring, events, TV, theatre and installed lighting markets.

LIGHT SOURCE TYPE

• 180W White LED engine
• Colour Temperature: 7000K
• Lamp life expectancy: 20000hrs
  *It may vary depending on various factors, as type of use and environment

PHOTOMETRIC DATA

• 5.5°-42° Linear Zoom
• Front lens diameter: 140mm
• Motorised focus lens
• High efficiency optical system

CONTROL and CONNECTIONS

• Personalities: Single mode with 16 control channels
• Control Protocol: DMX, Art-Net, RDM, sACN
• DMX and RDM connectors: Locking 5 pin XLR IN/THRU
• Ethernet port: RJ45 IN
• Power connector: PowerCon True1
• Built In Web Server

DYNAMIC EFFECTS

• CMY system on wheels
• One colour wheel with 9 colours (including 1 CTO filter)
• Rotating Beam shaper
• Iris: - Motorized with variable pulse and random effects
• Movement: - Tilt: 270° - 16bit - Pan: 540° - 16bit
• Automatic repositioning
• Mechanical Pan/Tilt lock for safe transportation and maintenance
• Beam: Motorized Zoom and Focus
• Dimmer/Shutter: 16-bit Electronic Dimmer with 4 curves
• Shutter and Strobe effect

HARDWARE and SOFTWARE

• Long life self-charging battery
• Display Graphic LCD backlit b/w Display
• Firmware upload from another fixture
• Firmware Upgrade via Web Server
• Diagnostic
• Electronic monitoring with status error
• Remote access through RDM
• CloudIO compatibility
• Long life self-charging buffer battery
• Function reset from the lighting desk
• “AUTOTEST” function from menu
• Cooling system monitoring
• Protocols/Functions: RDM, Artnet, sACN, Web Server

HOUSING

• Aluminum and steel structure with plastic covers
• Two side handles for transportation
• IP20 protection rate

WORKING POSITION

• Working in any position
• Hanging system: with fast-lock omega clamps (1/4 turn) on the base
• Optional safety chain
