E-Lektron ST-82P 8-channel 500W powered audio mixer USB SD 7-band EQ mono MP3 digital effects DJ Console
$449.99
In Stock
E-lektron ST series has a newly designed, unique, and novel appearance, and a compact and reasonable panel functional layout. It contains numerous features, one aux send, two main channel outputs, excellent MP3 player/recorder, digital effects processor, 7-band graphic equalizer, and so on. It has superior sound performance with a high-performance cost ratio. The entire series has a pure mixer and a powered mixer. There are a variety of selections for the input channel numbers and a variety of options for output power.
Features:
- Output Power: 250W RMS Par Channel
- Premium ultra-low noise, high headroom analog mixer
- 6 channels mono inputs+2 groups of stereo inputs
- Stereo MP3 player channel with recording, SD/USB ports provide good sound quality
- 7-band graphic equalizer, optimized musical performance, and adjusted indoor acoustic parameters
- One aux send, two main channels outputs
- Precise 3-color, 10-band LED level display
- No-noise pre-amplifier with extremely low distortion and a very wide gain range, extremely high dynamic response, and musicality
- Pure 3-band equalizer, correct musical control power
- All input channels have peak signal indications and pre-fader monitor options
- Independent earphone monitor and level display system
- It has RCA connectors for the input and output of a 2-track recording/playing machine or a CD player
- High-quality and high-precision 60mm-long fader can precisely adjust the matching level of the channel
- Less volume, more concise, convenient, and easy to use
- Rackmount brackets included for ultimate flexibility
Technical data:
- Operation at: 220 - 240Vac / 50Hz
- Amplifier Power RMS:2x 120W@4 Ohm/2x 80W@8 Ohm
- Amplifier Power Music:2x 250W@4 Ohm/2x 160W@8 Ohm
- Frequency response: 20Hz - 30kHz (+/- 0.5dB)
- Distortion (THD+N): 0.01% max
- Signal to noise ratio Main Mixer:
- Channel-Equalizer High +/-5dB@12kHz
- Channel-Equalizer Mid +/-5dB@2.5kHz
- Channel-Equalizer Deep +/-15dB@80kHz
- Input Level Line +20dBu
- Input/Output Level CD/TAPE 0dB (775mV)
- Output Level XLR MAIN 2x 26dBu Balanced
- Headphone Output:30-600 Ohm

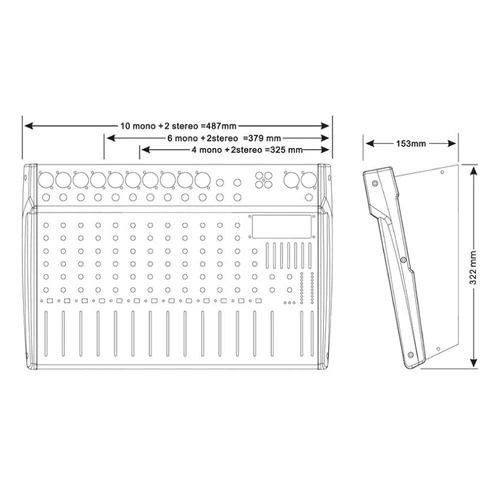

- Dimensions:37(L) x 15.3(H) x 32.2(W)cm
- Weight: 8.5kg
Package:
- 1 pc. ST-82P power mixer
- 1 pc power cord
- 1 pc user manual
(ELEK-ST-82P)
