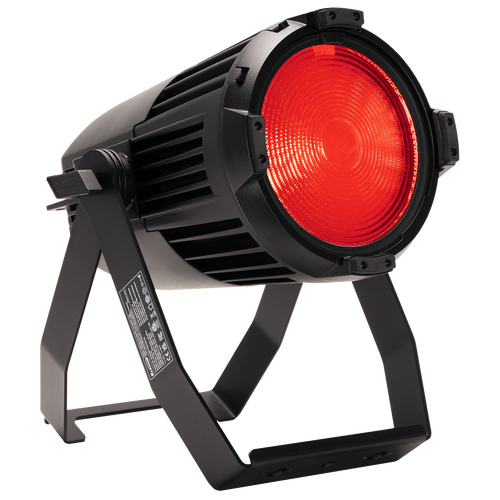

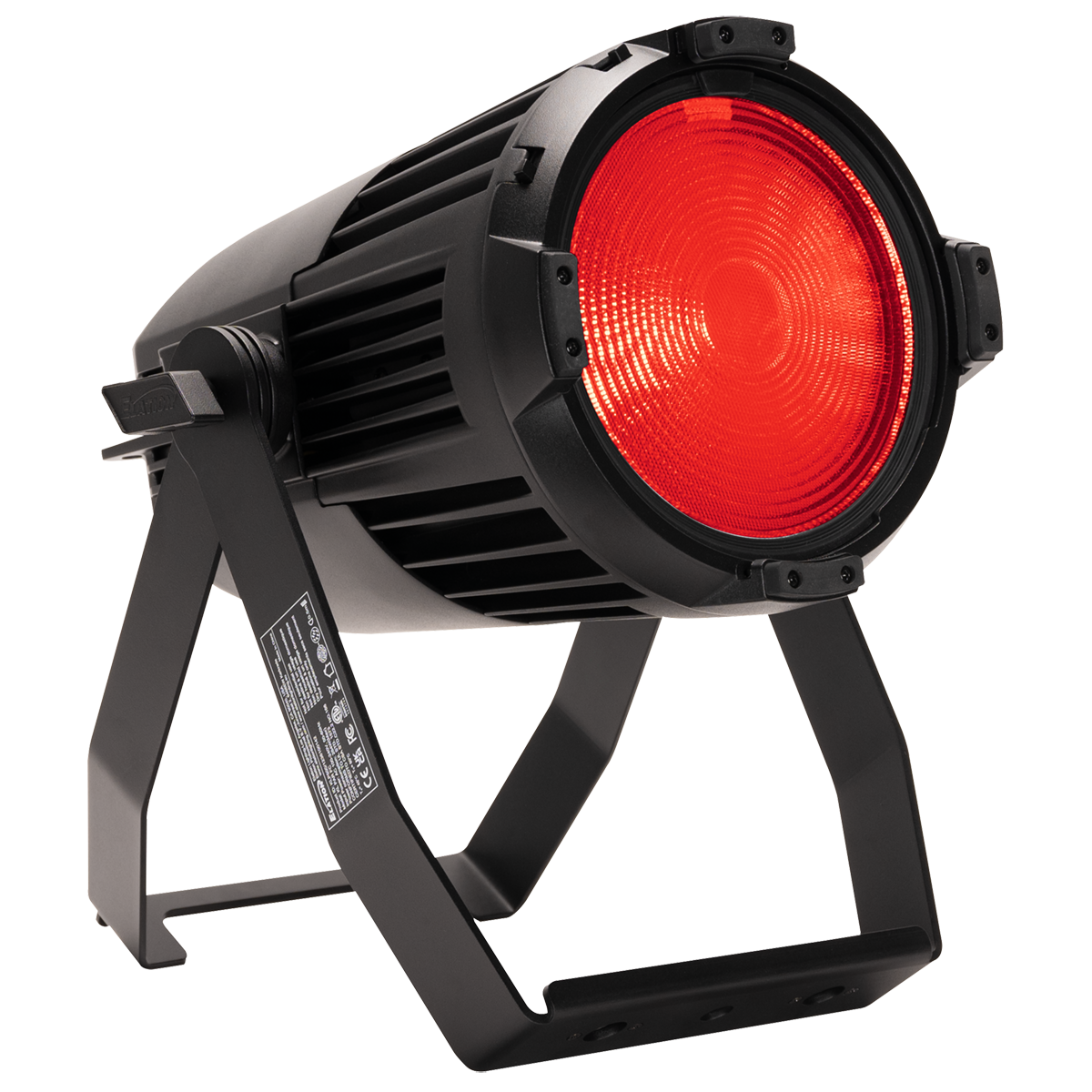

ELATION KL PAR FC

Features

280W RGBMA LED EngineColourTune Technology Software Integration
11,000 Total Fixture Lumen Output
Field replaceable lenses
Stand-Alone control with one Encoder and OLED Display
Smooth 16-bit Selectable Dimming Modes and Curves
Remote LED Refresh Rate and Fan Speed Adjustment
Flicker Free Operation for TV and FILM
RDM (Remote Device Management)

7.5" Gel Frame and four lenses (11°, 22°, 30°, 52°) included


Resources

DMX/ RDM Traits

•  KL Par FC - DMX Traits

Guides/ Manuals

•  KL Par FC - User Manual

Specification information

•  KL Par FC - Specification Sheet

PHOTOMETRIC DATA

•  KL Par FC - Photometric Test Report (VNSP)
•  KL Par FC - Photometric Test Report (NSP)
•  KL Par FC - Photometric Test Report (MFL)
•  KL Par FC - Photometric Test Report (WFL)
•  KL Par FC - Photometric Test Report (XWFL)
•  KL Par FC - Photometric IES Files

Drawings

•  KL Par FC - Dimensional Drawing

CAD File

•  KL Par FC - 2D Cad Drawing
•  KL Par FC - Vectorworks Symbol
•  KL Par FC - 3D Cad

Test Results

•  KL Par FC - dB (A) Report

Related Categories

• KL
• Par | Wash

Specifications

SOURCE
280W 6500K RGBMA LED Engine
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.

PHOTOMETRIC DATA
11.000 Total Lumen Output

CRI 92



TLCI 95


INCLUDED LENSES

VNSP (11°)
NSP (22°)

MFL (30°)

WFL (52°)



EFFECTS
Electronic Dimmer and Strobe
Variable 16-bit Dimming Modes and Curves

COLOR
High Brightness and High Fidelity Output Options
RGBMA Color Array
CMY Emulation
16bit Fully Variable CCT 2400K - 8500K
Green/Magenta Shift
Dim-to-Warm Fade
Virtual Gel Swatch Book

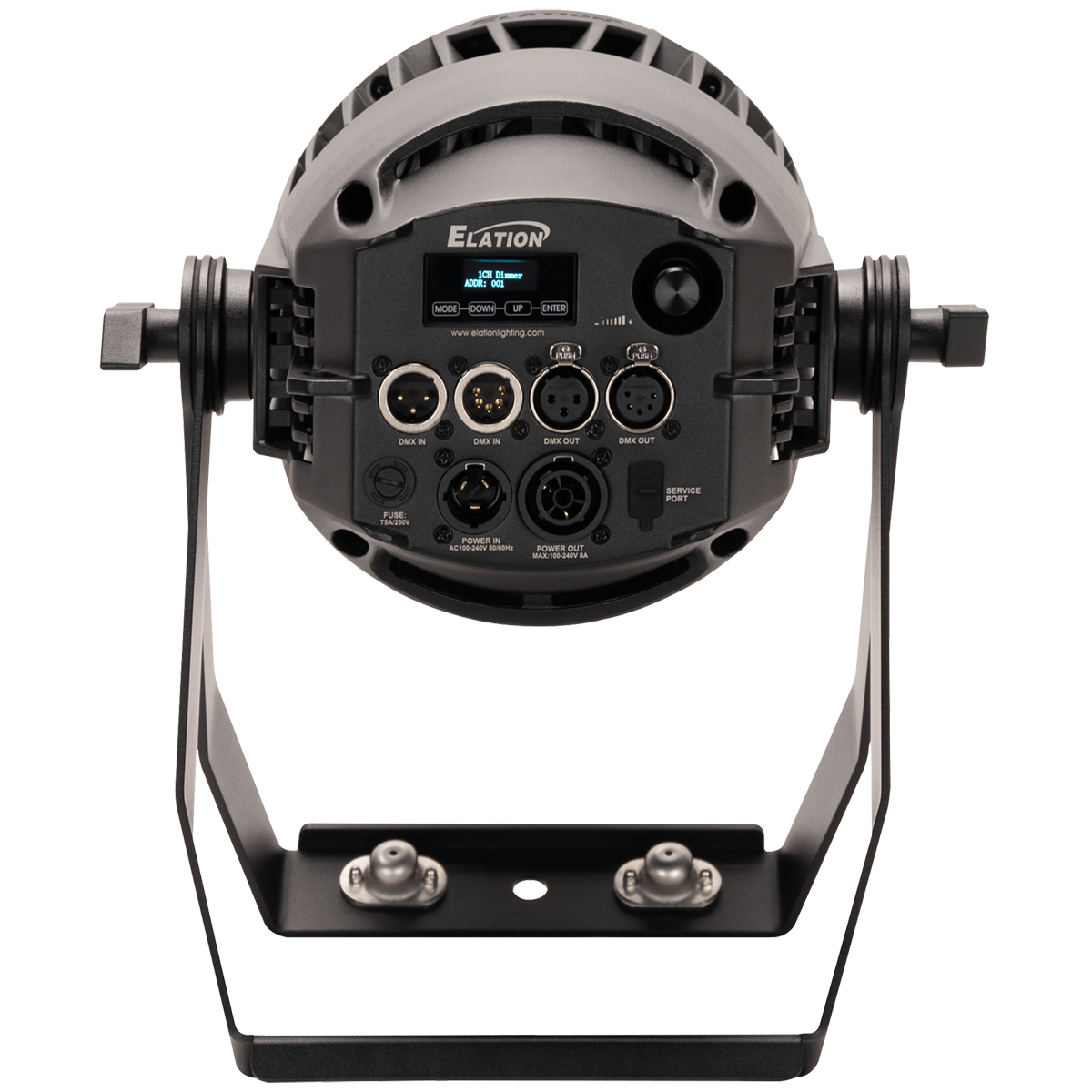

CONTROL / CONNECTIONS

8 DMX Channel Modes (1, 6, 11, 18, 19, 9, 14, 15)
Manual and DMX Controlled Dimmer and Color
Single Rotary Dial
4 Button Control Panel, LED Display
RDM (Remote Device Management)
3/5pin DMX and IP65 Locking Power Cable In/Out

SIZE / WEIGHT
Length: 13.94” (354.0mm)

Width: 11.97” (304.0mm)

Vertical Height: 14.96” (380.0mm)

Weight: 15.98 lbs. (7.25kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
284W Max Power Consumption
Power Thru Capacity: 8A (3 units @110V, 6 units @240V)
5°F to 113°F (-15°C to 45°C)
BTU/hr (+/- 10%) 891.76

INCLUDED ITEMS
7.5" Gel Frame
4 Lenses (11°, 22°, 30°, 52°)
IP65 Locking Power Cable



OPTIONAL ITEMS

7.5" Barndoors

XWFL (90°) Lens

Ovalizer Lens

Glass Lens

#8050000053 (Omega Bracket)

APPROVALS / RATINGS
CE | cETLus | IP20 | FCC | UKCA
