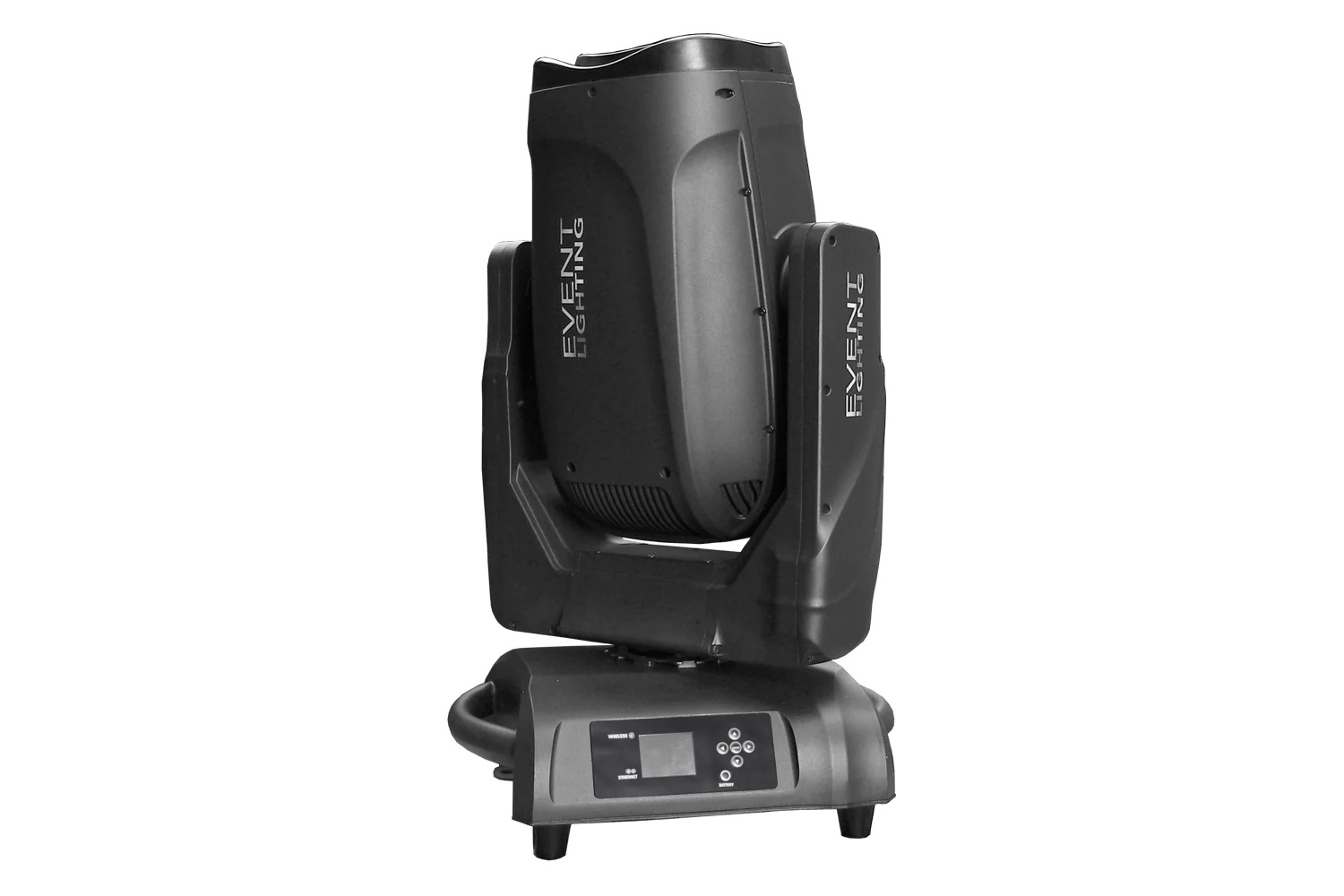

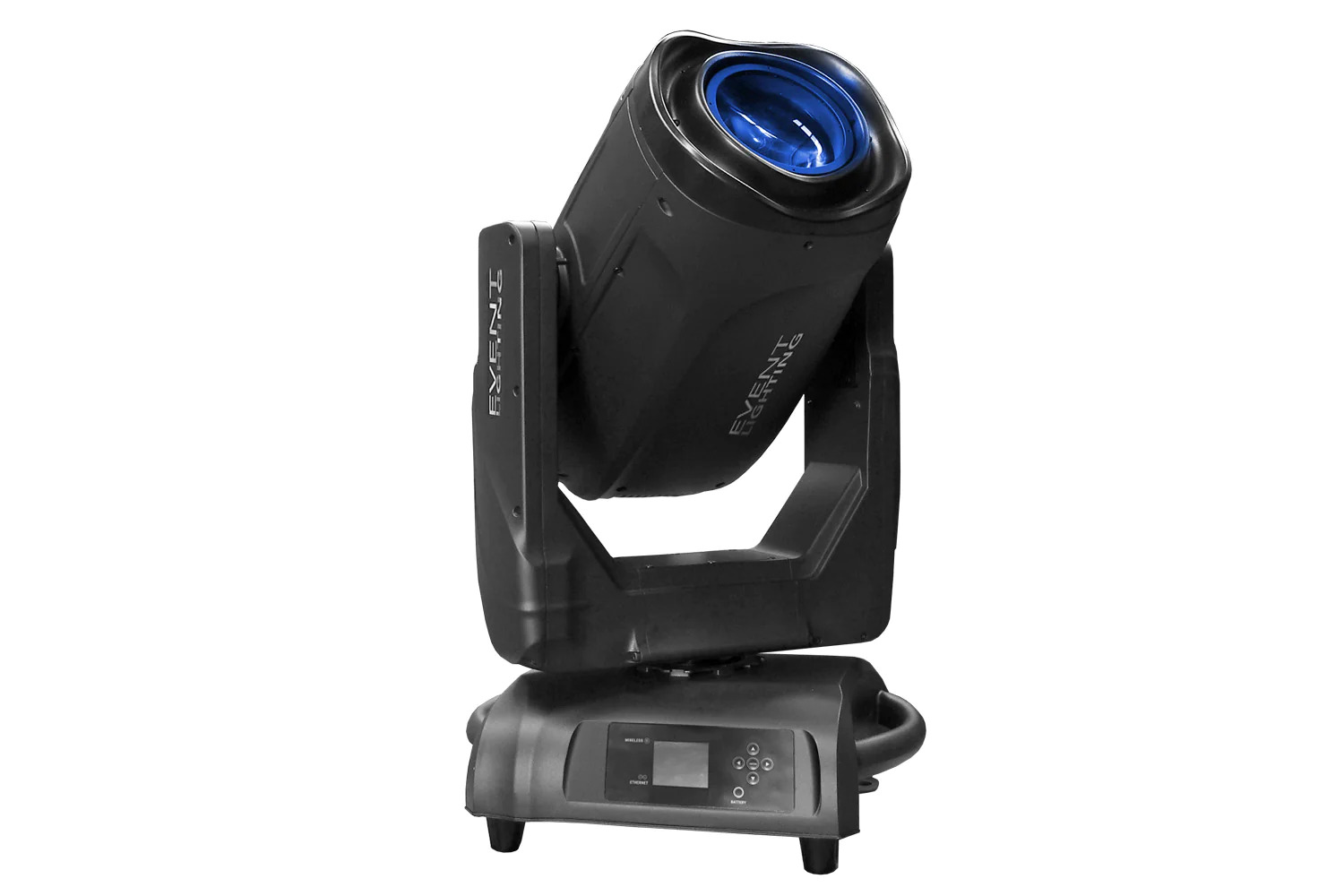

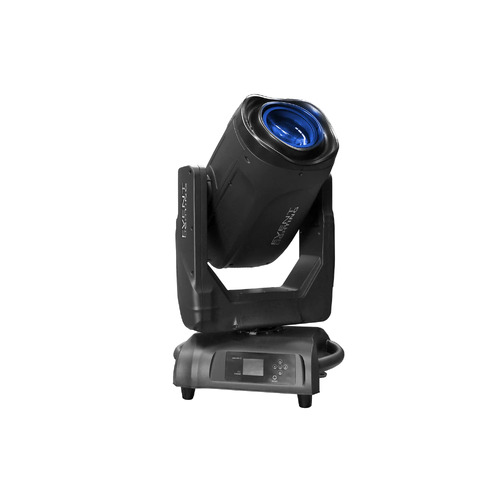

EVENT LIGHTING HAVOCHIP420G - 420W Globe Beam Spot Wash Moving Head

HAVOCHIP420G - IP65 Moving Head Hybrid with 1 x USHIO NSL421 Lamp, 1-14° 'Beam' Mode/ 4-25° 'Spot' Mode, 13+ Colour wheel, 9+ Rotating Interchangeable Gobo Wheel, 14+ Fixed Gobo wheel, 8 facet + 6 linear prism, Frost, Dimmer, Strobe, RDM, 3 and 5 Pin DMX

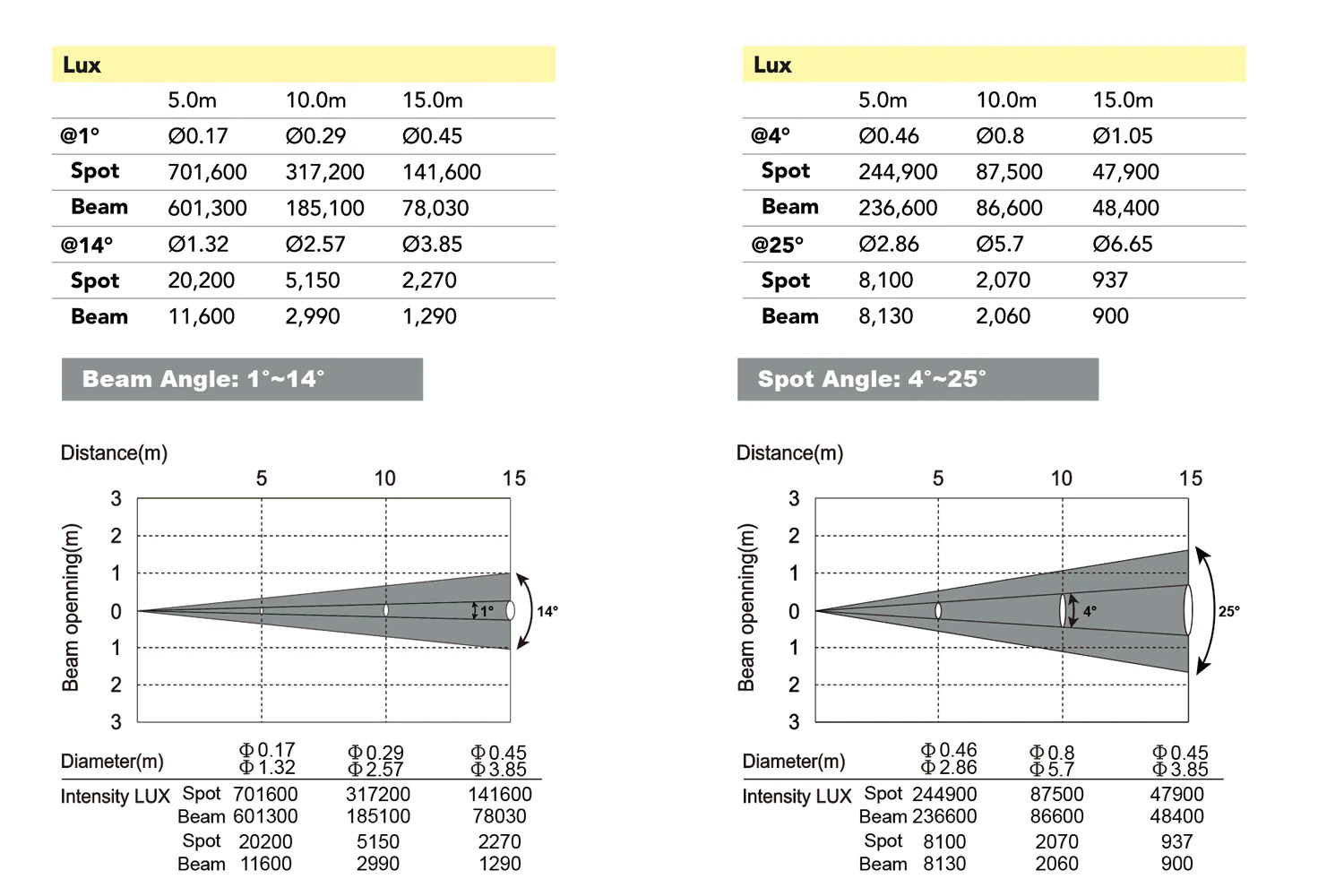

Photometrics

• Light Source: USHIO NSL421 Lamp, 6,500 K
• Beam Angle: 1°-14°
• Spot Angle: 4°- 25°
• Output 14734 lumen
  Spot Mode:701600 lux at 5m at 1°
  Beam Mode: 236600 lux at 5m at 4°

• Lamp Lifespan: 2500 hrs at 380w, 3000h at 290w, 6000hr at hybrid power mode

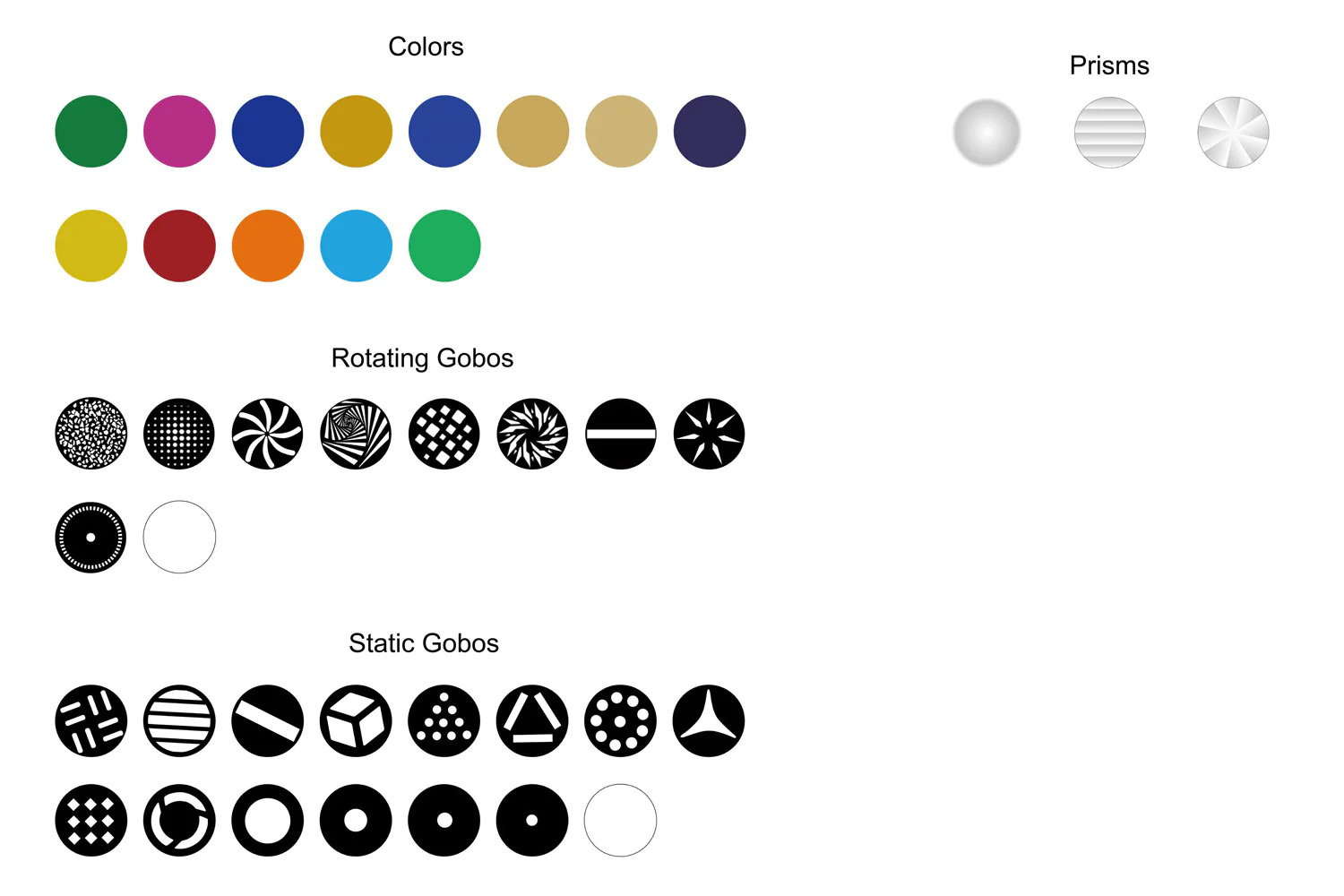

Colour

• 13 Colours + Open
• Interchangeable
• Indexable
• Bidirectional rainbow

Gobos

• Fixed: 14 + Open
• Rotating: 9+ Open
• Animation

Effects

• Dimming: 0~100%
• Strobe: 0.5~26 Hz
• Focus: Motorised
• Prism: 6-linear + 8 facets overlapping
• Frost: Yes
• Zoom: Yes

Movement

• 8/16 bit Auto Reposition
• Pan: 540° (3.47 sec)
• Tilt: 265° (2.2 sec)

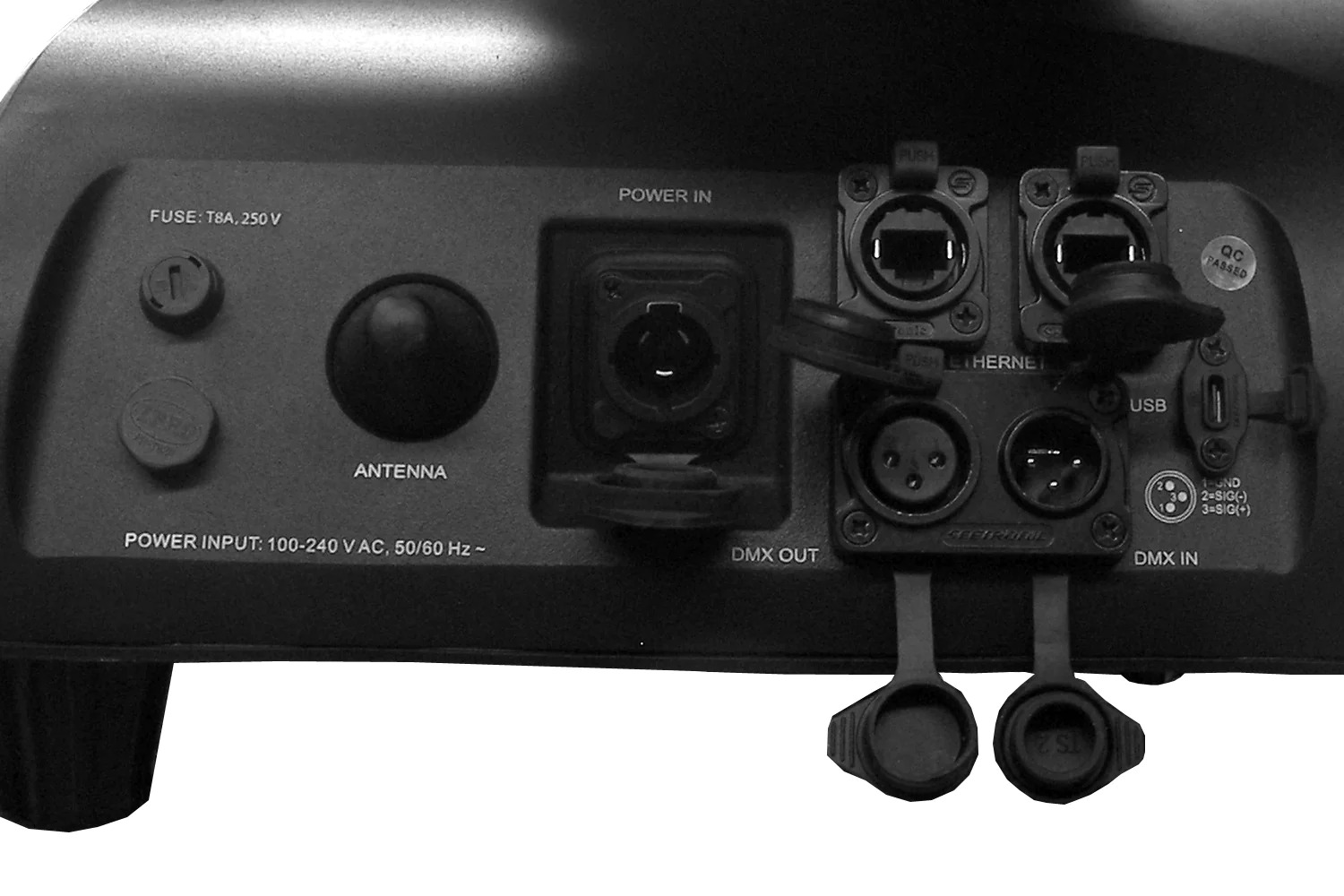

Power

• Input Voltage: 100~240 V AC, 50/60 Hz, 541 W
• Connection: Neutrik® PowerCON in/out
• Fuse: T8 A, 250 V

Control

• Operational Modes: DMX, auto, sound active, master/slave
• Control Protocol: DMX512, RDM (optional: W-DMX™)
• DMX Channels: 24
• Interface: 3-pin XLR,
• RDM function to change DMX address, display flip, X/Y reverse etc.
• Display: 2.4″ colour LCD control panel with battery power.
• Software Upgrade via DMX: Yes

Housing

• Materials: ABS & Steel, matte black finish

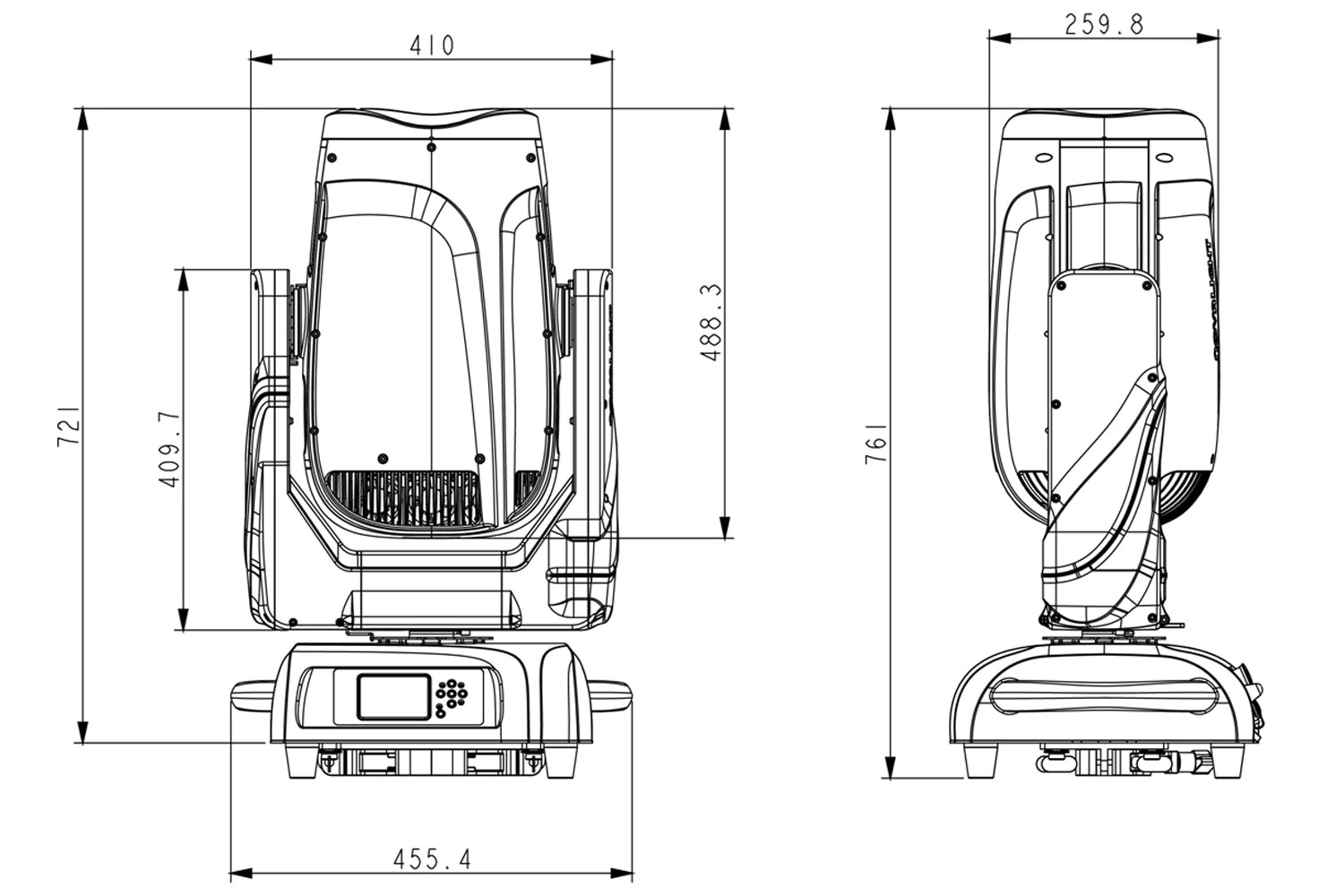

• Dimensions: 455x349x761mm
• Cooling: Multi sensor thermostat controlled variable speed fan
• IP rating: IP65
• Net Weight: 39.5 kg
• Rigging: 2x omega brackets with 1/4-turn quick locks
