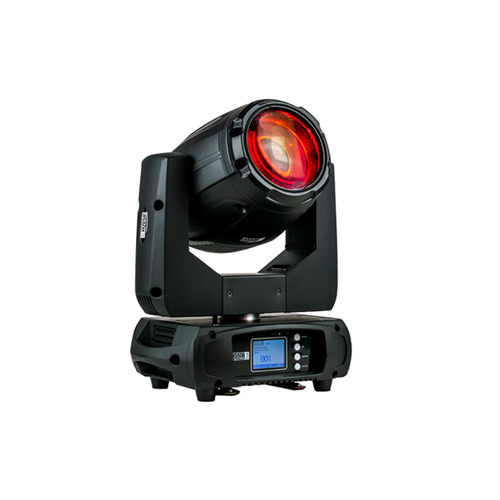

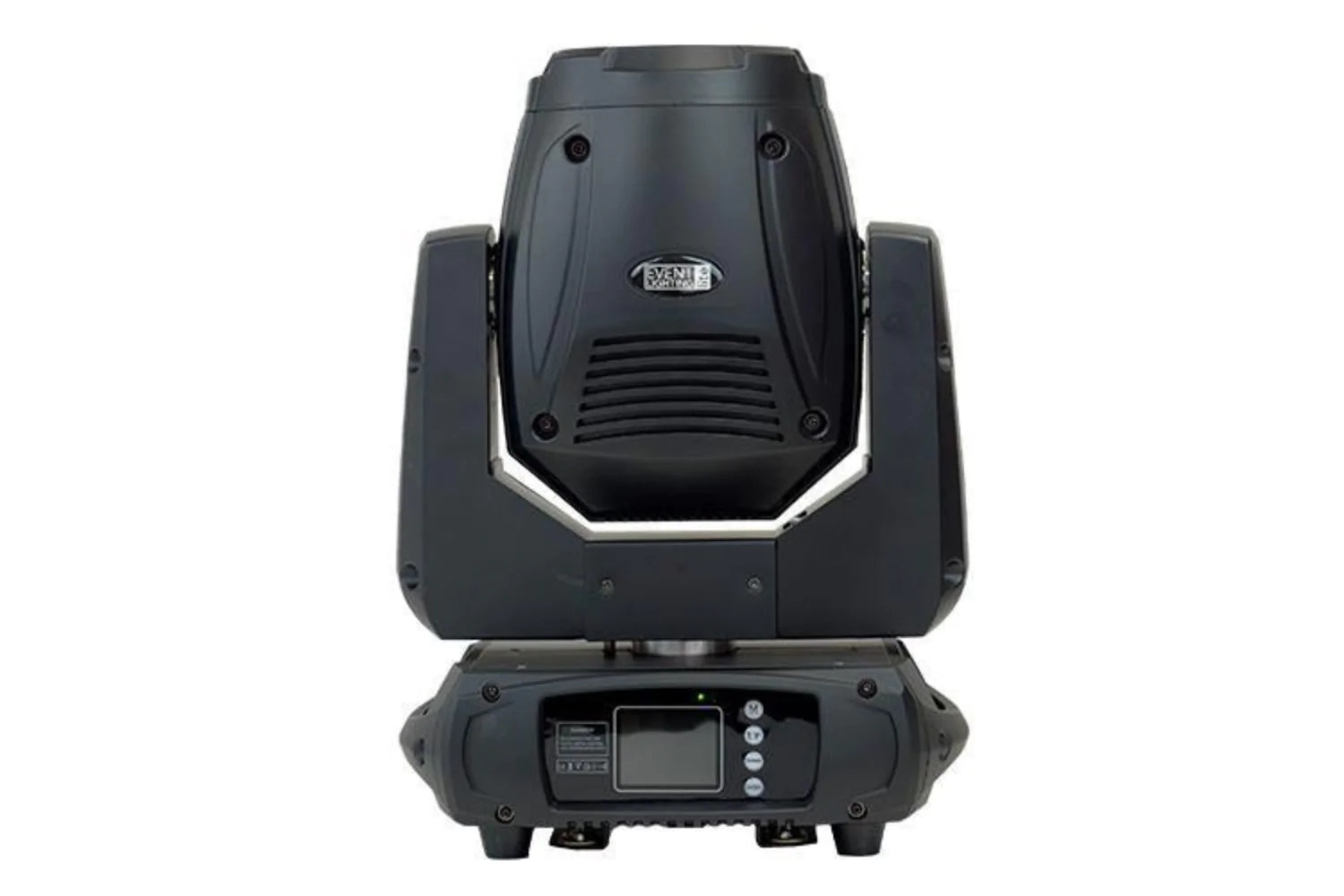

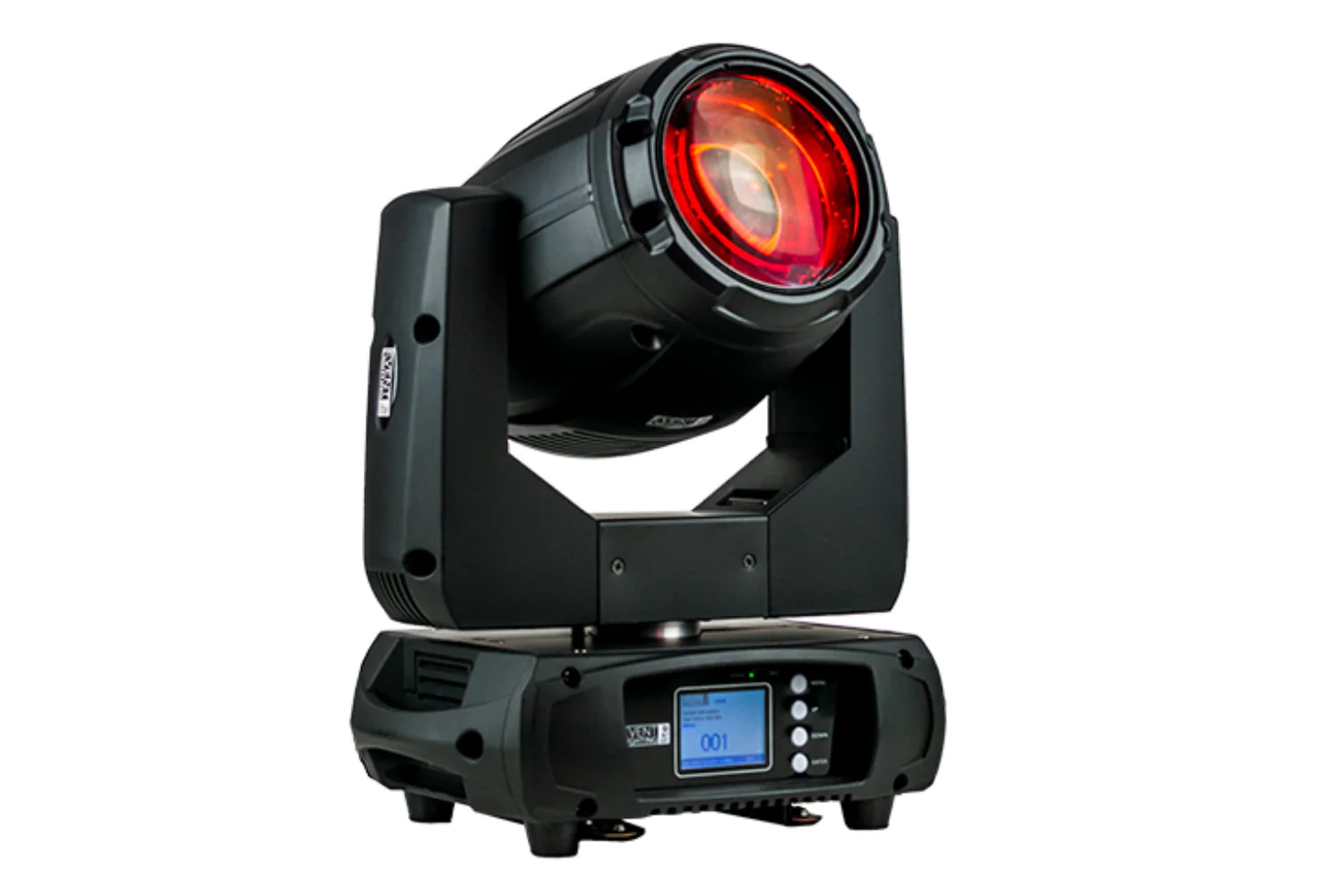

EVENT LIGHTING LITE LM180B - 180W Beam Moving Head

Photometrics

• Light Source: 180W White LED 7,500K
• Beam Angle: 2°
• Output: 41,300 lux @ 5m
• PWM: 500 Hz
• LED Lifespan: 50,000hours

Colour

• 1 colour wheel (12 Colours + Open)

Gobo

• Fixed: 1 x (14 + open) fixed gobo wheel

Effects

• Prism: 8-facet
• Dimming: 0~100%
• Strobe: 0.6~18 Hz
• Focus: 2.5~30 m linear via DMX

Movement

• 8/16 – bit, auto-reposition
• Pan: 360°/540°/630°
• Tilt: 90°/180°/270°
• Limit mode: Centre/Corner/Edge

Power

• Input Voltage: 90~260V AC, 50/60Hz
• Power Consumption: 220W
• Connection: PowerCon in/out
• Fuse: F4A, 250V

Control

• Protocol: DMX512
• Operation Modes: DMX, auto, manual, sound active, master/slave
• DMX Channels: 13/15
• Interface: 3-pin XLR in/out
• Built-in Programming: Yes
• Sound Active: Yes
• Display: 4-button 2.4inch TFT LCD display control panel

Housing

• Materials: Metal & flame retardant ABS
• Finishing: Matte black
• IP rating: IP20
• Cooling: Fan
• Net Weight: 11.5kg
• Rigging: 2x omega brackets with 1/4-turn quick locks

Optional Accessories

• Road case: LM2CASEL
• Wireless DMX: WDMXLM
