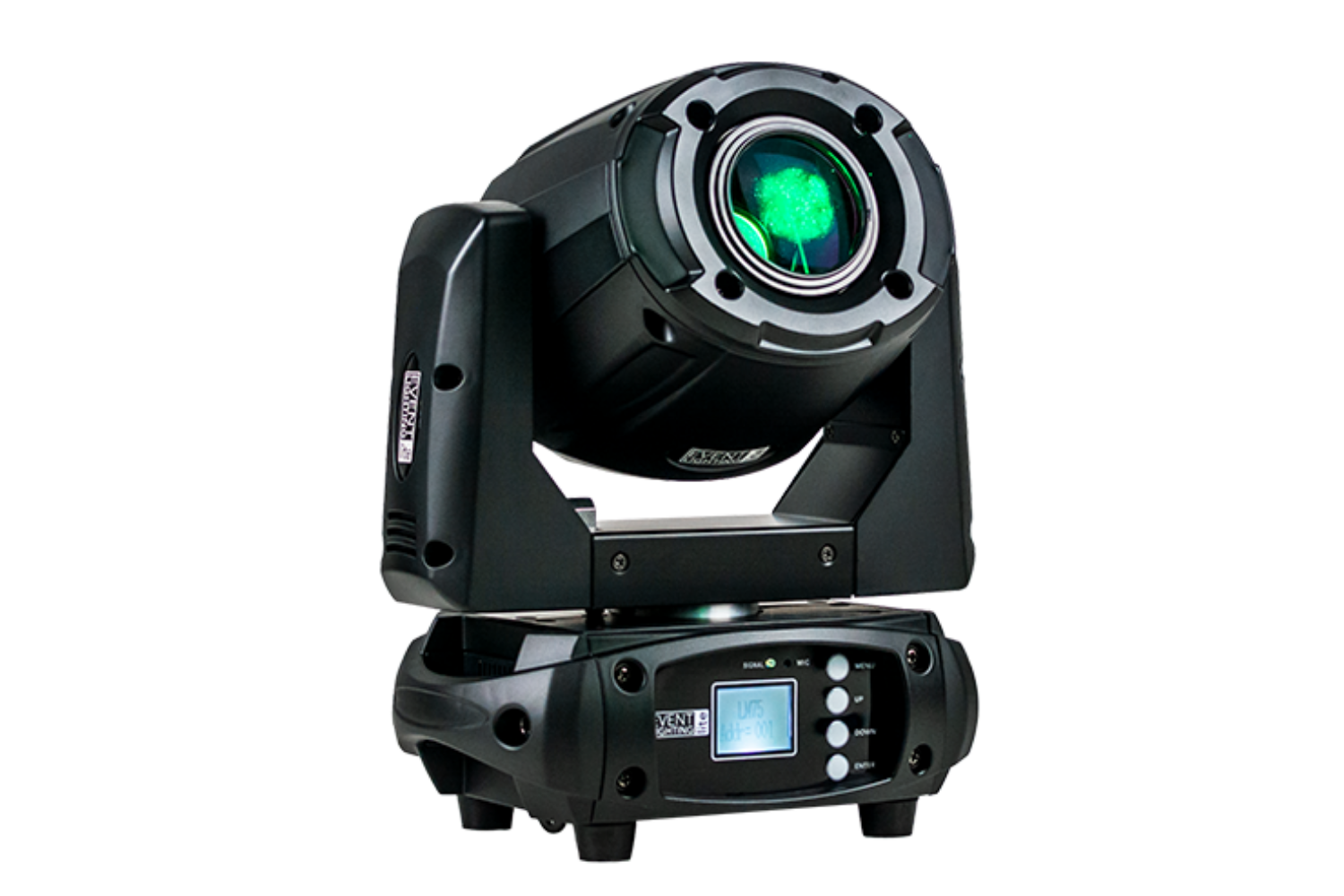

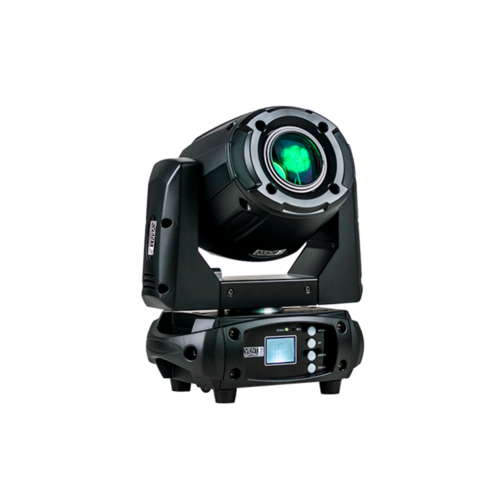

Event Lighting Lite LM75 - 75W LED Spot Moving Head

Event Lighting Lite LM75 - 75W LED Spot Moving Head

This 75W spot has a 13.5-degree beam angle, 1x colour wheel (8+open), 1x rotating gobo wheel (6+open). A linear focus and 3 facet prism with useful tools such as sound activation, built-in programs and pan/tilt limit modes. This unit also has the option of wireless DMX.

Photometric

• Light Source: 75W White LED
• Beam Angle: 13.5°

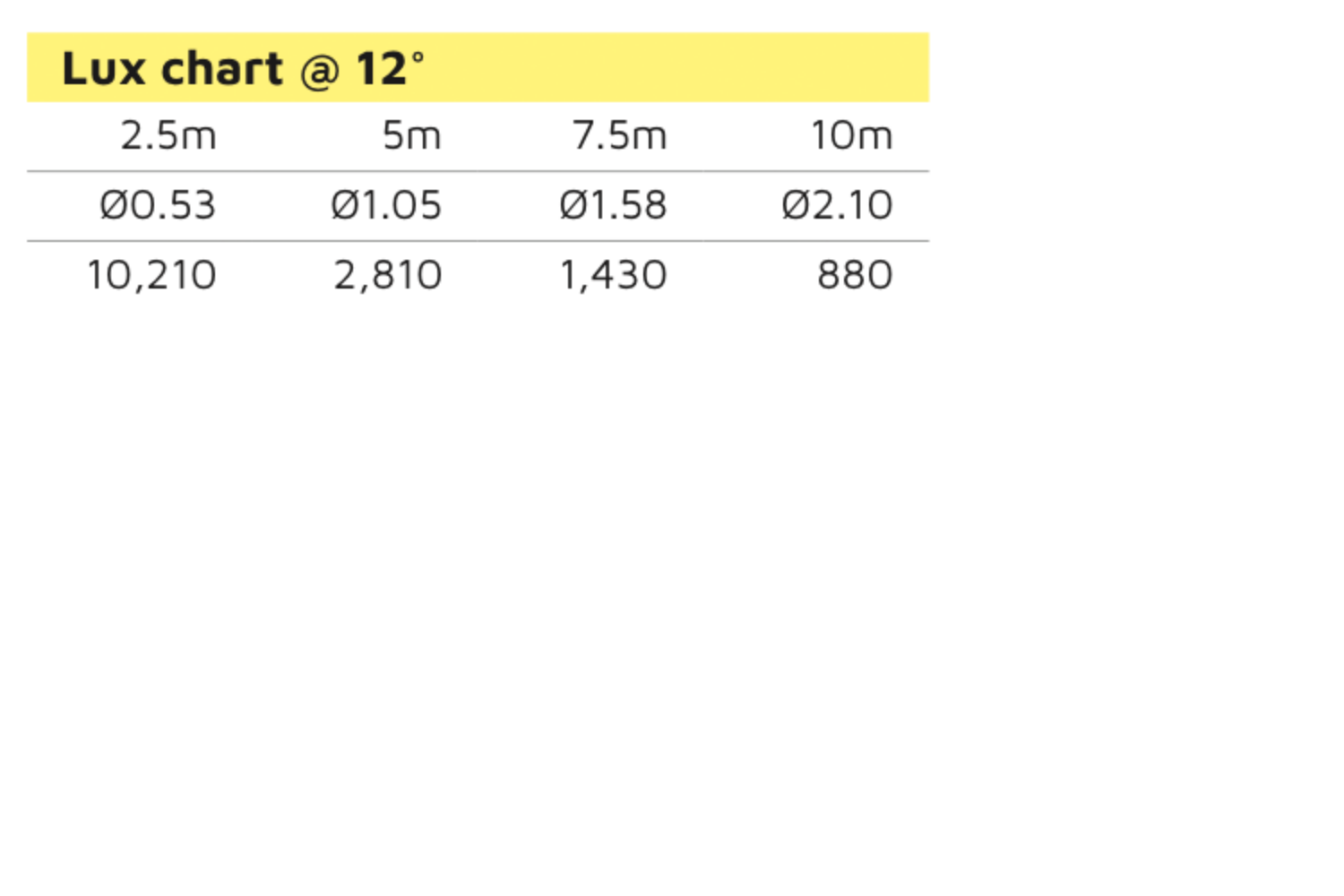

• Output: 10,210lux @ 2.5M
• PWM: 1,200Hz
• LED Lifespan: 50,000hours

Colour

• 1 colour wheel (8 Colours + Open)

Gobo

• 1pc 6 patterns + open rotating wheel (Interchangeable gobo - outside Ø16mm, inside Ø13mm)

Effects

• Prism: 3-facet
• Dimming: 0~100%
• Strobe: 0.6~25Hz
• Focus: linear via DMX

Movement

• 8/16 – bit, auto-reposition
• Pan: 360°/540°/630°
• Tilt: 90°/180°/270°
• Limit mode: Centre/Corner/Edge

Power

• Input Voltage: 100~240V AC, 50/60Hz
• Power Consumption: 110W
• Connection: PowerCon in
• Fuse: T2A, 250V

Control

• Protocol: DMX512
• Operation Modes: DMX, auto, manual, sound active, master/slave
• DMX Channels: 13/11
• Interface: 3-pin XLR in/out
• Built-in Programming: Yes
• Sound Active: Yes
• Display: 4-button 1.44inch TFT LCD display control panel

Housing

• Materials: Metal & flame retardant ABS
• Finishing: Matte black
• IP rating: IP20
• Cooling: Fan
• Net Weight: 4kg
