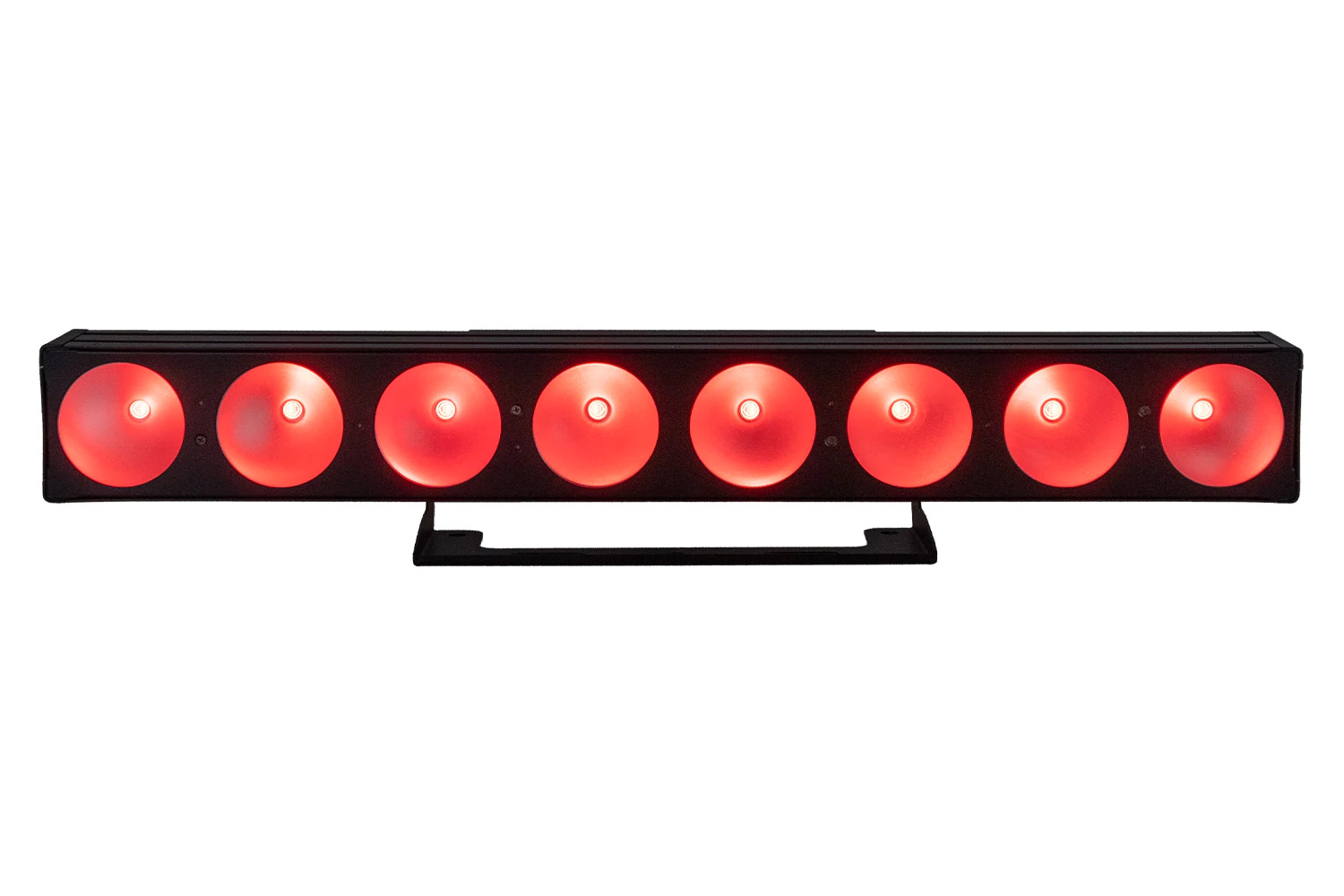

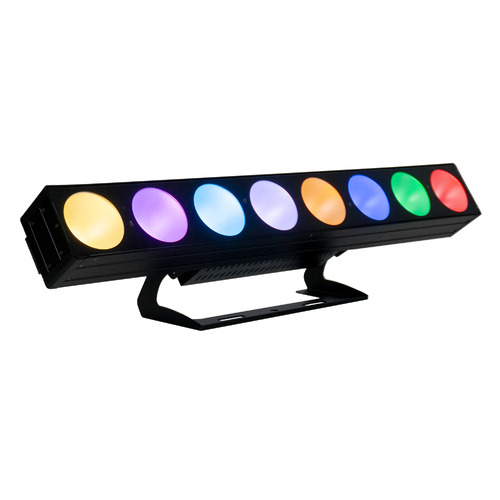

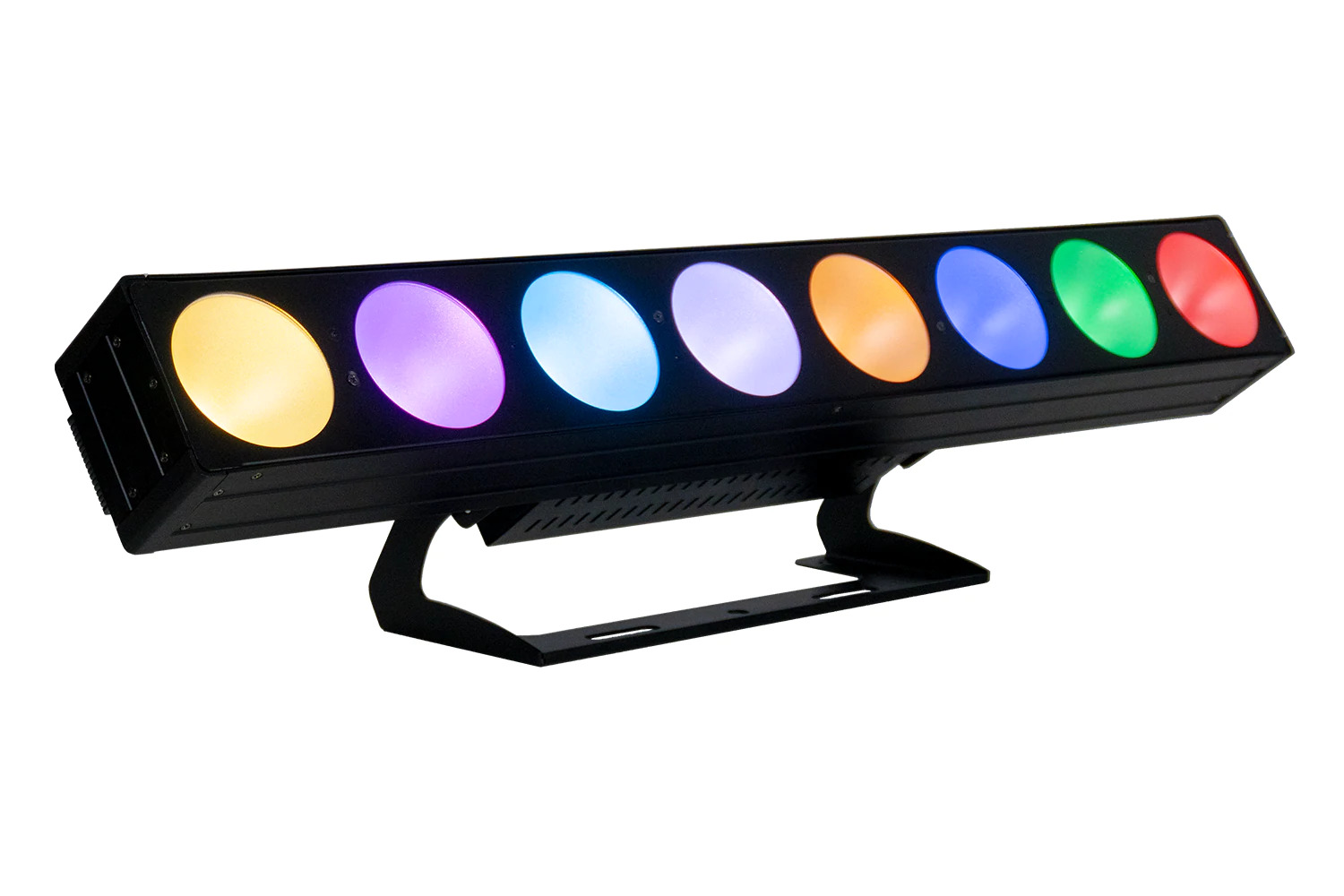

EVENT LIGHTING PAN8X1X30 - 8 x 30W COB RGB LED Pixel Control Panel

Photometrics

• Light Source: 8x 30 W RGB COB LEDs
• Beam Angle: 60°

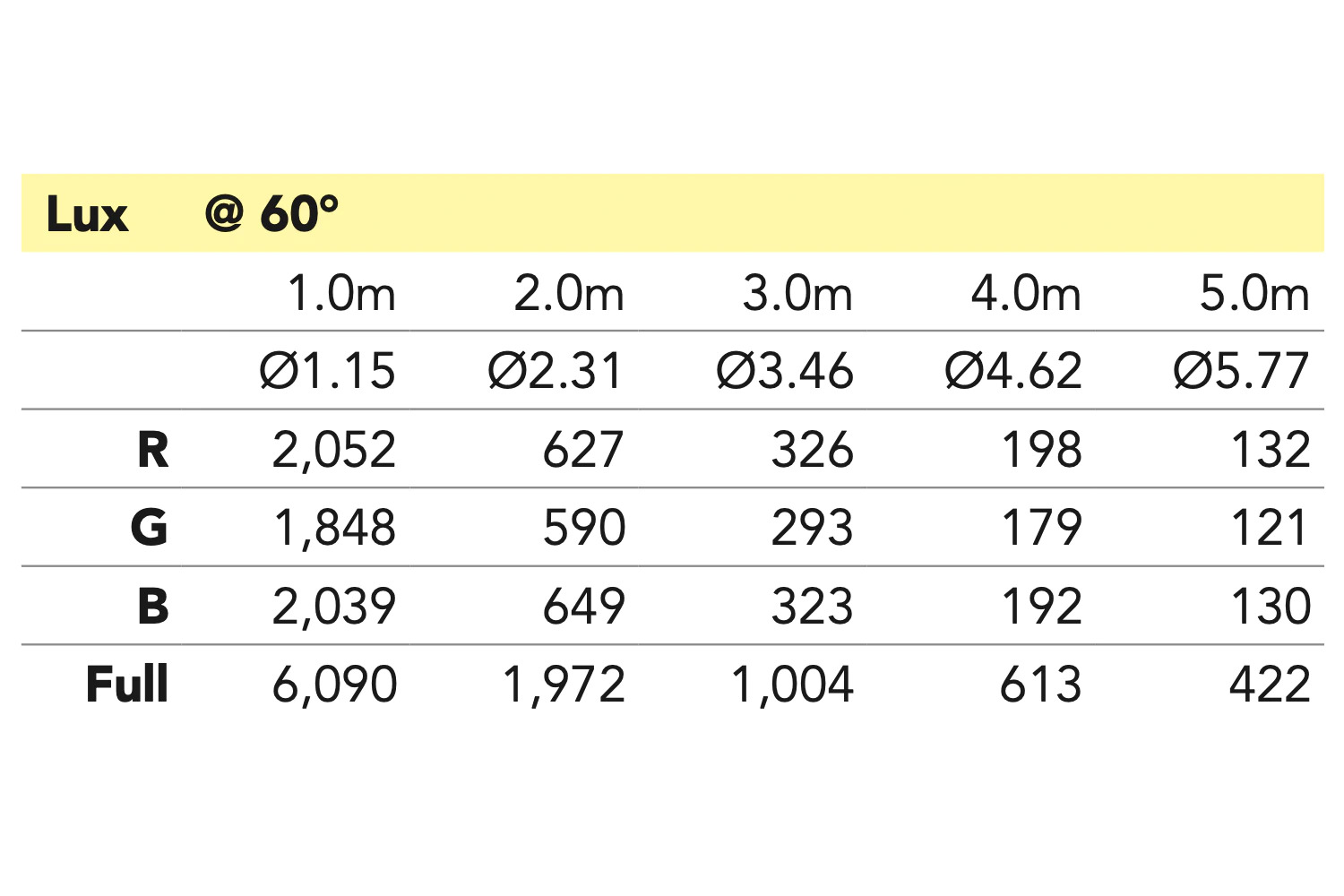

• Output: 1,972 lux @ 2 m RGB full on
• PWM: 11,700 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 8-bit + 4x 16-bit Dimming Curves
• Strobe: 1~30 Hz

Power

• Input Voltages: 100~240 V AC, 50/60 Hz, 200 W
• Power Connection: IEC in/out

Control

• Operational Modes:  DMX, manual, auto, sound active, master/slave, multi fixture chase
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 3 / 5 / 9 / 24 / 29

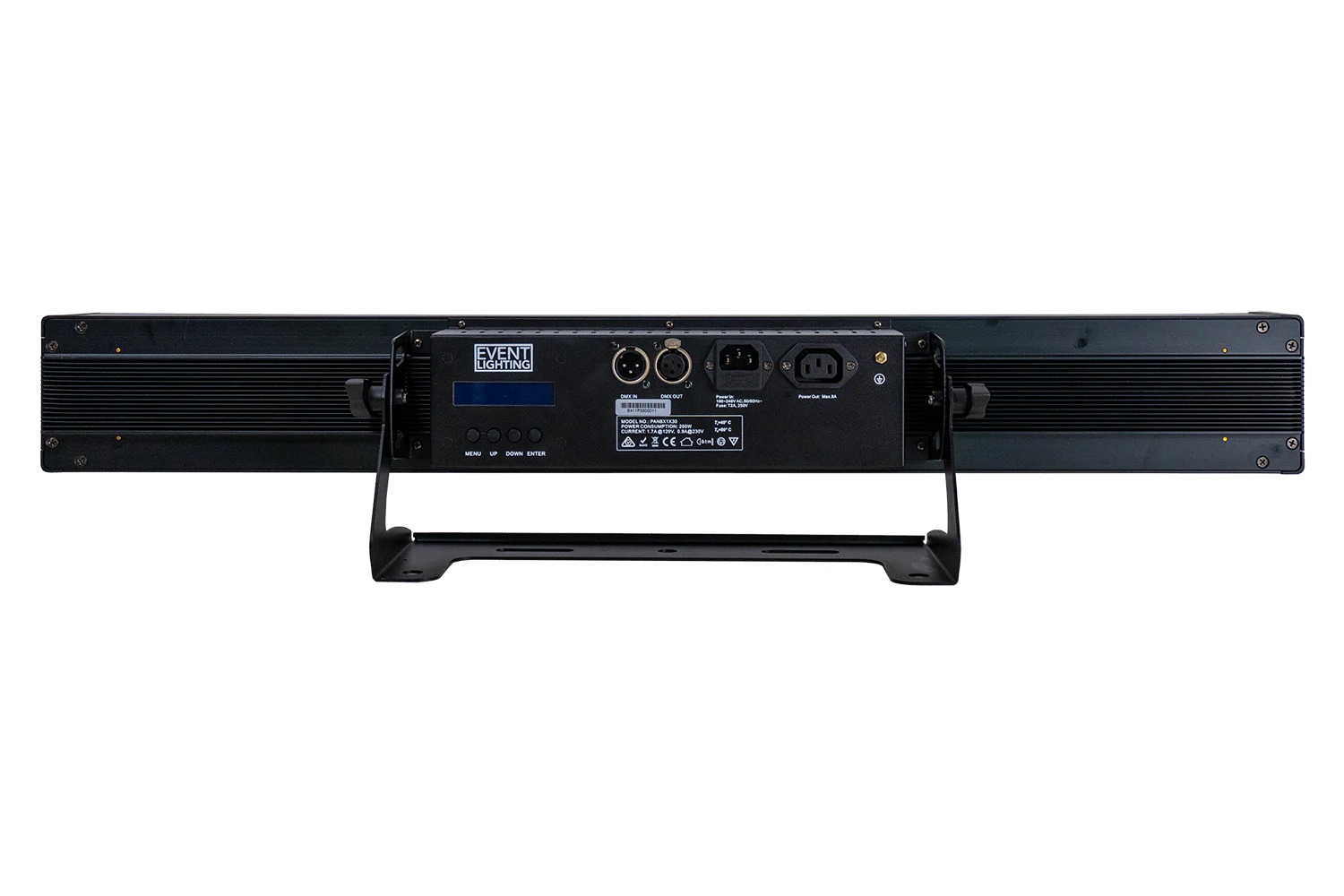

• Control Interface: 3-pin XLR (optional: 5-pin XLR)
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Aluminium, matte black finish
• Cooling: Fanless Cooling

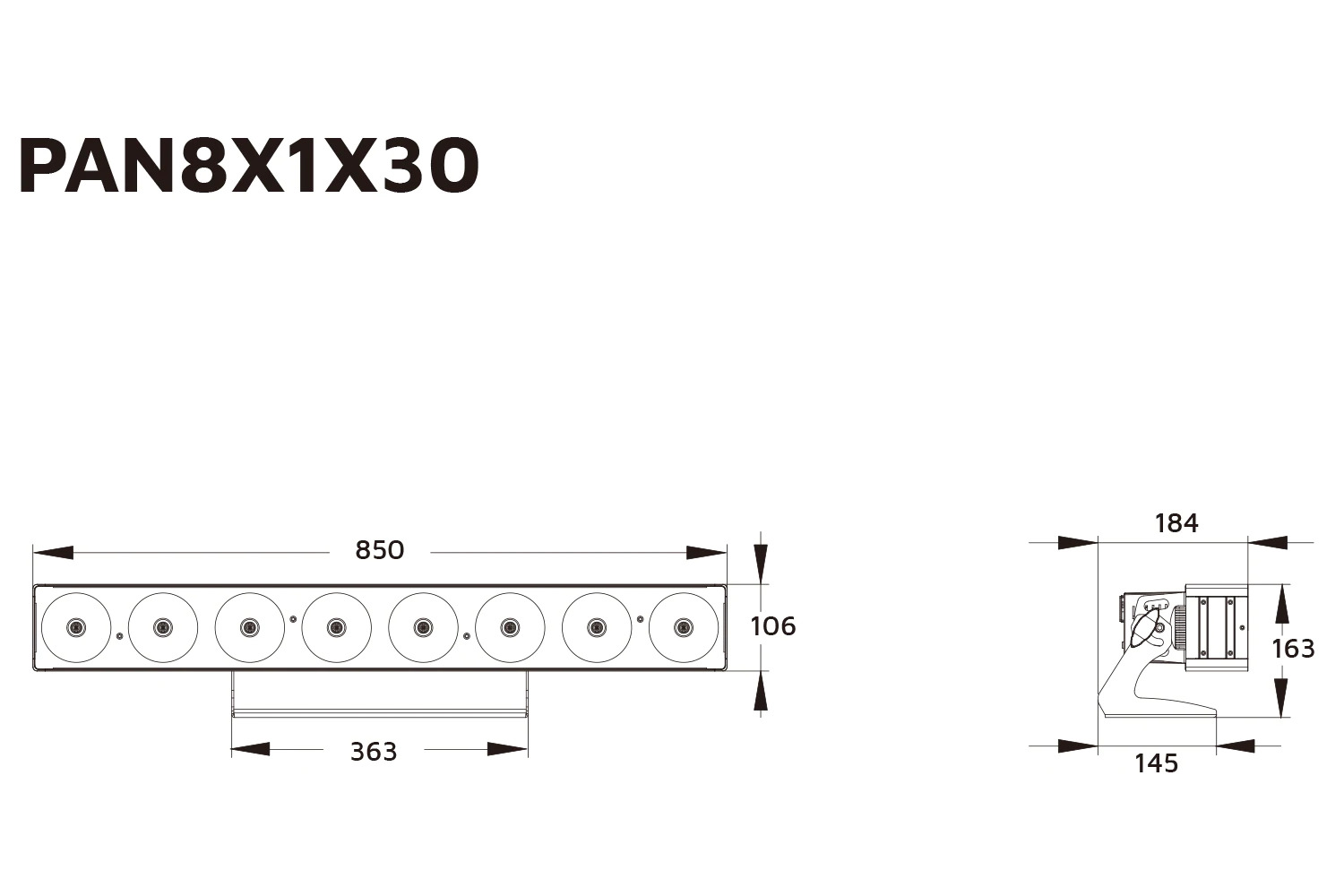

• Dimension: 850 x 184 x 163 mm
• Net Weight: 6.2 kg

Misc

• Road case: PAN8X1CASE4WC $790
