EVENT LIGHTING PAR12H - Indoor Pro Par with 12 x 12W RGBWAU LEDs

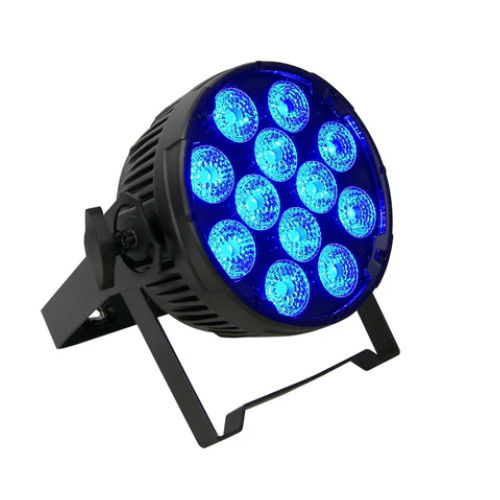

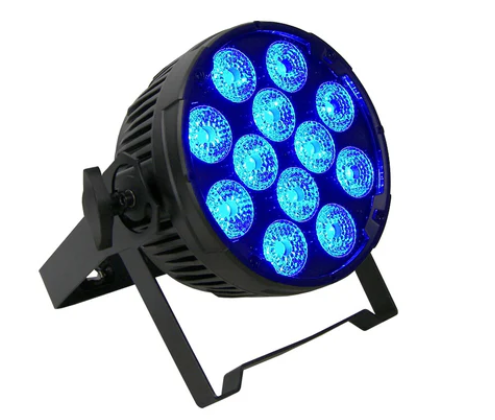

The Event Lighting PAR12H is a durable and versatile LED Pro Parcan. With 12 x 12W RGBWA+UV LEDs, it delivers stunning colour combinations to suit any space. Enjoy customisable beam angles with options for both 30° and 55°, providing the perfect spread for any application. Experience 3,150 lux output at 2.0 meters, ensuring vibrant illumination in any setting. Boasting a robust lifespan of 50,000 hours, this fixture is built to last.

With 5 x 16-bit Dimming Curves and adjustable strobe settings ranging from 1 to 30Hz, you have full control over your lighting effects. Its flexible operational modes include DMX, auto run, sound active, and more, all easily navigated through the intuitive 4-button LCD control panel. Plus, with a sturdy die-cast aluminium housing and fanless cooling design, durability and reliability are guaranteed.

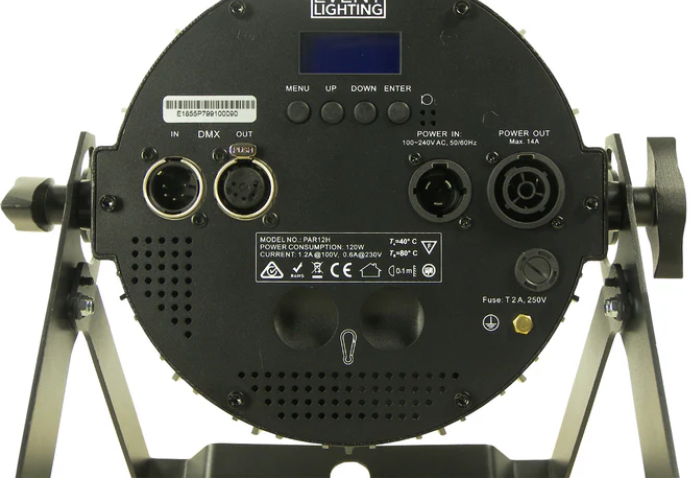

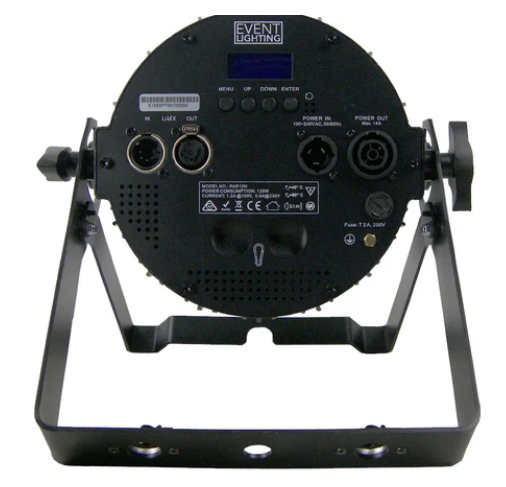

The PAR12H comes with True1 in/out, 5 pin DMX in/out and includes an omega bracket for quick and easy installation.

Specifications:

Photometrics

• Light Source: 12 x 12W RGBWA+UV LEDs

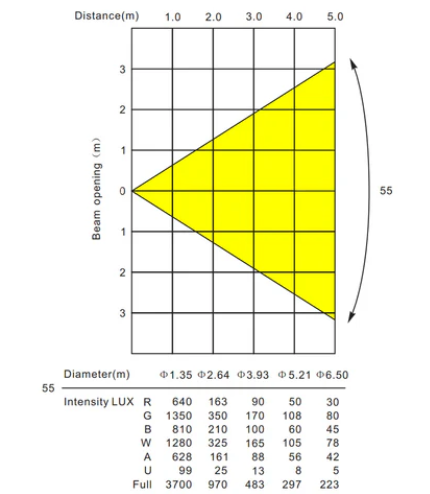

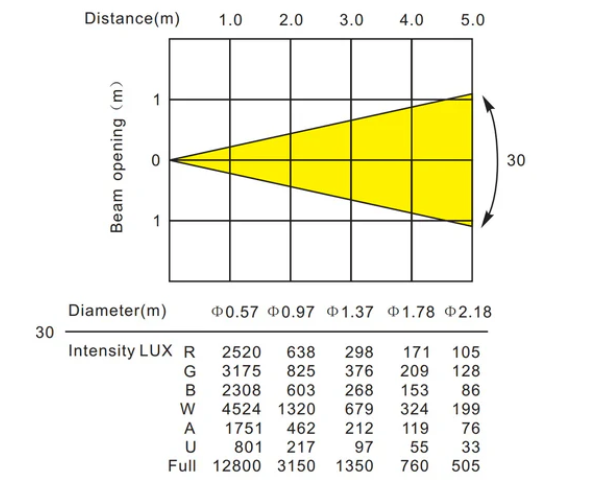

• Beam Angle: 30° (optional: 55°)
• Output: 3,150 lux @ 2.0 m full on
• PWM: 2,940Hz
• LED Life: 50,000 hours

Effects

• Dimming: 5 x 16-bit Dimming Curves
• Strobe: 1~30Hz

Power

• Input Voltage: 100V~240 V AC, 50/60Hz, 120W
• Power Connection: True1 in/out

Control

• Operational Modes: DMX, WDMX (optional), auto run, sound active, master/slave, manual colour control, static colour control
• Display: 4-button LCD control panel
• DMX Protocol: DMX512
• DMX Channel Mode: 1 / 2 / 3 / 4W / 4A / 6 / 8 / 12 / 14
• DMX Interface: 5-pin XLR in/out

Housing

• Housing Materials: Die-cast aluminium, matte black finish
• Cooling: Fanless Cooling

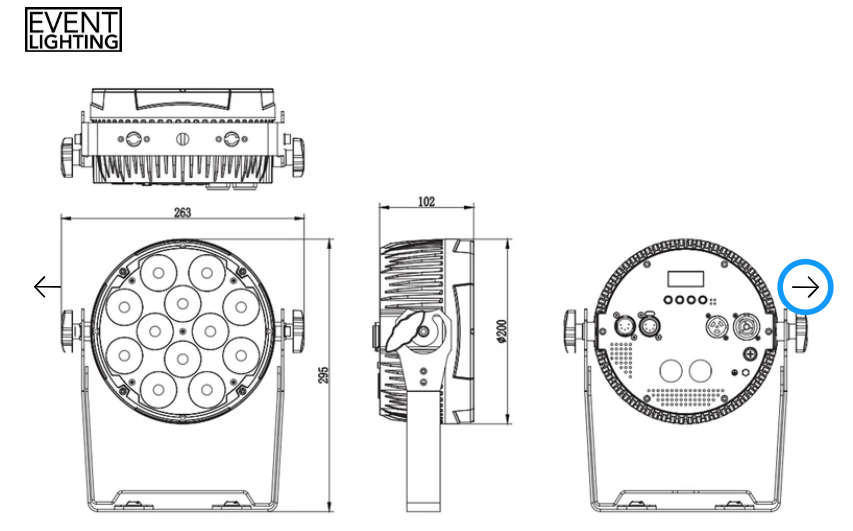

• Dimension: 263 x 293 x 98mm
• Net Weight: 3.2kg

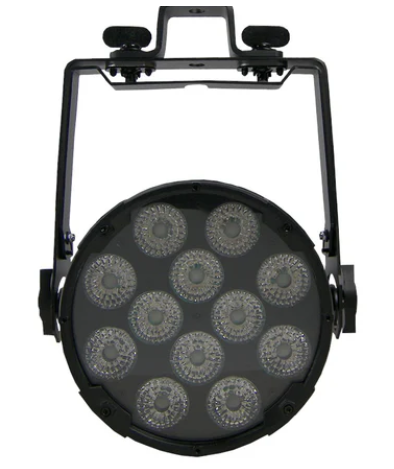

• Rigging: 1 x Omega bracket with 1/4 turn quick lock.

MISC

• Road case: PAR12BDCASEWC, PAR12CASEWC
• Barndoor Kit: PAR12BDKIT
