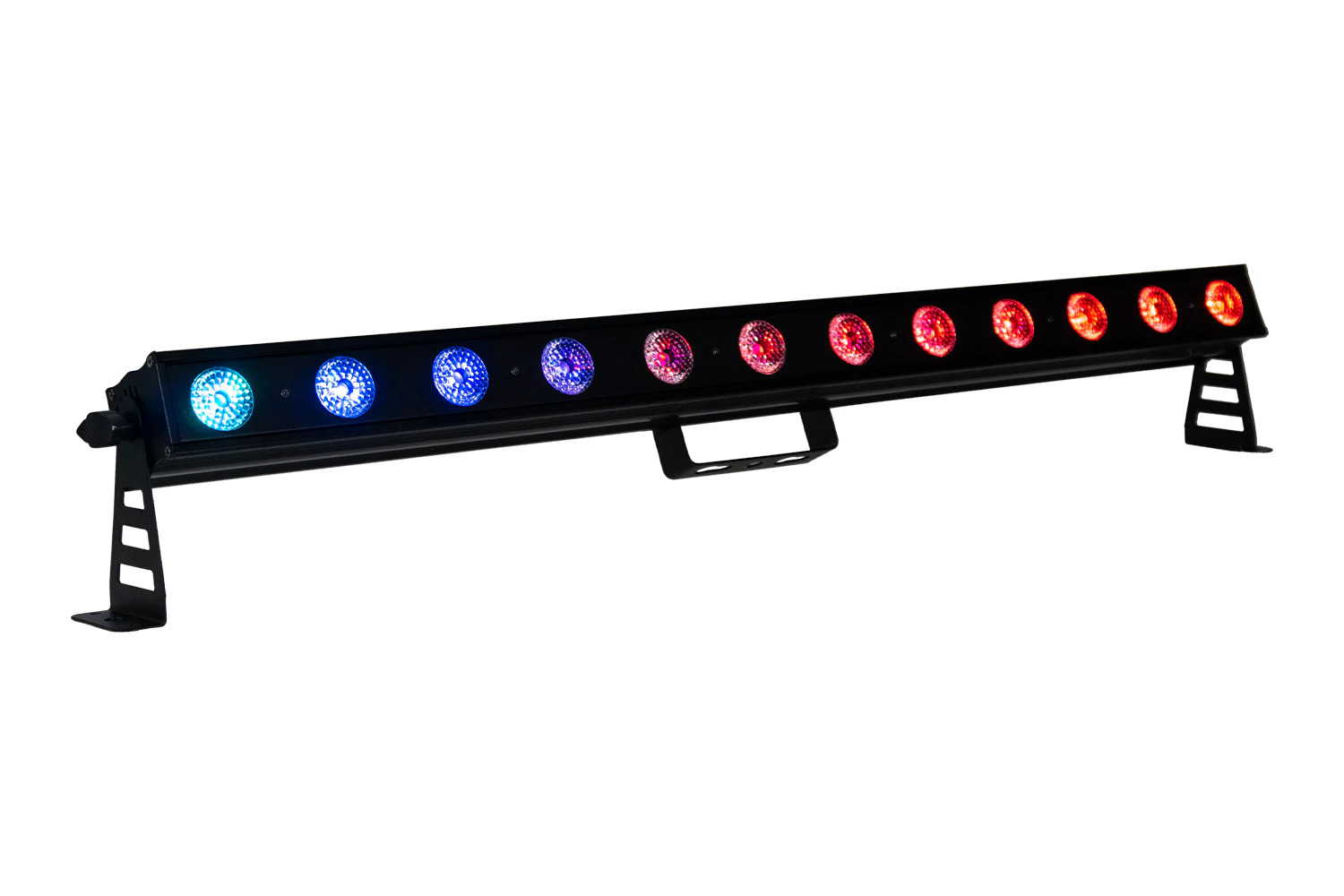

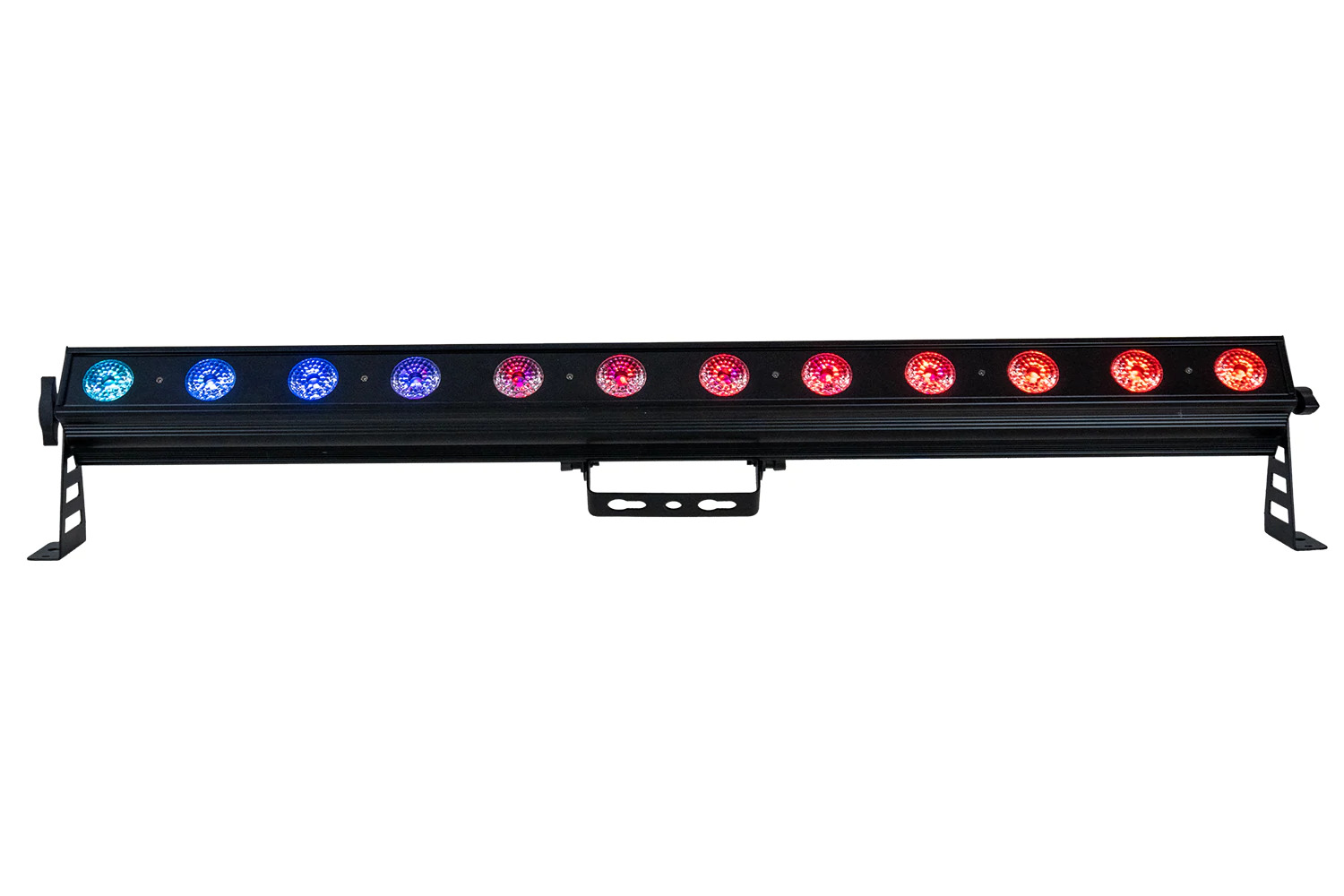

EVENT LIGHTING PIXBAR12X12 - LED Pixel Bar 12 x 12W RGBWAU , Powercon In and Out, 3 Pin DMX.

Photometrics

• Light Source: 12x 12 W RGBWAU LEDs

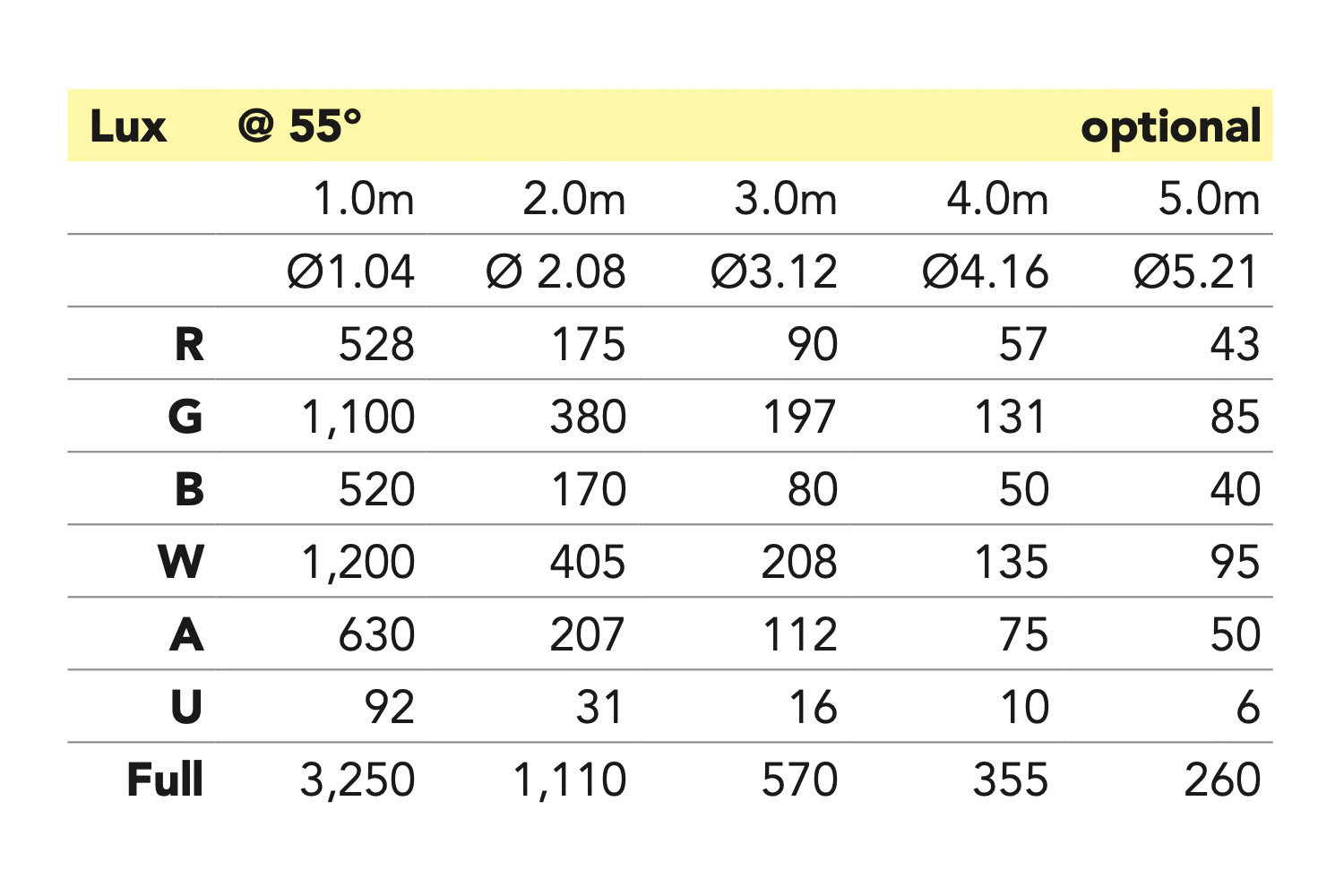

• Beam Angle: 30° (optional: 55°)

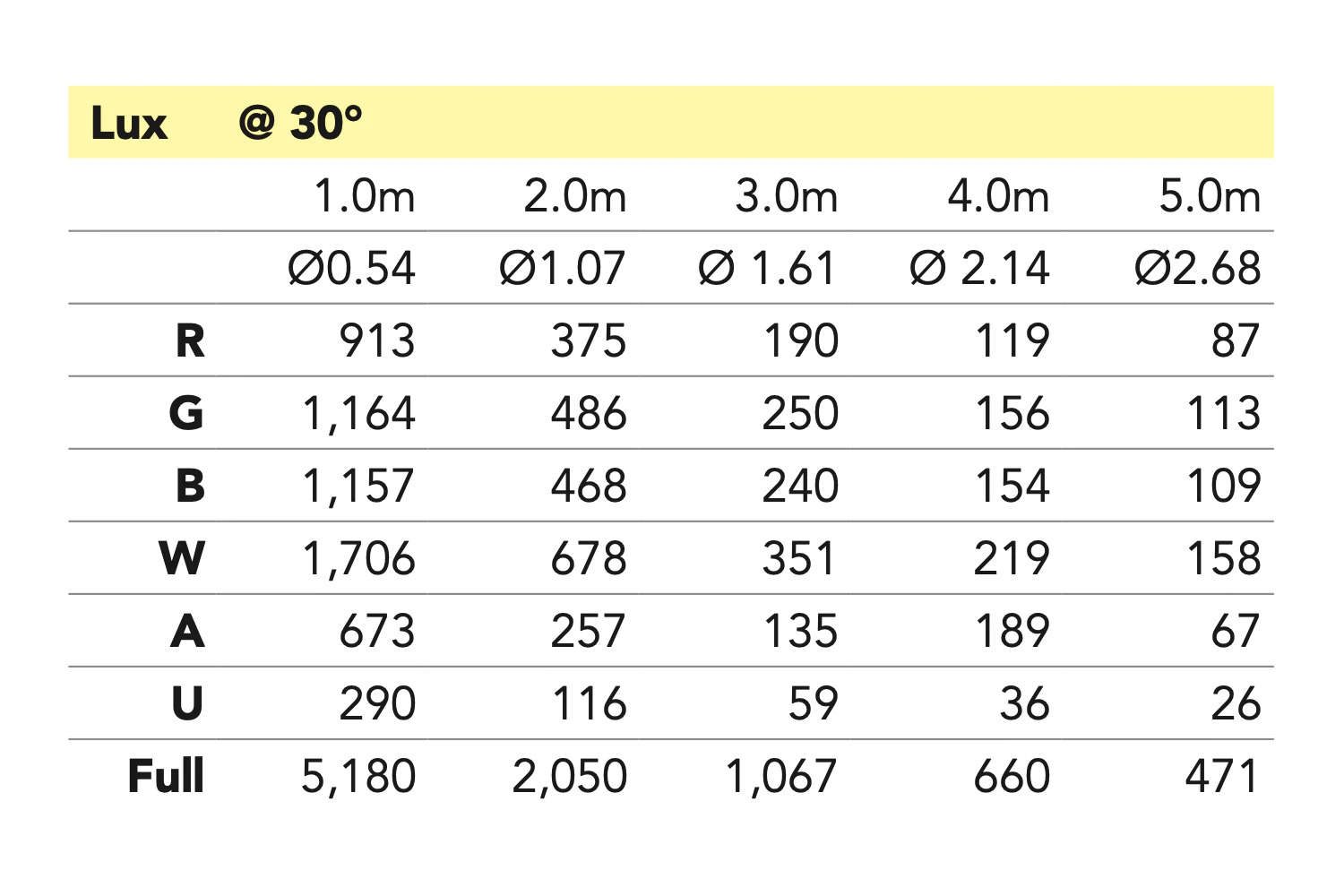

• Output: 2,050 lux @ 2 m RGBWAU full on
• PWM: 12,000 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 4x 16-bit Dimming Curves
• Strobe: 1~30 Hz

Power

• Input Voltages: 100~240 V AC, 50/60 Hz, 150 W
• Power Connection: Neutrik® powerCON in/out

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase
• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 3 / 4 / 6 / 8 / 12 / 24 / 72 / 74
• Control Interface: 3-pin XLR (optional: 5-pin XLR)
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Aluminium, matte black finish
• Cooling: Fanless Cooling
• Dimension: 1050 x 165 x 80 mm
• Net Weight: 4.5 kg

MISC

• Road case: PIXBAR12CASE6WC $1190
