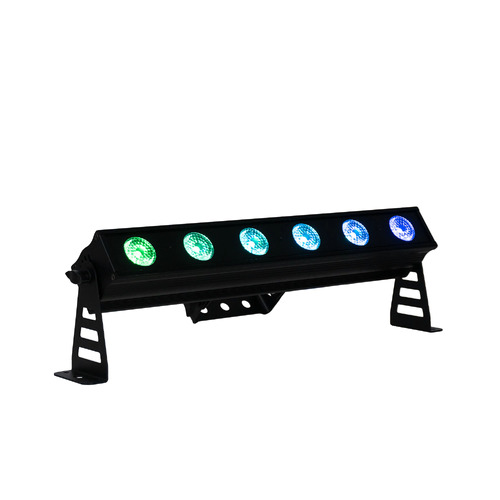

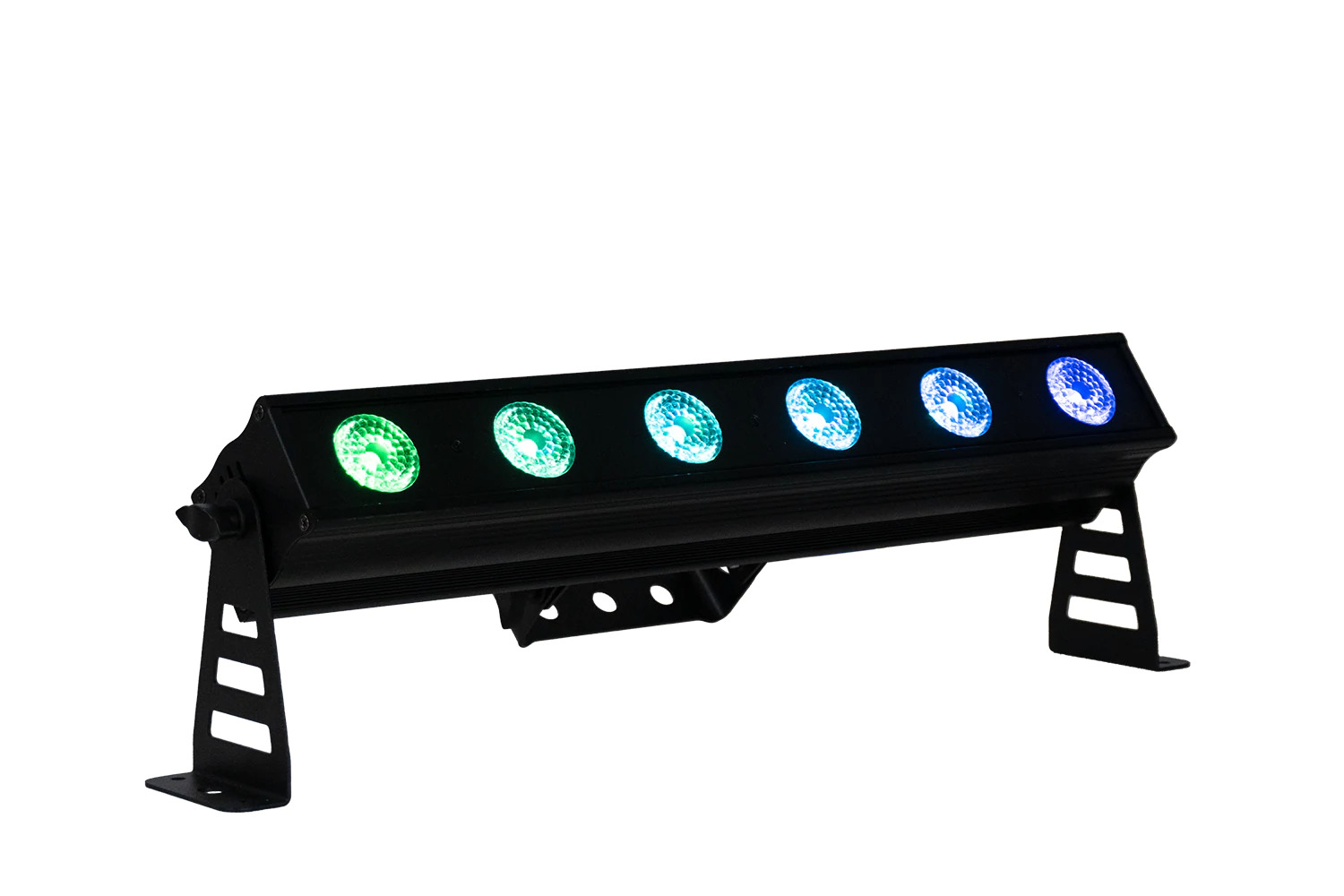

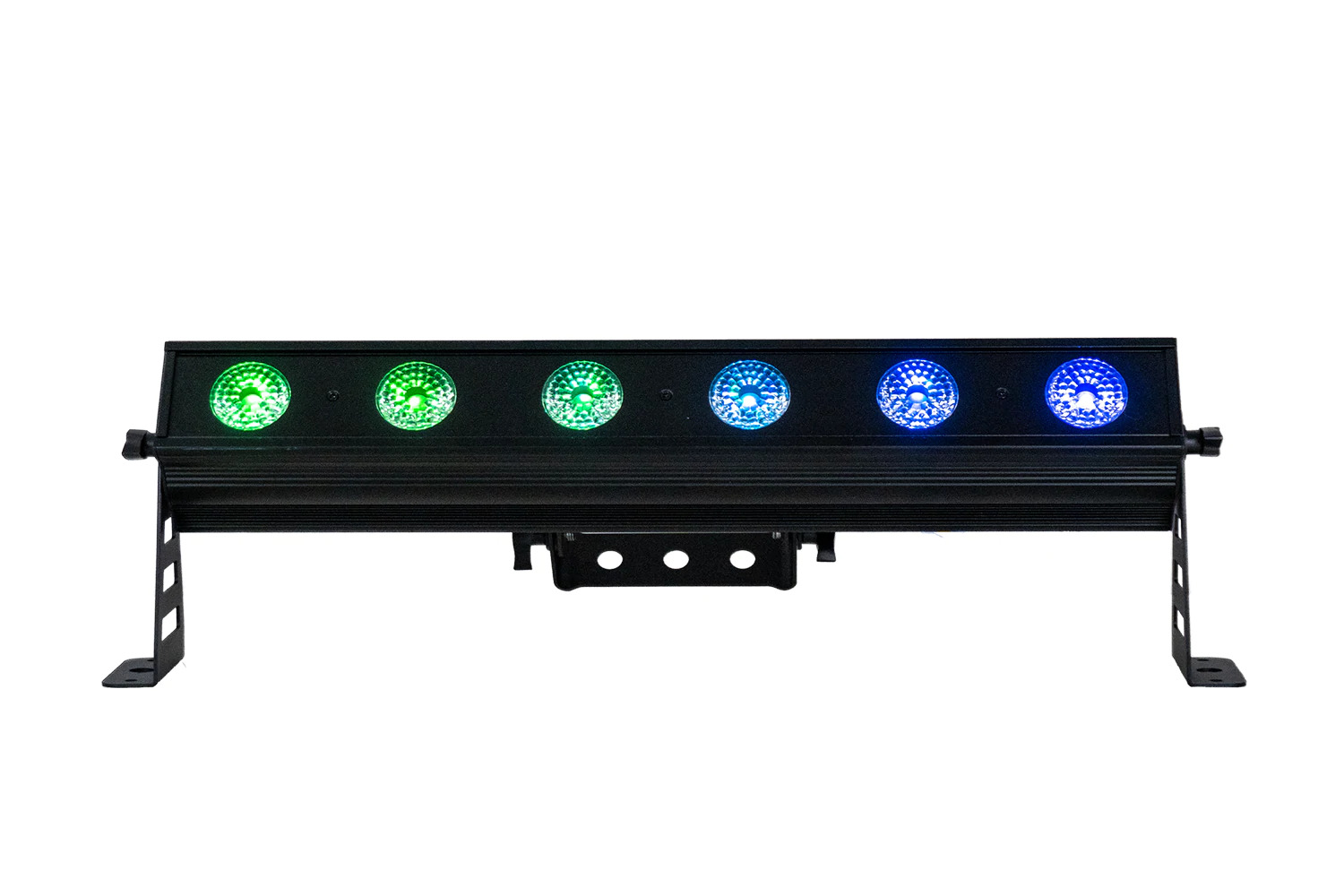

EVENT LIGHTING PIXBAR6X12 - 6x 12 W RGBWAU Pixel Control Bar

Photometrics

• Light Source: 6x 12 W RGBWAU LEDs
• Beam Angle: 30° (optional: 55° )

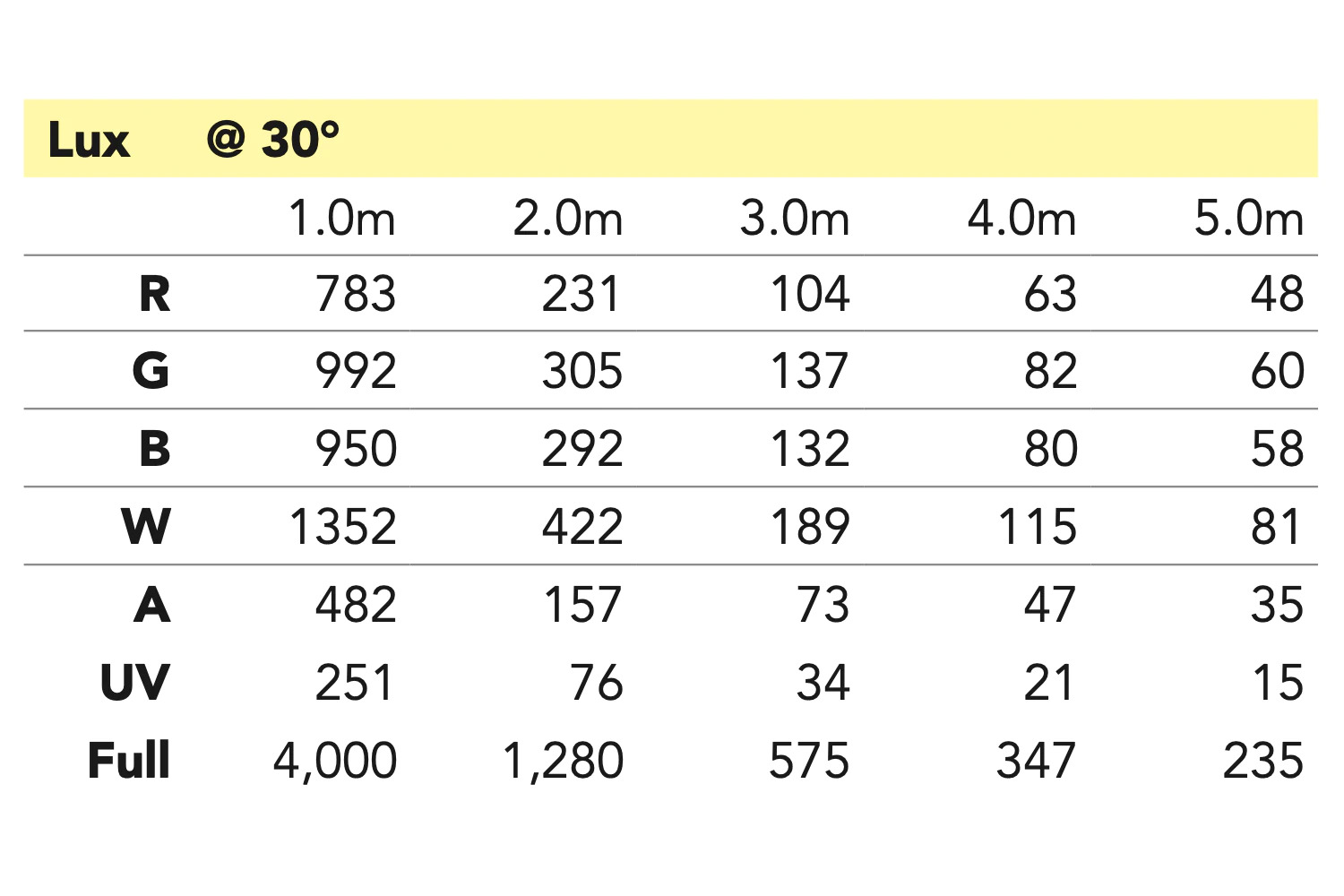

• Output: 1,280 lux @ 2.0 m RGBWAU full on
• PWM: 12,000 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%, 4x 16-bit Dimming Curves
• Strobe: 1~30 Hz

 Power

• Input Voltages: 100~240 V AC,50/60Hz, 60 W
• Power Connection: Neutrik® powerCON in/out

Control

• Operation Modes: DMX, manual, auto, sound active, master/slave, multi fixture chase

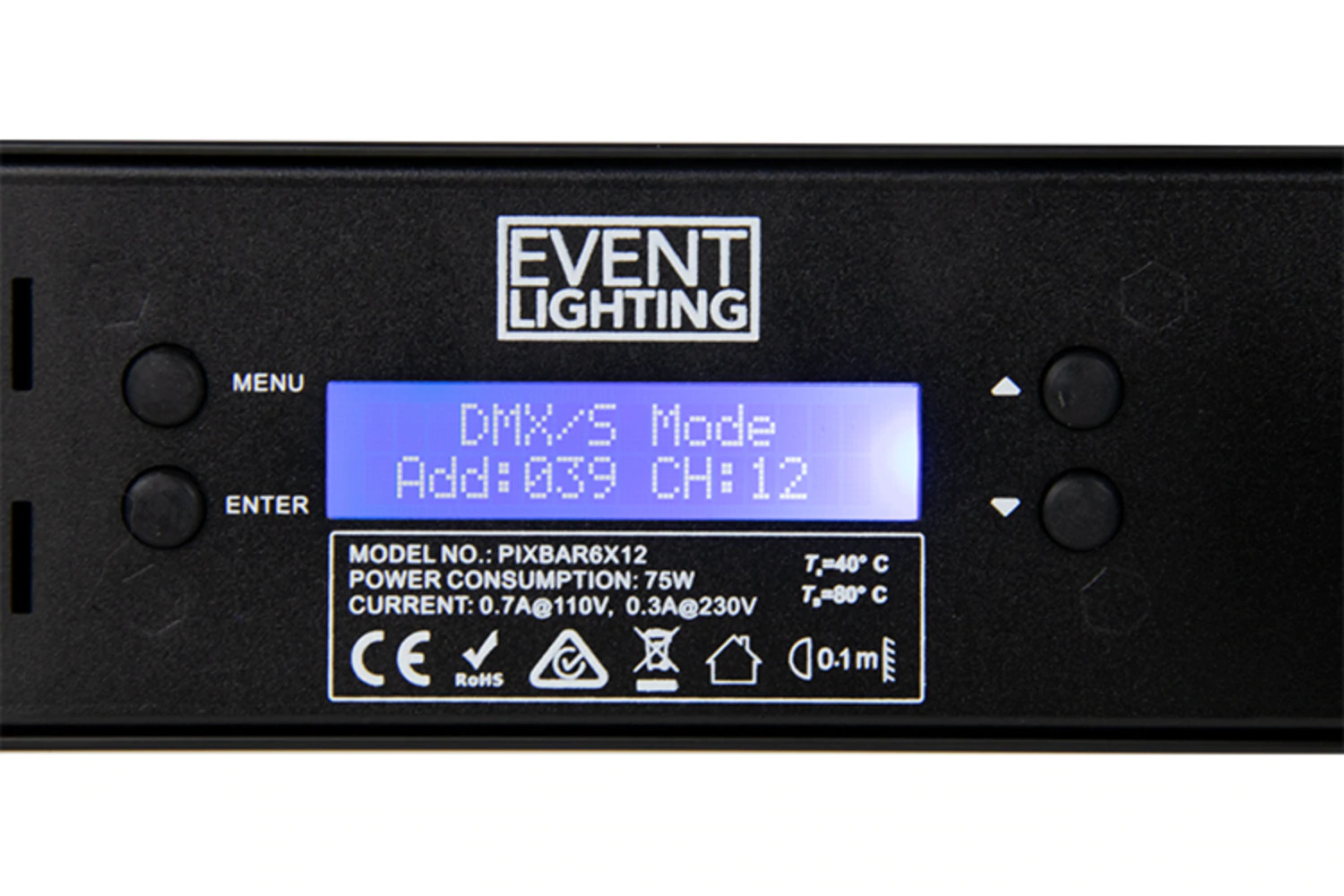

• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 3 / 4 / 6 / 8 / 12 / 36 / 38
• Control Interface: 3-pin XLR (optional: 5-pin XLR)
• Software Upgrade via DMX: Yes

Housing

• Housing Materials: Aluminium, matte black finish
• Cooling: Fanless Cooling

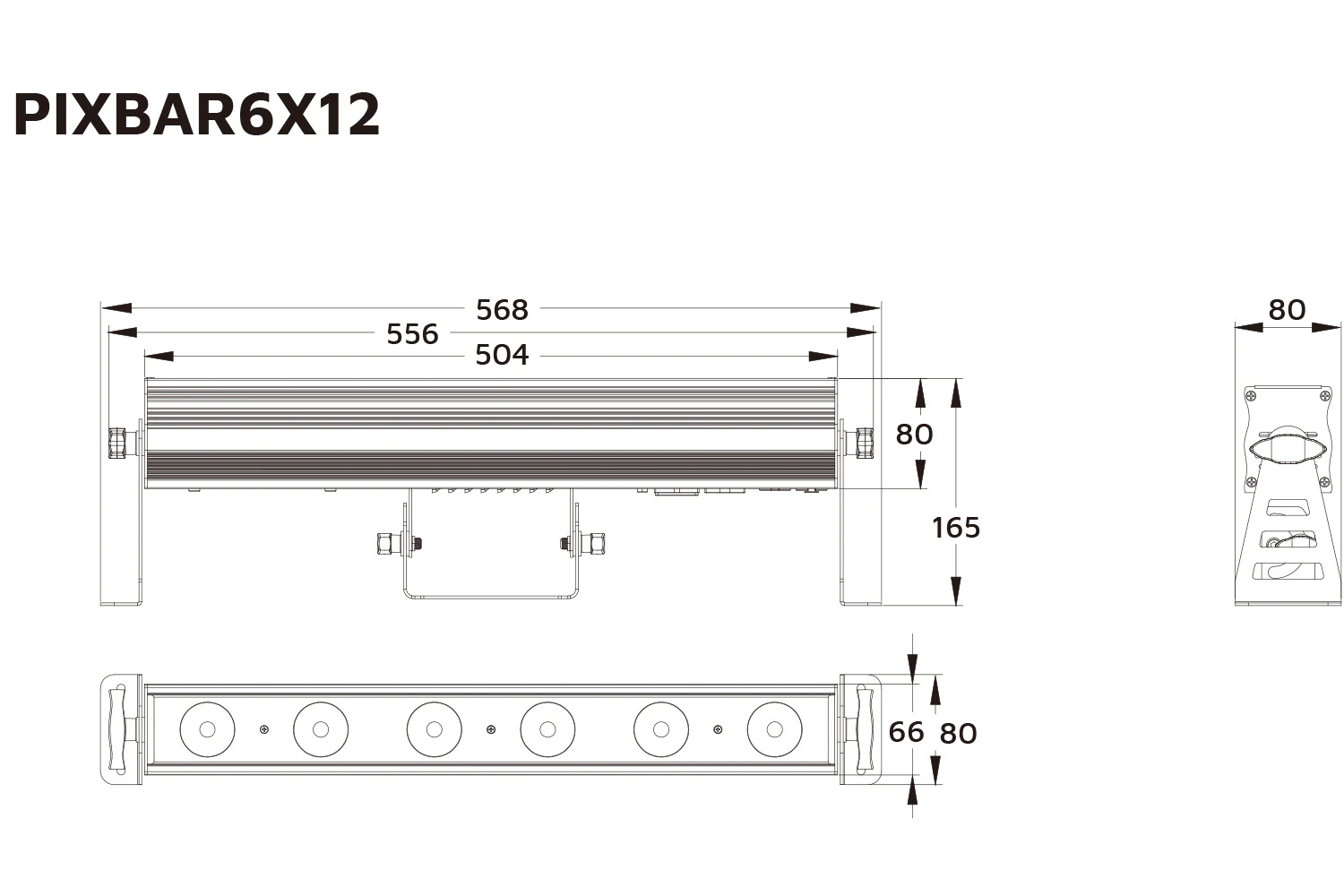

• Dimension: 568 x 165 x 80 mm
• Net Weight: 2.6 kg
