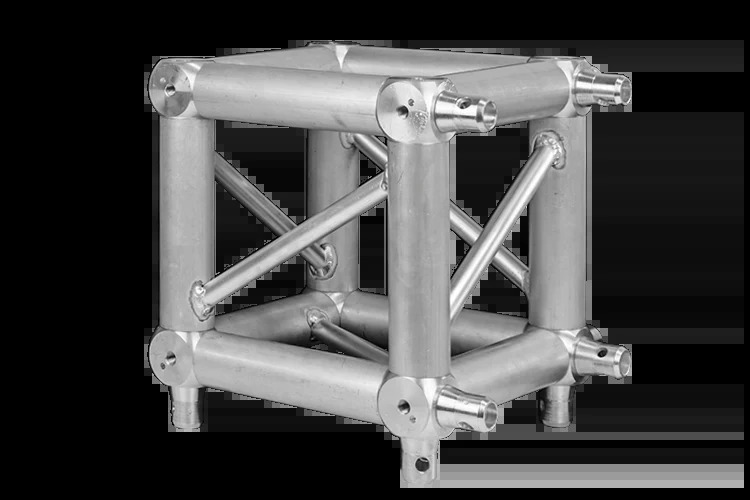

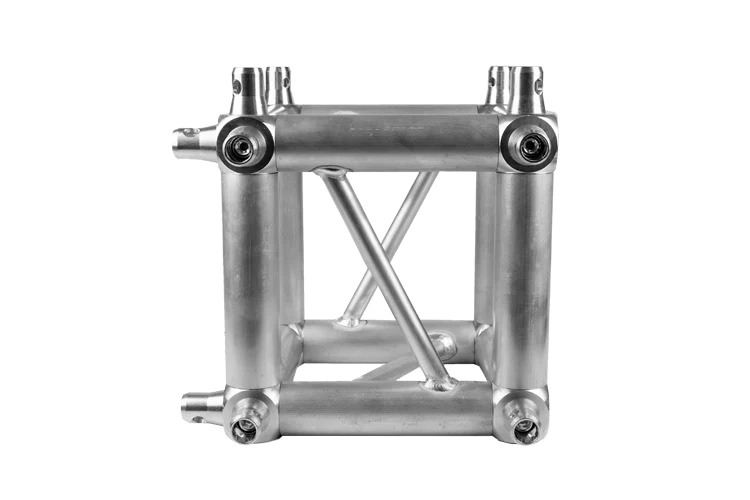

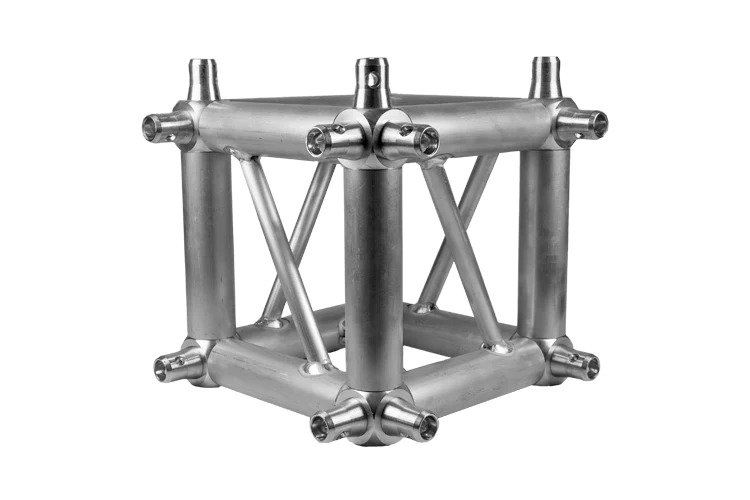

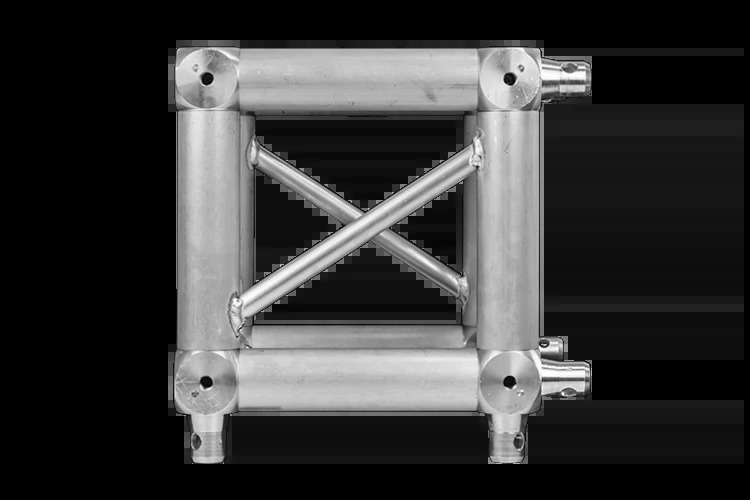

290mm Aluminium Lighting Spigot Box Truss corner with half coupler on 3 sides
- Main Tube: 50mm x 3mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Dimensions (LxWxH): 290 x 290 x 290mm (without half coupler )
Span (m) |
Centre Point Load (kg) |
Deflection (mm) |
Uniform Load (kg) |
Deflection (mm) |
2 | 1311 | 2 | 1403 | 2 |
3 | 1000 | 7 | 1286 | 5 |
4 | 683 | 10 | 1103 | 11 |
5 | 620 | 18 | 1000 | 13 |
6 | 478 | 26 | 786 | 18 |
7 | 410 | 39 | 621 | 24 |
8 | 401 | 46 | 605 | 36 |
9 | 300 | 50 | 558 | 45 |
10 | 286 | 59 | 480 | 49 |
11 | 213 | 66 | 423 | 56 |
12 | 207 | 68 | 364 | 68 |
(EVE-T3BC)
SKU | EVE-T3BC |
Brand | Event Lighting |
Shipping Width | 0.350m |
Shipping Height | 0.350m |
Shipping Length | 0.350m |
Shipping Cubic | 0.042875000m3 |
