EVENT LIGHTING T3BL1BK - 290mm Spigot Box Truss (1m, Black)

$249.00
In Stock


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

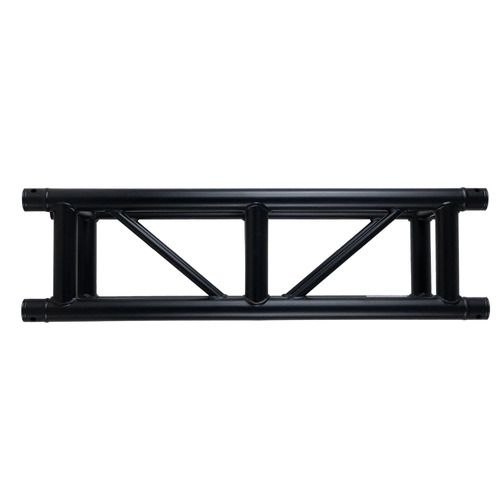

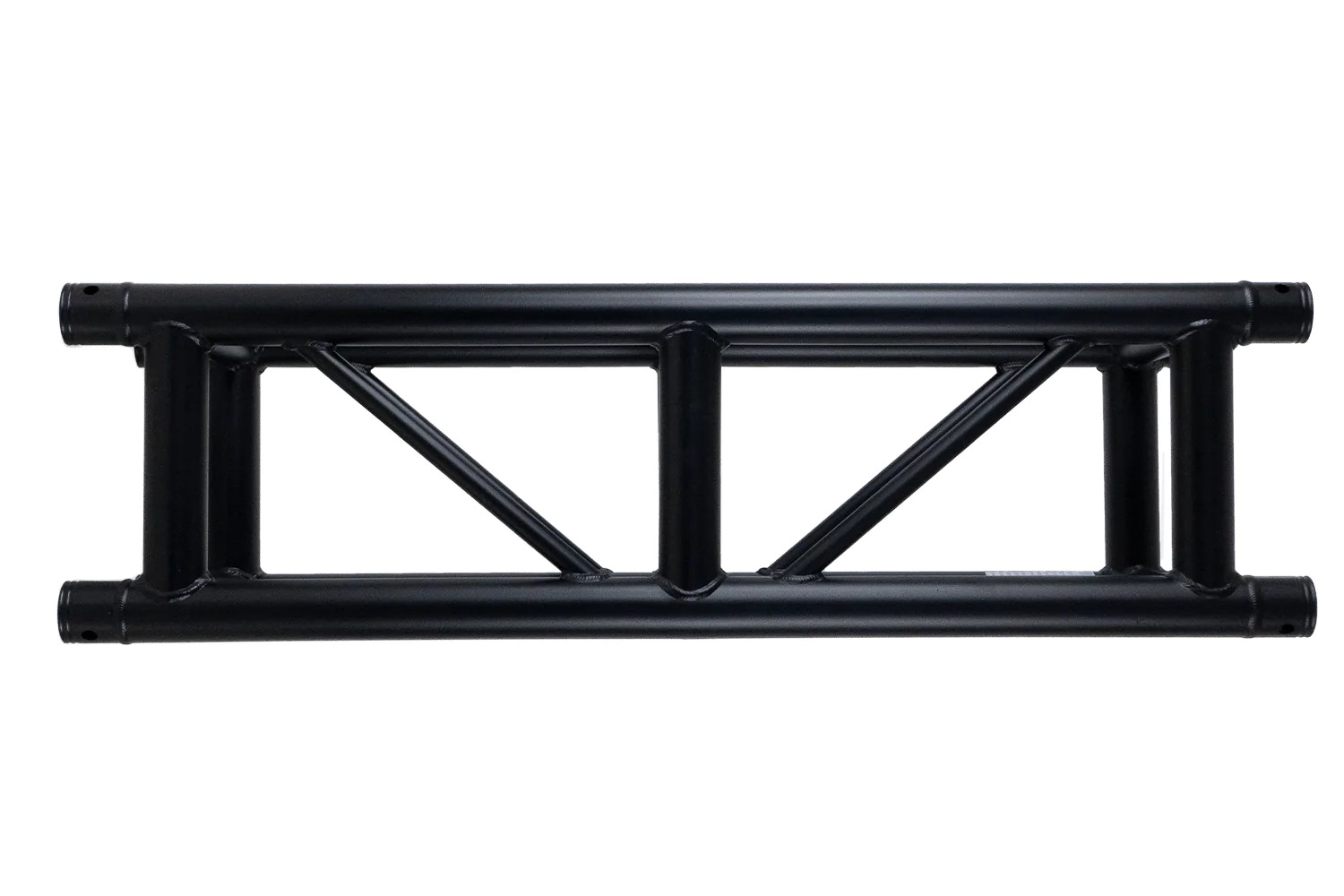

290mm Aluminium Lighting Spigot Box Truss - 1m length, 2mm wall thickness

  • Main Tube: 50mm x 2mm
  • Vice Brace: 50mm x 2mm
  • Diagonal Brace: 25mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Black, powder coated
  • Rating: TUV
  • Dimensions (LxWxH): 290 x 290 x 1000mm

Span

(m)

Centre

Point

Load

(kg)

 Deflection

(mm)

Uniform

Load

(kg)

Deflection

(mm)

2 1311 2 1403 2
3 1000 7 1286 5
4 683 10 1103 11
5 620 18 1000 13
6 478 26 786 18
7 410 39 621 24
8 401 46 605 36
9 300 50 558 45
10 286 59 480 49
11 213 66 423 56
12 207 68 364 68

(EVE-T3BL1BK)

SKU EVE-T3BL1BK
Brand Event Lighting
Shipping Width 0.350m
Shipping Height 0.350m
Shipping Length 1.200m
Shipping Cubic 0.147000000m3
