EVENT LIGHTING T3BL3 - 290mm Spigot Box Truss (3m)
SHIPS DIRECTLY FROM SUPPLIER TO CUSTOMER
$779.00
In Stock

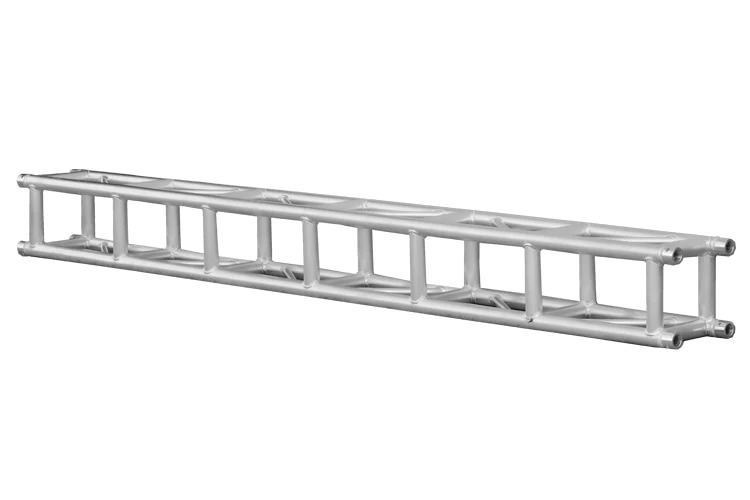

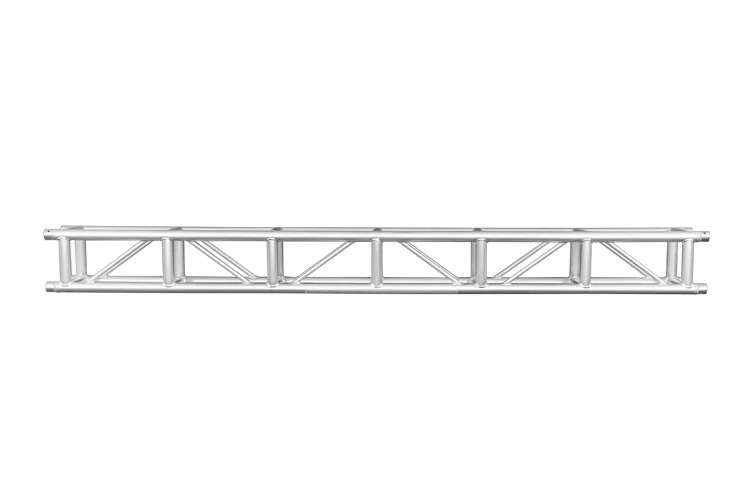

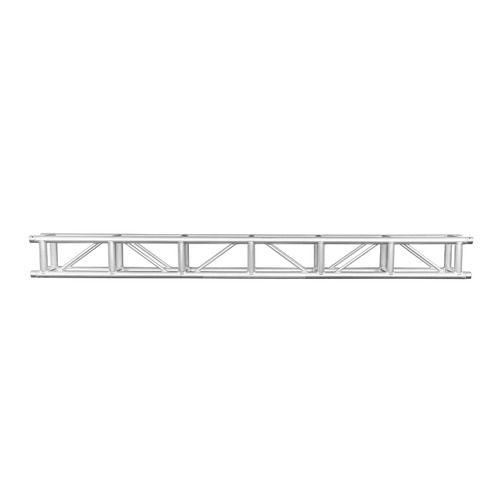

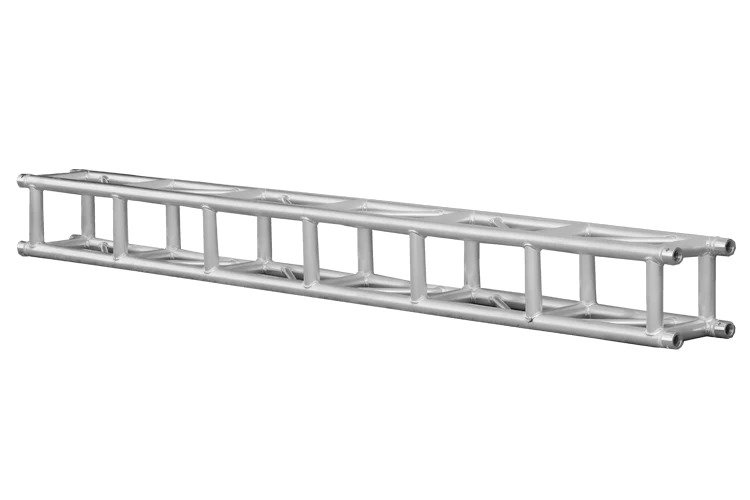

290mm Aluminium Lighting Spigot Box Truss - 3m length, 2mm wall thickness
- Main Tube: 50mm x 2mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 25mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
- Dimensions (LxWxH): 290 x 290 x 3000mm
|
Span (m) |
Centre Point Load (kg) |
Deflection (mm) |
Uniform Load (kg) |
Deflection (mm) |
| 2 | 1311 | 2 | 1403 | 2 |
| 3 | 1000 | 7 | 1286 | 5 |
| 4 | 683 | 10 | 1103 | 11 |
| 5 | 620 | 18 | 1000 | 13 |
| 6 | 478 | 26 | 786 | 18 |
| 7 | 410 | 39 | 621 | 24 |
| 8 | 401 | 46 | 605 | 36 |
| 9 | 300 | 50 | 558 | 45 |
| 10 | 286 | 59 | 480 | 49 |
| 11 | 213 | 66 | 423 | 56 |
| 12 | 207 | 68 | 364 | 68 |
(EVE-T3BL3)
| SKU | EVE-T3BL3 |
| Brand | Event Lighting |
| Shipping Width | 0.350m |
| Shipping Height | 0.350m |
| Shipping Length | 3.000m |
| Shipping Cubic | 0.367500000m3 |
