EVENT LIGHTING T3F2 - 290mm Spigot Flat Truss (2m)

EVENT LIGHTING T3F2 - 290mm Spigot Flat Truss (2m)

$209.00
In Stock

Calculate Shipping


IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

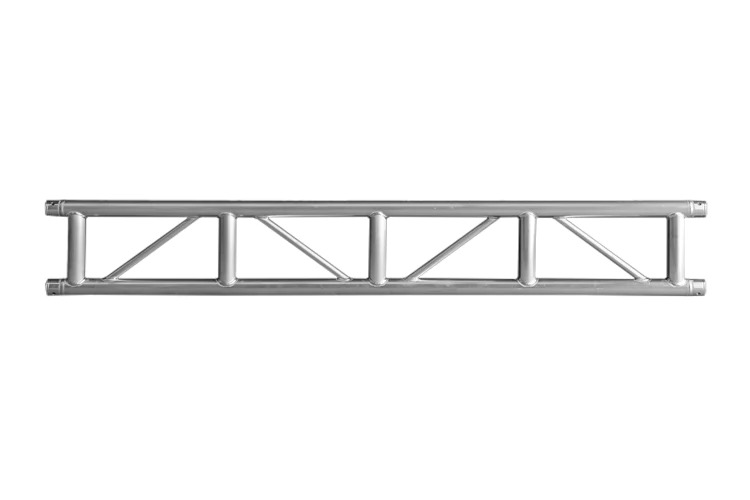

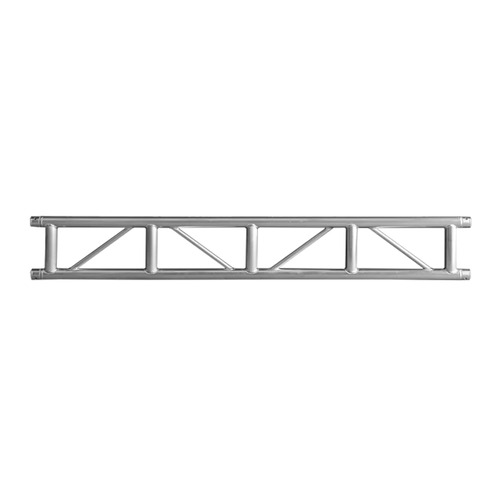

290mm Aluminium Lighting Spigot Flat Truss - 2m length, 2mm wall thickness

  • Tube: 50mm x 2mm
  • Materials: Aluminum alloy 6061-T6
  • Finishing: Washed
  • Rating: TUV
  • Dimensions: 290 x 2000mm

Span

(m)

Centre

Point

Load

(kg)

Deflection

(mm)

Uniform

Load

(kg)

Deflection

(mm)
2 278 8 388 11
3 117 9 198 11
4 86 12 137 13
5 40 13 55 14
6 21 13 33 14

(EVE-T3F2)

SKU EVE-T3F2
