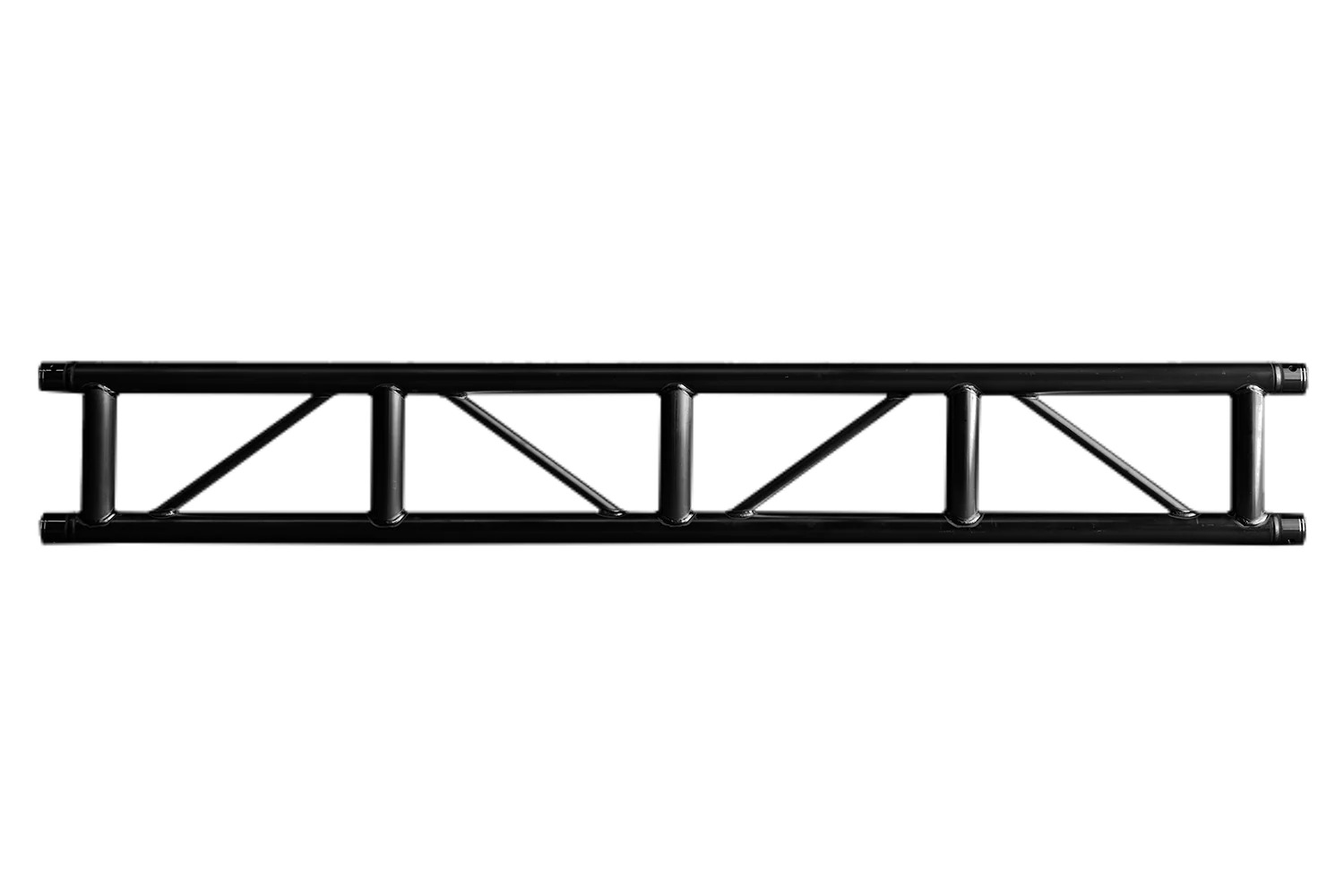

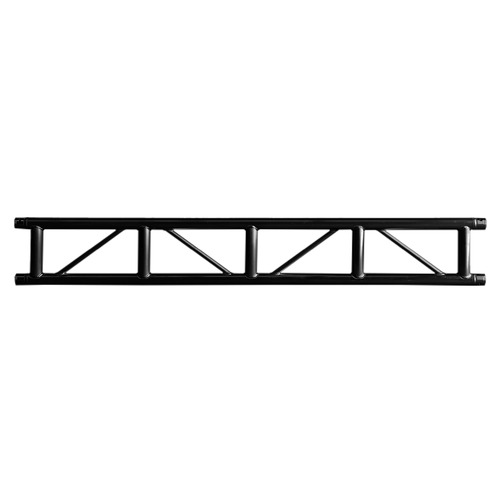

290mm Aluminium Lighting Spigot Flat Truss - 2m length, 2mm wall thickness
- Tube: 50mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Black, powder coated
- Rating: TUV
- Dimensions: 290 x 2000mm
Span (m) |
Centre Point Load (kg) |
Deflection (mm) |
Uniform Load (kg) |
Deflection (mm) |
2 | 278 | 8 | 388 | 11 |
3 | 117 | 9 | 198 | 11 |
4 | 86 | 12 | 137 | 13 |
5 | 40 | 13 | 55 | 14 |
6 | 21 | 13 | 33 | 14 |
(EVE-T3F2BK)
SKU | EVE-T3F2BK |
Brand | Event Lighting |
