Event Lighting T3TD3 - 290mm Spigot Triangular Truss - Silver 3m
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$539.00
In Stock

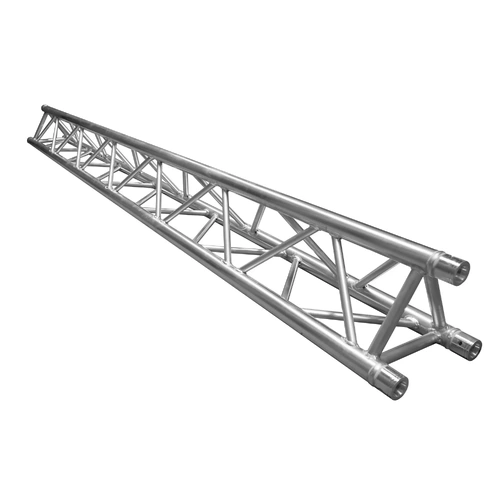

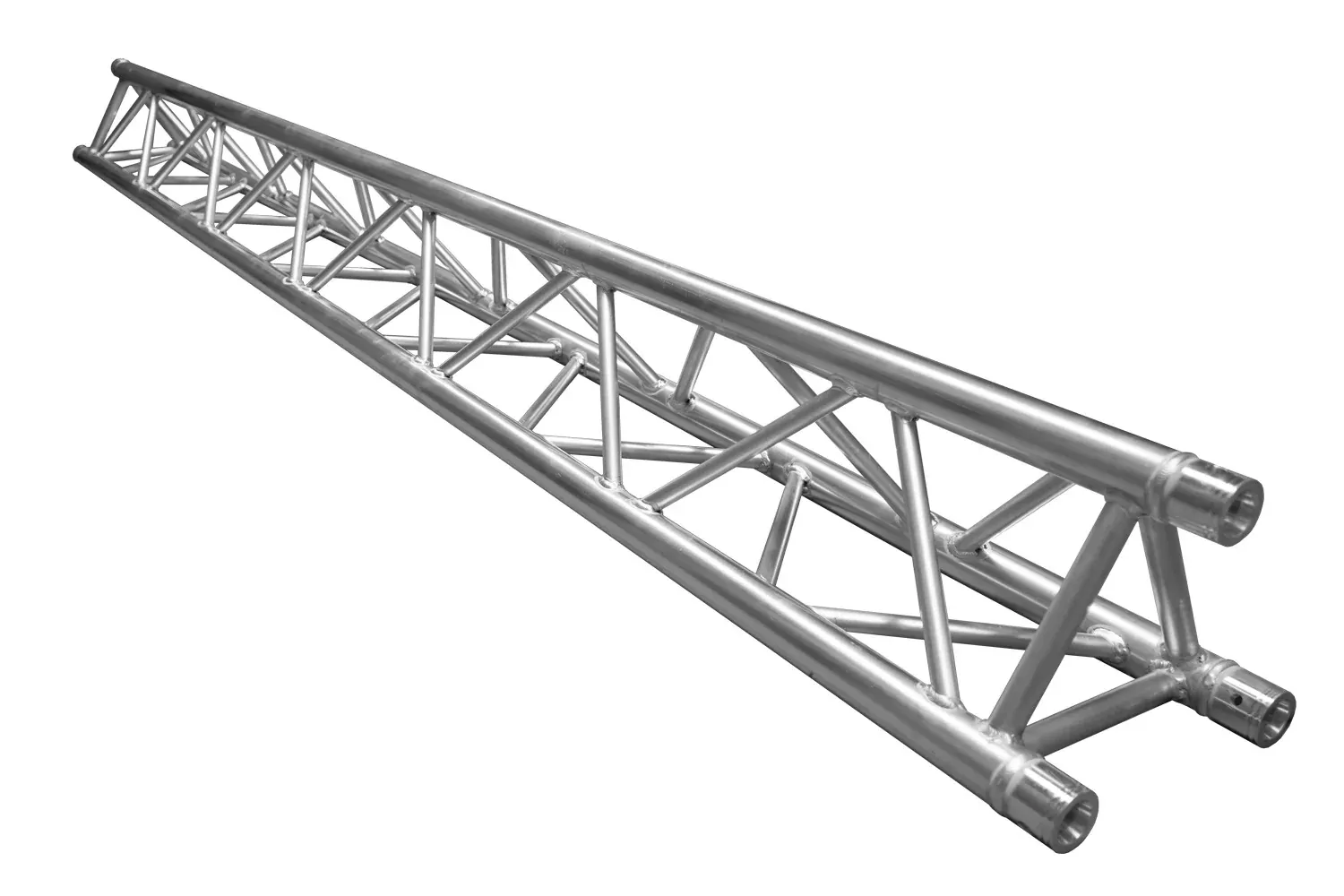

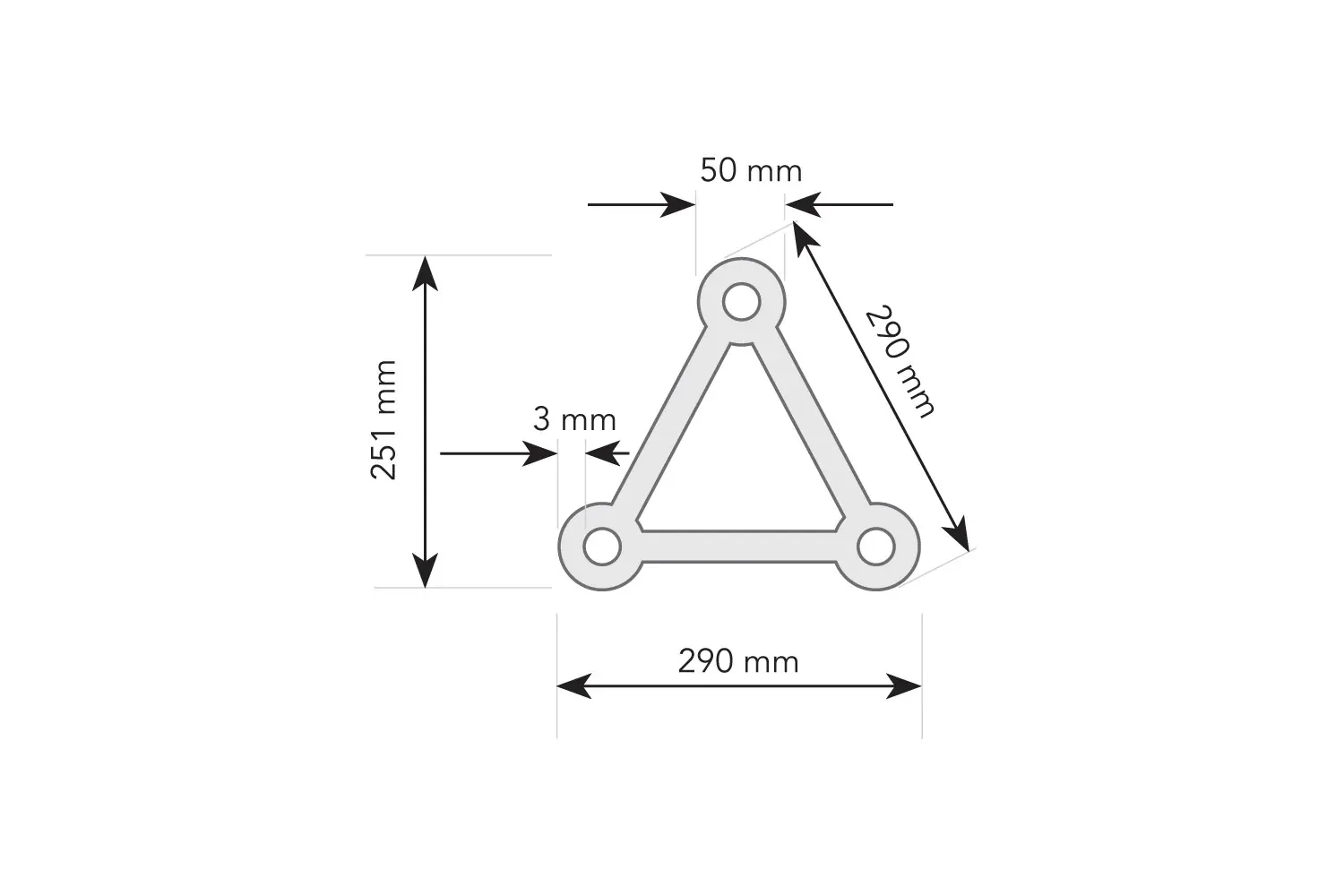

290mm Aluminium Lighting Spigot Triangular Truss, 3mm wall thickness, 3m length
- Main Tube: 50mm x 3mm
- Vice Brace: 50mm x 2mm
- Diagonal Brace: 20mm x 2mm
- Materials: Aluminum alloy 6061-T6
- Finishing: Washed
- Rating: TUV
|
SPAN (M) |
2m |
3m |
4m |
5m |
6m |
7m |
8m |
9m |
10m |
11m |
12m |
|
Centre Point Load (kg) |
1000 |
730 |
501 |
446 |
367 |
305 |
216 |
158 |
140 |
124 |
110 |
|
Deflection (mm) |
2.5 |
8 |
13 |
18 |
24 |
30 |
38 |
46 |
55 |
62 |
72 |
|
Uniform Load (kg) |
1108 |
1000 |
820 |
783 |
600 |
450 |
421 |
400 |
342 |
315 |
298 |
|
Deflection (mm) |
2 |
7 |
12 |
20 |
25 |
33 |
46 |
51 |
58 |
66 |
73 |
The Event Lighting Ladder style truss requires the chords to be facing down for bracing when used in a horizontal position. Incorrect use will void any form of load ratings
Warranty: 3 years
(T3TD3)
| SKU | T3TD3 |
| Brand | Event Lighting |
