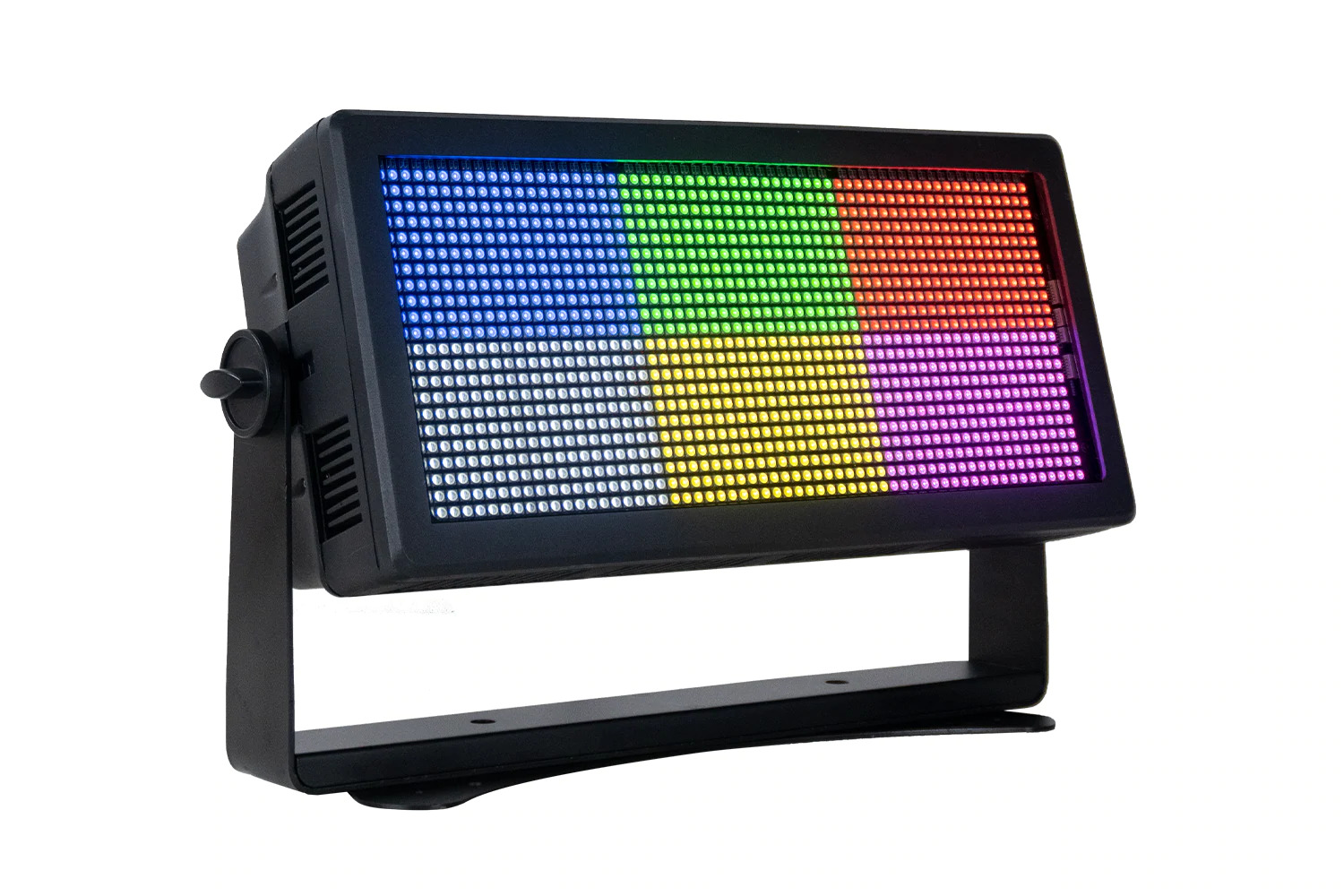

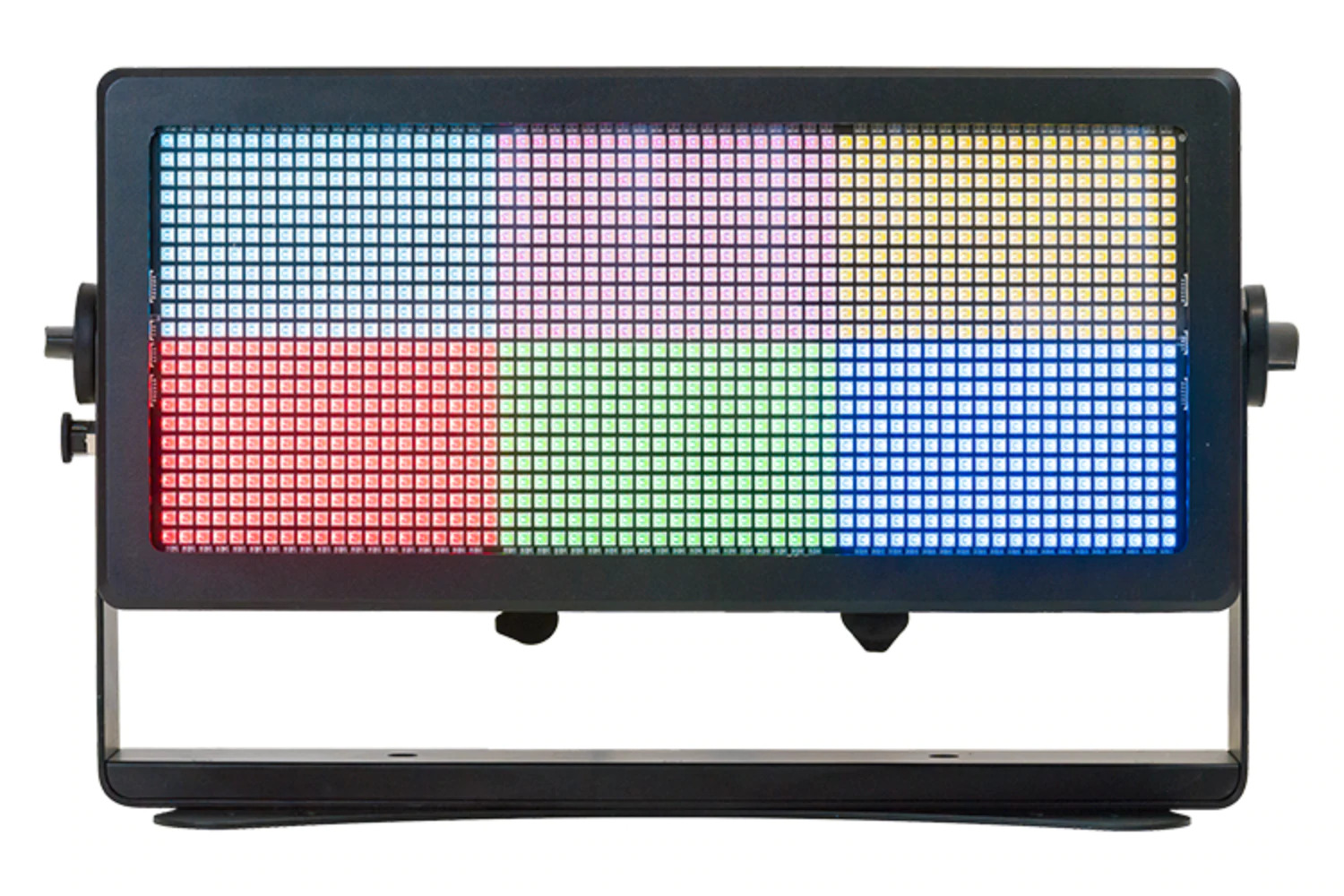

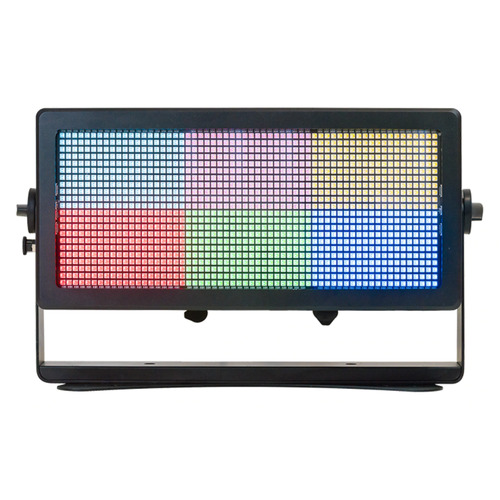

EVENT LIGHTING WIP1320 - Outdoor 6-section Control RGBW Panel

Photometrics

• Light Source: 1320x 0.8 W SMD5050 RGBW LEDs
• Beam Angle: 120°

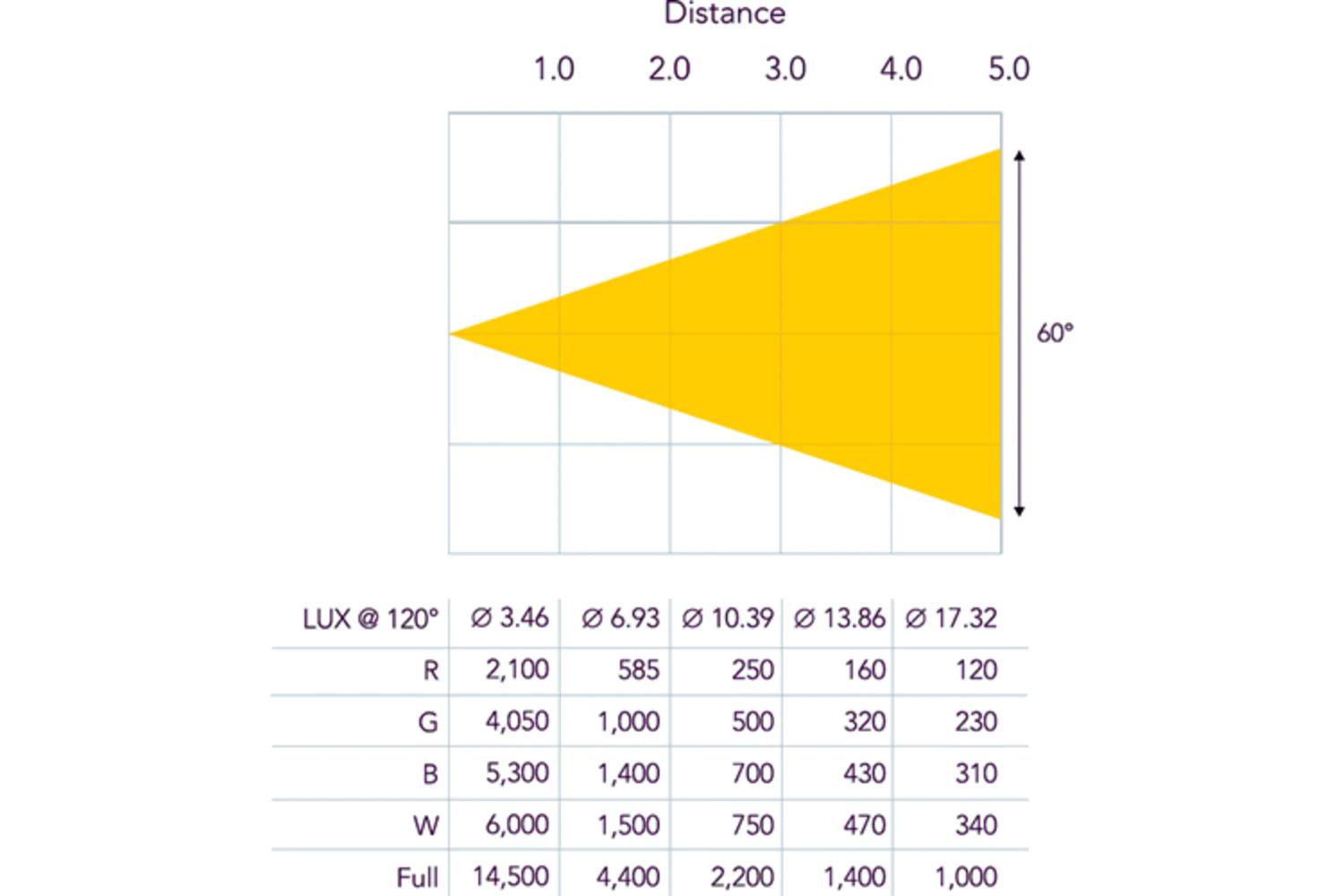

• Output: 2,200 lux @ 3 m RGBW full on
• PWM: 5,000 Hz
• LED Life: 50,000 hours

Effects

• Dimming: 0~100%
• Strobe: 0.5~25 Hz

Power

• Input Voltages: 100~240 V AC, 50/60 Hz, 1,150 W
• Power Connection: Seetronic® True 1 In

Control

• Operation Modes: DMX, manual, auto, master/slave

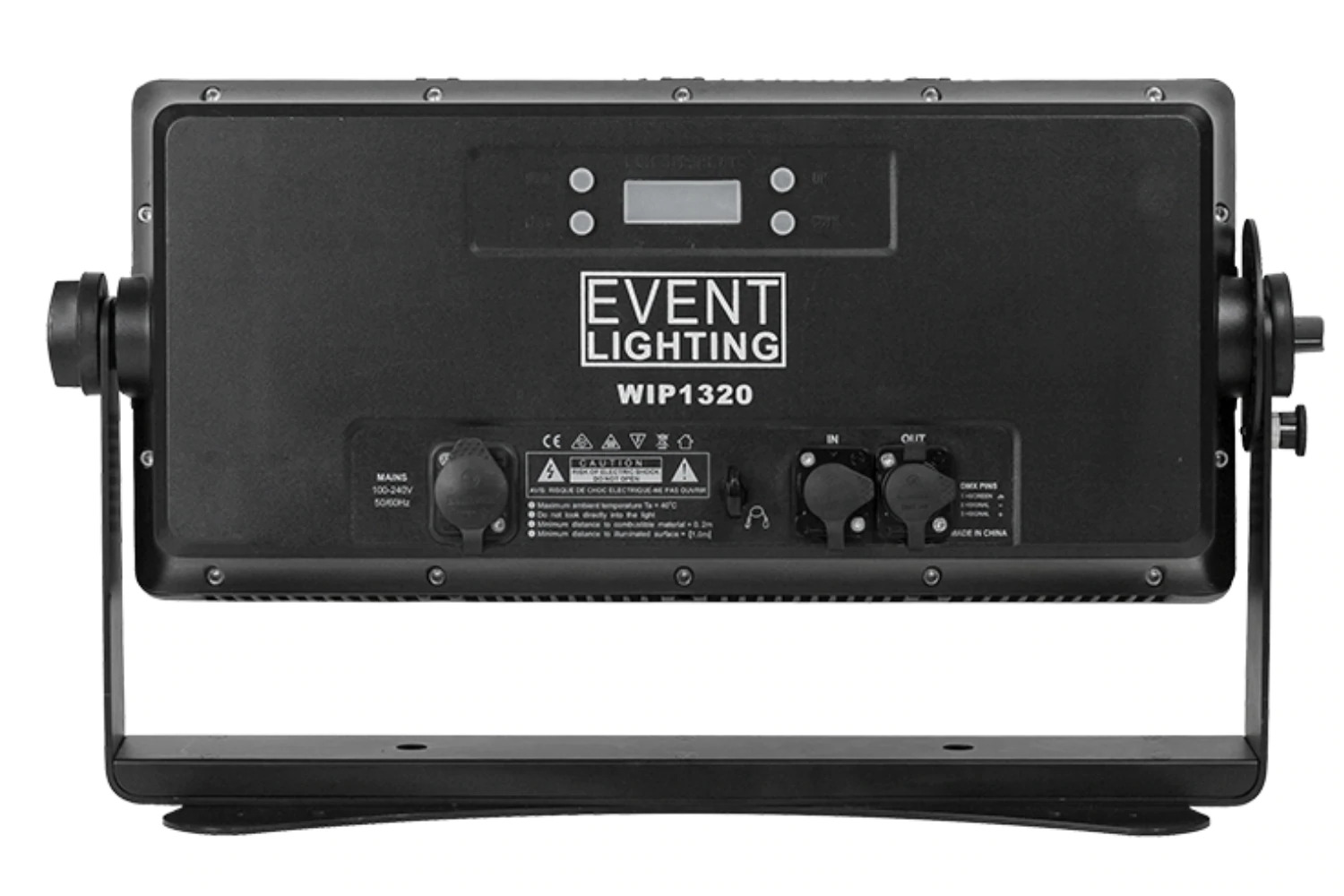

• Display: 4-button LCD control panel
• Control Protocol: DMX512
• DMX Channels: 4 / 5 / 7 / 13 / 15 / 31
• Control Interface: Seetronic® 3-Pin Outdoor in / out DMX Interfaces

Housing

• Housing Materials: Die-cast Aluminium, matte black finish
• IP Rating: IP65
• Cooling: Thermostat controlled fan

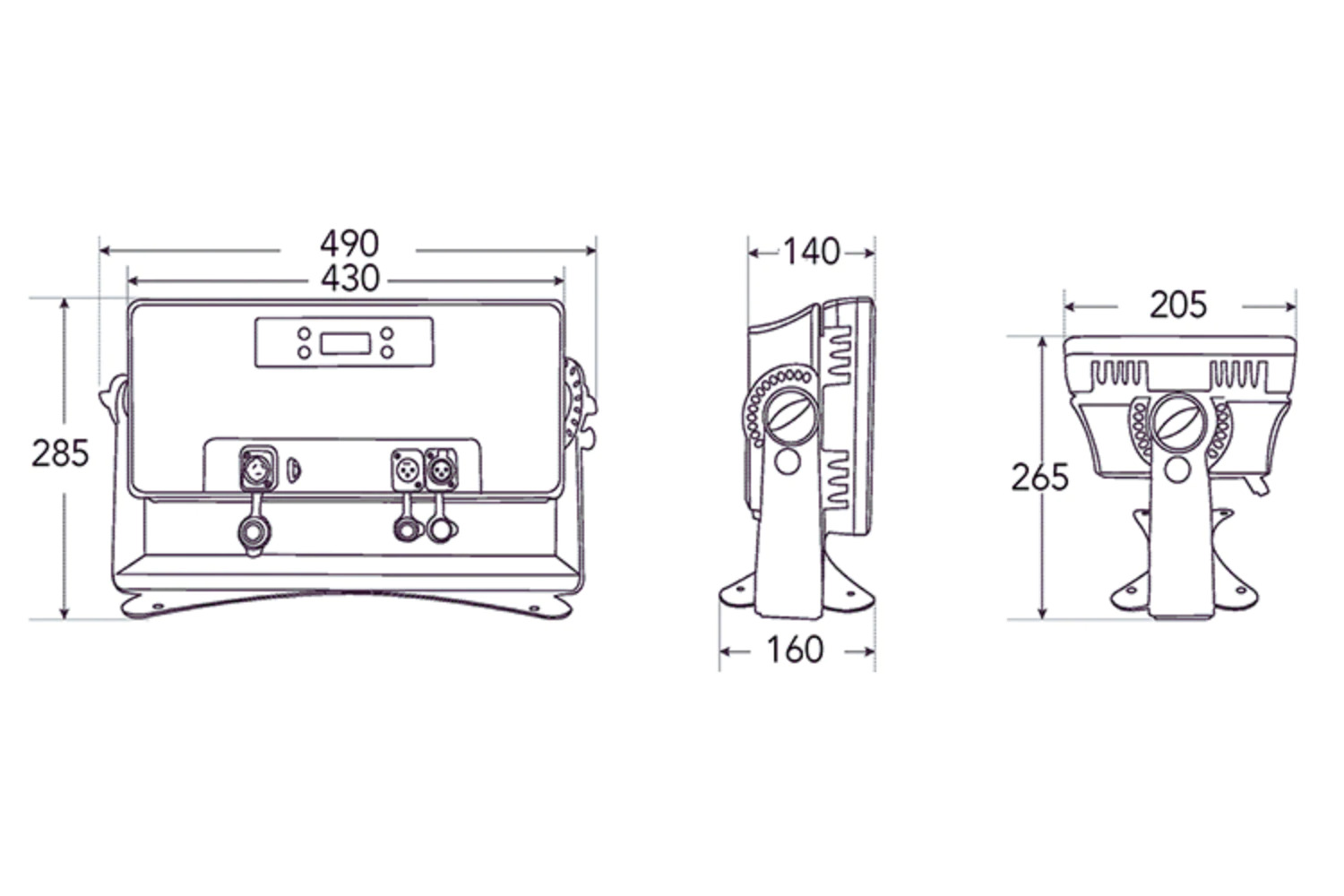

• Dimension: 490 x 205 x 265 mm
• Net Weight: 10.1 kg
• Rigging: 2x omega brackets with 1/4 turn

Misc

• IMPORTANT: Only use the provided Outdoor DMX cable in the device’s DMX out port. Use of other cables will cause the cable to become stuck in the port, requiring the unit to be repaired.
