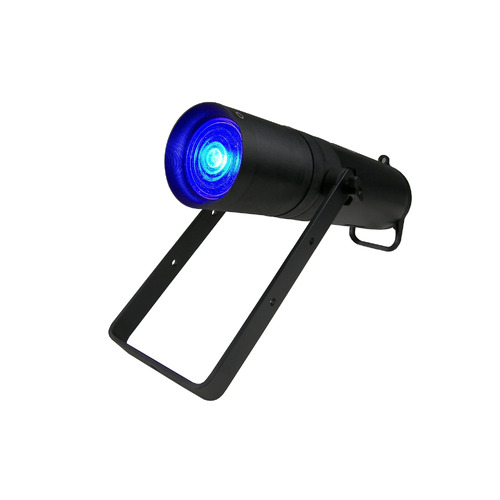

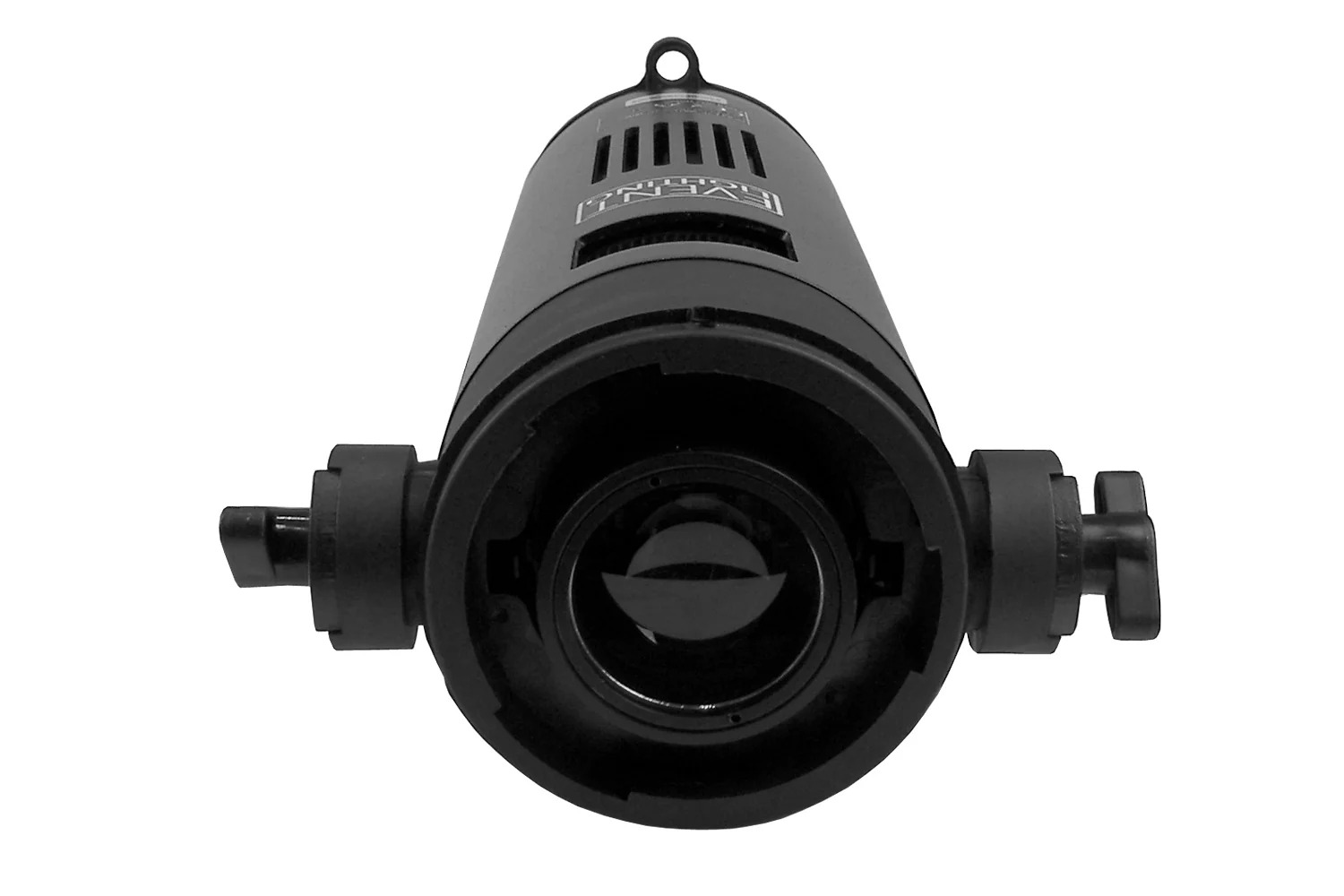

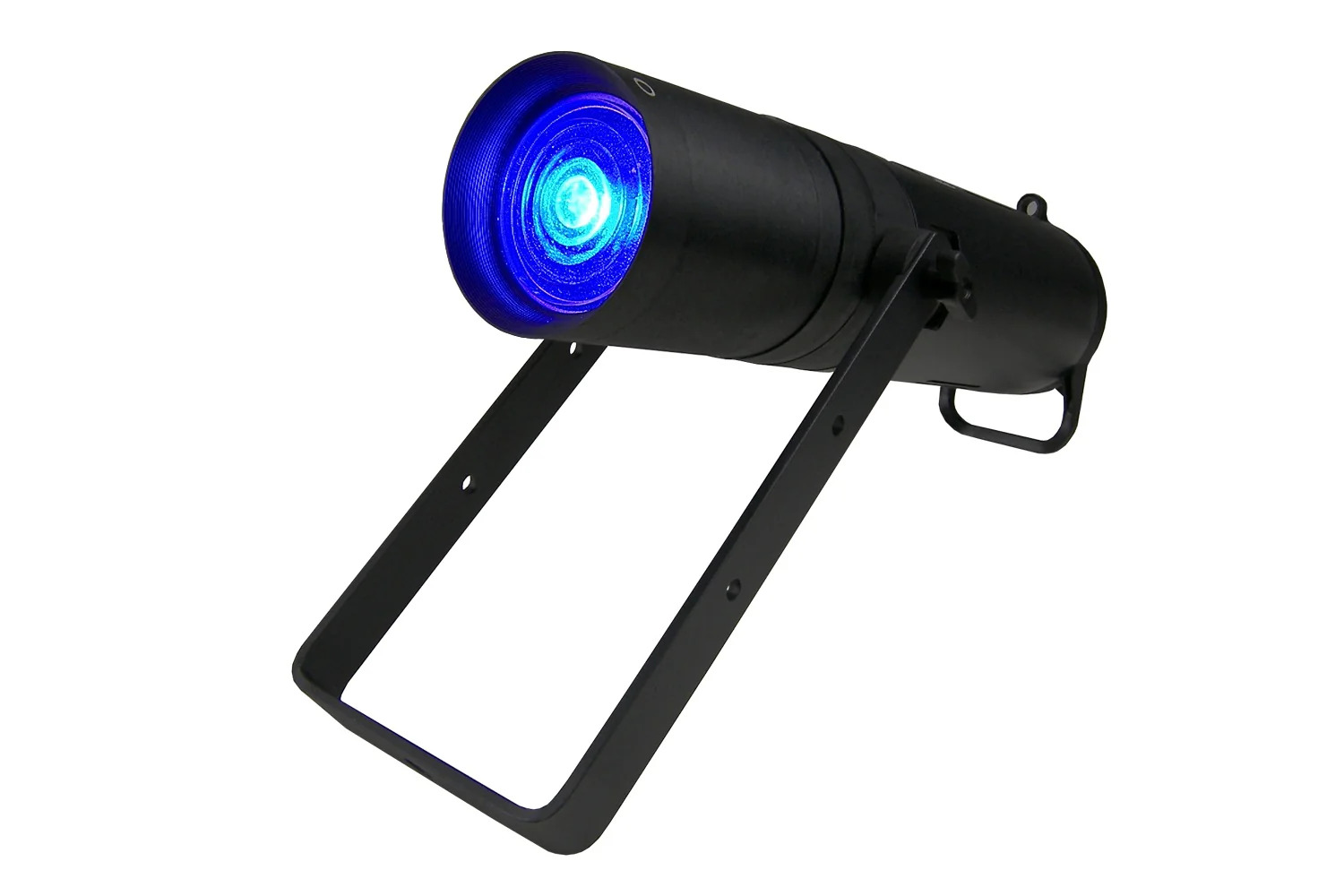

EVENT LIGHTING ZP200LEFC - 200W RGBAL ZoomPro Light Engine

The versatile ZOOMPRO system is comprised of a 200W full colour LED Engine, with a choice of lenses. Options include two zoom profile lenses, fresnel lens and cyc lens.

Photometrics

• Light Source: 200W RGBAL (RGB, Amber, Lime) LED Module
• CRI:
• PWM: 1,000-8,000Hz
• LED Lifespan: 50,000 hours
• PROFILE Lens: ZPLP1828
  • Output: 1,896 lux @ 5m at 18°, 1692 lux @ 5m at 28°
  • Beam Angle: 18°- 28°
• PROFILE Lens: ZPLP2636
  • Output: 1,896 lux @ 5m at 26°, 1692 lux @ 5m at 36°
  • Beam Angle: 26°- 36°
• FRESNEL Lens: ZPLF 80mm Fresnel
  • Beam Angle: 16°- 25°
  • Field Angle: 30°- 55°
  • Output: 2,198 lux @ 2.5m at 16°, 1685 lux @ 2.5m at 25°
• CYC Lens: ZPLCYC
  • Output: 230 lux @ 2.5m at 120°
  • Beam Angle: 120°

Effects

• Dimming: 0~100%, 8-bit / 16-bit
• Strobe: 1~25Hz
• Gobo Holder: Included

Power

• Input Voltage: 100~240V AC, 50/60Hz, 200W
• Power Connection: Fixed
• Piggy Back plug

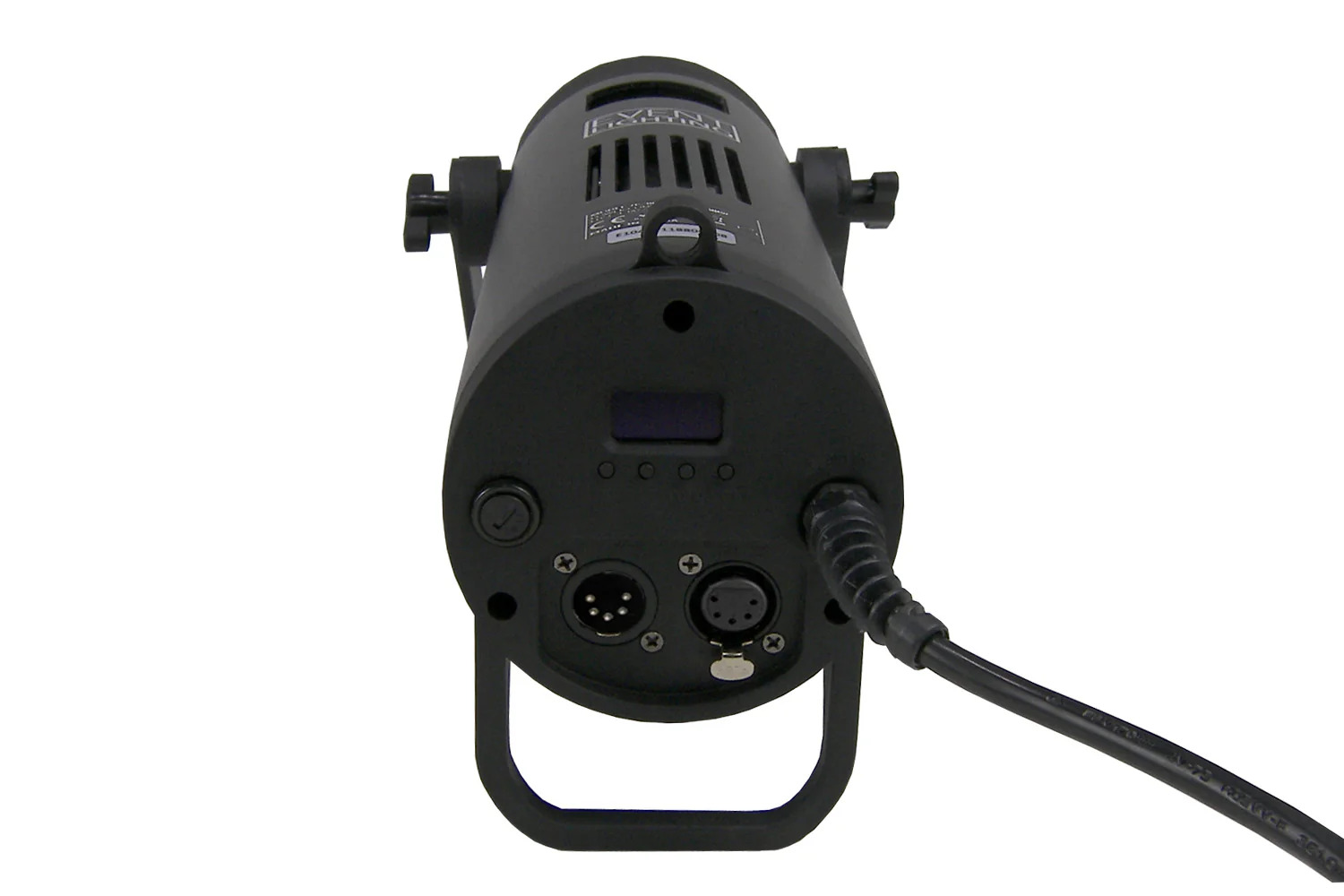

Control

• Operational Modes: DMX, Manual & Master / Slave
• Display: 4-Button LCD control panel
• DMX Protocol: DMX512
• DMX Channels: 6 / 9
• DMX Interface: 5-pin XLR

Housing

• Housing Materials: Aluminium, matte black finish
• Cooling: Sensor Thermostat Controlled Variable Speed Fan
• Dimension: LED Engine: 241 x 105 x 310mm
  • Profile Lens: 262 x 192 x 192mm
  • Fresnel Lens: 105 x 105 x 151mm
• Net Weight: LED Engine 3.3kg
  • Profile Lens: 1.9kg
  • Fresnel Lens: 0.9kg
  • Cyc Lens: 0.4kg

 Optional Accessories

• Road case: ZPCASE
