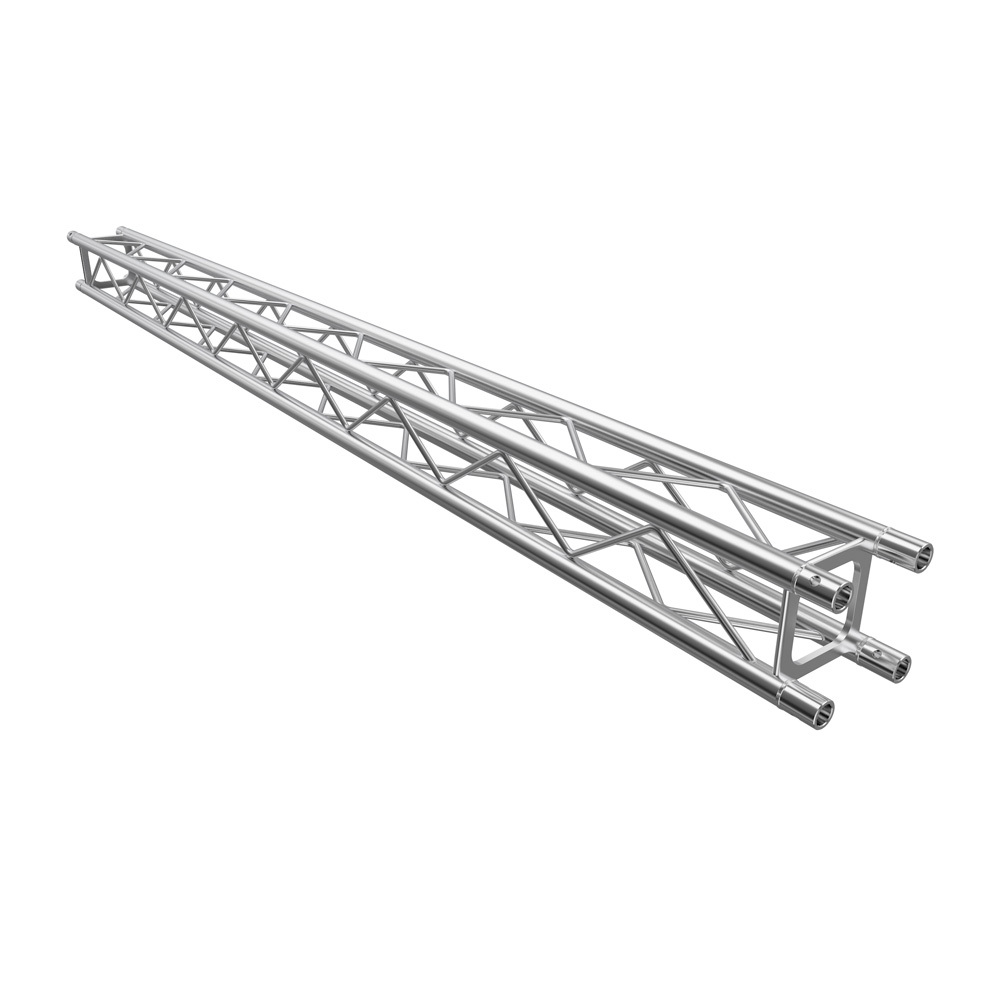

GLOBAL TRUSS F14 Square 1.5m Linear Truss with Spigots, Pins & R-Clips
SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER

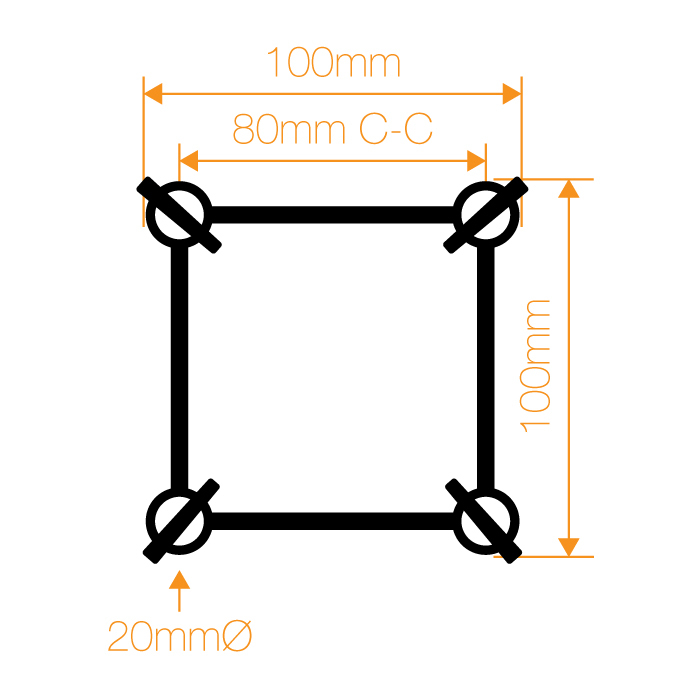

F14 Tiny Truss is the smallest of the Global Truss family at only 100mm x 100mm with 20mmø chords.
Predominantly used for decorative purposes such as retail displays, museum exhibits, and wedding decoration displays, the “scaled-down” F14 Truss is dainty in appearance whilst still fulfilling a very light duty structural purpose. The square truss is available in straight lengths, circular components and a cube junction, enabling the construction of straight runs, rectangles, circles and arches.
In addition, tiny 20mmø couplers are available to attach items to the chords. Custom components can be designed by the DQ team and made to order.
| SPAN (m) | CPL (kg) | UDL (kg/m) |
|---|---|---|
| 2.0 | 172 | 104 |
| 3.0 | 113 | 69 |
| 4.0 | 84 | 42 |
| 5.0 | 65 | 26 |
| 6.0 | 53 | 18 |
| 7.0 | 43 | 12 |
(GT-F14L150)
| SKU | GT-F14L150 |
| Brand | GLOBAL TRUSS |
