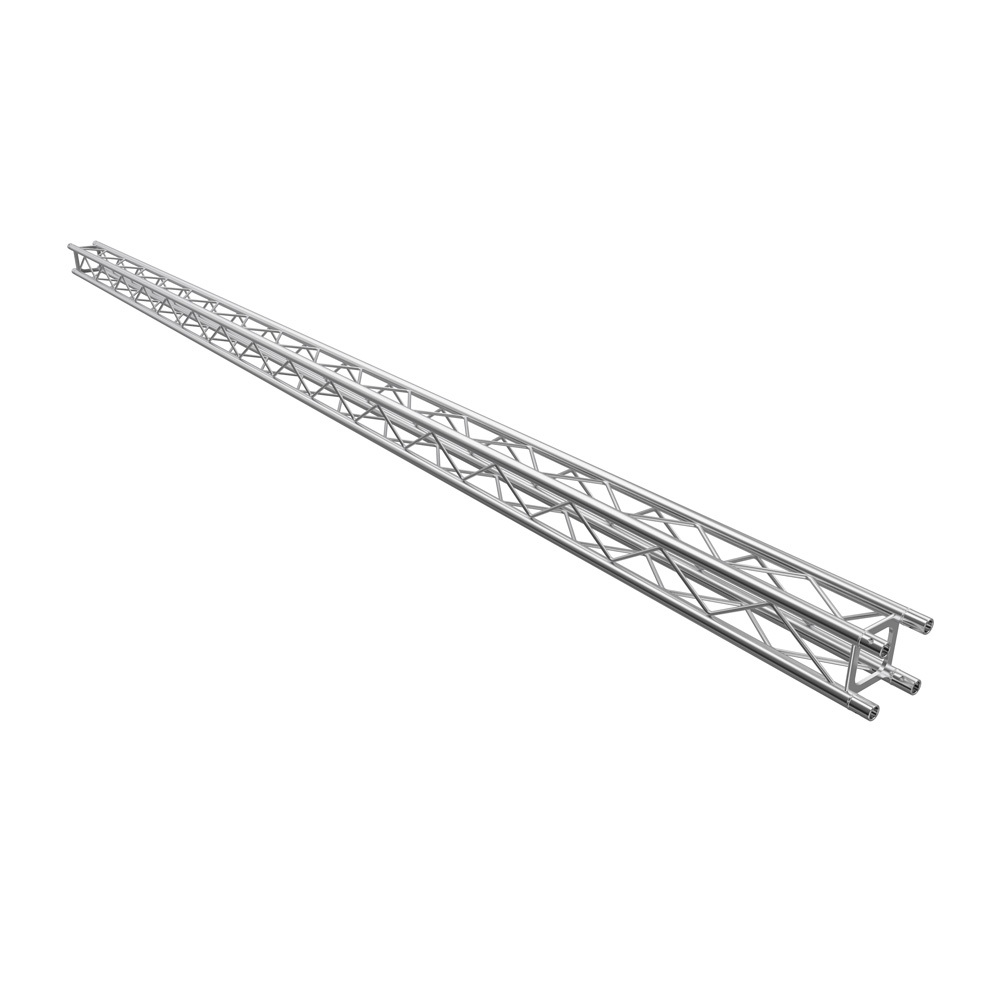

GLOBAL TRUSS F14 Square 3.0m Linear Truss with Spigots, Pins & R-Clips
SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER
$419.90
In Stock

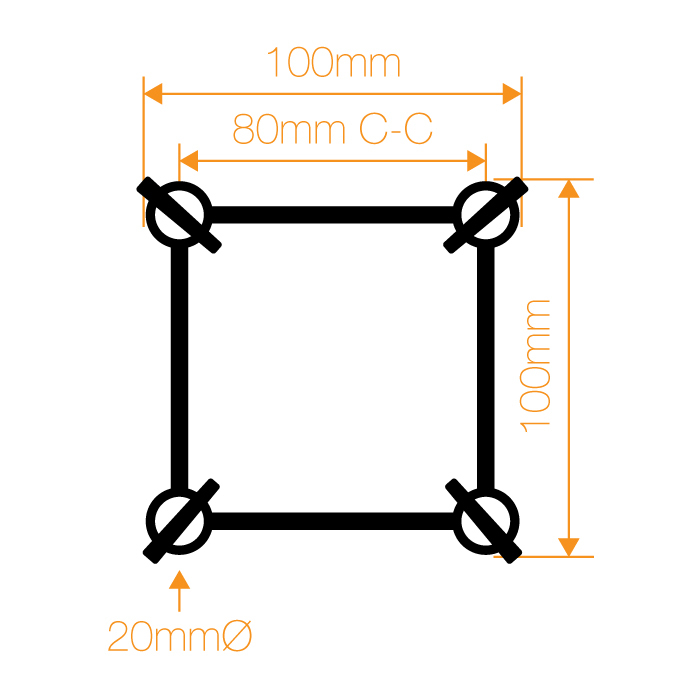

F14 Tiny Truss is the smallest of the Global Truss family at only 100mm x 100mm with 20mmø chords.
Predominantly used for decorative purposes such as retail displays, museum exhibits, and wedding decoration displays, the “scaled-down” F14 Truss is dainty in appearance whilst still fulfilling a very light duty structural purpose. The square truss is available in straight lengths, circular components and a cube junction, enabling the construction of straight runs, rectangles, circles and arches.
| SPAN (m) | CPL (kg) | UDL (kg/m) |
|---|---|---|
| 2.0 | 172 | 104 |
| 3.0 | 113 | 69 |
| 4.0 | 84 | 42 |
| 5.0 | 65 | 26 |
| 6.0 | 53 | 18 |
| 7.0 | 43 | 12 |
(GT-F14L300)
| SKU | GT-F14L300 |
| Brand | GLOBAL TRUSS |
