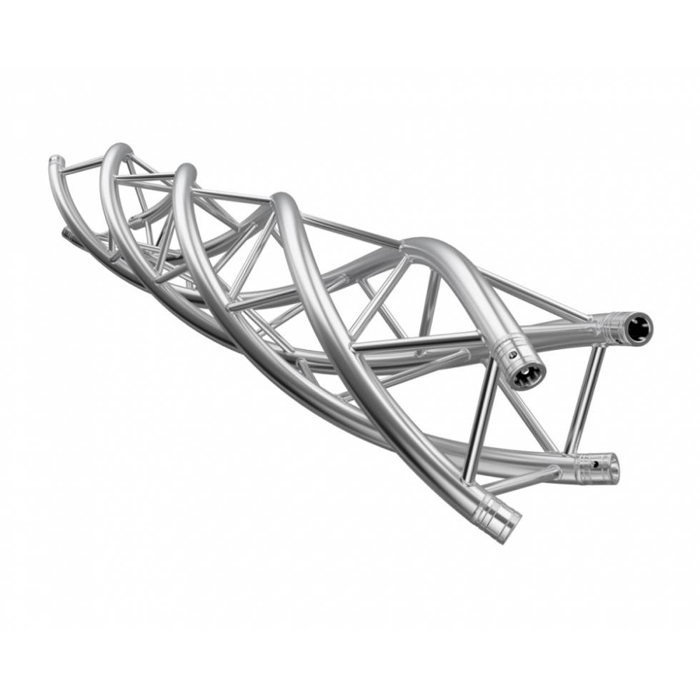

GLOBAL TRUSS F34 DNA 2.5m Linear Truss with Spigots, Pins & R-Clips
SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER

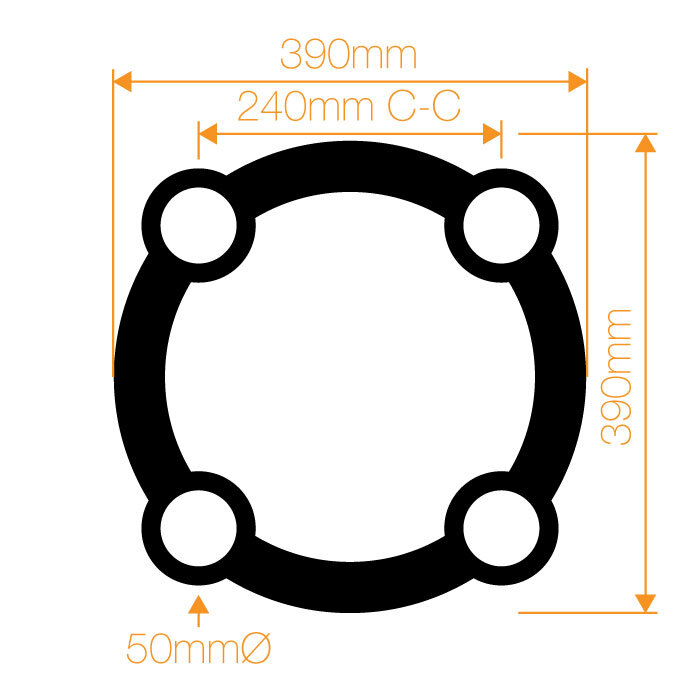

Global Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adaptor pieces can be attached which bring the DNA’s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube 50mm diameter allowing them to fit together using a conical spigot and locking pin. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions.
This product is made to order.
Description
| SPAN (m) | CPL (kg) | UDL (kg/m) |
|---|---|---|
| 2.0 | 328 | 228 |
| 3.0 | 198 | 104 |
| 4.0 | 138 | 54 |
| 5.0 | 102 | 34 |
| 6.0 | 78 | 21 |
| 7.0 | 61 | 14 |
| 8.0 | 48 | 10 |
| 9.0 | 36 | 6.5 |
| Full engineering report available upon request. | ||
Additional information
| Tube Material | |
|---|---|
| Endsocketmaterial | |
| Conical Spigot Material | |
| Steelpinmaterial | |
| Chord Dimension | |
| Bracing Dimensions | |
| Connectors Included | |
| External Length (mm) | |
| External Depth (mm) | |
| External Height (mm) | |
| Cubic volume (m³) | |
| Product Type |
Linear |
(GT-F34DNAL250)
| SKU | GT-F34DNAL250 |
| Brand | GLOBAL TRUSS |
