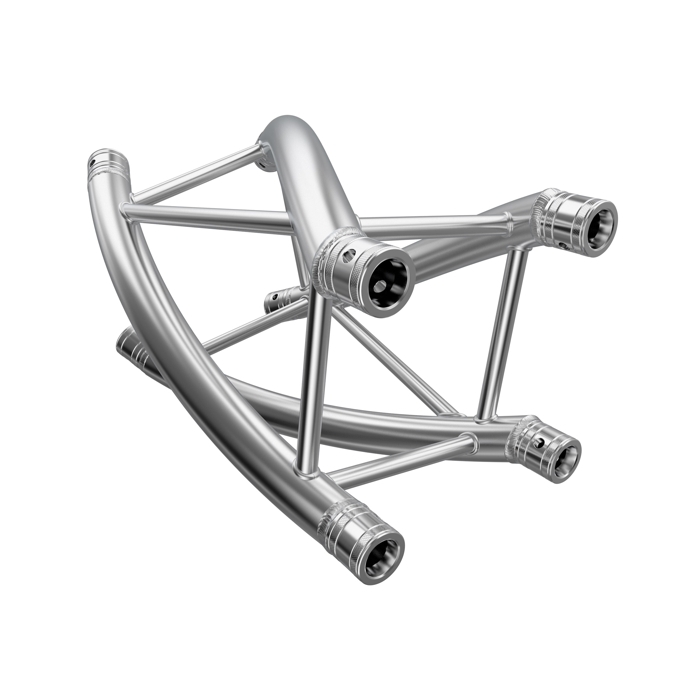

GLOBAL TRUSS F34 DNA to Standard F34 0.5m Linear Truss Transition

SHIPPED DIRECTLY FROM SUPPLIER TO CUSTOMER

$729.90
Sold Out - Backorder Available


Calculate Shipping



IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

Global Truss has developed the completely unique truss system. The new DNA Truss is designed to bring truss to the forefront of scenic designs, creating a stunning contrast to the traditional box truss. The DNA Truss is currently available to match the existing F34 truss range. Adaptor pieces can be attached which bring the DNA’s twist into a square ensuring the DNA truss can fit seamlessly into any F34 box truss designs. DNA Truss retains the standard tube 50mm diameter allowing them to fit together using a conical spigot and locking pin. The DNA truss system can be used for a variety of applications, such as exhibitions, corporate events, retail environments, and live productions.

This product is made to order.

SPAN (m) CPL (kg) UDL (kg/m)
2.0 328 228
3.0 198 104
4.0 138 54
5.0 102 34
6.0 78 21
7.0 61 14
8.0 48 10
9.0 36 6.5
Full engineering report available upon request.

Additional information

Tube Material

Endsocketmaterial

Conical Spigot Material

Steelpinmaterial

Chord Dimension

Bracing Dimensions

Connectors Included

External Length (mm)

External Depth (mm)

External Height (mm)

Cubic volume (m³)

Product Type

Junctions

(GT-F34DNA-F34L050)

SKU GT-F34DNA-F34L050
Brand GLOBAL TRUSS
