High End Systems HEDGEHOG 4X Console

Calculate Shipping

IN STORE PICK UP - $0.00
IN STORE PICK BETWEEN 10AM - 4PM MONDAY TO SATURDAY

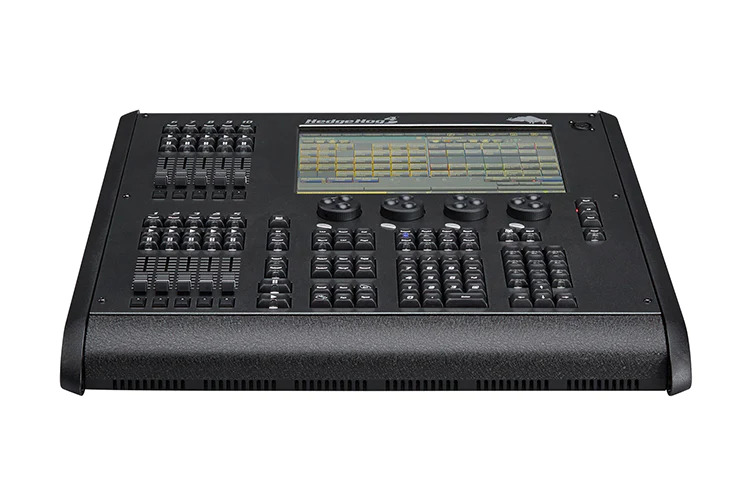

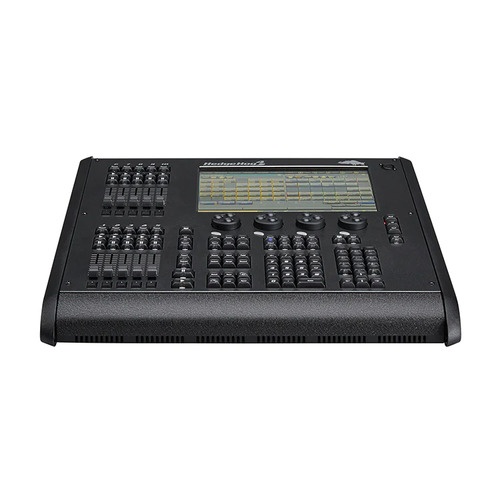

HedgeHog 4X consoles might be small but they pack a serious punch! Built for travel (even on a plane), these consoles are compact and lightweight perfect for new users and smaller venues. School theaters, nightclubs, corporate events, medium-scale rental events and houses of worship are the HedgeHog 4X’s natural habitat. HedgeHog 4X consoles share the same programming layout and capability as their larger brothers, and can happily load show files from any console in the range.

The HedgeHog 4X has an internal 12.1 in multi-touch monitor, ten faders and four encoder wheels, full networking capabilities and a capacity of six universes.

FEATURES

Robust Hog 4 OS operating system
4 high-resolution parameter encoders
10 master playbacks with non-motorized faders and master control keys
Built-in 12 in multi-touch screen
Two external display port monitors supported, touch or multi-touch
3,072 output channels, expandable with DMX Processors (HPU or DP8K)
2 Neutrik XLR-5 DMX outputs
sACN and Art-Net
MIDI In, Out and Thru
One blue/white desk lamp included
Custom road case available

SYSTEM CAPACITY

3,096 parameters (6 universes) via local processing, expandable total outputs using DMX Processors (HPU or DP8K)
Solid-state hard drive
8 USB ports for flashdrives, pointing devices, keyboards

DISPLAY FUNCTIONS

Single 12 in mulit-touch screen

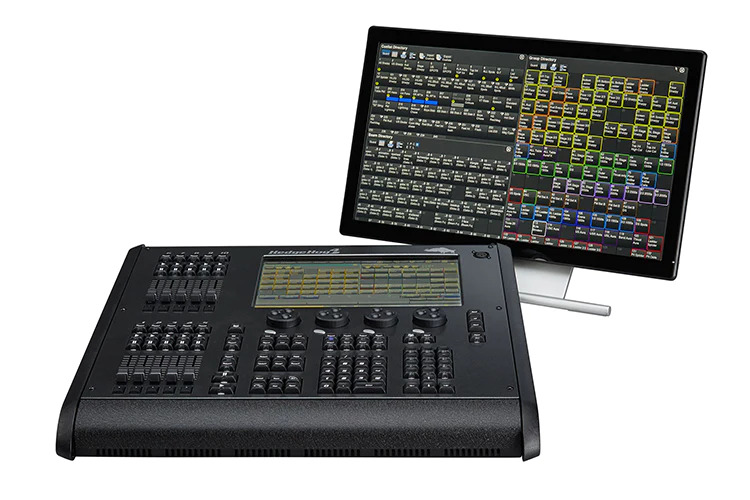

Supports two external DisplayPort monitors at 1280x1024 minimum resolution, with optional touch or multi-touch control
User configurable displays with recordable views
Dedicated views to access most-used items quickly
Palette, list, views, scenes, batches, effects directories
Programmer window
Plot views
Output window
Fixture Schedule and Patch windows, sortable by fixture or by Universe
Three color schemes for daylight use, regular use or dark environment use

PROGRAMMING

Compact command keypad for quick programming
Command-line interface
Programmer window displays selected and adjusted fixtures
Lists constructed with +, -, and Thru or selection softkeys, Next, Back and All commands
Intensity set with command keypad, full key, intensity palettes
Ordered groups
Comprehensive fanning using segments and buddying
User Kind/Command keys for additional functions
Dedicated kind keys and 4 high-resolution parameter encoders
Media picker window
HS colour picker window
Programmer window
Groups for simplified fixture selection
Palettes: intensity, position, colour, beam, effects
Effects Engine™
Pixelmapping Effects
Park
Undo command
Delete, Move and Copy commands
Highlight, lowlight and rem dim commands
Cue level and parameter level timing
Record, Update and Merge commands
Knockout and Clear commands
Set command for text labels and data entry

PLAYBACK CONTROLS

10 pageable master playbacks with customizable motorised faders, flash, go, halt, back and choose keys
Master playback keys including go, halt, release, assert and choose keys
Unlimited fader pages
Comment macros and keystroke macros
GM key
Paging keys
Virtual masters
Scenes
Batch controllers
Group masters
Triggering via Commands
Playback bars
Playback expansion via Master Wing 4, Playback Wing 4, MiniWing 4
OSC input/output
MIDI messages, MIDI Show Control, MIDI/LTC timecode

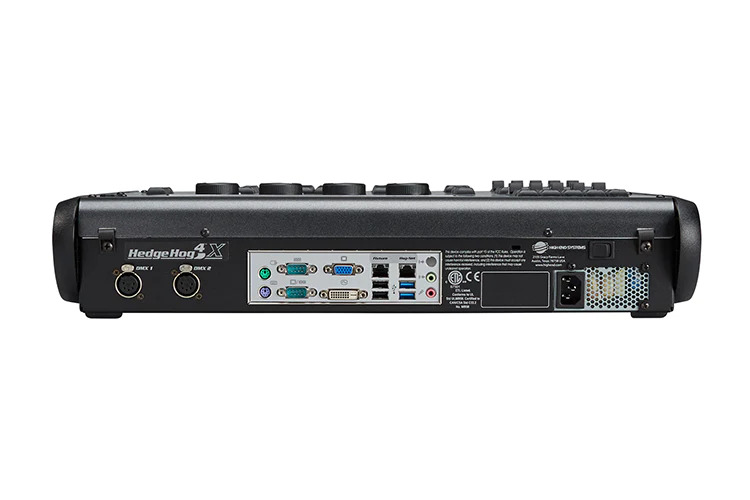

INTERFACE AND ACCESSORIES

Local DMX-512 outputs: 2x Neutrik 5-pin XLR
Expandable DMX-512 outputs via USB DMX Widgets
Local Art-Net and E1.31/sACN outputs: 1x 1GB/s Ethernet port
Local HogNet 1GB/s Ethernet port
Unlimited DMX-512, Art-Net and E1.31/sACN universes via HogNet-connected DMX processors (HPU or DP8K)
MIDI in/out/thru supporting MIDI messages, MIDI Show Control, and MIDI Time Code
Expandable MIDI and LTC inputs via USB MIDI/LTC Widgets
Connectivity with visualizers via Fixture-Net (Art-Net or E1.31/ sACN, unrestricted by local output capacity)
OSC (Open Sound Control) for remote control and integration
USB 2.0 ports: 4 rear
USB 3.0 ports: 4 rear
