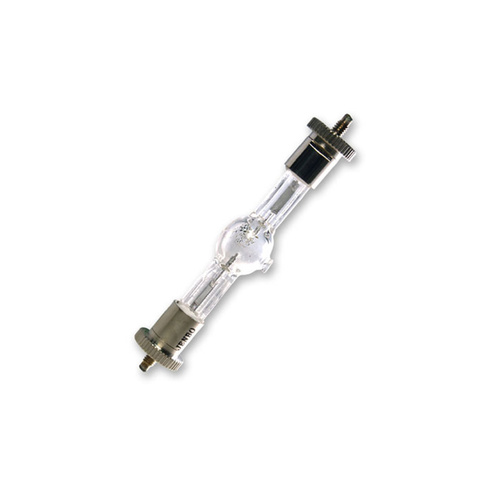

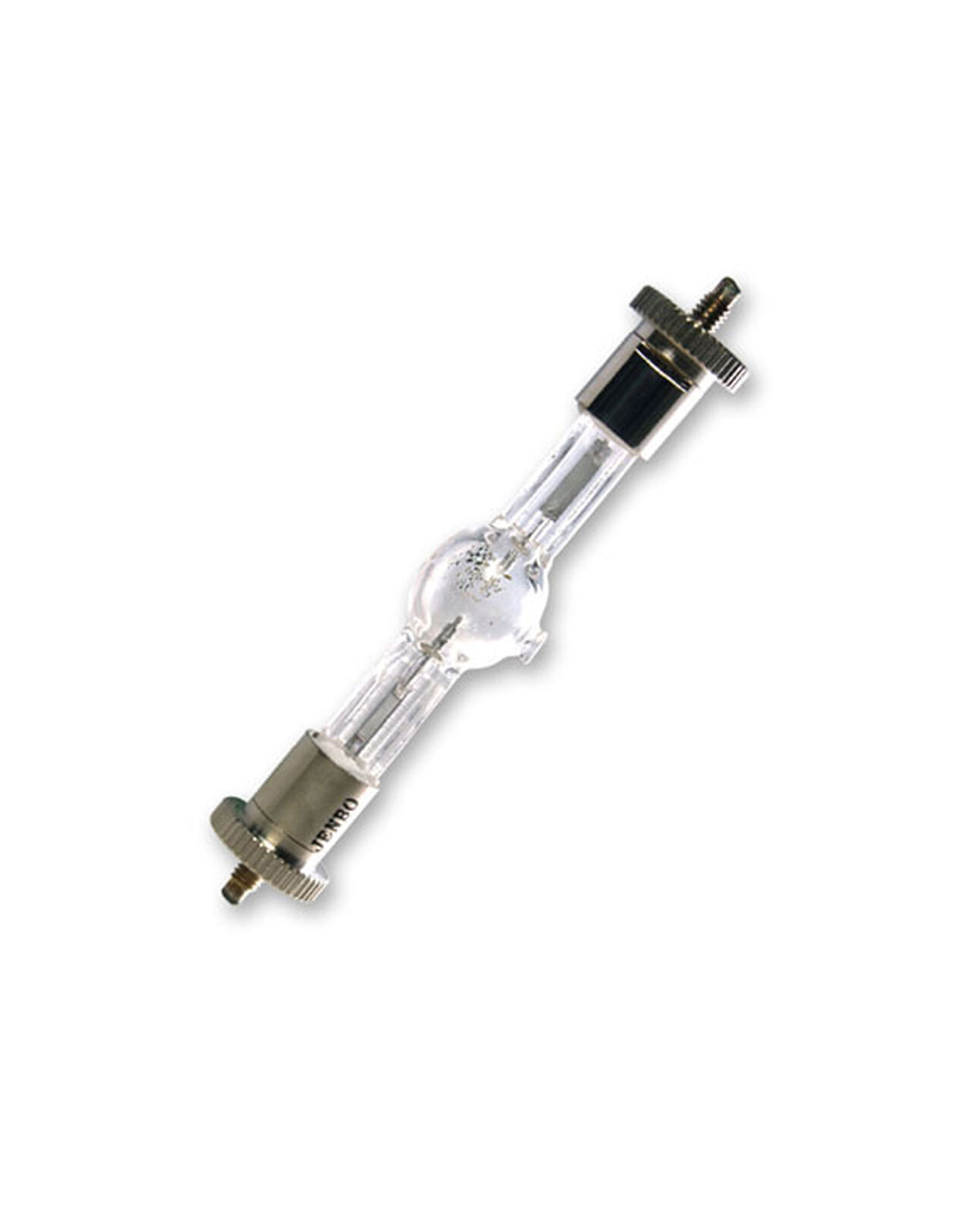

OSRAM HTI-300 W/D5/65 LAMP

Product features and benefits

•  SHARXS lamps provide consistent lengths and bases within each SharXS family for simplified fixture designs (Baby SharXS - 93mm, SharXS - 136mm, Maxi SharXS - 220mm)
•  Robust design with eXtreme Seal (XS) technology, allowing up to 450°C at the pinch seal
•  Hot restart capability
•  Natural tone of light with CRI as high as 90 for "Brilliant" types
•  Pre-focus base for accurate lamp installation

Areas of application

•  Concert Lighting
•  Club & Disco
•  Stage & Theatre
•  Studio, TV, & Film
•  Architecture & Architainment

Safety advice
Because of their high luminance, UV radiation and high internal pressure during operation, Maxi SharXS HTI lamps may only be operated in enclosed lamp casings specially constructed for the purpose. Appropriate filters must ensure that UV radiation is reduced to an acceptable level. Mercury is released if the lamp breaks. Special safety precautions must be taken. Information on safety and handling is available on request or can be found in the leaflet included with the lamp or in the operating instructions.

Technical Data

General Product Information

Product number (Americas)

54299

Product name (Americas)

BABY SHARXS HTI 300W/D5/65 10/CS 1/SKU

Family brand

Baby SharXS HTI

Lamp type

DOUBLE ENDED

Global order reference

Baby SharXS HTI 300 W/D5/65

Electrical Data

Nominal wattage

300 W

Nominal voltage

95.0 V

Ignition voltage

4.5 / 20 kVp

Nominal current

3.6 A

Type of current

AC

Photometric Data

Luminance

40000 cd/cm²

Nominal luminous flux

22000 lm

Luminous efficacy

75 lm/W

Color temperature

6500 K

Color rendering index Ra

85

Light center length (LCL)

35.0 mm

Physical Attributes & Dimensions

Electrode gap (cold)

5.5 mm

Diameter (in)

0.630 in

Diameter

16.0 mm

Length

93.0 mm

Product weight

26.00 g

Operating Conditions

Burning position

Any

Cooling

Forced

Max. permitted ambient temp. pinch point

450 °C

Maximum permitted pinch temperature

450 °C

Lifetime Data

Nominal lifetime

750 hr

Environmental & Regulatory Information

Information according Art. 33 of EU Regulation (EC) 1907/2006 (REACh)

Primary article identifier

4008321129208

Declaration no. in SCIP database

No declarable substances contained

Candidate list substance 1

No declarable substances contained

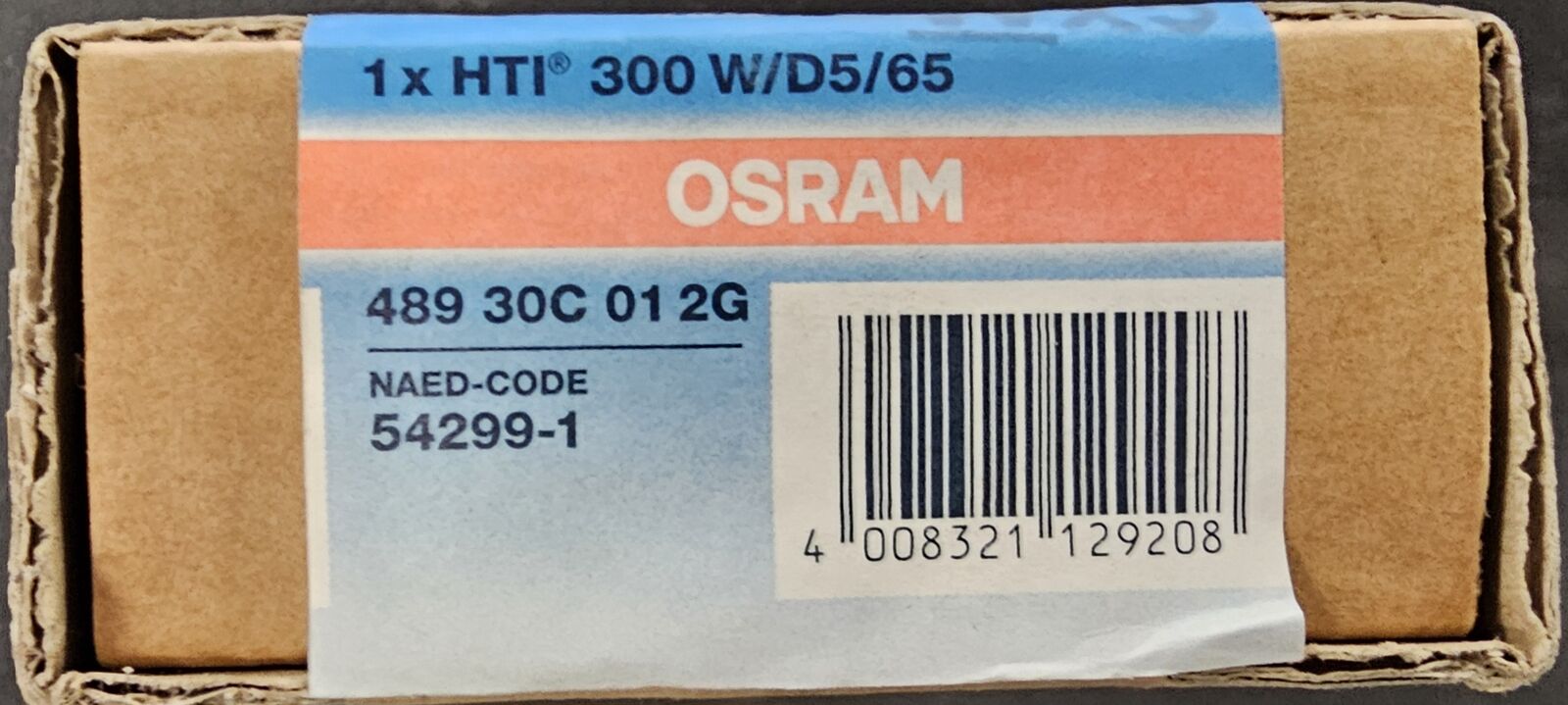

Packaging information

EAN	Unit	Piece	Dimension l x w x h	Weight	Volume
4008321129208	VS	1	165mm x 58mm x 95mm	106.00g	0.91dm³

Country specific information

EAN	METEL code
4008321129208	OSRHTI30065BY
