Power Dynamics PAM2004 4-Zone Matrix Amplifier 4x 200W
SHIPPED FROM SUPPLIER TO CUSTOMER DIRECTLY
$949.00
In Stock
Key Features:
- 100V matrix amplifier with 4 independent output zones
- 4x 200W power Section
- Using BT wireless technology for audio streaming
- 3x Mic/line inputs Combi 6.3mm Jack/XLR, 2x RCA line input
- XLR Microphone inputs with switchable phantom power
- Priority function on channel 1
- Integrated limiter
- 100V or 4/8 Ohm speaker output

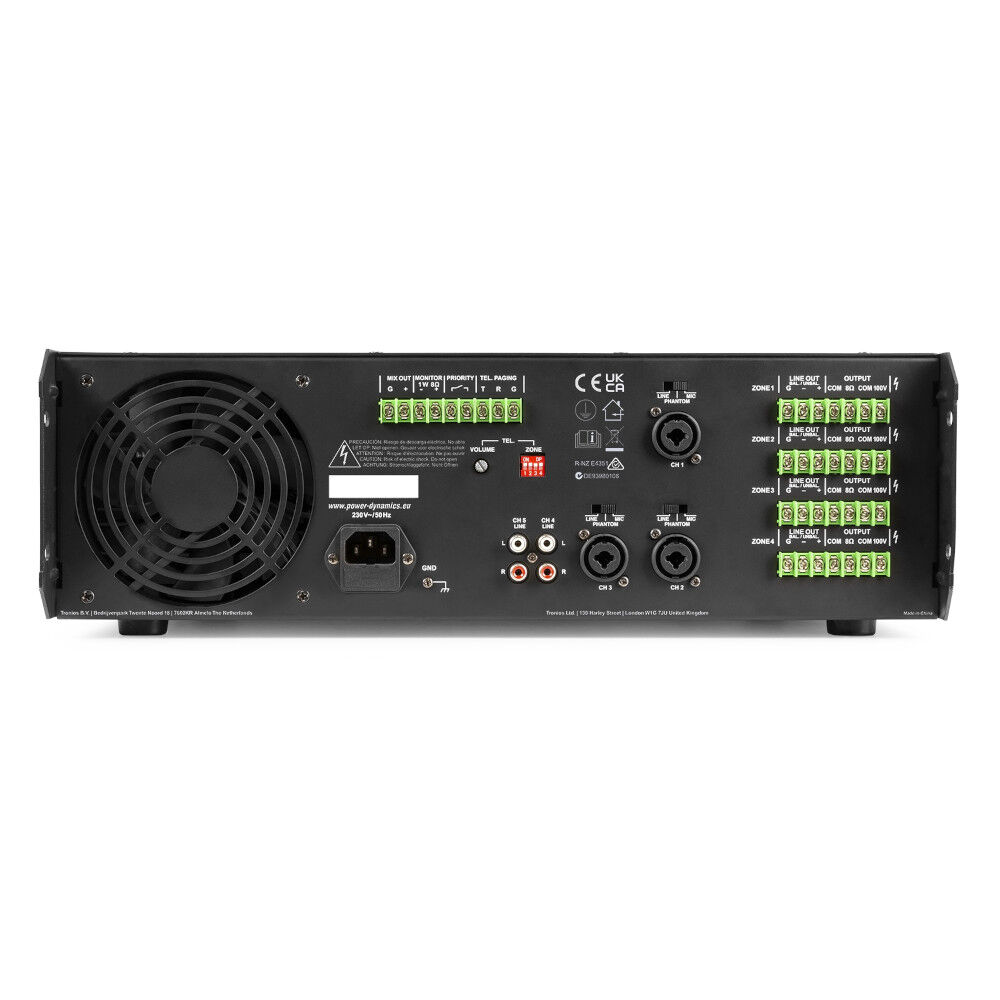

- Zone connections: 4x Speaker Terminal (100V / 4Ohm / 8Ohm / Com)
- Bass and treble controls
- Independent paging input, can be routed to all zones
- Level control via VU meters
- Adjustable headphone connection
- 19″ Rack mountable
- Protections: Overheat, short circuit and power on delay.
Technical Data
| Product colour | Black |
|---|---|
| Playback options | BT streaming |
| Output power: RMS | 800W |
| Impedance | 4 Ohm, 8 Ohm, 100V |
| Frequency response | 20Hz – 20.000Hz |
| Signal-to-noise ratio | >75dB – LINE
>65dB – MIC |
| Input level | 100mV, 30 kOhm – LINE
40mV, 5 kOhm (tel. paging) – MIC |
| Power Supply | 220-240VAC 50Hz |
| THD | <1% |
| Dimensions (L x W x H) | 490 x 485 x 140mm |
| Weight | 25.10Kg |
| Included accessories | Mounting bracket, Power cable |
(PD-PAM2004)
| SKU | PD-PAM2004 |
| Brand | POWER DYNAMICS |
